Ref:

LLC05N7

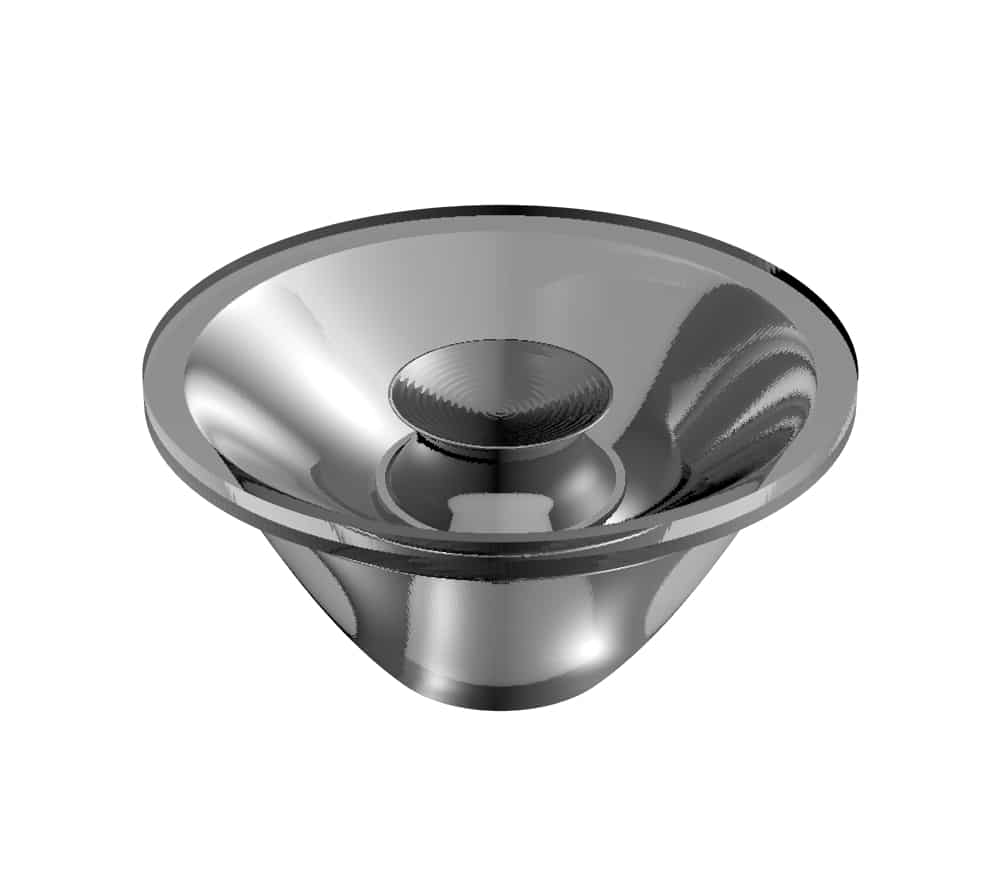

Narrow Collimator

Ø 32 mm narrow beam silicone collimator.

More details :

LLC05N7 is a Ø 32 mm narrow beam silicone collimator. It is suitable for various application fields where a narrow and controlled beam is required. It benefits from the patented negative draft angle input port design. allowing a very homogenous beam with limited stray light.
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	Efficacy 1	CCI
	CLU02Q Type-F	33.0	61.6	2.0	1.0
BRIDGELUX	V3_HD_GEN_8	12.9	20.3	15.9	1.7
BRIDGELUX	V4_HD BXRH_30G0600_A_72	16.0	26.0	9.9
BRIDGELUX	V6 BXRE_30E0400_A_03	16.9	32.0	7.7
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	19.5	34.7	6.3	5.6
BRIDGELUX	VERO 10 SE BXRC_30E1000_C_72	24.1	56.7	2.5
CITIZEN	CLU7L3	10.9	20.0	17.5	7.7
CITIZEN	CLU7B2	12.0	19.8	17.3
CITIZEN	CLU7S3	12.9	21.9	14.6	4.3
CITIZEN	CLU7R3	14.7	25.3	11.3
CITIZEN	CLU7A2	15.0	24.4	11.8
CITIZEN	CLU7A3 Type-F	17.2	25.7	9.3	0.8
CITIZEN	CLU701	19.0	32.2	7.2
CITIZEN	CLU700	20.2	32.4	7.0
CITIZEN	CLU702	21.4	33.7	6.3
CITIZEN	CLU703 Type-F	22.8	36.9	4.6	1.4
CITIZEN	CLU710	26.8	46.5	3.5
CITIZEN	CLU711	26.9	46.1	3.5
CITIZEN	CLU712	27.2	48.2	3.3
CITIZEN	CLU713 Type-F	28.8	52.6	2.6	2.1
CITIZEN	CLU02J	29.4	56.6	2.5
CITIZEN	CLU720	29.9	60.7	2.3
CREE	XQ-E HI	4.1	7.4	138.4
CREE	XP-P	4.5	7.6	122.6	0.8
CREE	XP-E2	5.4	9.5	83.6
CREE	XD16 Premium White	5.9	9.9	69.6	5.6
CREE	XD16	7.0	12.8	48.6
CREE	XP-L HI	7.2	12.1	50.6
CREE	XP-G2	7.7	12.5	44.7
CREE	XP-G	7.9	12.8	43.5
CREE	XPL-HI_post_PCN5155	8.6	15.2	29.8	6.5
CREE	XHP35 HI	8.9	14.8	29.4
CREE	XP-G4	9.0	14.3	29.7	2.3
CREE	XHP50.3 HI	9.1	17.8	24.1	11.6
CREE	XP-G3	9.2	15.8	28.2
CREE	XP-G2 HE	9.9	16.0	27.1	2.9
CREE	XT-E HE	10.3	19.4	22.3
CREE	XHP35.2 HI	10.4	18.4	20.3	3.2
CREE	XP-L	11.2	18.4	21.7
CREE	XM-L2	11.8	18.7	17.4	4.8
CREE	XP-L2	12.6	21.4	16.7
CREE	XHP35 HD	13.9	22.2	13.9
CREE	XHP35.2 HD	14.7	29.3	9.6
CREE	CMA1303	14.9	27.7	9.9
CREE	MHD-E	16.9	31.8	8.5
CREE	XHP70.3 HI	17.0	28.9	8.1	5.1
CREE	XHP50.3 HD	17.5	27.2	8.1	2.7
CREE	CXA 13XX	17.6	30.7	7.8
CREE	XHP50.2	18.1	28.1	9.2
CREE	CXB 1310	19.4	33.5	7.1
CREE	XHP70.3	24.3	38.3	4.7	2.9
CREE	CXA 1507	24.9	48.2	3.4
CREE	CXA 1520	25.3	46.8	3.7
CREE	XHP70.2	25.6	40.1	4.5
CREE	CXB 1507	26.7	49.5	3.2
EDISON	2PHM10xWxxP55020	13.0	23.0	3.3
LED ENGIN	LZ1 14CWP2	3.8	6.3	163.1
LUMILEDS	LUXEON Z ES	5.1	8.3	105.2	7.9
LUMILEDS	LUXEON C	5.4	9.6	88.1
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H04	16.4	26.5	10.2
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H06	17.5	31.8	7.5
LUMILEDS	LUXEON M	18.6	29.5	7.6
LUMILEDS	LUXEON COB 1202S	20.6	37.2	5.8
LUMILEDS	LUXEON COB 109	21.3	34.1	6.4
LUMILEDS	LUXEON_CX_PLUS_CoB_HDM02F09	22.0	44.8	4.2
LUMILEDS	LUXEON COB 1203	28.0	49.8	3.2
LUMILEDS	LUXEON COB 1202	28.5	49.2	3.0
LUMILEDS	LUXEON_CX_PLUS_COB_HD	28.9	52.7	2.7
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS04H09	28.9	52.6	2.8
LUMINUS	SST-12	5.8	10.1	62.4	5.3
LUMINUS	SST_20_WxH	7.1	11.2	56.5
LUMINUS	SST_20_WxS	7.3	11.6	50.6
LUMINUS	SFT-40	7.6	12.0	43.8	2.6
LUMINUS	SFT-70	10.6	16.1	22.5	2.3
LUMINUS	SST-40	10.6	17.1	21.5	3.3
LUMINUS	CXM_3	13.1	20.8	14.4
LUMINUS	SST-70	14.0	21.6	13.4	3.3
LUMINUS	CXM_4	15.9	26.4	9.4
LUMINUS	CXM_9	18.5	53.4	2.6
LUMINUS	CXM_6	21.2	33.5	6.3
LUMINUS	CDM_6	26.4	38.9	4.2
NICHIA	NFSWE11A	3.7	6.2	173.4
NICHIA	NCSWE17AT	5.3	9.3	94.5
NICHIA	NVSW219CT-V2	6.7	10.8	49.3	1.3
NICHIA	NVSWE21AT	6.9	11.6	58.2
NICHIA	NVSW719AC	8.2	12.9	34.3	0.8
NICHIA	757	9.0	15.4	30.8
NICHIA	NVSW219F_V1	9.4	14.1	32.8
NICHIA	NVSL219C	9.6	15.4	29.4
NICHIA	NVSW319A	10.3	17.7	23.9
NICHIA	NVSW519A	12.0	17.5	20.8
NICHIA	NWSL229A	12.8	20.8	16.1
NICHIA	NV4WB35AM	13.2	21.1	14.5
NICHIA	NV4L144AR	18.2	29.8	8.3
NICHIA	NVNWS007Z_V1	18.5	33.7	7.1
NICHIA	NTCWT012B_V3	21.0	33.7	6.1
NICHIA	NTCWS024B_V3	21.2	37.3	5.7
NICHIA	NJCWL024Z_V1MT	21.6	41.9	4.5	5.9
NICHIA	NJCWS024Z_V1	21.7	40.5	5.0
NICHIA	NFCLL036B_V1	22.1	56.0	2.2
NICHIA	NVEWL016Z_V1	25.4	49.3	3.4
NICHIA	NFCWL036B_V3	27.7	47.4	3.2
NICHIA	NVCWL024Z_V1	29.0	59.7	2.4
OSRAM	OSLON COMPACT CM LUW CEUN.CE	3.1	5.8	192.3
OSRAM	OSLON BOOST HM KW CELMM1.TG	3.1	5.4	217.6	3.3
OSRAM	OSLON PURE 1010 GW VJLPE1 EM	3.7	7.2	161.3
OSRAM	OSLON BLACK FLAT LUW HWQP	4.1	7.0	137.1
OSRAM	OSLON COMPACT PL KW CELNM2.TK	4.2	7.3	110.2	3.1
OSRAM	OSLON COMPACT CL LUW CEUP	4.9	9.3	97.0
OSRAM	OSLON SSL 80	4.9	9.7	85.3
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	5.0	9.1	89.9
OSRAM	OSLON SQUARE FLAT KW CSLPM2.PC	5.3	10.0	72.7
OSRAM	OSLON SSL 150	5.4	8.4	100.3
OSRAM	OSLON Boost HX KW CULPM1.TG	5.6	9.5	74.2
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	6.1	11.5	55.3
OSRAM	OSLON SQUARE GW CSSRM1.EC	6.9	13.9	43.8
OSRAM	OSLON SQUARE GW CSSRM1.PC	7.0	14.0	41.2
OSRAM	OSLON SQUARE LCW CQAR	7.0	14.4	40.1
OSRAM	OSLON SQUARE GW CSSRM1.BM	7.2	13.6	35.7	1.0
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	7.4	12.8	41.1
OSRAM	OSLON SQUARE GW CSSRM2.PM	8.0	14.7	36.8
OSRAM	OSCONIQ P3737 GW PULTA1.CM	8.0	15.1	33.5
OSRAM	OSLON SQUARE GW CSSRMU.CM	8.1	13.4	36.5
OSRAM	OSLON SQUARE GW CSSRM3.PM	8.4	16.3	27.6
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	11.1	18.1	20.5
OSRAM	DURIS P10	15.7	29.8	8.4
OSRAM	DURIS S8 P9LT32.PM	17.3	26.5	9.4
OSRAM	DURIS S10	19.4	33.4	6.8
OSRAM	SOLERIQ S9	28.5	54.6	2.9
OSRAM	SOLERIQ S13	32.8	66.1	2.0
PLESSEY	PLW7070GA	19.1	30.2	7.4
SAMSUNG	LC010CV2	18.6	34.7	6.8
SEOUL	Z5	5.0	8.2	108.7
SEOUL	Z5_M1	7.4	13.1	44.8
SEOUL	Z5M4	9.9	17.0	25.9
SEOUL	SAWS0661A	16.7	32.7	7.9
SEOUL	SAWS1063A	27.8	54.0	2.8
XICATO	XOB06	20.4	32.6	6.6
XICATO	XOB 9	26.2	50.9	3.0
XICATO	XTM & XIM 9MM	26.7	52.6	2.9	3.6
