Ref:

LLR01N + LLD01N1

Narrow Hybrid reflector

Ø 45 mm narrow beam PC hybrid reflector.


This article is available on demand. Please contact us or our distributors.

More details :

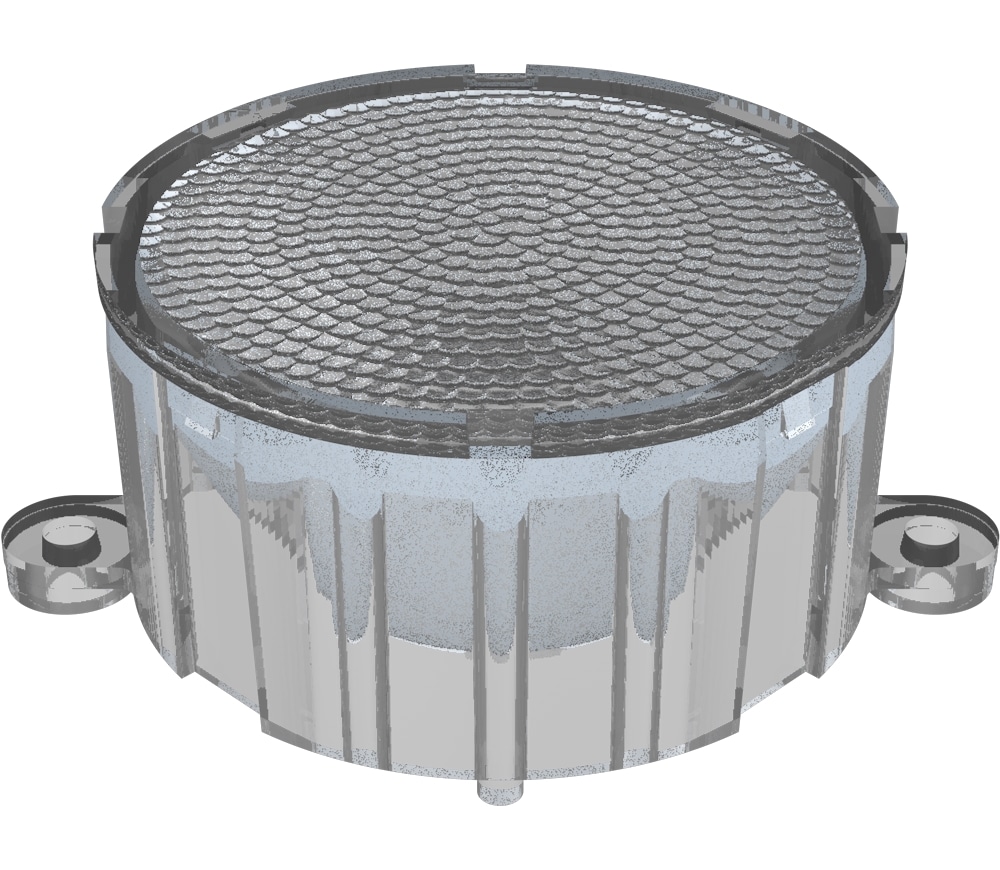

LLR01N + LLD01N1 is a Ø 45 mm narrow beam PC hybrid reflector. It is a combination of LLR01N hybrid reflector with optional output clipped window.
Discover how to choose the right holder.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 Efficacy 1 Efficacy 2 CCI
BRIDGELUXV4_HD BXRH_30G0600_A_7210.725.49.8
BRIDGELUXV10 BXRE_30E1000_B_0321.244.93.6
BRIDGELUXVERO 10 BXRC_30E1000_B_0324.149.73.1
BRIDGELUXVERO 10 SE BXRC_30E1000_C_7232.872.61.7
CITIZENCLU7A28.617.517.9
CITIZENCLU7B216.028.27.4
CITIZENCLU71116.840.64.1
CITIZENCLU70117.233.55.9
CITIZENCLU70018.334.75.5
CITIZENCLU71019.841.84.1
CITIZENCL-L02021.645.03.6
CITIZENCLL33023.052.83.0
CITIZENCLU72023.957.02.7
CITIZENCLU02824.952.52.7
CREEXQ-E HI4.58.853.7
CREEXP-E24.89.746.8
CREEXP-L HI5.310.541.5
CREEXHP35 HI6.013.127.4
CREEXP-G6.012.733.3
CREEXP-G26.312.331.2
CREEXQ-E6.511.831.0
CREEXP-G36.612.531.1
CREEXD167.614.823.4
CREEXT-E HE7.914.225.9
CREEXHP35.2 HI7.916.021.0
CREEXP-L28.819.415.8
CREEXM-L29.116.319.7
CREEXHP35.2 HD10.122.810.7
CREEXP-L11.621.611.8
CREEXHP50.211.924.910.2
CREEMK-R212.327.58.7
CREEMK-R13.426.39.4
CREECXA 13XX13.927.08.8
CREECXB 131015.129.97.6
CREEXHP7016.831.96.4
CREEMT-G16.835.55.8
CREEMT-G216.835.35.7
CREEXHP70.217.035.25.6
CREECXB 152018.145.13.5
CREECXA 150718.839.74.5
CREECXB 150720.344.03.8
CREECXA 152022.846.73.3
CREECXA 18XX25.762.32.5
EDISON2PHM10xWxxP5502019.032.24.9
LED ENGINLZ1 14CWP25.610.939.9
LUMILEDSLUXEON C4.88.759.0
LUMILEDSLUXEON Z ES5.29.846.4
LUMILEDSLUXEON T8.314.225.1
LUMILEDSLUXEON MZ8.716.319.2
LUMILEDSLUXEON M12.725.89.3
LUMILEDSLUXEON S100015.229.47.0
LUMILEDSLUXEON COB 1202S15.832.76.2
LUMILEDSLUXEON COB 10916.938.14.7
LUMILEDSLUXEON COB 120320.346.03.5
LUMILEDSLUXEON COB 120528.873.42.0
LUMINUSCDM_611.329.17.8
LUMINUSCXM_612.626.58.5
LUMINUSCTM_921.244.33.7
NICHIANVSW319A8.215.821.4
NICHIANVSL219C9.016.120.6
NICHIANWSL229A9.117.218.8
NICHIANV4WB35AM12.222.211.4
NICHIANV4L144AR12.423.710.3
NICHIANTCWT012B_V312.930.87.1
NICHIANJCWL024Z_V1MT14.435.15.03.6
NICHIANVNWS007Z_V115.331.66.5
NICHIANTCLS024B_V116.734.16.0
NICHIANJCLS024Z16.934.95.6
NICHIANJCWS024Z_V117.336.35.2
NICHIANVEWL016Z_V119.442.83.9
NICHIANFCLL036B_V120.043.03.9
NICHIANVCWJ024Z_V1MT20.258.22.7
NICHIANVCWL024Z_V122.554.92.8
OSRAMOSTAR PROJECTION COMPACT KW CSLNM1.TG4.08.059.2
OSRAMOSLON SQUARE FLAT KW CSLPM2.PC4.810.144.0
OSRAMOSLON SQUARE LCW CQAR6.313.726.5
OSRAMOSLON SQUARE GW CSSRM1.PC7.214.723.5
OSRAMOSLON COMPACT CM LUW CEUN.CE7.312.627.4
OSRAMOSLON SQUARE GW CSSRM2.PM7.514.026.9
OSRAMOSLON SQUARE GW CSSRM1.EC8.415.921.4
OSRAMOSLON SQUARE GW CSSRM3.PM9.820.414.4
OSRAMDURIS S8 P9LMS1.EM9.821.413.8
OSRAMDURIS S8 P9LRS1.EM11.321.612.7
OSRAMDURIS P1012.625.310.1
OSRAMDURIS S8 P9LT32.PM13.125.59.8
OSRAMSOLERIQ S922.046.73.5
OSRAMSOLERIQ S1327.770.42.2
PLESSEYPLW7070GA13.327.58.3
SAMSUNGLC010CV216.333.26.1
SEOULZ5_M15.511.236.1
SEOULZ55.610.138.9
SEOULSAWS0661A12.927.78.3
SEOULSAWS1063A21.146.93.5
XICATOXOB0613.030.97.0
XICATOXOB 926.958.32.2
