Ref:

LLR01N + LLD01S1

Super large Hybrid reflector

Ø 45 mm super large beam PC hybrid reflector.

More details :

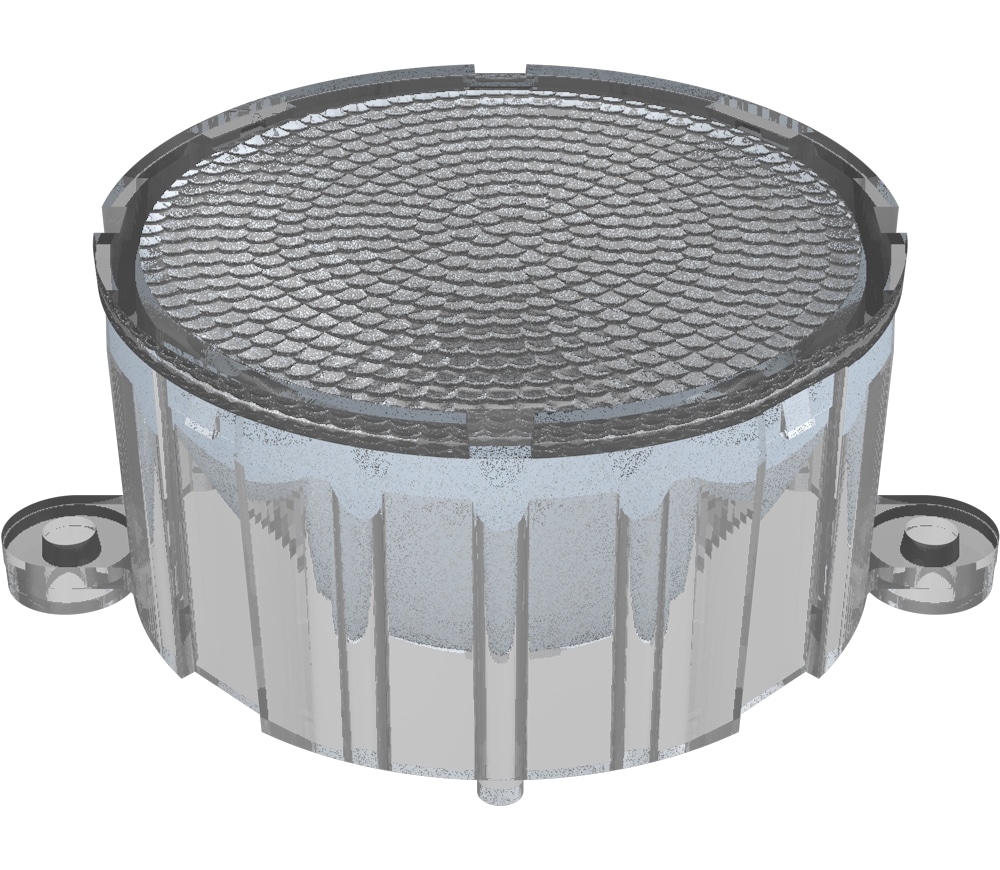

LLR01N + LLD01S1 is a Ø 45 mm super large beam PC hybrid reflector. It is a combination of LLR01N hybrid reflector with optional output clipped window.
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	Efficacy 1	CCI
BRIDGELUX	V4_HD BXRH_30G0600_A_72	35.4	89.7	1.2
BRIDGELUX	V10 BXRE_30E1000_B_03	44.6	103.2	0.9
BRIDGELUX	VERO 10 BXRC_30E1000_B_03	46.9	104.1	0.9
BRIDGELUX	VERO 10 SE BXRC_30E1000_C_72	51.2	104.3	0.7
CITIZEN	CLU7A2	33.2	83.0	1.4
CITIZEN	CLU7B2	34.5	83.2	1.3
CITIZEN	CLU701	37.4	88.5	1.1
CITIZEN	CLU700	40.3	93.1	1.1
CITIZEN	CLU711	42.9	97.0	1.0
CITIZEN	CLU710	42.9	96.3	1.0
CITIZEN	CLL330	47.6	103.7	0.8
CITIZEN	CLU720	48.6	102.7	0.8
CITIZEN	CLU028	48.8	106.0	0.8
CITIZEN	CL-L020	48.9	99.6	0.8
CITIZEN	CLU026	58.6	106.0	0.7
CREE	XP-L HI	30.3	74.0	1.7
CREE	XD16	30.3	74.1	1.6
CREE	XP-G	31.0	73.5	1.7
CREE	XQ-E HI	31.4	74.5	1.7
CREE	XT-E HE	31.4	74.6	1.6
CREE	XQ-E	32.0	73.2	1.6
CREE	XP-E2	32.6	78.2	1.5
CREE	XP-L2	33.7	81.4	1.4
CREE	XHP35.2 HD	33.8	85.4	1.2
CREE	MK-R	35.2	86.4	1.2
CREE	XM-L2	35.3	83.1	1.3
CREE	XHP50.2	35.5	87.4	1.3
CREE	CXA 13XX	35.6	87.6	1.2
CREE	MK-R2	36.1	88.6	1.2
CREE	CMA1303	36.1	92.3	1.1
CREE	XHP35 HI	36.5	84.0	1.2
CREE	XP-G3	36.6	84.8	1.3
CREE	XHP35.2 HI	36.6	84.8	1.2
CREE	XHP70	38.1	92.0	1.1
CREE	XHP70.2	38.8	91.3	1.1
CREE	MT-G2	39.4	94.8	1.0
CREE	MT-G	39.7	94.6	1.0
CREE	CXB 1310	39.8	93.5	1.1
CREE	CXA 1507	41.8	99.1	1.0
CREE	CXB 1507	44.0	99.1	0.9
CREE	CXA 1520	44.8	100.7	0.9
CREE	CXB 1520	45.2	103.4	0.9
CREE	CXA 18XX	50.2	108.8	0.8
CREE	XHP35 HD	53.2	89.8	1.0
CREE	XHP50	53.3	92.5	1.0
EDISON	2PHM10xWxxP55020	37.1	94.5	1.0
LED ENGIN	LZ1 14CWP2	34.7	81.0	1.5
LUMILEDS	LUXEON C	30.4	71.6	1.8
LUMILEDS	LUXEON T	31.4	73.4	1.7
LUMILEDS	LUXEON MZ	31.9	78.5	1.5
LUMILEDS	LUXEON M	34.9	84.8	1.3
LUMILEDS	LUXEON Z ES	35.1	82.5	1.4
LUMILEDS	LUXEON S1000	37.5	92.4	1.1
LUMILEDS	LUXEON COB 1202S	38.1	93.6	1.1
LUMILEDS	LUXEON COB 109	39.9	98.2	1.0
LUMILEDS	LUXEON COB 1202 HD	42.6	102.1	0.9
LUMILEDS	LUXEON K4	44.1	101.1	0.9
LUMILEDS	LUXEON COB 1203	48.9	106.3	0.8
LUMILEDS	LUXEON COB 1205	53.7	113.2	0.7
LUMINUS	CXM_6	36.2	92.7	1.2
LUMINUS	CDM_6	38.5	96.9	1.0
LUMINUS	CXM_4	38.6	95.6	1.0
LUMINUS	CTM_9	44.1	100.8	0.9
NICHIA	NVSW319A	31.4	74.8	1.6
NICHIA	NVSL219C	31.9	75.8	1.6
NICHIA	NWSL229A	32.6	76.4	1.5
NICHIA	NV4WB35AM	33.1	81.9	1.4
NICHIA	NV4L144AR	34.2	82.8	1.3
NICHIA	NVNWS007Z_V1	36.9	88.3	1.1
NICHIA	NTCWT012B_V3	37.2	93.6	1.1
NICHIA	NTCLS024B_V1	38.3	93.6	1.1
NICHIA	NJCWS024Z_V1	39.8	92.4	1.0
NICHIA	NJCLS024Z	41.8	96.0	1.0
NICHIA	NFCLL036B_V1	43.4	96.5	0.9
NICHIA	NVEWL016Z_V1	44.1	101.6	0.9
NICHIA	NJCWL024Z_V1MT	45.6	100.0	0.8	1.7
NICHIA	NVCWL024Z_V1	48.4	103.0	0.8
NICHIA	757	49.1	88.0	1.1
NICHIA	NVCWJ024Z_V1MT	50.6	113.7	0.7
NICHIA	NTCWS024B_V1	55.8	100.6	0.8
NICHIA	NJCWS024Z	56.3	99.5	0.8
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	26.9	71.1	1.9
OSRAM	OSLON COMPACT CM LUW CEUN.CE	30.6	73.5	1.7
OSRAM	OSLON SQUARE GW CSSRM1.EC	31.2	73.8	1.6
OSRAM	OSLON SQUARE GW CSSRM1.PC	31.3	74.9	1.5
OSRAM	OSLON SQUARE LCW CQAR	31.6	77.4	1.6
OSRAM	OSLON SQUARE FLAT KW CSLPM2.PC	31.8	75.7	1.6
OSRAM	OSLON SQUARE GW CSSRM2.PM	31.9	74.9	1.6
OSRAM	DURIS S8 P9LMS1.EM	33.1	79.6	1.4
OSRAM	DURIS S8 P9LRS1.EM	33.3	79.9	1.4
OSRAM	OSLON SQUARE GW CSSRM3.PM	33.7	83.8	1.4
OSRAM	DURIS S8 P9LT32.PM	35.0	87.0	1.3
OSRAM	DURIS P10	35.4	84.2	1.3
OSRAM	SOLERIQ S9	49.9	106.4	0.8
OSRAM	SOLERIQ S13	51.3	107.2	0.7
OSRAM	DURIS P8	52.8	84.4	1.0
PLESSEY	PLW7070GA	36.5	91.4	1.2
SAMSUNG	LC010CV2	38.0	92.8	1.1
SEOUL	Z5_M1	31.3	76.6	1.6
SEOUL	Z5	32.5	75.1	1.6
SEOUL	SAWS0661A	37.3	88.7	1.1
SEOUL	SAWS1063A	46.1	105.0	0.9
XICATO	XOB06	37.7	94.9	1.1
XICATO	XOB 9	49.2	106.3	0.7
