Ref:

LLR05N

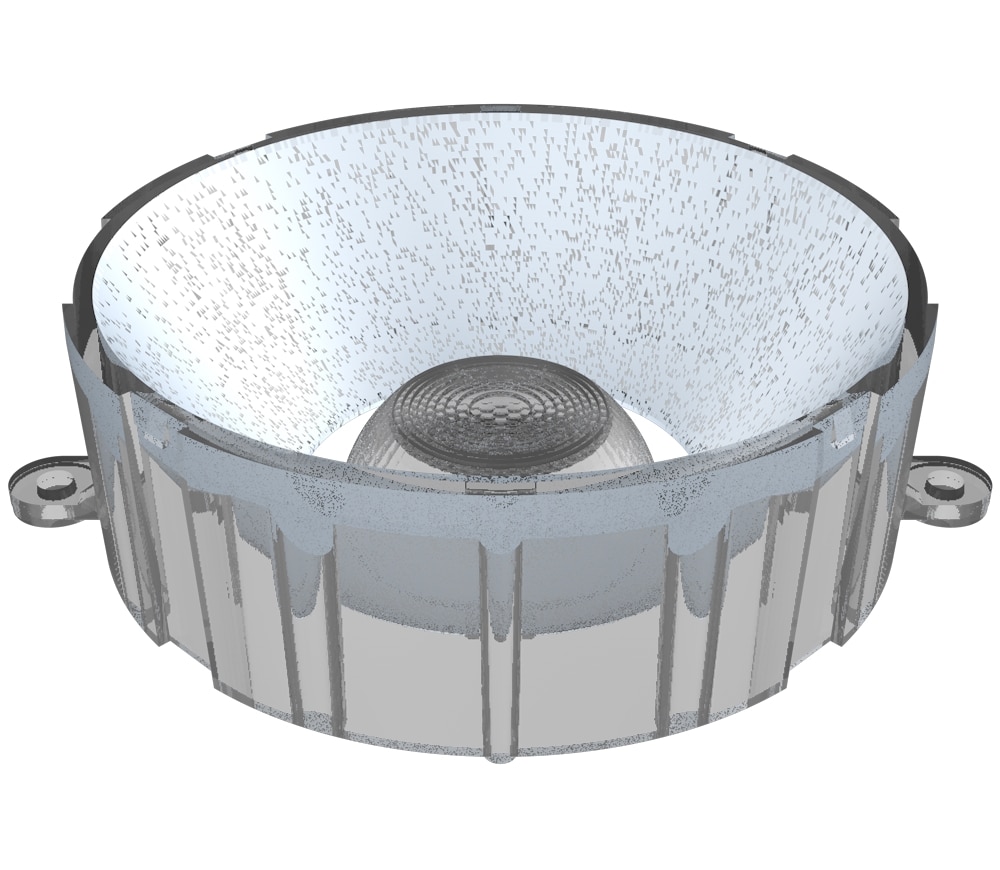

Narrow Hybrid reflector

Ø 70 mm narrow beam PC reflector.

More details :

LLR05N is a Ø 70 mm narrow beam PC reflector. It combines hybrid reflection technology for better beam control with state of the art silver coating. capable of a 97% reflection ratio.
It is also available with optional clipped windows providing various beam angles.
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	Efficacy 1
BRIDGELUX	V4_HD BXRH_30G0600_A_72	7.4	14.9	18.8
BRIDGELUX	VESTA 9 DTW BXRV-DR-1830-H-1000-A-13	15.6	37.1	6.3
BRIDGELUX	VERO 10 BXRC_30E1000_B_03	16.2	39.2	6.1
BRIDGELUX	V10 BXRE_30E1000_B_03	16.5	39.4	6.0
BRIDGELUX	V13 BXRE_30E2000_B_82	21.7	51.0	3.5
BRIDGELUX	VERO 13 BXRC_30E2000_C_03	21.7	51.0	3.5
BRIDGELUX	V18	32.3	91.0	1.8
BRIDGELUX	VERO 18 BXRC_30E4000_B_03	32.3	91.0	1.8
BRIDGELUX	V22 BXRE_30E6500_C_83	34.7	95.4	1.4
BRIDGELUX	VERO 18 SE BXRC_30G4000_B_73	35.6	94.0	1.5
CITIZEN	CLU701	8.1	17.5	15.3
CITIZEN	CLU7A2	9.6	22.1	15.0
CITIZEN	CLU700	9.9	21.9	11.9
CITIZEN	CLU026	12.2	25.2	8.8
CITIZEN	CLU711	12.4	28.6	8.8
CITIZEN	CLU710	15.1	36.9	6.8
CITIZEN	CL-L020	15.3	37.5	6.6
CITIZEN	CLU028	17.3	40.9	5.4
CITIZEN	CLU721	18.3	44.2	4.8
CITIZEN	CLU720	18.6	44.5	4.7
CITIZEN	CLL330	19.4	43.6	4.4
CITIZEN	CLU036	21.0	47.6	3.5
CITIZEN	CLU730	21.0	50.5	3.7
CITIZEN	CLU731	21.4	50.8	3.6
CITIZEN	CL-L030	23.4	51.9	3.2
CITIZEN	CLU046	30.4	96.2	1.6
CITIZEN	CL-L04X	36.4	97.4	1.4
CREE	XQ-E HI	3.1	5.6	89.9
CREE	XP-E2	3.9	7.0	64.0
CREE	XP-G2	4.0	7.7	54.5
CREE	XHP35.2 HI	4.4	8.6	47.1
CREE	XP-L HI	4.6	8.0	49.5
CREE	XHP35 HD	4.7	9.1	44.1
CREE	XHP35 HI	4.8	8.6	42.0
CREE	XP-G	5.2	9.8	34.0
CREE	XP-L	5.3	9.8	35.9
CREE	XP-G3	5.3	9.1	42.9
CREE	XP-L2	5.6	12.0	27.5
CREE	XT-E HE	5.7	10.1	35.1
CREE	XM-L2	5.8	10.0	33.9
CREE	XHP50	6.6	12.3	24.6
CREE	XD16	6.6	13.4	25.1
CREE	XHP35.2 HD	7.9	15.8	20.8
CREE	XHP50.2	8.2	17.6	15.4
CREE	MHD-E	8.3	18.8	14.6
CREE	CXB 1310	8.5	17.9	16.6
CREE	MK-R2	8.8	21.9	12.7
CREE	XHP70	10.2	21.6	11.6
CREE	MT-G	10.8	26.5	9.7
CREE	XHP70.2	10.9	24.5	10.3
CREE	CXA 13XX	11.0	26.0	11.5
CREE	MK-R	11.0	26.1	11.8
CREE	MT-G2	11.1	27.3	9.8
CREE	CXB 1520	13.7	31.8	7.4
CREE	CXA 1507	14.7	35.6	7.0
CREE	CXB 1507	14.7	35.4	6.9
CREE	CXA 1520	15.7	39.0	6.1
CREE	CXA 18XX	18.5	45.8	4.4
CREE	CXA 25XX	26.7	72.0	2.3
CREE	CXA 3050	34.7	95.8	1.5
EDISON	2PHM10xWxxP55020	8.5	25.3	12.9
LED ENGIN	LZ1 14CWP2	3.7	6.7	60.4
LUMILEDS	LUXEON C	4.7	7.5	64.8
LUMILEDS	LUXEON MZ	5.2	9.0	36.4
LUMILEDS	LUXEON Z ES	5.2	8.1	43.9
LUMILEDS	LUXEON T	7.0	13.3	27.1
LUMILEDS	LUXEON M	7.9	17.1	15.9
LUMILEDS	LUXEON S1000	9.5	27.5	10.8
LUMILEDS	LUXEON COB 109	12.6	30.2	9.7
LUMILEDS	LUXEON K4	13.1	45.1	6.3
LUMILEDS	LUXEON COB 1202S	13.3	34.3	7.7
LUMILEDS	LUXEON COB 1203	16.2	39.3	6.1
LUMILEDS	LUXEON COB 1205	21.4	51.5	3.5
LUMILEDS	LUXEON COB 1208	25.1	59.0	2.7
LUMINUS	CDM_6	12.2	25.4	10.1
LUMINUS	CXM_6	12.9	32.0	8.9
LUMINUS	CTM_9	14.9	31.5	7.1
LUMINUS	CTM_18	26.4	68.3	2.4
NICHIA	757	3.2	6.0	90.2
NICHIA	NVSL219C	4.5	8.8	41.6
NICHIA	NCSWE17AT	4.7	8.2	50.8
NICHIA	NVSW319A	4.7	8.2	41.4
NICHIA	NVSWE21AT	5.0	8.2	48.4
NICHIA	NWSL229A	5.9	10.3	30.1
NICHIA	NV4L144AR	7.4	16.2	17.4
NICHIA	NTCWS024B_V1	7.9	17.2	16.3
NICHIA	NJCWS024Z	8.0	17.2	16.1
NICHIA	NFCLL036B_V1	11.6	29.9	8.1
NICHIA	NTCWT012B_V3	12.1	29.0	9.6
NICHIA	NVNWS007Z_V1	12.1	28.4	10.1
NICHIA	NTCLS024B_V1	12.8	30.5	9.3
NICHIA	NJCLS024Z	13.1	30.8	8.9
NICHIA	NJCWS024Z_V1	13.4	31.6	8.6
NICHIA	NFCWL036B_V3	14.3	34.8	7.0
NICHIA	NVEWL016Z_V1	15.3	36.5	6.6
NICHIA	NVCLL024Z	17.6	42.6	5.0
NICHIA	NVCWJ024Z_V1MT	17.7	43.0	4.8
NICHIA	NVCWL024Z_V1	17.7	43.0	5.0
NICHIA	NFCLL060B_V1	18.4	44.7	4.8
NICHIA	NVEWJ048Z_V1	22.6	53.7	3.1
NICHIA	NVELJ048Z	22.8	54.5	3.1
NICHIA	NFCLJ108B_V1	23.1	54.2	3.1
NICHIA	NFDLJ130B_V1	23.4	54.7	3.0
NICHIA	NFEWH306B_V2	35.6	96.1	1.5
OSRAM	DURIS P8	3.0	5.8	89.2
OSRAM	OSLON SQUARE FLAT KW CSLPM2.PC	3.4	6.2	68.1
OSRAM	OSLON SQUARE LCW CQAR	3.7	7.8	48.1
OSRAM	OSLON SQUARE GW CSSRM2.PM	3.8	7.7	57.7
OSRAM	OSLON SQUARE GW CSSRM1.EC	3.9	8.0	49.8
OSRAM	OSLON SSL 150	4.1	7.1	67.0
OSRAM	OSLON SQUARE GW CSSRM1.PC	4.4	8.7	41.4
OSRAM	OSLON COMPACT CM LUW CEUN.CE	4.5	7.6	54.6
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	4.9	7.8	50.3
OSRAM	OSLON SQUARE GW CSSRM3.PM	5.1	10.5	31.6
OSRAM	DURIS S8 P9LT32.PM	7.0	14.3	17.9
OSRAM	DURIS S10	7.2	14.2	21.7
OSRAM	DURIS P10	7.5	15.8	19.1
OSRAM	DURIS S8 P9LRS1.EM	8.0	16.0	18.9
OSRAM	DURIS S8 P9LMS1.EM	9.1	22.0	14.8
OSRAM	SOLERIQ S9	13.9	36.6	6.3
OSRAM	SOLERIQ S13	20.6	48.9	3.8
OSRAM	SOLERIQ S19	26.0	65.0	2.4
OSRAM	SOLERIQ E30	28.8	79.6	2.0
OSRAM	SOLERIQ E45	34.9	96.5	1.5
PLESSEY	PLW7070GA	7.2	18.2	15.6
SAMSUNG	LC010CV2	8.5	18.0	14.7
SEOUL	Z5	4.3	8.0	47.8
SEOUL	Z5_M1	4.7	8.6	42.6
SEOUL	SAWS0661A	9.2	21.0	13.3
SEOUL	SAWS1063A	16.6	39.9	5.8
XICATO	XOB06	12.7	31.3	8.8
XICATO	XTM & XIM 9MM	19.5	44.9	4.6
XICATO	XTM & XIM 19MM	29.8	73.5	2.0
