LLC79 45mm SILICONE COLLIMATOR RANGE

Presentation of the LLC79 45mm Silicone Collimator range

The miniaturization of high–end spotlight solutions is in the air.

Following the great success of our LLC66 67mm silicone collimator range, many of our customers have requested the same beam quality in a smaller form factor, adapted to the 50mm spot.

We have worked hard to reduce the size of our 67mm references while maintaining the same beam homogeneity, cut and key efficiency characteristics.

The LLC79 silicone collimator range has been designed to meet the most demanding applications while offering compatibility with high power and COB solutions.

DISCOVER OUR BROCHURE

cover-LLC79

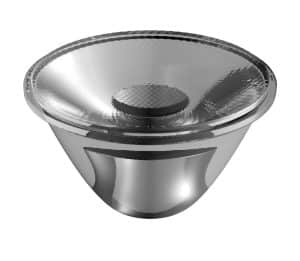

LLC79N7

LLC79N7-Narrow-version-silicone-collimators

Narrow Version

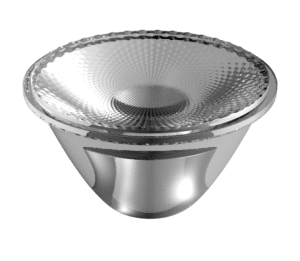

LLC79C7

LLC79-color-version

Color Version

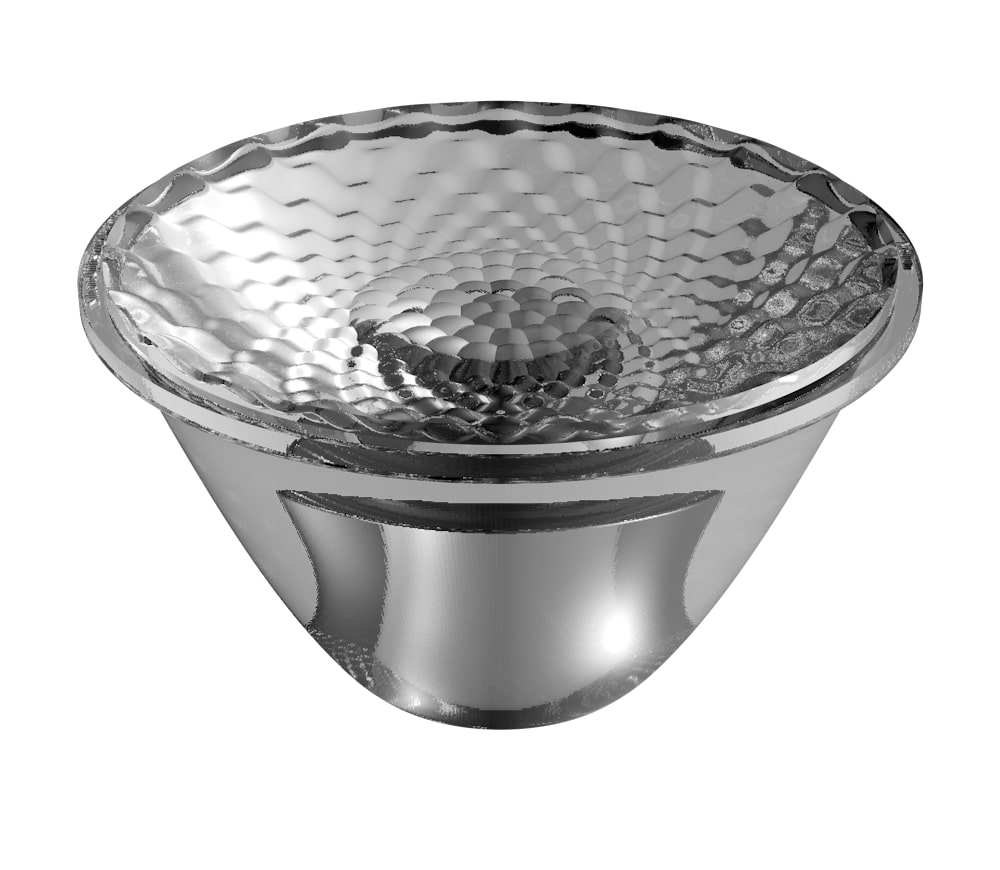

LLC79M7

LLC79M7

Medium Version

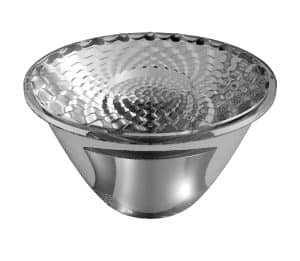

LLC79W7

LLC79W7

Wide Version

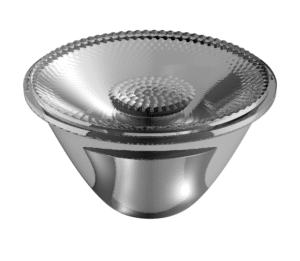

LLC79Z7

Zoom Version

How is Gaggione's LLC79 45mm solution integrated?

The LLC79 45mm optical LED range is fully compatible with the LLH66 mechanical integration ecosystem environment. It consists of pre-assembled sets of collimators and cage supports such as LLS79N02. A specific base has been developed to adapt to different LED and COB media environments with 6 different options depending on your preferences like LLH66B102. The LLH66B6 base is dedicated for high-power single-chip or multi-chip LEDs. Please refer to our LLH66 Ecosystem Brochure for more details on part numbers and compatibility.

The LLC79 Gaggione solution and the competition

We wanted to see how the LLC79x7 range of optical LEDs performed against the competition’s products. We have selected one of the most famous 50mm silicone solutions available on the market to calibrate our new range. The results can be found in the survey document of the silicone collimator competition. Measurements have shown that our 45mm solution provides a much more constant beam with 20% more D50/D10 rations and a very significant efficiency of +80% on narrow beam versions.

Results can be found in the silicone collimators competition survey document. Measurements have shown that our 45mm solution is providing way more consistent beam with 20% more D50/D10 ration verys significant +80% efficacy on narrow beam version.

If you need the best available solution, please contact our sales representatives to learn more about this survey, and make an educated decision.

Download the survey

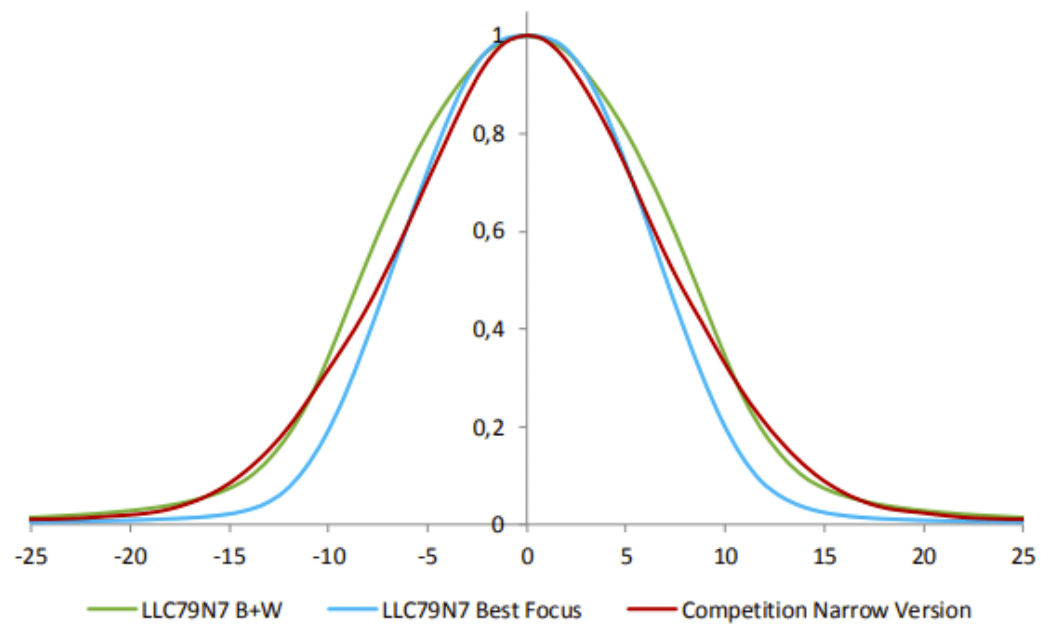

collimator-ligh-manufacturer-led-LLC79-beam-pattern

BEAM PATTERN
