Highlights
Standard and custom optic LED designer
Discover our highlights
In optics, dedicated to lighting or imaging, Gaggione provides standard and tailor–made solutions used in indoor, outdoor, architectural, entertainment, outdoor public lighting, industry, rail transport and aeronautics. They are found in the TGV (reading lights) on the public road (traffic lights, street lighting) on the highway (safety message boards) in the medical sector on operating room lights that send 160,000 lux, more than the sun, over a very large area to avoid shade problems.
A constantly evolving catalogue of optics product range
We are constantly adding new references to the standard optical product range.
The “Highlights” section provides a quick and efficient overview of the corresponding product ranges before deepening LED compatibility, mechanical integration and detailed part references.
Our goal is to provide the best standard optics in their class. But having the best optics on the market is useless without providing an easy way to access integration and related technical details.
Before diving into our standard multi-criteria optical search engine, you can get a quick overview of the latest innovative optics that you might consider using in your next successful luminaire.
If you do not find the optics you want, we can also guide you through your projects and design custom optical parts and solutions to suit your needs. Do not hesitate to complete the form provided, without forgetting to specify your contact details and the nature of your technical project.
Ø 35 & 50 mm zoom solutions
SIRIUS35, the Ø 35mm zoom solution, compatible with most brands of COB and HP LED.
SIRIUS50, the Ø 50mm zoom solution, compatible with most brands of COB including tunable white COB or cluster of High Power.
Ø 35 & 50 mm
ZOOM SOLUTIONS
Street Lighting range
Discover our 50×50 solution for street lighting, optimized for 5050 package.
32 MM PMMA & PC COLLIMATOR
LLC25 series is the new color mixing 32mm product range. This is a new version without sprue. Its “non chip imaging” characteristics allow combination with single or multi-chips RGBW, tunable white or standard white LEDs. It will provide color mixing capability but also a solution without chip image projection for high power single or multi-chip white LEDs. LLC25 range has six references.
32 mm PMMA & PC
COLLIMATORS RANGE
45 MM COB-ORIENTED COLLIMATORS RANGE
Following the success of the 45mm LLC59 colimators, we are launching the cob-oriented version. Available in 8 references.
45 mm COB-ORIENTED
COLLIMATORS
45 MM PMMA COLOR MIXING COLLIMATORS RANGE
Innovative 45mm range to fit most demanding color mixing or tunable white applications available in 4 references.
45 mm PMMA
COLOR MIXING COLLIMATORS
PMMA ULTRA FLAT OPTIC (UFO)
The ULTRA FLAT OPTIC (UFO) is our innovative new tunable white range. It's available in three versions: two zoom versions available in 45 mm and 67 mm, and an asymmetric version in 45 mm. The zoom versions allow a homogeneous beam in any position and the UFO45A offers an unmatched wall coverage solution.
45 & 67 mm PMMA
ULTRA FLAT OPTIC

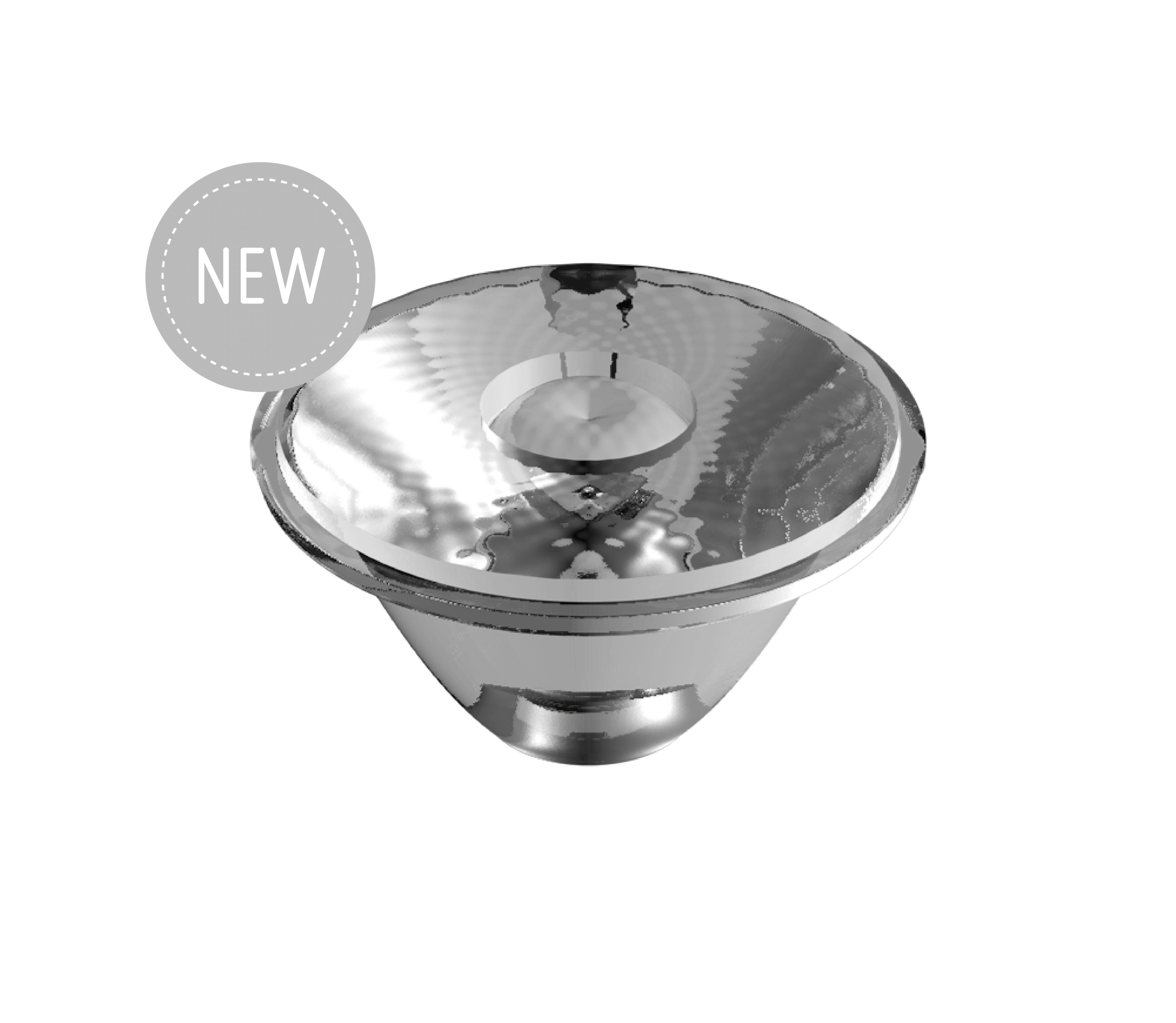

16 MM PMMA COLLIMATOR
LLC22 series is the new 16mm diameter PMMA collimator range. LLC22N is the sharpest available 16mm collimator based on our patented non chip imaging technology. The LED chip will not be projected even with very small LES. LLC22M/W/V are Medium, Wide and Very large versions being also capable of advanced color mixing.
16 mm PMMA
COLLIMATORS RANGE
67 MM SILICONE COLLIMATOR
Gaggione has now introducing five new references, added to LLC66N7, to match market requirements on beam angle options : LLC66M7 medium beam, LLC66W7 wide beam, LLC66L7 large beam, LLC66V7 very large beam and LLC66Z7 zoomable beam.
67 mm SILICONE
COLLIMATORS RANGE
150 mm SILICONE LINEAR COLLIMATORS RANGE
Two new references with a narrow beam version and an asymetric version designed for wall washing applications. They are both capable of high homogeneity color mixing but will also be the perfect pick for tunable white linear solutions.
150 mm SILICONE
LINEAR COLLIMATORS RANGE

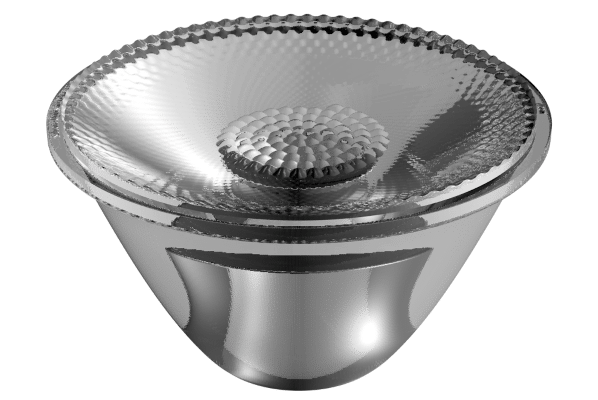

45 MM SILICONE COLLIMATOR
Miniaturization of high end spots solutions is in the air. The LLC79x7 range has been designed to match most demanding applications while providing compatibility with both high power and COB solutions.
45 mm SILICONE
COLLIMATORS RANGE
MOON COLOR MIXING AND ZOOM SYSTEM
MOON is an innovative solution for very small form factor fixtures needing both a zoom and a color mix feature. MOON is a silicone light guide plus projection silicone lens based on our stage lighting and entertainment experience.
