ULTRA FLAT OPTICS

UFO

Our Ultra Flat Optic tunable white lenses are the result of the collaborative efforts between the complex optical studies of our highly qualified optical engineers and our innovative research and development team.

The UFO range is an innovative new design concept in an ultra-flat form factor ideal for slim fixture designs providing a unique solution for high power LED, COB, and CSP based clusters.

If you are seeking tunable white lenses, unique asymmetrical wall washing lens or high-quality zoom lens with simple mechanical integration options, our new UFO range has a version for you.

• Flat design allowing innovative form factor fixtures.
• Tunable White compatibility.
• State of the art beam homogeneity on any position

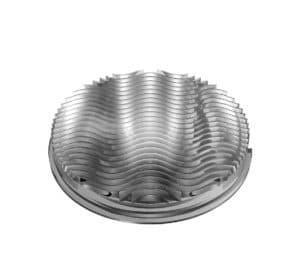

UFO45A-tunable-white-lenses-ultra-flat-optic

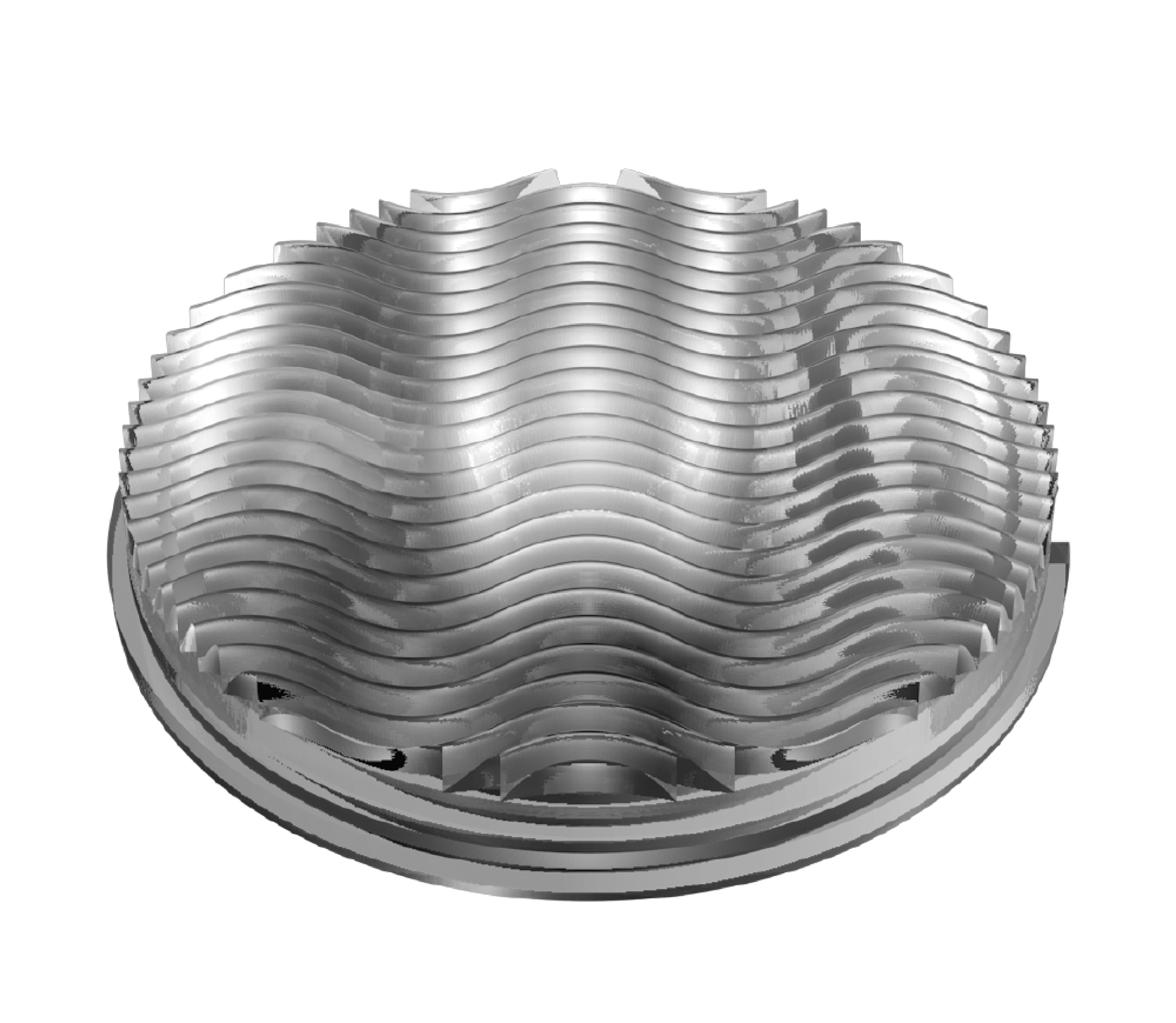

UFO45A

Asymetric version
Ø 45mm

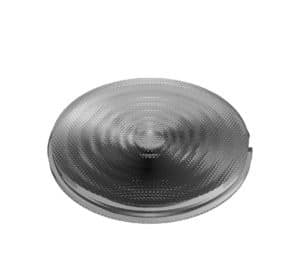

UFO45Z-tunable-white-lenses-ultra-flat-optic

UFO45Z

Zoom version
Ø 45mm

Ultra-flat-optic-asymmetric

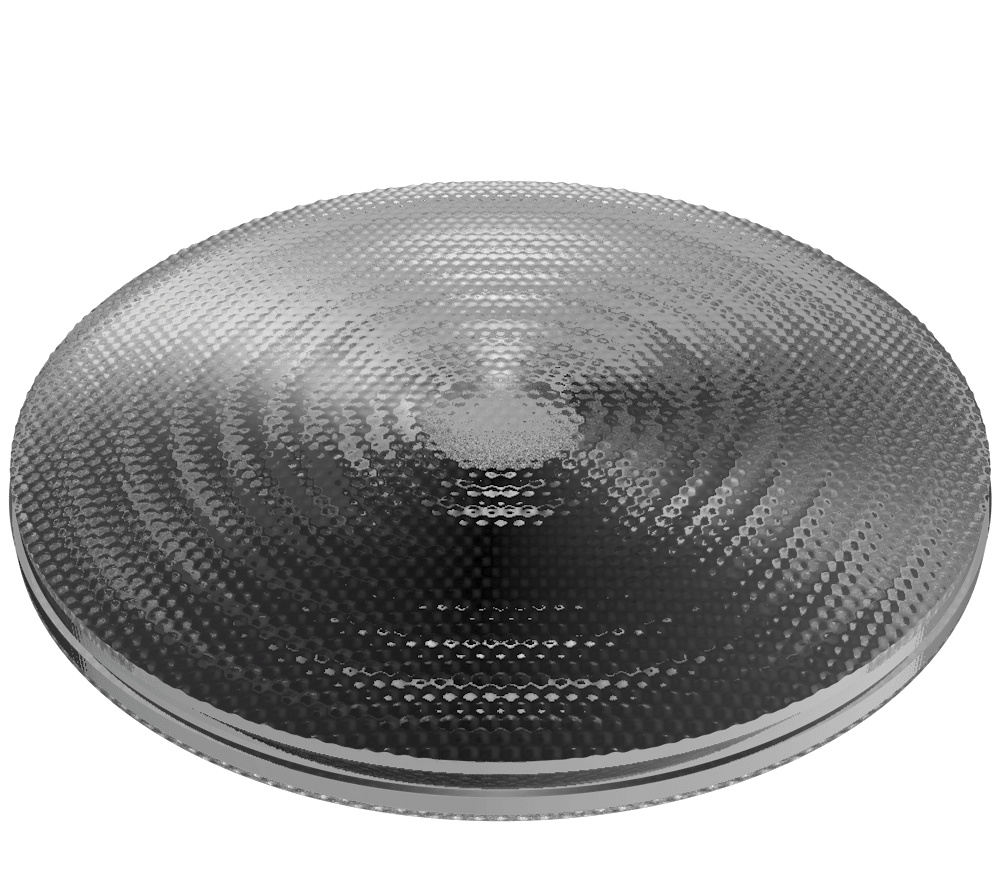

UFO67Z

Zoom version
Ø 67mm

LES size: HP: 28mm² max – COB: Ø 6mm max
Type of LED: High Power, COB, CSP based clusters

LES size: HP: 28mm² max – COB: Ø 13mm max
Type of LED: high power, COB, CSP based clusters

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02BCC00

NO

LLS25N12BCC00

LLS25C12BCC00

LLS25G12BCC00

LLS25M12BCC00

LLS25W12BCC00

LLS25V12BCC00

LLS25E12BCC00

LLH02BCC001

YES

LLS25N12BCC001

LLS25C12BCC001

LLS25G12BCC001

LLS25M12BCC001

LLS25W12BCC001

LLS25V12BCC001

LLS25E12BCC001

LLH02BCC02

NO

LLS25N12BCC02

LLS25C12BCC02

LLS25G12BCC02

LLS25M12BCC02

LLS25W12BCC02

LLS25V12BCC02

LLS25E12BCC02

LLH02BCC021

YES

LLS25N12BCC021

LLS25C12BCC021

LLS25G12BCC021

LLS25M12BCC021

LLS25W12BCC021

LLS25V12BCC021

LLS25E12BCC021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02AAC00

NO

LLS25N02AAC00

LLS25C02AAC00

LLS25G02AAC00

LLS25M02BCC00

LLS25W02BCC00

LLS25V02BCC00

LLS25E02BCC00

LLH02AAC001

YES

LLS25N02AAC001

LLS25C02AAC001

LLS25G02AAC001

LLS25M02BCC001

LLS25W02BCC001

LLS25V02BCC001

LLS25E02BCC001

LLH02AAC02

NO

LLS25N02AAC02

LLS25C02AAC02

LLS25G02AAC02

LLS25M02BCC02

LLS25W02BCC02

LLS25V02BCC02

LLS25E02BCC02

LLH02AAC021

YES

LLS25N02AAC021

LLS25C02AAC021

LLS25G02AAC021

LLS25M02BCC021

LLS25W02BCC021

LLS25V02BCC021

LLS25E02BCC021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02XAL00

NO

LLS25N02XAL00

LLS25C02XAL00

LLS25G02XAL00

LLS25M02XAL00

LLS25W02XAL00

LLS25V02XAL00

LLS25E02XAL00

LLH02XAL001

YES

LLS25N02XAL001

LLS25C02XAL001

LLS25G02XAL001

LLS25M02XAL001

LLS25W02XAL001

LLS25V02XAL001

LLS25E02XAL001

LLH02XAL02

NO

LLS25N02XAL02

LLS25C02XAL02

LLS25G02XAL02

LLS25M02XAL02

LLS25W02XAL02

LLS25V02XAL02

LLS25E02XAL02

LLH02XAL021

YES

LLS25N02XAL021

LLS25C02XAL021

LLS25G02XAL021

LLS25M02XAL021

LLS25W02XAL021

LLS25V02XAL021

LLS25E02XAL021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02HEL00

NO

LLS25N02HEL00

LLS25C02HEL00

LLS25G02HEL00

LLS25M02HEL00

LLS25W02HEL00

LLS25V02HEL00

LLS25E02HEL00

LLH02HEL001

YES

LLS25N02HEL001

LLS25C02HEL001

LLS25G02HEL001

LLS25M02HEL001

LLS25W02HEL001

LLS25V02HEL001

LLS25E02HEL001

LLH02HEL02

NO

LLS25N02HEL02

LLS25C02HEL02

LLS25G02HEL02

LLS25M02HEL02

LLS25W02HEL02

LLS25V02HEL02

LLS25E02HEL02

LLH02HEL021

YES

LLS25N02HEL021

LLS25C02HEL021

LLS25G02HEL021

LLS25M02HEL021

LLS25W02HEL021

LLS25V02HEL021

LLS25E02HEL021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02RD100

NO

LLS25N02RD100

LLS25C02RD100

LLS25G02RD100

LLS25M02RD100

LLS25W02RD100

LLS25V02RD100

LLS25E02RD100

LLH02RD1001

NO

LLS25N02RD1001

LLS25C02RD1001

LLS25G02RD1001

LLS25M02RD1001

LLS25W02RD1001

LLS25V02RD1001

LLS25E02RD1001

LLH02RD102

NO

LLS25N02RD102

LLS25C02RD102

LLS25G02RD102

LLS25M02RD102

LLS25W02RD102

LLS25V02RD102

LLS25E02RD102

LLH02RD1021

NO

LLS25N02RD1021

LLS25C02RD1021

LLS25G02RD1021

LLS25M02RD1021

LLS25W02RD1021

LLS25V02RD1021

LLS25E02RD1021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02MTB00

NO

LLS25N02MTB00

LLS25C02MTB00

LLS25G02MTB00

LLS25M02RD100

LLS25W02RD100

LLS25V02RD100

LLS25E02RD100

LLH02RMTB001

NO

LLS25N02MTB001

LLS25C02MTB001

LLS25G02RD001

LLS25M02RD1001

LLS25W02RD1001

LLS25V02RD1001

LLS25E02RD1001

LLH02MTB02

NO

LLS25N02MTB02

LLS25C0MTB02

LLS25G02RD102

LLS25M02RD102

LLS25W02RD102

LLS25V02RD102

LLS25E02RD102

LLH02MTB021

NO

LLS25N02MTB021

LLS25C02MTB021

LLS25G02RD1021

LLS25M02RD1021

LLS25W02RD1021

LLS25V02RD1021

LLS25E02RD1021

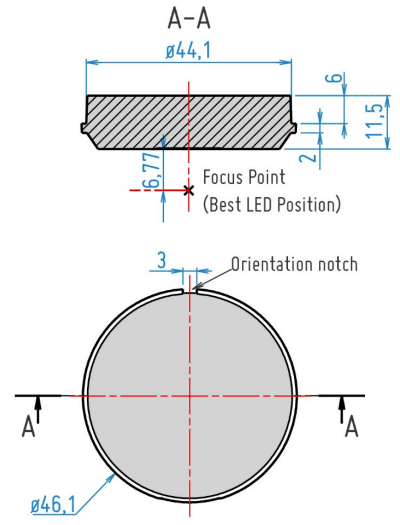

UFO45A - ASYMETRIC VERSION

LED SPECIFICATIONS

Our photometry laboratory is constantly measuring and simulating our optics with different types of LED. We are here to support you with our expertise in optical components and LED knowledge.

This Ultra Flat Optic range is specially dedicated to high power LEDCOB, and CSP based clusters

APPLICATIONS

Our worldwide renowned know-how and expertise in plastic injection for more than 70 years, enables us to develop unique optical components to meet your requirements.

We designed the Ultra Flat Optic tunable white lenses to address the needs of our customers seeking an asymmetrical wall washing lens, tunable white lens or zoom lens solution for vast fields of application such as indoorarchitecture

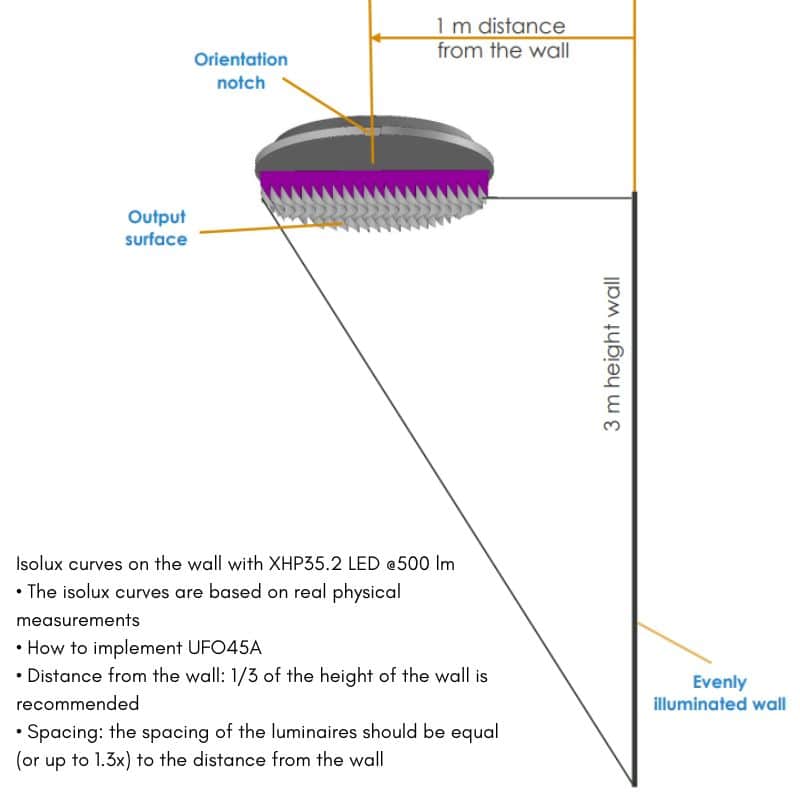

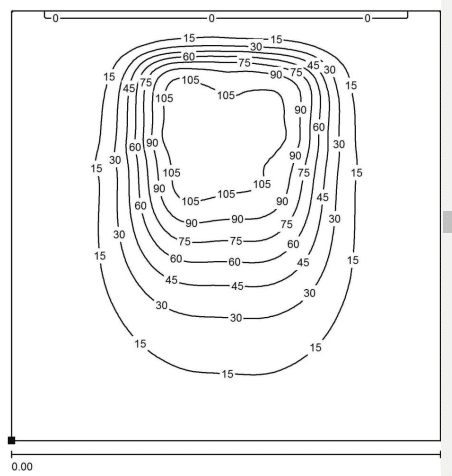

Dialux simulation
Values in lux, scale 1 : 32
Distance from wall: 1 m

CHARACTERISTICS
UFO45A
L.O.R front (wall)
58.2%
L.O.R rear (stray light)
15.7%
Intensity peak front
941 cd/klm
Intensity peak backwards
154 cd/klm
Illuminance pattern
rectangular

LED references :  XHP35.2 HD

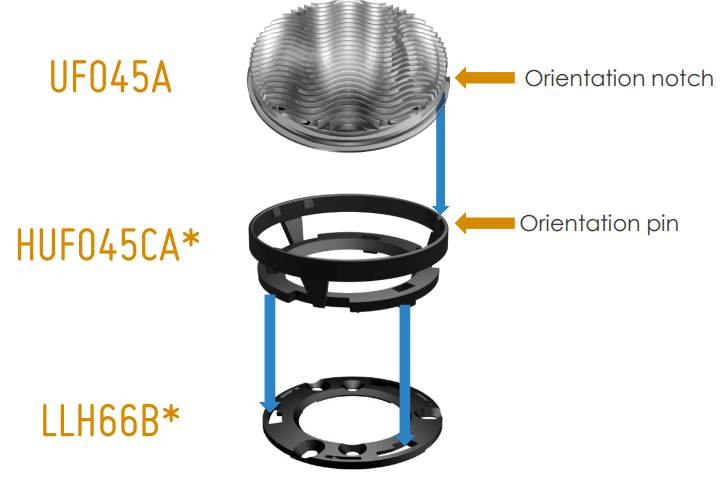

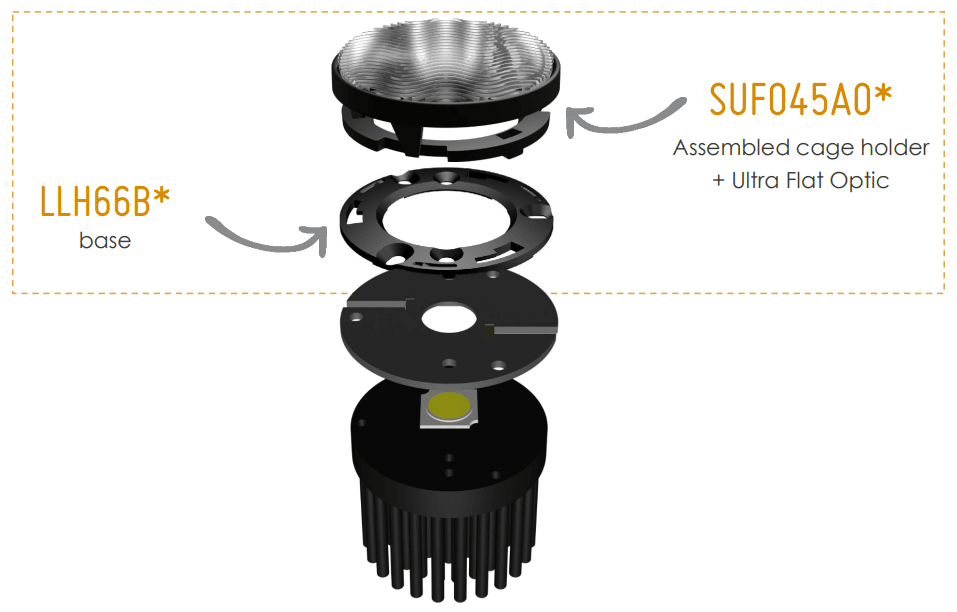

Mechanical system

HOLDER compatibilities

For the UFO45A

HUFO45CA0*

For the UFO45A

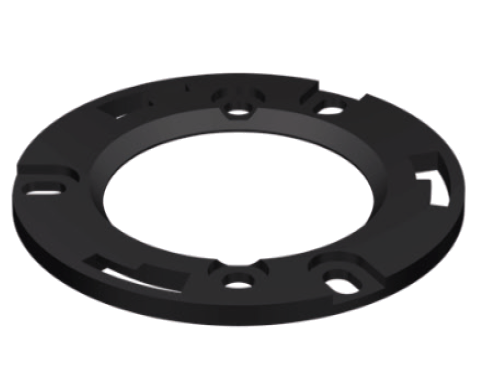

BASE compatibilities

2 options for the UFO45A

Product concerned

Base reference


COB holder maufacturer

Manufacturer References

UFO45A

LLH66B1*

Bender+Wirth

PCB mounted High power LED

UFO45A

LLH66B4*

TE connectivity

LUMAWISE Z35

PART NUMBER

REFERENCES

BLACK

CLEAR

SET Ultra Flat Optic UFO45A + Holder HUFO45CA
HOLDER UFO ASYMMETRIC 45

HUFO45CA00

HUFO45CA02
BASE UFO ASYMMETRIC 45 B+W
BASE UFO ASYMMETRIC 45 TE

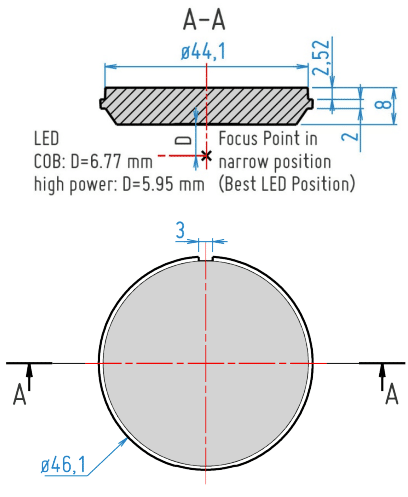

UFO45Z & UFO67Z - ZOOM VERSION

Mechanical zoom system

HOLDER compatibilities

For the UFO45Z & UFO67Z

HUFO45CZ0*

For the UFO45Z

HUFO67CZ0*

For the UFO67Z

BASE compatibilities

2 options for the UFO45Z & 3 options for the UFO67Z

Product concerned

Base reference


COB holder maufacturer

Manufacturer References

UFO45Z

BUFO45Z10*

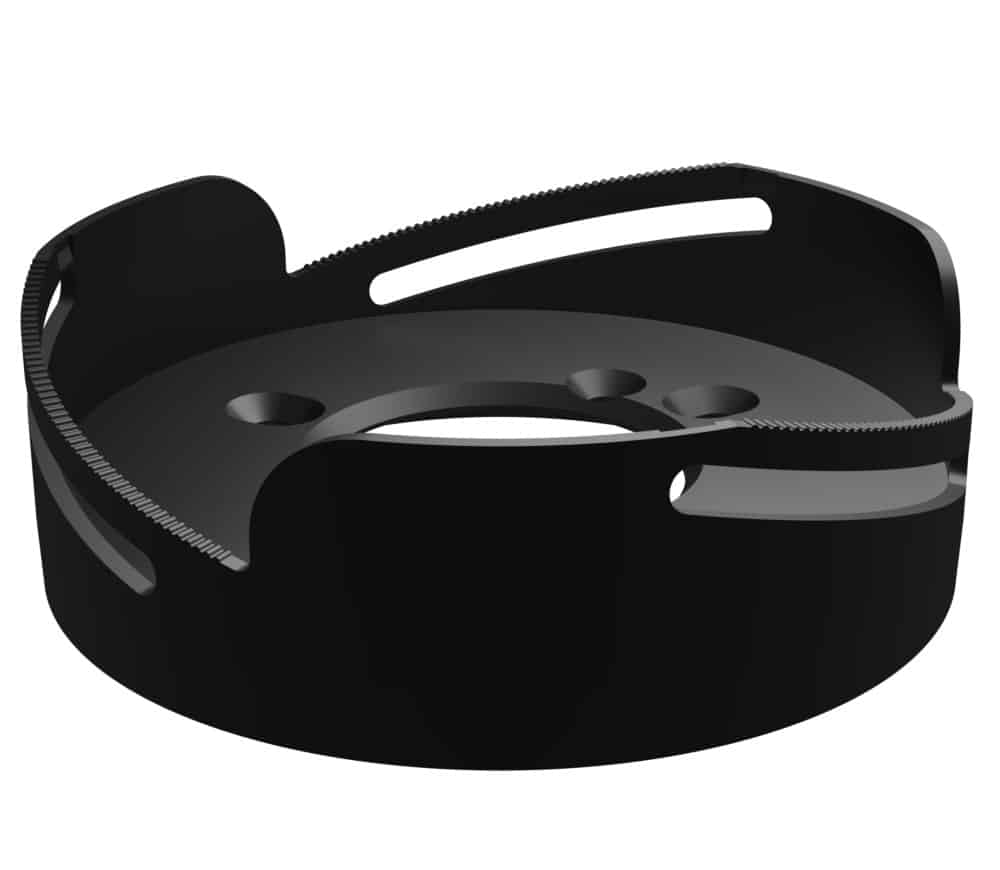

BUFO67Z302-UFO67Z-black-zoom -ecosystem-base-Xicato -COB-holder

Bender+Wirth

PCB mounted High power LED

UFO67Z

BUFO6Z10*

BUFO67Z302-UFO67Z-black-zoom -ecosystem-base-Xicato -COB-holder

Bender+Wirth

PCB mounted High power LED

UFO67Z

BUFO67Z20*

BUFO67Z302-UFO67Z-black-zoom -ecosystem-base-Xicato -COB-holder

Bridgelux

Vero10

UFO67Z

BUFO67Z30*

BUFO67Z302-UFO67Z-black-zoom -ecosystem-base-Xicato -COB-holder

Xicato

All

PART NUMBER

REFERENCES

BLACK

CLEAR

SET Ultra Flat Optic UFO45Z + Holder HUFO45CZ

SUFO45Z02

SET Ultra Flat Optic UFO67Z + Holder HUFO67CZ
HOLDER UFO ZOOM 45
HUFO45CZ00
HUFO45CZ02

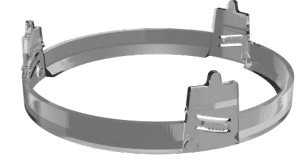

HOLDER UFO ZOOM 67
HUFO67CZ00
HUFO67CZ02
BASE UFO ZOOM 45 B+W
BASE UFO ZOOM 67 B+W
BASE UFO ZOOM 67 BRIDGELUX
BASE UFO ZOOM 67 XICATO
