Smaller arenas, Training fields, Tennis courts
50 x 50 mm Tennis courts, Smaller arenas, Training fields
Asymmetric 45° Forward-Throw Beam
Designed for low backlight and upward glare control with high vertical illuminance
Applications: Ideal for smaller arenas, training fields, and tennis courts
Where to use: Typical forward throw distance 1 : 3
Luminous Intensity Class: >G4
More details :
GAGGIONE’s standard street lighting and outdoor lighting range is expanding!

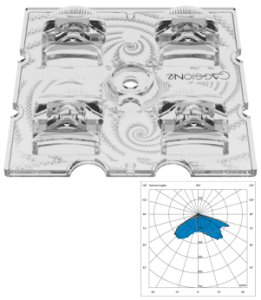

New Sport and Wide-Area lighting beams AVIKA2X25050* -Z10, -Z10D, -T4M, -FT45, -FT60. These lenses are the first optics in the market passing requirements energy efficiently with both 5050 and 3535 LED packages. Designed and manufactured in FRANCE.

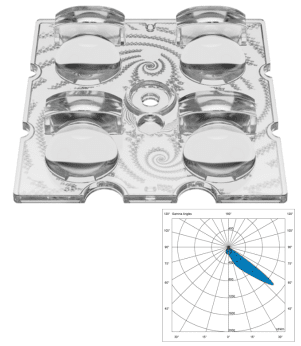

AVIKA2X25050FT45 is a asymmetric 45° forward-throw beam
The FT45 optic provides a medium-range asymmetric distribution, perfect for smaller sports venues where control and comfort are paramount.
It offers high vertical illuminance for ball tracking and excellent uniformity with fewer fittings.
Ideal for smaller arenas, training grounds, and tennis courts, leisure parks.
Optional backlight MASK accessories to prevent light trespass. and support dark-sky initiatives.
Optical efficiency: >93%
Cut-off classification: Cut-off (full cut-off in actual luminaire)
FT45 is available in High Temperature (HT) PMMA, Amber-Yellow, and Amber-Orange colours.
See also AVIKA leaflet for other beams, or contact us for more details.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
Compatible holders:
Compatible accessories:
In the same family:
