Sports lighting, High Masts, Tunnel Lighting
50 x 50 mm Sports lighting, High Masts, Tunnel Lighting solution
Narrow, Asymmetric 60° Forward-Throw Beam
Optimized cut-off to limit backward and upward glare with high pole installations
Applications: Large football and rugby fields, tunnel lighting
Where to use: Typical forward throw distance 1 : 3, up to 1 : 4
Luminous Intensity Class: >G4
More details :
GAGGIONE’s standard street lighting and outdoor lighting range is expanding!
New Sport and Wide-Area lighting beams AVIKA2X25050* -Z10, -Z10D, -T4M, -FT45, -FT60. These lenses are the first optics in the market passing requirements energy efficiently with both 5050 and 3535 LED packages. Designed and manufactured in FRANCE.

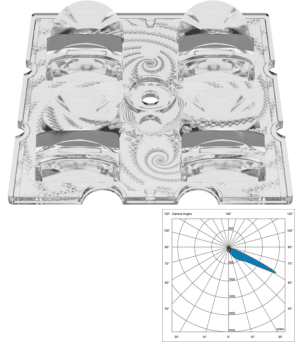

AVIKA2X25050FT60 is a narrow, asymmetric 60° forward-throw beam.
The FT60 beam delivers powerful forward throw projection with a controlled asymmetric pattern, ideal for 108 m × 72 m fields using 6-8 poles.
Forward throw distribution ensures uniform coverage and glare control (G4 rating) while minimizing backlight and upward spill light.
Ideal for large football and rugby fields. Precision illumination for large-scale fields.
Optional backlight MASK accessories to prevent light trespass. and support dark-sky initiatives.
Optical efficiency: >90%
Cut-off classification: Full cut-off in actual luminaire
FT60 is available in High Temperature (HT) PMMA, Amber-Yellow, and Amber-Orange colours.
See also AVIKA leaflet for other beams, or contact us for more details.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
Compatible holders:
Compatible accessories:
In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
