Street Lighting, Wide Area and Sport Freeform
50 x 50 mm Sports, Spot, Flood and Accent Lighting
Narrow, 10° (FWHM) Symmetrical beam
Well controlled cut-off, upward light ratio (ULR) <1%
Applications: Sports, Spot, Flood and Accent Lighting
More details :
GAGGIONE’s standard street lighting and outdoor lighting range is expanding!
New Sport and Wide-Area lighting beams AVIKA2X25050* -Z10, -Z10D, -T4M, -FT45, -FT60. These lenses are the first optics in the market passing requirements energy efficiently with both 5050 and 3535 LED packages. Designed and manufactured in FRANCE.

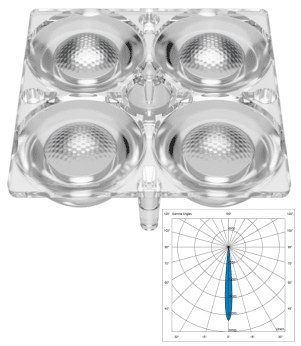

AVIKA2X25050Z10 is a narrow, symmetrical 10° (FWHM) beam.
This 10° (FWHM) symmetric beam delivers the highest on-axis intensity on the market with the tightest cut-off control. AVIKA2X25050Z10 creates a focused circular light distribution with minimal spill (ULR <1%), making it ideal when the luminaire is mounted high and the target area is defined and trespass light in the surrounding area wanted to be kept at minimum level.
The beam provides precise aiming for long distances, supporting applications such as Sports lighting, high-mast installations, indoor/outdoor architectural lighting. The narrow distribution helps keep light where it is needed while reducing wasted light outside the target.
Optical efficiency: >90%
Z10 is available in High Temperature (HT) PMMA.
See also diffused AVIKA2X25050Z10D version, and AVIKA leaflet for more light distributions, or contact us for more details.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
Compatible holders:
In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
