Street Lighting, Wide Area and Sport Freeform
50 x 50 mm Spot-, Flood-, Accent- and Landscape Lighting
Diffused, 18° (FWHM) Symmetrical beam
Smooth light distribution with slightly reduced peak intensity and improved visual comfort.
Applications: Spot-, Flood- and Accent Lighting
More details :
GAGGIONE’s standard street lighting and outdoor lighting range is expanding!
New Sport and Wide-Area lighting beams AVIKA2X25050* -Z10, -Z10D, -T4M, -FT45, -FT60. These lenses are the first optics in the market passing requirements energy efficiently with both 5050 and 3535 LED packages. Designed and manufactured in FRANCE.

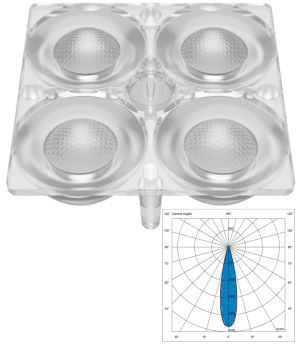

AVIKA2X25050Z10D is a diffused narrow, symmetrical 18° (FWHM) beam.
The Z10D beam offers a softer and more uniform light distribution with 5050 packages, helping to eliminate possible colour over the angle issues with lower quality LEDs, and improve visual comfort while still delivering long-throw performance.
This makes Z10D ideal when you need tight beam, but prefer slightly wider beam with softer cut-off. The diffused distribution helps keep light on target while reducing wasted light outside the illuminated area.
Optical efficiency: >90%
Z10D is available in Hight Temperature (HT) PMMA.
See also AVIKA leaflet for other beams, or contact us for more details.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
Compatible holders:
In the same family:
