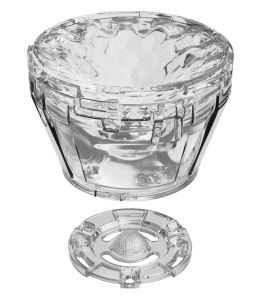

Set of HADAR70 Zoom Ø 70 mm collimator + holder + color mixing GALAXY 1 base.
More details :
G1SHADAR70Z102 is a set with a black holder, the Ø 70 mm patent pending Zoom beam PMMA collimator providing adjustable 10° – 45° beam and our patented color mixing GALAXY base.
HADAR70Z has industry’s highest efficiency of +88% and is only solution in the market where the top lens is directly integrated to the lens holder (rotation stop system). Rotation stop system has free rotation angle of 14° that makes it easy to build fixture around HADAR70Z. HADAR70Z supports COBs and Dim-to-warm solutions from 3 mm to 23 mm LES. Thanks to excellent diamond turned optical design, HADAR70Z provides very low surface brightness, broader beam range, higher efficiency and twice higher efficacy vs competitors.
GALAXY1 is a color mixing accessory base. It is dedicated to be integrated with RGBW high power LEDs like: OSRAM OSTAR Stage S2WN and S2WM, CREE XML color HI, PROLIGHT OPTO PBEE, SEOUL SPF0AF0A.
Discover the product presentation video here.
or download datasheet from here.
Its innovative and patented design adds RGBW capability to HADAR70 zoom range, with no color mixing compromise and very limited impact on beam angles.
GALAXY1 is an easy to integrate base, being screw mounted to the PCB and allowing twist and lock assembly of the selected set. To ensure best possible color mixing results, GALAXY1 is equipped with 13,6mm spaced centering pins.
See also HADAR70 leaflet or download full Datasheet.
A technical question ? Please contact us.
Refine your search:
Compatibility
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XN-P RGBW | 11.5 | 34.6 | 21.0 | 62.5 | 78.0 | 12.7 | 1.7 | 4.0 |
| CREE | XM-L COLOR GEN 2 HI | 12.1 | 35.8 | 22.9 | 62.7 | 81.5 | 10.8 | 1.7 | 4.5 |
| CREE | XM-L COLOR GEN 2 HD | 12.4 | 36.5 | 24.3 | 61.6 | 79.6 | 10.2 | 1.7 | 8.6 |
| LUMILEDS | LUXEON RUBIX CLUSTER X4 RGBW | 11.9 | 36.4 | 22.0 | 63.7 | 79.4 | 11.4 | 1.6 | 9.5 |
| NICHIA | E17A CLUSTER X4 RGBW | 12.7 | 37.9 | 25.9 | 66.2 | 76.9 | 8.3 | 1.4 | 6.8 |
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 11.6 | 35.0 | 21.1 | 62.9 | 80.7 | 12.8 | 1.7 | 4.8 |
| PROLIGHT OPTO | PBEE_40FTE | 11.5 | 35.3 | 21.1 | 62.6 | 79.9 | 12.5 | 1.7 | 3.7 |
Compatible accessories:
Please select a unique LED reference
