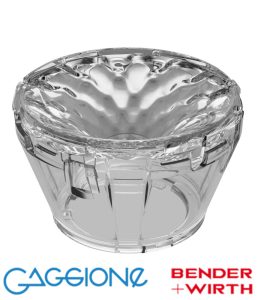

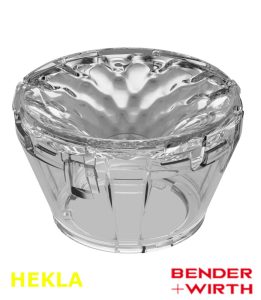

Set of HADAR70 Zoom Ø 70 mm collimator + holder + color mixing GALAXY 2 base.
More details :

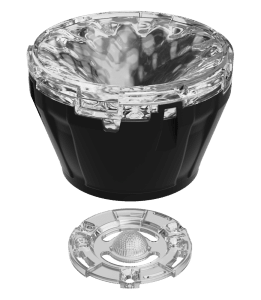

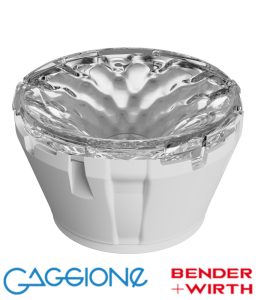

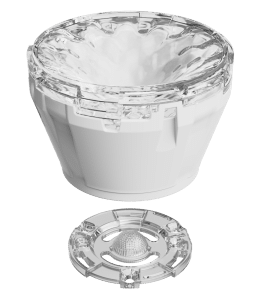

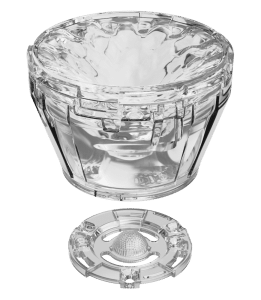

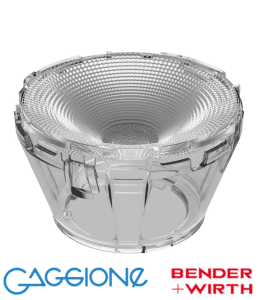

G2SHADAR70Z100 is a set with a clear holder, the Ø 70 mm patent pending Zoom beam PMMA collimator providing adjustable 10° – 45° beam and our patented color mixing GALAXY base.
HADAR70Z has industry’s highest efficiency of +88% and is only solution in the market where the top lens is directly integrated to the lens holder (rotation stop system). Rotation stop system has free rotation angle of 14° that makes it easy to build fixture around HADAR70Z. HADAR70Z supports COBs and Dim-to-warm solutions from 3 mm to 23 mm LES. Thanks to excellent diamond turned optical design, HADAR70Z provides very low surface brightness, broader beam range, higher efficiency and twice higher efficacy vs competitors.
GALAXY2 is a color mixing accessory base. It is dedicated to be integrated with RGBW high power or CSP custom LED clusters (4 chips) like: Cree XP-L color, Luxeon Z, Luxeon CZ, Nichia E17A, Osram Pure 1010, Osram Oslon Square, Bridgelux CSP 1313.
Discover the product presentation video here.
or download datasheet from here.
Its innovative and patented design adds RGBW capability to HADAR70 zoom range, with no color mixing compromise and very limited impact on beam angles.
GALAXY2 is an easy to integrate base, being screw mounted to the PCB and allowing twist and lock assembly of the selected set. To ensure best possible color mixing results, GALAXY2 is equipped with 13,6mm spaced centering pins.
See also HADAR70 leaflet or download full Datasheet.
A technical question ? Please contact us.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XP-L COLOR HD | 13.1 | 40.7 | 25.5 | 66.0 | 81.2 | 9.2 | 1.4 | 2.6 |
| CREE | XN-P RGBW | 13.3 | 41.7 | 25.7 | 67.9 | 78.5 | 9.0 | 1.3 | 6.3 |
| CREE | XP-GR | 13.3 | 40.3 | 25.6 | 66.8 | 80.0 | 9.1 | 1.4 | 1.7 |
| CREE | XP-LR | 13.3 | 40.4 | 25.5 | 67.0 | 80.8 | 9.2 | 1.4 | 1.8 |
| CREE | XM-L COLOR GEN 2 HI | 13.5 | 40.8 | 26.3 | 67.5 | 79.7 | 8.5 | 1.3 | 4.4 |
| CREE | XP-L COLOR HI | 13.6 | 40.4 | 26.8 | 67.9 | 78.7 | 8.0 | 1.3 | 3.9 |
| CREE | XM-L COLOR GEN 2 HD | 13.7 | 41.0 | 26.2 | 67.3 | 78.4 | 8.5 | 1.3 | 2.8 |
| LED ENGIN | LZ4-01MNCA | 13.6 | 41.0 | 26.5 | 68.2 | 80.5 | 8.4 | 1.3 | 4.5 |
| LUMILEDS | LUXEON CZ CLUSTER X4 RGBW | 13.3 | 39.8 | 25.9 | 67.1 | 78.9 | 8.7 | 1.4 | 6.4 |
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 13.6 | 40.1 | 26.3 | 67.4 | 79.9 | 8.4 | 1.4 | 1.7 |
| LUMILEDS | LUXEON RUBIX CLUSTER X4 RGBW | 13.7 | 39.9 | 26.3 | 66.6 | 79.7 | 8.7 | 1.4 | 5.6 |
| LUMINUS | SBM_40_SC | 13.4 | 41.5 | 26.0 | 68.2 | 80.4 | 9.0 | 1.3 | 5.6 |
| NICHIA | E17A CLUSTER X4 RGBW | 14.0 | 38.7 | 27.0 | 65.7 | 78.3 | 7.7 | 1.4 | 7.5 |
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 13.3 | 41.8 | 25.6 | 68.4 | 80.6 | 9.2 | 1.3 | 4.8 |
| OSRAM | OSTAR STAGE LE RTDUW S2WP | 13.4 | 41.7 | 26.0 | 68.3 | 81.7 | 9.0 | 1.3 | 6.5 |
| PROLIGHT OPTO | PBEE_40FTE | 13.3 | 42.1 | 25.7 | 68.6 | 79.1 | 8.9 | 1.3 | 5.9 |
