Dimensions : 35x14.7mm
Asymmetric Collimator

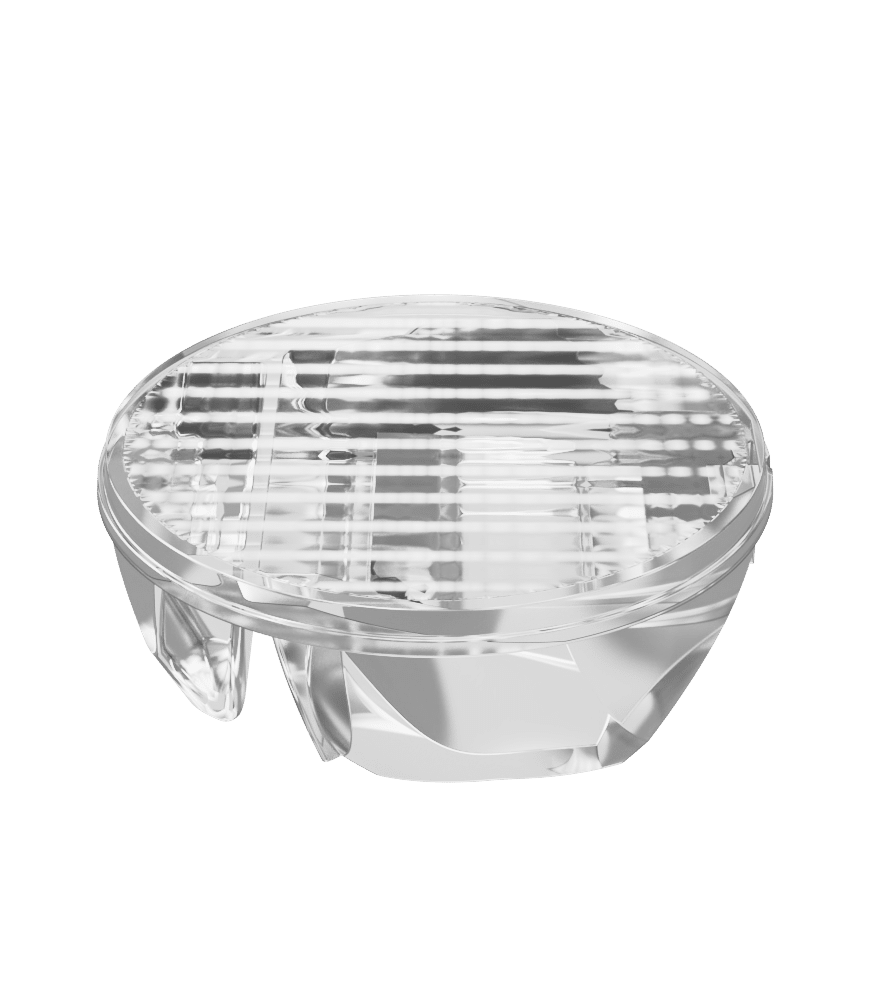

Ø 35mm, Asymmetric Wall Washer PMMA collimator
More details :
HADAR35A is a compact Ø32.7 mm PMMA collimator (Ø35 mm with holder) featuring an ultra-low profile design, only 13 mm in height.
HADAR35A delivers outstanding wall-washing performance with exceptional efficiency (typical LOR >91%). It creates a smooth, highly uniform light distribution across the wall, with illumination starting close to the ceiling line for a clean, continuous wash.
This well polished diamond turned optic, has extremely low surface brightness (UGR <11 @ 1500 lumens).
HADAR35A has typical efficiency of 92 % and is optimized for 2.4mm – 6mm LES COBs and compatible with up to 10mm LES COBs.

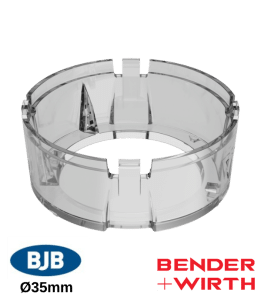

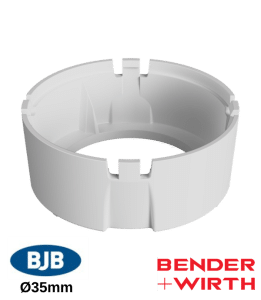

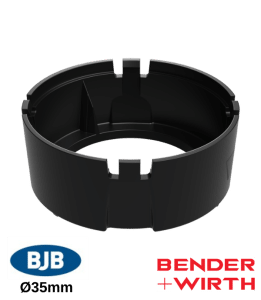

We have developed lens holder HADAR35HA* that is compatible with Bender+Wirth Bayonet 35/20, Bayonet 35/25 and BJB ⌀35mm (47.360.xx) solderless connectors.
See also HADAR35 leaflet.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|

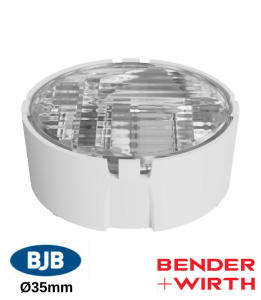

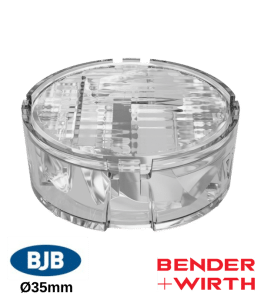

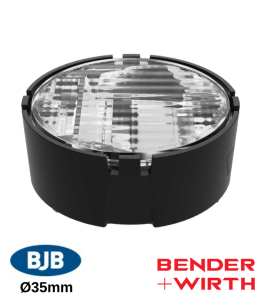

Compatible holders:
In the same family:
