~40° Large Collimator
Ø 70mm Large beam PMMA collimator
More details :

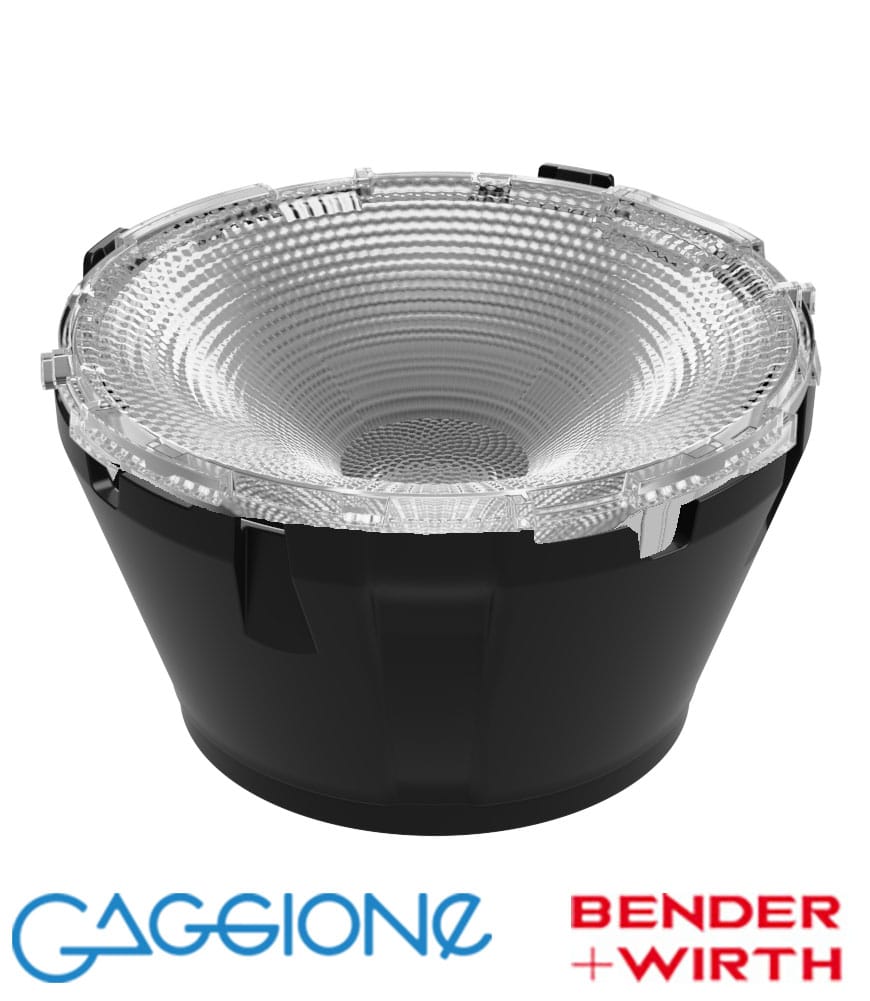

SHADAR70L102 is a Ø 70 mm Large beam collimator (HADAR70L) with a black holder. This combination provides ~40° FWHM with a smooth cut-off and low surface brightness.
Holder is compatible with Gaggione’s LLH66*, Galaxy1, Galaxy2 bases and B+W Hybrid Holder 6xx, Bayonet50G and 4xx Typ Z1 (with LLH66) solderless connectors.
Diamond turned optic provides industry’s highest efficiency and efficacy with smooth cut-off and extremely low surface brightness.
HADAR70V has typical efficiency of +90 % and supporting single colour and tunable white COBs from 3 mm to 23 mm LES, with good 3rd party connector support.
See also other HADAR70 beam, holder and accessory options via HADAR70 leaflet or access the full datasheet datasheet.
If you have any questions or need help in your project, please contact us.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | VERO 13 SE BXRC_30G2000_C_73 | 35.7 | 65.2 | 92.5 | 1.9 | 0.2 | |||
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 35.9 | 65.3 | 87.1 | 1.9 | 0.3 | |||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 36.7 | 65.2 | 92.6 | 1.9 | 0.5 | |||
| BRIDGELUX | V10 F90 ARRAY SERIES | 38.2 | 67.9 | 94.1 | 1.8 | 0.4 | |||
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 39.1 | 66.4 | 94.1 | 1.8 | 0.5 | |||
| BRIDGELUX | V13 F90 ARRAY SERIES | 40.1 | 69.9 | 93.4 | 1.7 | 0.5 | |||
| BRIDGELUX | VESTA 18 TW PD 2 BXRV_TR_2765G_40A0_A_23 | 43.7 | 74.9 | 89.6 | 1.3 | 1.3 | |||
| BRIDGELUX | VESTA 22 TW PD 2 BXRV_TR_2765G_65A0_A_23 | 44.0 | 77.3 | 87.6 | 1.2 | 1.5 | |||
| CITIZEN | CLU713 TYPE-F | 34.1 | 63.2 | 88.9 | 2.0 | 0.2 | |||
| CITIZEN | LCN-C01B2 | 35.0 | 64.9 | 91.5 | 1.9 | 1.1 | |||
| CITIZEN | CLU703 TYPE-F | 36.0 | 64.4 | 85.3 | 1.8 | 0.3 | |||
| CITIZEN | CLU713 | 36.3 | 65.6 | 94.5 | 2.0 | 0.6 | |||
| CITIZEN | CLU02Q TYPE-Y | 37.1 | 66.5 | 87.9 | 1.8 | 0.5 | |||
| CITIZEN | CLU721 | 37.8 | 67.3 | 92.2 | 1.8 | 0.4 | |||
| CITIZEN | CLU703 | 37.8 | 66.3 | 92.8 | 1.9 | 0.4 | |||
| CITIZEN | CLU7R3 | 37.9 | 64.5 | 90.2 | 1.8 | 0.6 | |||
| CITIZEN | CLU731 | 38.4 | 68.1 | 88.1 | 1.7 | 0.5 | |||
| CITIZEN | CLU7L3 | 38.6 | 63.4 | 88.7 | 1.7 | 1.1 | |||
| CITIZEN | CLU7A2 | 38.7 | 65.9 | 92.5 | 1.8 | 0.9 | |||
| CITIZEN | CLU733 | 38.8 | 68.6 | 88.4 | 1.6 | 0.6 | |||
| CITIZEN | CLU03Q TYPE-Y | 41.3 | 71.3 | 93.8 | 1.6 | 0.4 | |||
| CITIZEN | CLU04Q | 44.5 | 78.4 | 93.5 | 1.2 | 0.2 | |||
| CITIZEN | CLU03Q TYPE-F | 44.9 | 74.5 | 92.1 | 1.4 | 0.5 | |||
| CITIZEN | CLU7A3 | 51.6 | 85.5 | 84.9 | 0.9 | 0.6 | |||
| CITIZEN | CLU7A3 TYPE-F | 57.0 | 91.8 | 88.6 | 0.8 | 0.3 | |||
| CREE | XP-LR | 35.3 | 50.5 | 87.7 | 2.4 | 1.7 | |||
| CREE | CXB 1520 | 37.6 | 66.8 | 90.4 | 1.8 | 0.4 | |||
| CREE | XP-GR | 38.0 | 69.6 | 90.3 | 1.6 | 1.9 | |||
| CREE | CXA 1830 | 38.2 | 68.2 | 92.4 | 1.7 | 0.8 | |||
| CREE | CXB 1310 | 39.4 | 67.8 | 94.8 | 1.8 | 0.6 | |||
| CREE | CMU1532 | 39.8 | 69.7 | 90.0 | 1.6 | 0.5 | |||
| CREE | CMB1818 | 40.2 | 69.6 | 90.6 | 1.6 | 0.6 | |||
| CREE | CXA 2530 | 40.6 | 71.3 | 91.2 | 1.5 | 1.0 | |||
| CREE | CXB 2530 | 41.6 | 72.5 | 89.8 | 1.4 | 0.4 | |||
| CREE | CXA 3050 | 44.2 | 77.7 | 88.5 | 1.2 | 0.5 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 36.0 | 65.2 | 91.5 | 1.9 | 0.6 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 37.3 | 64.8 | 92.8 | 1.9 | 0.6 | |||
| LUMILEDS | LUXEON 7070 | 37.5 | 65.3 | 88.6 | 1.8 | 0.7 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 38.1 | 65.9 | 90.6 | 1.7 | 1.7 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 38.8 | 68.2 | 92.6 | 1.7 | 0.5 | |||
| LUMINUS | CTM_9 | 36.4 | 65.9 | 93.0 | 1.9 | 1.4 | |||
| LUMINUS | CXM_3 | 37.9 | 63.6 | 92.8 | 1.9 | 0.4 | |||
| NICHIA | NVCWJ024Z_V1MT | 35.0 | 64.0 | 90.6 | 2.0 | 0.9 | |||
| NICHIA | NTCWS024B_V3 | 35.8 | 64.2 | 92.2 | 2.0 | 0.4 | |||
| NICHIA | NJCWL024Z_V1MT | 37.4 | 66.2 | 91.6 | 1.8 | 1.0 | |||
| XICATO | XTM & XIM 9MM | 35.5 | 65.1 | 91.6 | 2.0 | 1.1 |
