~10° Narrow Collimator
Ø 70mm Narrow beam PMMA collimator
Compatible with: LLH66*, Galaxy1, Galaxy2 bases and B+W Hybrid Holder 6xx, Bayonet50G and 4xx Typ Z1 (with LLH66)
More details :

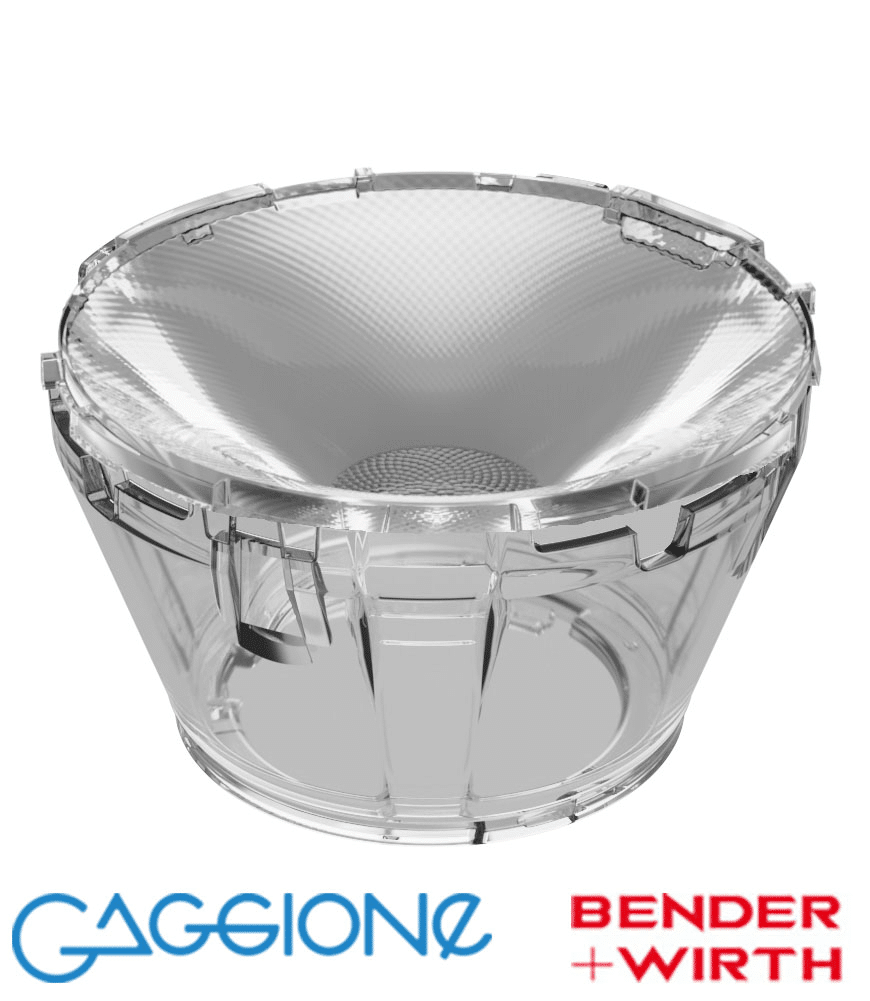

SHADAR70N100 is a Ø 70 mm Narrow beam collimator (HADAR70N) with a clear holder. This combination provides ~10° FWHM with a smooth cut-off and low surface brightness.
Holder is compatible with Gaggione’s LLH66*, Galaxy1, Galaxy2 bases and B+W Hybrid Holder 6xx, Bayonet50G and 4xx Typ Z1 (with LLH66) solderless connectors.
Diamond turned optic provides industry’s highest efficiency and efficacy with smooth cut-off and extremely low surface brightness.
HADAR70V has typical efficiency of +90 % and supporting single colour and tunable white COBs from 3 mm to 23 mm LES, with good 3rd party connector support.
See also other HADAR70 beam, holder and accessory options via HADAR70 leaflet or access the full datasheet datasheet.
If you have any questions or need help in your project, please contact us.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 7.2 | 13.1 | 94.7 | 39.3 | 2.8 | |||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 9.3 | 16.8 | 93.8 | 24.9 | 3.9 | |||
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 11.6 | 20.0 | 87.9 | 16.3 | 1.4 | |||
| BRIDGELUX | V10 F90 ARRAY SERIES | 13.6 | 24.3 | 94.5 | 12.1 | 1.6 | |||
| BRIDGELUX | VESTA 9 TW BXRV-TR-2765G-10A0-B23 | 14.1 | 24.5 | 91.9 | 11.1 | 3.1 | |||
| BRIDGELUX | VERO 13 SE BXRC_30G2000_C_73 | 16.3 | 32.3 | 89.7 | 7.0 | 1.1 | |||
| BRIDGELUX | VESTA 13 THRIVE_BXRV-TR-2750S-20A0-A-23 | 18.0 | 32.4 | 93.9 | 7.0 | 3.1 | |||
| BRIDGELUX | VESTA 13 TW CSP BXRV-TR-2750G-2000-A23 | 18.1 | 32.5 | 90.8 | 6.5 | 1.4 | |||
| BRIDGELUX | V13 F90 ARRAY SERIES | 22.9 | 36.7 | 93.3 | 4.7 | 1.8 | |||
| BRIDGELUX | VESTA 18 TW PD 2 BXRV_TR_2765G_40A0_A_23 | 26.7 | 45.6 | 89.4 | 3.1 | 4.3 | |||
| BRIDGELUX | VESTA 22 TW PD 2 BXRV_TR_2765G_65A0_A_23 | 28.8 | 50.9 | 86.8 | 2.5 | 5.1 | |||
| CITIZEN | CLU7L3 | 5.2 | 9.7 | 85.1 | 68.7 | 4.0 | |||
| CITIZEN | CLU7R3 | 6.8 | 12.5 | 89.5 | 42.6 | 4.2 | |||
| CITIZEN | CLU7A3 | 7.0 | 12.9 | 88.8 | 39.7 | 4.0 | |||
| CITIZEN | CLU7A2 | 7.0 | 12.9 | 91.6 | 41.0 | 4.7 | |||
| CITIZEN | CLU7A3 TYPE-F | 8.4 | 15.3 | 95.3 | 30.0 | 1.6 | |||
| CITIZEN | CLU703 | 9.3 | 16.5 | 92.5 | 24.7 | 2.7 | |||
| CITIZEN | CLU703 TYPE-F | 11.6 | 18.9 | 93.1 | 17.6 | 2.6 | |||
| CITIZEN | CLU713 | 12.1 | 22.1 | 90.3 | 13.6 | 1.0 | |||
| CITIZEN | LCN-C01B2 | 13.8 | 23.5 | 88.8 | 11.0 | 2.8 | |||
| CITIZEN | CLU713 TYPE-F | 13.9 | 22.9 | 92.1 | 12.4 | 2.7 | |||
| CITIZEN | CLU02Q TYPE-Y | 14.2 | 24.6 | 88.2 | 10.9 | 1.3 | |||
| CITIZEN | CLU721 | 15.1 | 26.4 | 92.6 | 9.9 | 1.9 | |||
| CITIZEN | CLU731 | 16.2 | 32.4 | 83.5 | 6.5 | 1.0 | |||
| CITIZEN | CLU02Q TYPE-F | 16.5 | 26.1 | 94.9 | 9.7 | 1.8 | |||
| CITIZEN | CLU733 | 19.1 | 32.3 | 87.7 | 6.1 | 1.1 | |||
| CITIZEN | CLU03Q TYPE-Y | 21.3 | 36.4 | 89.9 | 5.0 | 0.7 | |||
| CITIZEN | CLU03Q TYPE-F | 23.5 | 37.0 | 93.6 | 4.7 | 1.7 | |||
| CITIZEN | CLU04Q | 28.1 | 51.2 | 92.5 | 2.7 | 1.0 | |||
| CREE | XP-GR | 4.0 | 10.0 | 89.8 | 86.5 | 3.4 | |||
| CREE | XP-LR | 4.5 | 8.3 | 88.0 | 95.4 | 1.6 | |||
| CREE | CXB 1310 | 8.9 | 15.9 | 91.6 | 26.7 | 2.4 | |||
| CREE | CXB 1520 | 13.9 | 23.2 | 91.6 | 12.2 | 1.2 | |||
| CREE | CMB1818 | 17.8 | 29.5 | 90.0 | 7.4 | 1.6 | |||
| CREE | CXA 1830 | 18.7 | 33.8 | 92.1 | 6.2 | 1.9 | |||
| CREE | CMU1532 | 20.3 | 34.8 | 89.7 | 5.4 | 0.8 | |||
| CREE | CXB 2530 | 25.0 | 43.2 | 87.4 | 3.5 | 1.4 | |||
| CREE | CXA 3050 | 30.8 | 52.8 | 87.9 | 2.3 | 0.7 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 6.5 | 11.7 | 92.5 | 49.2 | 3.7 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 8.0 | 14.8 | 91.6 | 31.3 | 5.2 | |||
| LUMILEDS | LUXEON 7070 | 10.3 | 17.8 | 90.1 | 21.0 | 3.7 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 11.5 | 21.1 | 91.9 | 15.7 | 2.9 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 16.1 | 27.6 | 91.5 | 8.8 | 3.2 | |||
| LUMINUS | CXM_3 | 5.9 | 11.2 | 94.3 | 55.8 | 1.5 | |||
| LUMINUS | CTM_9 | 13.9 | 22.9 | 90.0 | 11.8 | 2.4 | |||
| NICHIA | NJNWS012Z_V1MT | 8.1 | 15.1 | 94.2 | 31.4 | 1.7 | |||
| NICHIA | NTCWS024B_V3 | 9.2 | 17.3 | 92.9 | 23.9 | 2.6 | |||
| NICHIA | NJCWL024Z_V1MT | 9.5 | 20.1 | 89.0 | 18.7 | 3.8 | |||
| NICHIA | NVCWJ024Z_V1MT | 14.3 | 26.1 | 88.7 | 10.0 | 4.1 | |||
| XICATO | XTM & XIM 9MM | 12.9 | 22.3 | 91.2 | 13.2 | 1.7 |
