~10 – 45° Zoom Collimator
Ø 70mm Zoom beam PMMA collimator
Compatible with: LLH66*, Galaxy1, Galaxy2 bases and B+W Hybrid Holder 6xx, Bayonet50G and 4xx Typ Z1 (with LLH66)
More details :
Compatible with Gaggione’s LLH66*, Galaxy1, Galaxy2 bases and B+W Hybrid Holder 6xx, Bayonet50G and 4xx Typ Z1 (with LLH66) solderless connectors

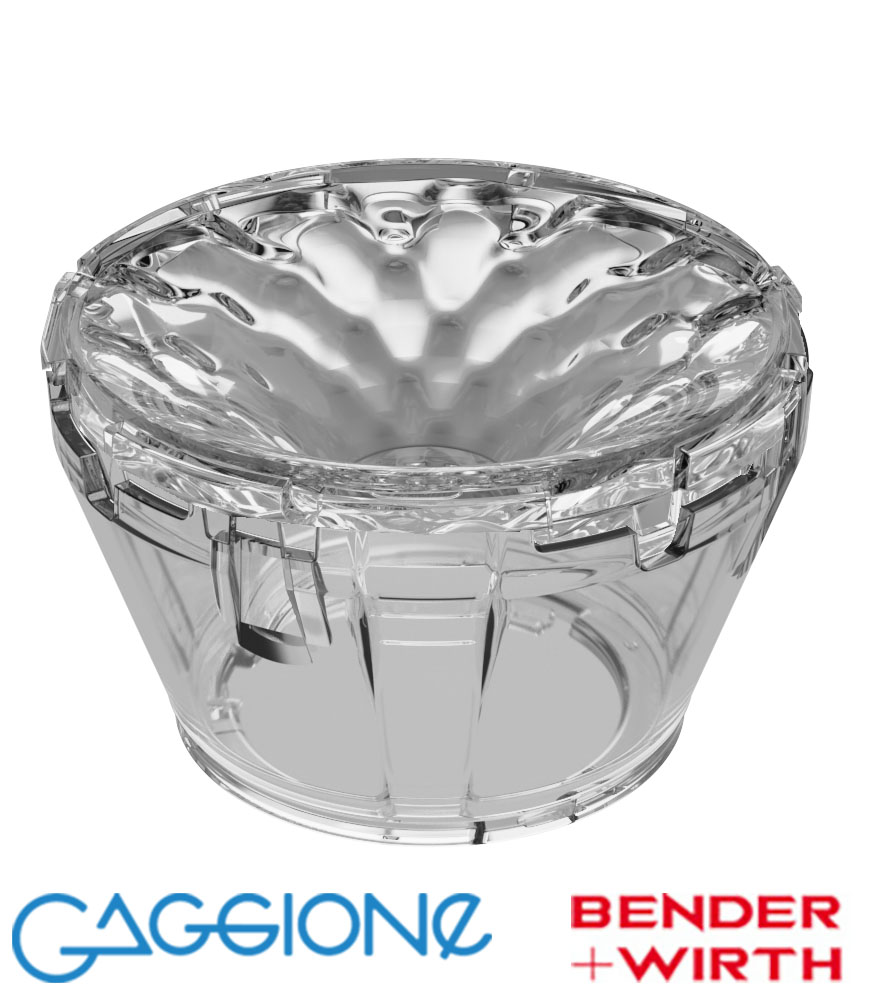

HADAR70Z is a Ø 70 mm patent pending Zoom beam PMMA collimator providing adjustable 10° – 45° beam. HADAR70Z has industry’s highest efficiency of +88% and is only solution in the market where the top lens is directly integrated to the lens holder (rotation stop system). Rotation stop system has free rotation angle of 14° that makes it easy to build fixture around HADAR70Z. HADAR70Z supports COBs and Dim-to-warm solutions from 3 mm to 23 mm LES. Thanks to excellent diamond turned optical design, HADAR70Z provides very low surface brightness, broader beam range, higher efficiency and twice higher efficacy vs competitors.
See HADAR70 holder options to find suitable holder for integrating the part with LLH66 / Bender+Wirth, BJB35, BJB50, HEKLA-K or HEKLA-G2 solderless connectors.
Hint: Looking for RGBW zoom? use HADAR70Z with our patented GALAXY base, that is specifically designed for RGBW color mixing applications.
See also HADAR70 leaflet or download full Datasheet
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 12.1 | 39.3 | 22.7 | 66.4 | 90.8 | 12.9 | 1.6 | 0.8 |
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 13.4 | 40.6 | 26.0 | 68.8 | 87.9 | 9.7 | 1.4 | 1.1 |
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 14.5 | 42.3 | 28.8 | 70.6 | 82.1 | 7.7 | 1.3 | 0.8 |
| BRIDGELUX | VESTA 9 TW BXRV-TR-2765G-10A0-B23 | 15.9 | 42.7 | 32.1 | 72.4 | 86.6 | 6.3 | 1.3 | 1.5 |
| BRIDGELUX | V10 F90 ARRAY SERIES | 16.1 | 43.5 | 33.0 | 72.5 | 88.6 | 6.4 | 1.3 | 0.5 |
| BRIDGELUX | VERO 13 SE BXRC_30G2000_C_73 | 17.7 | 44.1 | 38.8 | 76.4 | 82.7 | 4.3 | 1.1 | 0.5 |
| BRIDGELUX | VESTA 13 TW CSP BXRV-TR-2750G-2000-A23 | 18.6 | 44.1 | 39.3 | 75.0 | 84.4 | 4.2 | 1.1 | 0.4 |
| BRIDGELUX | VESTA 13 THRIVE_BXRV-TR-2750S-20A0-A-23 | 18.8 | 44.7 | 39.5 | 75.2 | 87.6 | 4.3 | 1.2 | 1.1 |
| BRIDGELUX | V13 F90 ARRAY SERIES | 22.7 | 44.9 | 45.7 | 75.0 | 87.1 | 3.3 | 1.2 | 1.5 |
| BRIDGELUX | VESTA 18 TW PD 2 BXRV_TR_2765G_40A0_A_23 | 24.7 | 46.0 | 51.6 | 80.1 | 83.6 | 2.3 | 1.0 | 1.4 |
| BRIDGELUX | VESTA 22 TW PD 2 BXRV_TR_2765G_65A0_A_23 | 26.6 | 46.0 | 57.1 | 84.8 | 80.9 | 1.9 | 0.9 | 2.1 |
| CITIZEN | CLU7R3 | 11.9 | 38.0 | 22.2 | 65.7 | 85.7 | 12.6 | 1.6 | 0.4 |
| CITIZEN | CLU7A2 | 12.1 | 38.7 | 22.6 | 66.5 | 88.3 | 12.7 | 1.6 | 0.6 |
| CITIZEN | CLU7A3 | 12.1 | 38.7 | 22.6 | 66.6 | 86.0 | 12.3 | 1.6 | 0.5 |
| CITIZEN | CLU7A3 TYPE-F | 12.6 | 39.0 | 23.2 | 64.4 | 90.6 | 12.3 | 1.7 | 1.1 |
| CITIZEN | CLU703 | 13.4 | 41.1 | 26.0 | 69.0 | 87.2 | 9.7 | 1.4 | 0.4 |
| CITIZEN | CLU703 TYPE-F | 14.2 | 41.4 | 26.9 | 67.5 | 87.4 | 9.1 | 1.5 | 0.4 |
| CITIZEN | CLU713 | 14.7 | 42.0 | 29.9 | 72.1 | 85.5 | 7.1 | 1.3 | 0.7 |
| CITIZEN | LCN-C01B2 | 15.7 | 42.5 | 32.2 | 71.6 | 85.8 | 6.4 | 1.2 | 1.8 |
| CITIZEN | CLU713 TYPE-F | 15.9 | 42.5 | 31.1 | 70.2 | 86.4 | 6.8 | 1.3 | 0.5 |
| CITIZEN | CLU721 | 16.8 | 43.6 | 34.3 | 73.5 | 87.3 | 5.6 | 1.2 | 0.3 |
| CITIZEN | CLU731 | 17.6 | 44.2 | 39.1 | 77.8 | 76.6 | 3.8 | 1.0 | 0.8 |
| CITIZEN | CLU02Q TYPE-F | 17.7 | 44.0 | 34.6 | 71.4 | 90.4 | 5.8 | 1.3 | 0.3 |
| CITIZEN | CLU733 | 19.2 | 44.9 | 39.9 | 75.6 | 82.4 | 4.0 | 1.1 | 0.8 |
| CITIZEN | CLU02Q TYPE-Y | 19.3 | 43.3 | 37.2 | 72.5 | 83.0 | 4.6 | 1.2 | 0.8 |
| CITIZEN | CLU03Q TYPE-Y | 20.9 | 45.3 | 43.5 | 76.9 | 84.1 | 3.4 | 1.1 | 0.6 |
| CITIZEN | CLU03Q TYPE-F | 22.5 | 45.7 | 44.8 | 76.2 | 88.3 | 3.3 | 1.2 | 0.5 |
| CITIZEN | CLU04Q | 26.4 | 46.0 | 57.7 | 85.5 | 86.9 | 1.9 | 0.9 | 0.5 |
| CREE | XP-GR | 10.4 | 13.8 | 19.1 | 56.0 | 84.6 | 17.5 | 2.9 | 1.5 |
| CREE | CXB 1310 | 13.3 | 40.5 | 25.3 | 68.3 | 87.5 | 10.1 | 1.5 | 0.4 |
| CREE | CXB 1520 | 15.9 | 43.4 | 31.5 | 72.1 | 86.6 | 6.7 | 1.3 | 0.7 |
| CREE | CMB1818 | 18.4 | 44.5 | 37.6 | 74.1 | 85.3 | 4.6 | 1.2 | 0.3 |
| CREE | CXA 1830 | 19.1 | 44.9 | 40.2 | 76.3 | 4.1 | 1.1 | 0.5 | |
| CREE | CMU1532 | 20.2 | 44.9 | 41.8 | 75.6 | 83.5 | 3.6 | 1.1 | 0.5 |
| CREE | CXB 2530 | 23.8 | 45.9 | 49.9 | 80.2 | 81.7 | 2.5 | 1.0 | 0.5 |
| CREE | CXA 3050 | 28.1 | 46.6 | 59.5 | 85.6 | 82.4 | 1.8 | 0.9 | 0.6 |
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 11.7 | 36.9 | 21.4 | 63.3 | 85.1 | 13.4 | 1.7 | 3.0 |
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 12.9 | 40.1 | 24.6 | 67.6 | 86.2 | 10.6 | 1.5 | 0.9 |
| LUMILEDS | LUXEON 7070 | 13.8 | 41.7 | 26.2 | 66.4 | 83.3 | 9.7 | 1.5 | 0.6 |
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 15.2 | 42.1 | 30.6 | 71.4 | 86.4 | 7.1 | 1.3 | 0.6 |
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 17.3 | 43.9 | 35.3 | 73.0 | 87.0 | 5.4 | 1.2 | 0.9 |
| LUMINUS | CXM_3 | 11.4 | 36.4 | 21.1 | 64.9 | 87.9 | 14.0 | 1.7 | 1.0 |
| LUMINUS | CTM_9 | 15.2 | 40.9 | 30.0 | 69.0 | 88.0 | 7.4 | 1.4 | 3.2 |
| LUMINUS | CTM_22 | 28.0 | 45.8 | 58.4 | 82.7 | 79.5 | 1.8 | 0.9 | 1.4 |
| NICHIA | NJNWS012Z_V1MT | 13.0 | 39.5 | 24.8 | 67.2 | 89.5 | 10.9 | 1.6 | 1.5 |
| NICHIA | NTCWS024B_V3 | 13.1 | 40.9 | 25.8 | 70.0 | 88.0 | 10.1 | 1.4 | 0.5 |
| NICHIA | NJCWL024Z_V1MT | 13.6 | 40.3 | 28.8 | 72.8 | 83.6 | 7.7 | 1.3 | 2.6 |
| NICHIA | NVCWJ024Z_V1MT | 16.3 | 43.4 | 34.0 | 73.4 | 82.2 | 5.5 | 1.2 | 2.6 |
| XICATO | XTM & XIM 9MM | 15.3 | 42.3 | 30.7 | 72.1 | 85.6 | 6.9 | 1.3 | 2.1 |
