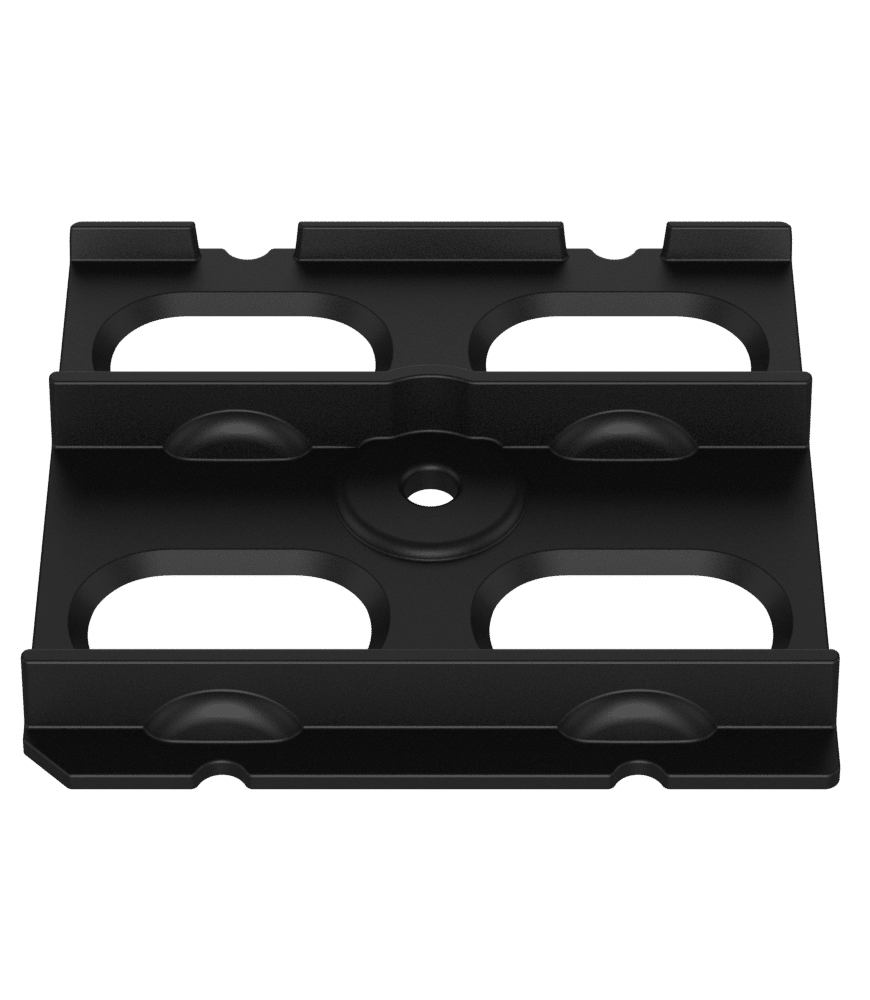

IESNA Type II Short light distribution
More details :

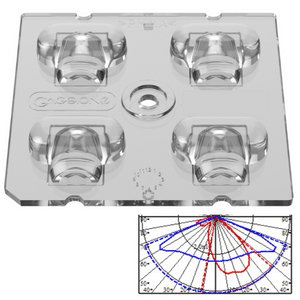

IESNA Type II Short light distribution

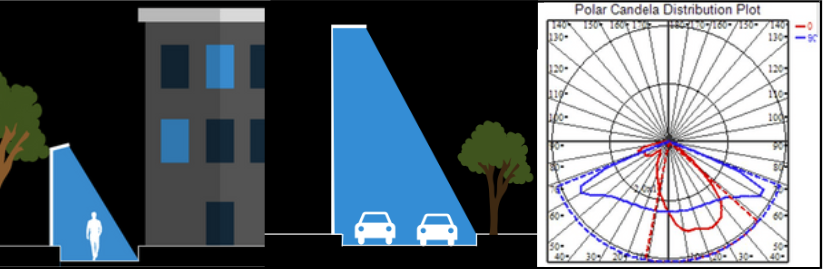

Versatile solution for both: Illuminance and Luminance based roads.
Optimized for 5050 LED packages.
Optical efficiency: >90%
Material: PMMA
Well controlled backlight and Cut-off design allows the lens to be used in countries where backlight is regulated by law.
For even stricter requirements, GAGGIONE have developed backlighting mask which is ideal for next to building installations.
See also AVIKA leaflet or download complete datasheet
Photometric files:
Fortimo FastFlex 2×2 DAG5 (HP 3535)
Fortimo FastFlex 2×2 DA UHE (MP 5050)
Download All brands from here
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | SMD 2835 1W 9V | 84.4 | 0.6 | ||||||
| CREE | XB-D | 81.9 | 0.6 | ||||||
| CREE | XE-G | 81.8 | 0.7 | ||||||
| CREE | XM-L2 | 83.5 | 0.5 | ||||||
| CREE | XM-L3 | 81.5 | 0.5 | ||||||
| CREE | XP-E2 | 84.8 | 0.6 | ||||||
| CREE | XP-G2 | 84.1 | 0.5 | ||||||
| CREE | XP-G3 | 82.8 | 0.6 | ||||||
| CREE | XP-G4 | 85.8 | 0.6 | ||||||
| CREE | XP-L2 | 83.1 | 0.5 | ||||||
| CREE | XP-L | 83.1 | 0.5 | ||||||
| CREE | XP-P | 85.3 | 0.7 | ||||||
| CREE | XPL-HI_POST_PCN5155 | 81.7 | 0.7 | ||||||
| CREE | XQ-E HI | 83.9 | 0.7 | ||||||
| CREE | XQ-E | 83.9 | 0.7 | ||||||
| CREE | XT-E | 83.3 | 0.6 | ||||||
| CREE | XHP35 HI | 83.5 | 0.7 | ||||||
| CREE | J SERIES 3030 P 6V JK CLASS | 83.5 | 0.7 | ||||||
| CREE | J SERIES 5050 P 24V CLASS | 79.5 | 0.6 | ||||||
| CREE | J SERIES 5050B 30V K CLASS | 78.8 | 0.5 | ||||||
| CREE | J SERIES 5050B 6V K CLASS | 78.1 | 0.5 | ||||||
| LUMILEDS | LUXEON XR-HL2X | 88.1 | 0.6 | ||||||
| LUMILEDS | LUXEON XR-5050 SQR 2X4 | 87.7 | 0.6 | ||||||
| LUMILEDS | LUXEON 3030 2D ROUND | 83.7 | 0.7 | ||||||
| LUMILEDS | LUXEON 3030 2D SQUARE | 84.3 | 0.6 | ||||||
| LUMILEDS | LUXEON 3030 HE PLUS | 84.1 | 0.7 | ||||||
| LUMILEDS | LUXEON 3535L HE PLUS ROUND | 83.3 | 0.6 | ||||||
| LUMILEDS | LUXEON 3535L HE | 83.7 | 0.7 | ||||||
| LUMILEDS | LUXEON 3535L | 83.7 | 0.7 | ||||||
| LUMILEDS | LUXEON 5050 ROUND LES 24V | 79.3 | 0.5 | ||||||
| LUMILEDS | LUXEON 5050 SQUARE LES 30V | 83.3 | 0.5 | ||||||
| LUMILEDS | LUXEON C | 80.7 | 0.7 | ||||||
| LUMILEDS | LUXEON HL2Z | 83.8 | 0.7 | ||||||
| LUMILEDS | LUXEON MZ | 82.3 | 0.6 | ||||||
| LUMILEDS | LUXEON REBEL PWC2 | 83.6 | 0.6 | ||||||
| LUMILEDS | LUXEON TX | 84.6 | 0.7 | ||||||
| LUMILEDS | LUXEON V | 81.5 | 0.5 | ||||||
| LUMILEDS | LUXEON Z ES | 84.6 | 0.7 | ||||||
| LUMINUS | SST-12 | 85.1 | 0.7 | ||||||
| LUMINUS | SST-20 | 83.8 | 0.8 | ||||||
| NICHIA | NF2W757G_V3F1 | 84.7 | 0.7 | ||||||
| NICHIA | NF3W585AR | 81.9 | 0.6 | ||||||
| NICHIA | NFSW757G-V3 | 84.6 | 0.7 | ||||||
| NICHIA | NV4WB35AM | 82.6 | 0.6 | ||||||
| NICHIA | NVSW219F_V1 | 83.6 | 0.5 | ||||||
| NICHIA | NVSW319A | 79.0 | 0.8 | ||||||
| NICHIA | NVSW319B | 82.5 | 0.6 | ||||||
| NICHIA | NVSW519A | 82.0 | 0.4 | ||||||
| NICHIA | NVSW719AC | 84.6 | 0.7 | ||||||
| NICHIA | NVSWE21AT | 83.8 | 0.7 | ||||||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 84.7 | 0.7 | ||||||
| OSRAM | OSCONIQ P3030 GW QSSPA1.PM | 83.5 | 0.7 | ||||||
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 83.7 | 0.6 | ||||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 83.4 | 0.6 | ||||||
| OSRAM | OSCONIQ S 3030 GW QSLR31.EM | 83.7 | 0.6 | ||||||
| OSRAM | OSCONIQ S 5050 GW Q9LR34.EM | 83.1 | 0.5 | ||||||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 81.8 | 0.7 | ||||||
| OSRAM | OSLON SSL 150 GW CSHPM1.PM | 83.4 | 0.8 | ||||||
| OSRAM | OSLON SSL 80 GW CS8PM1.CM | 86.0 | 0.6 | ||||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 84.8 | 0.7 | ||||||
| PHILIPS | FORTIMO FASTFLEX 2X2 DA UHE | 86.3 | 0.5 | ||||||
| PHILIPS | FORTIMO FASTFLEX LED 2X2 DA G5 | 86.7 | 0.7 | ||||||
| SAMSUNG | XHP35 HI | 83.5 | 0.5 | ||||||
| SAMSUNG | LH181B | 84.4 | 0.6 | ||||||
| SAMSUNG | LH351B | 84.3 | 0.6 | ||||||
| SAMSUNG | LH351C | 84.4 | 0.6 | ||||||
| SAMSUNG | LH351D | 83.0 | 0.6 | ||||||
| SAMSUNG | LH502C | 83.8 | 0.5 | ||||||
| SAMSUNG | LH502D | 84.0 | 0.6 | ||||||
| SAMSUNG | LH508C | 83.8 | 0.5 | ||||||
| SAMSUNG | LH508D | 83.9 | 0.6 | ||||||
| SAMSUNG | LM301B | 85.9 | 0.7 | ||||||
| SEOUL | Z5M4 | 83.8 | 0.5 | ||||||
| SEOUL | Z8Y19 | 82.6 | 0.8 | ||||||
| SEOUL | Z8Y22P | 82.6 | 0.8 | ||||||
| SEOUL | Z8Y22 | 82.6 | 0.8 | ||||||
| TRIDONIC | RLE 2X4 2000LM 730 HP EXC2 OTD | 87.4 | 0.7 |
Compatible holders:
In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
