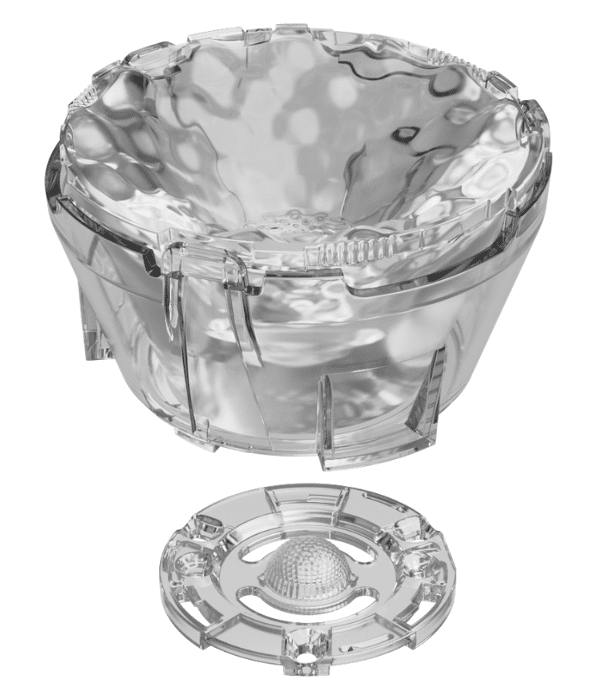

Set of HADAR50 Zoom Ø 50 mm collimator + holder + color mixing GALAXY 1 base.
More details :
G1SHADAR50Z100 is a set with a clear holder, the Ø 50 mm patent pending Zoom beam PMMA collimator providing adjustable 10° – 45° beam and our patented color mixing GALAXY base.
HADAR50Z has industry’s highest efficiency of +88% and is only solution in the market where the top lens is directly integrated to the lens holder (rotation stop system). HADAR50Z’s rotation stop system has a new unique feature, lens can be rotated by angle of 14° and the lenses have 7 stopping steps, that makes it easy to find the same beam angle for each luminaire and also makes it easy to build fixture around HADAR50Z. HADAR50Z supports COBs and Dim-to-warm solutions from 3 mm to 16.2 mm LES. Thanks to excellent diamond turned optical design, HADAR50Z provides very low surface brightness, broader beam range, higher efficiency and twice higher efficacy vs competitors.
GALAXY1 is a color mixing accessory base. It is dedicated to be integrated with RGBW high power LEDs like: OSRAM OSTAR Stage S2WN and S2WM, CREE XML color HI, PROLIGHT OPTO PBEE, SEOUL SPF0AF0A.
Discover the product presentation video here.
or download datasheet from here.
Its innovative and patented design adds RGBW capability to HADAR50 zoom range, with no color mixing compromise and very limited impact on beam angles.
GALAXY1 is an easy to integrate base, being screw mounted to the PCB and allowing twist and lock assembly of the selected set. To ensure best possible color mixing results, GALAXY1 is equipped with 13,6mm spaced centering pins.
See also HADAR50 leaflet or download full Datasheet.
A technical question ? Please contact us.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XN-P RGBW | 12.3 | 41.3 | 24.1 | 69.9 | 79.9 | 10.1 | 1.3 | 5.0 |
| CREE | XP-L COLOR HD | 12.4 | 44.7 | 24.1 | 69.0 | 80.9 | 10.2 | 1.2 | 4.9 |
| CREE | XP-L COLOR HI | 12.4 | 40.7 | 24.7 | 69.4 | 78.6 | 8.8 | 1.2 | 3.8 |
| CREE | XM-L COLOR GEN 2 HI | 12.7 | 41.5 | 25.7 | 69.7 | 79.8 | 8.4 | 1.2 | 4.0 |
| CREE | XM-L COLOR GEN 2 HD | 13.2 | 42.2 | 28.3 | 69.9 | 78.5 | 7.5 | 1.2 | 8.1 |
| LUMILEDS | LUXEON RUBIX CLUSTER X4 RGBW | 12.4 | 41.4 | 24.9 | 69.6 | 77.5 | 8.8 | 1.2 | 4.9 |
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 12.7 | 43.4 | 24.4 | 68.8 | 78.5 | 9.4 | 1.2 | 2.2 |
| LUMINUS | SBM_40_SC | 12.7 | 42.2 | 24.9 | 70.4 | 82.1 | 9.4 | 1.3 | 6.2 |
| NICHIA | E17A CLUSTER X4 RGBW | 13.4 | 41.9 | 30.2 | 72.0 | 73.4 | 6.0 | 1.1 | 7.2 |
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 12.1 | 42.2 | 23.6 | 70.5 | 78.7 | 10.0 | 1.2 | 4.6 |
| OSRAM | PURE 1010 RGBW CLUSTER X4 | 12.2 | 40.5 | 25.0 | 70.5 | 74.6 | 8.1 | 1.1 | |
| OSRAM | OSTAR STAGE LE RTDUW S2WP | 12.6 | 42.1 | 25.9 | 70.3 | 78.6 | 8.7 | 1.2 | 5.9 |
| PROLIGHT OPTO | PBEE_40FTE | 12.1 | 41.9 | 24.0 | 70.6 | 78.6 | 9.6 | 1.2 | 4.2 |
