~20 x ~75 ° Elliptical beam Linear Collimator (263.4 mm x 24.1 mm)
7×1 PC lens with matt white tall louvre (280 mm x 40 mm x 20.25 mm)
More details :
GAGGIONE’s innovative glare-free family is here. High precision micro-structured and diamond-turned optics ensures discreet design, low surface brightness and state of the art color uniformity. POLLUX7X1E provides ~20 x 75° elliptical beam and is optimized for single or cluster CSPs, 2835, 3030 and 5050 mid-power LED packages.

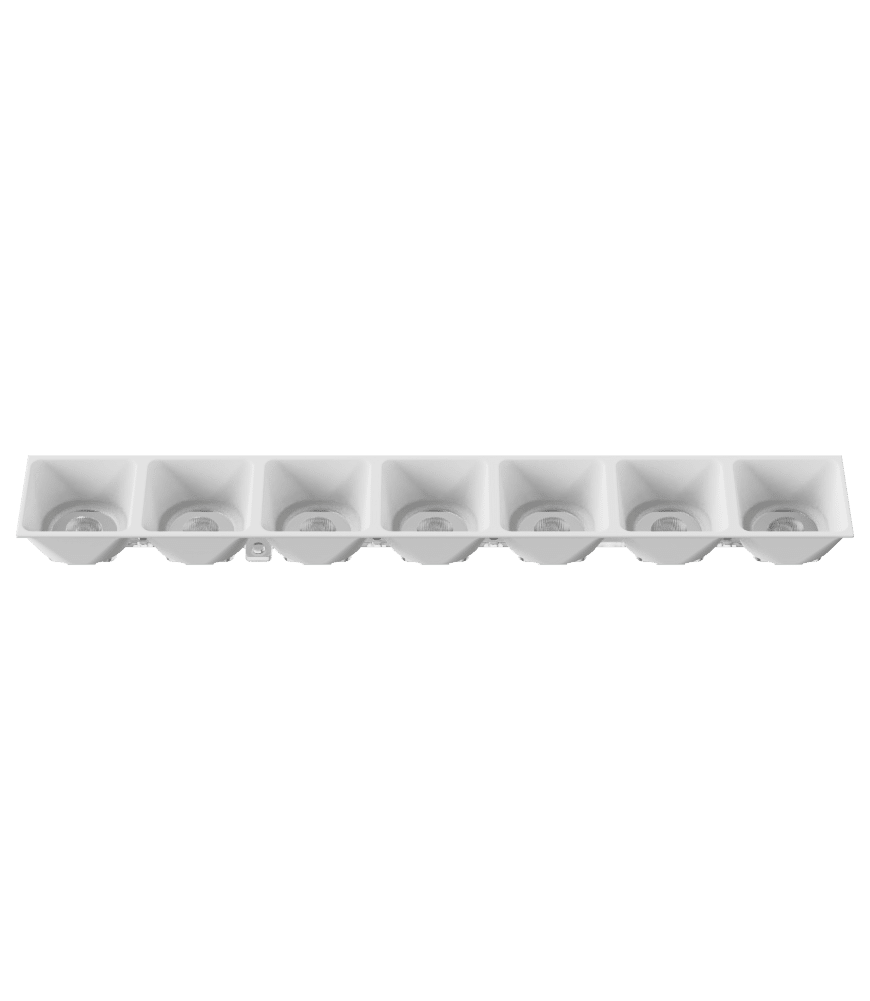

K2POLLUX7X1E101M consists of POLLUX7X1E lens and LVR2POLLUX7X101M white tall louvre (H = 20.25 mm) with matt finishing. This product is ideal for wall grazing, wall washing, corridor/hall way and aisle lighting applications in Offices, Supermarkets, Hotels and for e.g Art galleries. We recommend to put 2pcs of LEDs side-by-side to maximize efficiency and lumen output.
There are multiple snap-on louvre options available for POLLUX7X1* product family and 2 different louvre heights: 20.25mm and 15.8mm (low profile).
Colours and finishing: you can choose between:
Low profile louvre: Glossy Black, Matt Black, Glossy White and Matt White.
Tall Louvre Glossy: Black, Matt Black, Glossy White and Matt White.
Standard PCBs are available from: Lumitronix, Tridonic, Osram, MST.
See also POLLUX7X1 leaflet or download complete datasheet
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| LUMITRONIX | LINEAR_7X1_NICHIA_NVSW219CT_V2X1 | 21.2 | 73.9 | 45.5 | 90.3 | 87.1 | 1.5 | 2.5 | |
| LUMITRONIX | LINEAR_7X1_NICHIA_E11X2 | 23.1 | 72.6 | 58.6 | 89.9 | 84.7 | 1.3 | 3.1 | |
| LUMITRONIX | LINEAR_7X1_NICHIA_E17X1 | 24.0 | 72.9 | 60.5 | 89.0 | 84.8 | 1.2 | 2.7 | |
| LUMITRONIX | LINEAR_7X1_NICHIA_E21X2 | 25.2 | 71.9 | 66.3 | 91.8 | 84.4 | 1.2 | 2.1 |
Compatible accessories:
In the same family:
