Dimensions : 280x40x20.3mm

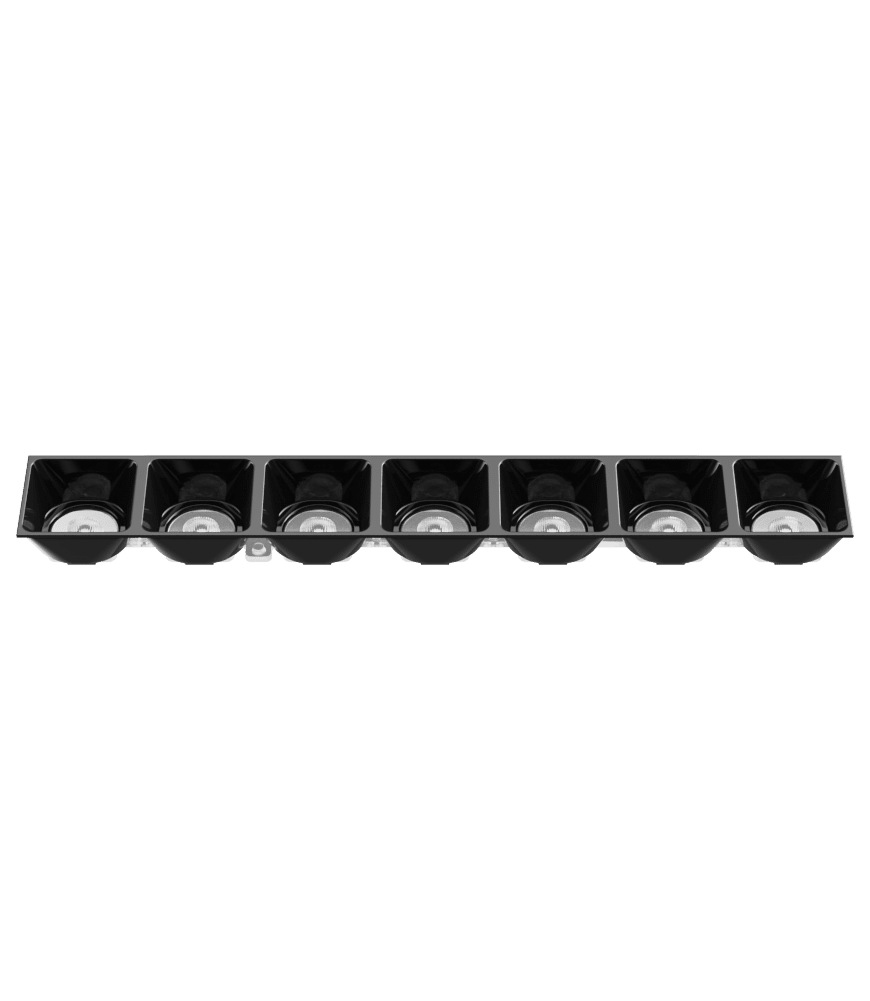

7×1 PC lens with glossy black tall louvre (280 mm x 40 mm x 20.25 mm)
More details :
GAGGIONE’s innovative glare-free family is here. High precision micro-structured and diamond-turned optics ensures discreet design, low surface brightness and state of the art color uniformity. POLLUX7X1E provides ~20 x 75° elliptical beam and is optimized for single or cluster CSPs, 2835, 3030 and 5050 mid-power LED packages.
K2POLLUX7X1ED102 consists of POLLUX7X1ED lens and LVR2POLLUX7X102 black tall louvre (H = 20.25 mm) with glossy finishing. This product is ideal for wall grazing, wall washing, corridor/hall way and aisle lighting applications in Offices, Supermarkets, Hotels and for e.g Art galleries. We recommend to put 2pcs of LEDs side-by-side to maximize efficiency and lumen output.
This version is with diffused material for even better tunable white experience. Diffused material also improves possible color over the angle issues with lower quality LEDs.
There are multiple snap-on louvre options available for POLLUX7X1* product family and 2 different louvre heights: 20.25mm and 15.8mm (low profile).
Colours and finishing: you can choose between:
Low profile louvre: Glossy Black, Matt Black, Glossy White and Matt White.
Tall Louvre Glossy: Glossy Black, Matt Black, Glossy White, Matt White, Glossy Metallized .
Standard PCBs are available from: Lumitronix, Tridonic, Osram, MST.
See also POLLUX7X1 leaflet or download complete datasheet
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| LUMITRONIX | LINEAR_7X1_NICHIA_NVSW219CT_V2X1 | 34.5 | 75.4 | 87.5 | 98.9 | 68.8 | 0.8 | 2.0 | |
| LUMITRONIX | LINEAR_7X1_NICHIA_E11X2 | 35.6 | 73.4 | 91.0 | 97.9 | 64.9 | 0.7 | 1.8 | |
| LUMITRONIX | LINEAR_7X1_NICHIA_E17X1 | 36.6 | 73.8 | 92.2 | 97.8 | 65.3 | 0.7 | 1.5 | |
| LUMITRONIX | LINEAR_7X1_NICHIA_E21X2 | 37.6 | 72.1 | 89.8 | 97.4 | 64.6 | 0.7 | 1.4 |
