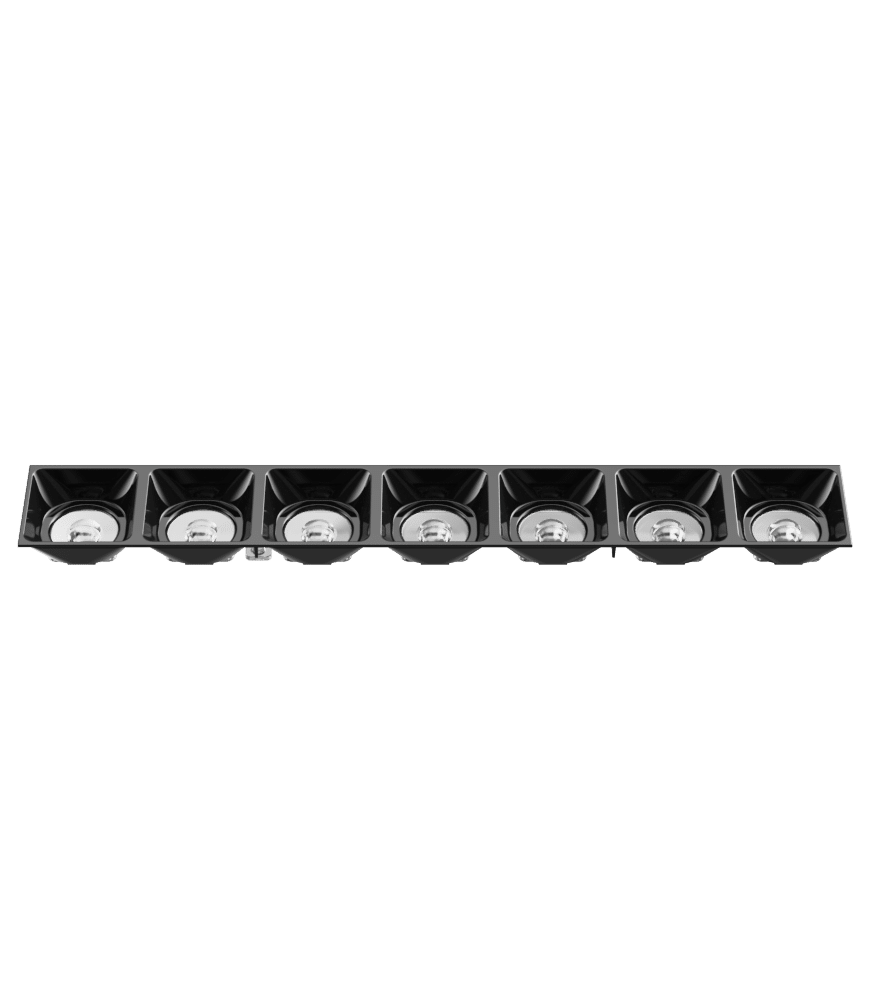

7×1 PC lens with glossy black low profile louvre (280 mm x 40 mm x 15.8 mm)
More details :
GAGGIONE’s innovative glare-free family is here. High precision micro-structured and diamond-turned PC optics ensures discreet design, low surface brightness, high temperature resistance and state of the art color uniformity.
POLLUX7X1DA35 is specifically designed for corridor applications. Double Asymmetric forward throw beam is angled towards 35° in both sides and makes the light to start one meter away from the ceiling, which is ideal for supermarket double sided shelf illumination. We recommend to put 2pcs of Mid-power LEDs side-by-side or up to 4 pcs of CSP clusters to maximize efficiency and lumen output. You can also freely mix POLLUX7X1DA35 with POLLUX7X1W, POLLUX7X1L or POLLUX7X1VL beams if you want to get more light on the floor.
KPOLLUX7X1DA35102 consists of POLLUX7X1DA35 lens and LVRPOLLUX7X102 black low profile louvre (H = 15.8 mm) with glossy finishing.
There are multiple snap-on louvre options available for POLLUX7X1* product family and 2 different louvre heights: 20.25mm and 15.8mm (low profile).
Colours and finishing: you can choose between:
Low profile louvre: Glossy Black, Matt Black, Glossy White and Matt White.
Tall Louvre Glossy: Black, Matt Black, Glossy White and Matt White.
See also POLLUX7X1 leaflet or access the datasheet
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| LUMITRONIX | LINEAR_7X1_NICHIA_NVSW219CT_V2X1 | 81.3 | 0.6 | 4.1 | |||||
| LUMITRONIX | LINEAR_7X1_NICHIA_E11X2 | 74.9 | 0.6 | 5.2 | |||||
| LUMITRONIX | LINEAR_7X1_NICHIA_E21X2 | 76.7 | 0.6 | 4.4 |
Compatible accessories:
In the same family:
