KPOLLUX7X1N102

Narrow Linear Collimator

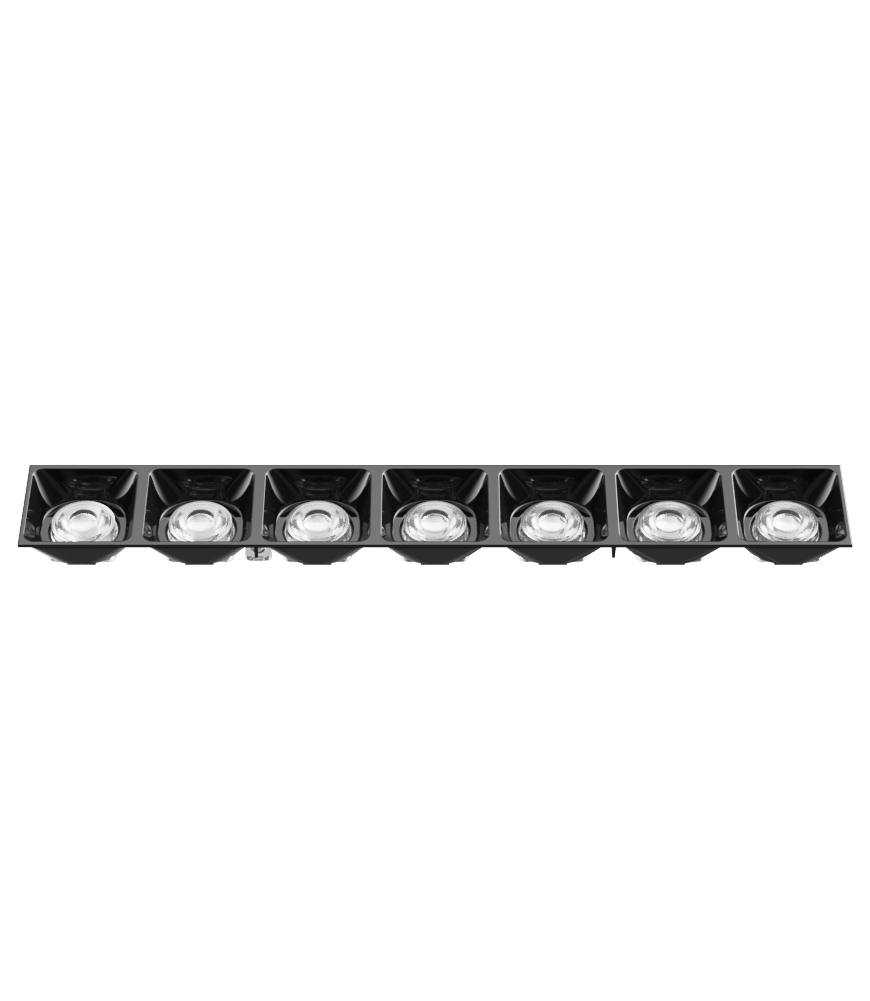

7×1 PC lens with glossy black low profile louvre (280 mm x 40 mm x 15.8 mm)

More details :

GAGGIONE’s innovative glare-free family is here. High precision micro-structured and diamond-turned PC optics ensures discreet design, low surface brightness, high temperature resistance and state of the art color uniformity. POLLUX7X1N provides ~10° narrow beam and is designed for spotlighting applications providing smooth cut-off. POLLUX7X1N is optimized for single CSPs, up to 3535 High-Power LED packages.

KPOLLUX7X1N102 consists of POLLUX7X1N lens and LVRPOLLUX7X102 black low profile louvre (H = 15.8 mm) with glossy finishing. This product is ideal for applications requiring low UGR and discreet installation such as: Accent lighting, spot- and track lighting where narrow beam with smooth cut-off is required.

There are multiple snap-on louvre options available for POLLUX7X1* product family and 2 different louvre heights: 20.25mm and 15.8mm (low profile).

Colours and finishing: you can choose between:
Low profile louvre: Glossy Black, Matt Black, Glossy White and Matt White.
Tall Louvre Glossy: Black, Matt Black, Glossy White and Matt White.

Standard PCBs are available from: Lumitronix, Tridonic, Osram, MST.

See also POLLUX7X1 leaflet or download complete datasheet

Refine your search:

Please select a unique LED reference to list compatible holders and photometrics results

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

No

Measured results in black Simulated results in blue

Compatibility Click on a unique LED reference to access the .ies and .ldt files.

LED Manufacturer	LED Reference	FWHM 1	FWHM 2	FWTM 1	FWTM 2	LOR	Efficacy 1	Efficacy 2	CCI
LUMITRONIX	LINEAR_7X1_NICHIA_E17X1	11.8		20.4		81.2	15.5		3.3
LUMITRONIX	LINEAR_7X1_NICHIA_NVSW219CT_V2X1	11.8		19.8		83.8	16.8		1.4
