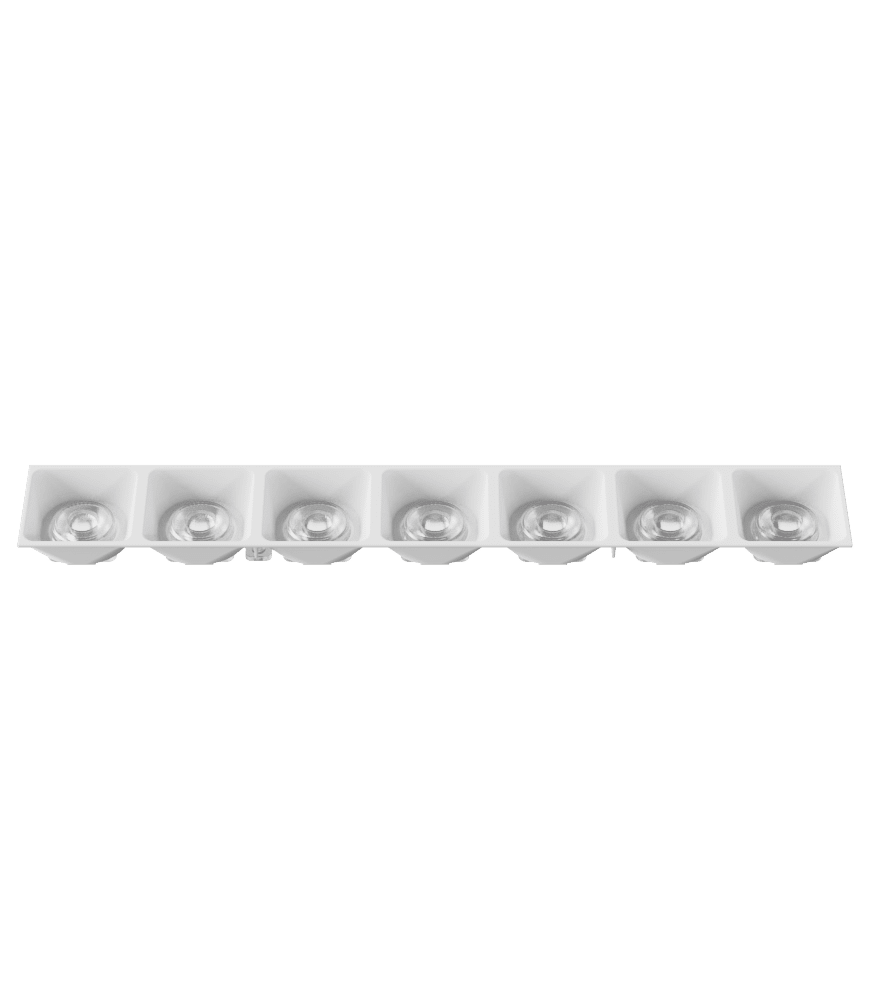

7×1 PC lens with mat white low profile louvre (280 mm x 40 mm x 15.8 mm)
More details :
GAGGIONE’s innovative glare-free family is here. High precision micro-structured and diamond-turned PC optics ensures discreet design, low surface brightness, high temperature resistance and state of the art color uniformity. POLLUX7X1N provides ~10° narrow beam and is designed for spotlighting applications providing smooth cut-off. POLLUX7X1N is optimized for single CSPs, up to 3535 High-Power LED packages.
KPOLLUX7X1ND101M consists of POLLUX7X1ND lens and LVRPOLLUX7X101M white low profile louvre (H = 15.8 mm) with mat finishing. This product is ideal for applications requiring low UGR and discreet installation such as: Accent lighting, spot- and track lighting where narrow beam with smooth cut-off is required.
This version is with diffused material for even better tunable white experience. Diffused material also improves possible color over the angle issues with lower quality LEDs.
There are multiple snap-on louvre options available for POLLUX7X1* product family and 2 different louvre heights: 20.25mm and 15.8mm (low profile).
Colours and finishing: you can choose between:
Low profile louvre: Glossy Black, Matt Black, Glossy White and Matt White.
Tall Louvre Glossy: Glossy Black, Matt Black, Glossy White, Matt White, Glossy Metallized .
Standard PCBs are available from: Lumitronix, Tridonic, Osram, MST.
See also POLLUX7X1 leaflet or download complete datasheet.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
