Ref:

KSIRIUS35Z10

Zoom Collimator

Ø 35mm SIRIUS zoom kit with B+W compatible clear holder

More details :

Out of stock ? Contact us to receive samples.

SIRIUS35 is a Ø 35mm and only zoom solution in the market compatible with both COB and High Power LEDs.

KSIRIUS35Z10 is compatible with Bender+Wirth.
KSIRIUS35Z10 comes unassembled with adjustable window, clear holder and innovative rotation stop system. It is compatible with up to Ø 10mm LES COBs and optimized for 4-6mm. Typical beam angle range (FWHM) is 16.7°- 47° with Ø4mm LES. This zoom solution provides an excellent colour uniformity and symmetry of light distribution, even during rotation for every positions.

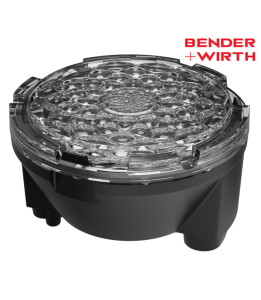

This version comes with a clear holder, it is also available with a black one KSIRIUS35Z12.

ksirius35

Examples of solderless connector compatible references :
Bender+Wirth 434 Typ 2: Citizen, Cree, Luminus, Prolight, Samsung, Seoul Semiconductor, Signify Fortimo, Xicato
Bender+Wirth 464 Typ 1 and B+W 486 Typ Z4: Bridgelux
Bender+Wirth 441 Typ 2, Lumileds
Bender+Wirth 461 Typ 1, Luminus
To obtain compatible connectors, contact Bender+Wirth : sales@bender-wirth.de

This solution can come with white holder or any other color on request, contact us.
A technical question ? Consult the SIRIUS datasheet.
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWHM 2	FWTM 1	FWTM 2	Efficacy 1	Efficacy 2	CCI
BRIDGELUX	V4_HD BXRH_30G0600_A_72	16.2	52.1	32.0	75.5	7.6	1.1
BRIDGELUX	V6 BXRE_30E0400_A_03	18.3	51.9	37.7	78.2	5.5	1.1
BRIDGELUX	V6 HD BXRH_40E1000_B_73	19.9	54.2	40.3	80.6	4.6	1.0
CITIZEN	CLU7B2	14.3	51.4	27.9	72.9	10.1	1.2
CITIZEN	CLU7R3	15.7	52.3	31.4	74.8	8.0	1.2
CITIZEN	CLU7A2	16.2	52.2	32.5	75.9	7.4	1.1
CITIZEN	CLU700	19.8	53.0	41.1	81.5	4.6	1.0
CITIZEN	CLU701	20.2	53.6	40.7	81.3	4.5	1.0
CITIZEN	CLU702	21.9	50.6	45.7	81.3	3.7	1.1	0.8
CREE	CXA 13XX	17.8	57.4	38.2	81.0	5.1	1.0
CREE	CXB 1310	22.0	49.8	45.4	81.4	3.7	1.1	0.5
CREE	CXA 1520	22.9	53.3	52.0	91.3	2.6	0.8
LUMILEDS	LUXEON COB 1202	25.2	54.2	54.3	89.8	2.4	0.9
LUMINUS	CXM_3	16.9	47.0	33.9	72.8	6.8	1.4	0.4
LUMINUS	CXM_4	18.6	48.2	38.1	75.0	5.4	1.3	0.4
NICHIA	NVNWS007Z_V1	18.8	53.1	39.0	79.3	5.0	1.1
NICHIA	NTCWT012B_V3	19.2	52.8	39.6	79.4	4.8	1.0
NICHIA	NTCWS024B_V3	20.8	53.1	44.0	83.3	3.9	1.0
NICHIA	NJCWS024Z_V1	21.9	52.6	45.7	85.9	3.5	1.0

View results

Compatible accessories:

Please select a unique LED reference
