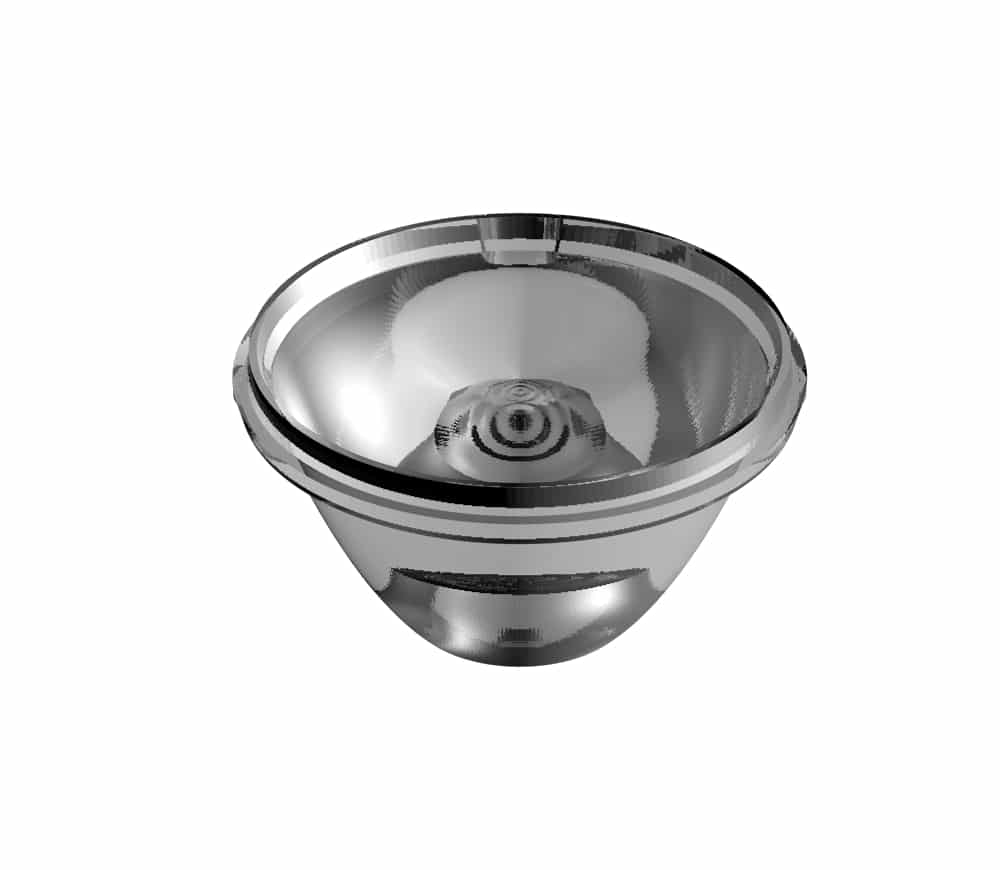

Ø 16 mm extra large beam PMMA collimator.
More details :
LLC01X is a Ø 16 mm extra large beam PMMA collimator. Capable of a 45° beam angle with industry standard high power LEDs it is also compatible with mid power LEDs.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 37.1 | 82.8 | 91.8 | 1.5 | ||||
| BRIDGELUX | V3_HD_GEN_8 | 46.8 | 90.7 | 75.4 | 0.9 | 0.5 | |||
| CITIZEN | CLU7B2 | 36.8 | 81.8 | 79.0 | 1.2 | ||||
| CITIZEN | CLU7A2 | 39.4 | 86.5 | 72.7 | 1.0 | 0.8 | |||
| CITIZEN | CL-L400 | 40.7 | 87.5 | 80.8 | 1.1 | ||||
| CITIZEN | CLU7R3 | 43.5 | 90.6 | 74.3 | 0.9 | ||||
| CITIZEN | CLU7A3 TYPE-F | 43.6 | 91.5 | 74.7 | 0.9 | 0.3 | |||
| CITIZEN | CLU7S3 | 50.9 | 93.8 | 74.4 | 0.8 | 0.6 | |||
| CITIZEN | CLU7L3 | 54.3 | 94.2 | 74.0 | 0.7 | 1.6 | |||
| CREE | XHP35.2 HD | 35.2 | 77.7 | 73.3 | 1.1 | ||||
| CREE | CMA1303 | 35.5 | 79.8 | 78.2 | 1.2 | ||||
| CREE | XP-E2 | 37.9 | 77.2 | 86.6 | 1.2 | ||||
| CREE | XT-E HE | 38.1 | 80.3 | 70.4 | 1.1 | ||||
| CREE | XD16 | 38.9 | 79.6 | 78.2 | 1.2 | ||||
| CREE | XM-L EASYWHITE | 40.1 | 86.5 | 78.2 | 1.1 | ||||
| CREE | XQ-E HI | 42.9 | 83.5 | 75.7 | 1.1 | ||||
| CREE | XP-G4 HI | 42.9 | 84.7 | 70.9 | 1.0 | 2.0 | |||
| CREE | XP-L HI | 43.1 | 83.6 | 76.8 | 1.0 | ||||
| CREE | XPL-HI_POST_PCN5155 | 43.8 | 85.9 | 72.3 | 1.0 | 2.9 | |||
| CREE | XHP35.2 HI | 44.4 | 87.0 | 74.4 | 1.0 | ||||
| CREE | XD16 PREMIUM WHITE | 45.0 | 86.6 | 74.1 | 1.0 | 1.8 | |||
| CREE | XHP35 HI | 45.8 | 86.9 | 77.2 | 0.9 | ||||
| CREE | XP-G2 | 46.2 | 88.0 | 74.7 | 0.9 | ||||
| CREE | XP-G3 | 46.5 | 87.3 | 89.0 | 0.9 | ||||
| CREE | XP-LR | 47.1 | 86.7 | 73.3 | 0.9 | 2.8 | |||
| CREE | XP-G4 | 47.5 | 90.0 | 72.8 | 0.9 | 4.6 | |||
| CREE | XP-P | 48.5 | 87.0 | 73.4 | 0.9 | 2.6 | |||
| CREE | XP-GR | 49.6 | 88.4 | 71.2 | 0.8 | 3.1 | |||
| CREE | XP-G2 HE | 50.7 | 92.0 | 83.3 | 0.8 | 3.1 | |||
| CREE | XP-L2 | 51.8 | 94.7 | 77.7 | 0.8 | ||||
| CREE | XP-L | 52.0 | 95.2 | 75.8 | 0.8 | ||||
| LUMILEDS | LUXEON MZ | 34.0 | 77.9 | 85.4 | 1.4 | ||||
| LUMILEDS | LUXEON T | 34.4 | 81.2 | 78.1 | 1.3 | ||||
| LUMILEDS | REBEL ES | 36.9 | 83.1 | 74.8 | 1.2 | ||||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H04 | 37.1 | 83.5 | 91.9 | 1.6 | ||||
| LUMILEDS | LUXEON Z ES | 44.7 | 85.8 | 71.2 | 0.9 | 1.6 | |||
| LUMINUS | CXM_3 | 34.7 | 78.4 | 77.2 | 1.3 | ||||
| LUMINUS | CXM_4 | 39.4 | 85.9 | 74.5 | 1.1 | ||||
| LUMINUS | SFT-40 | 40.5 | 83.2 | 72.9 | 1.1 | 2.7 | |||
| LUMINUS | CDM_6 | 44.4 | 90.7 | 77.5 | 0.9 | ||||
| LUMINUS | SST-40 | 45.0 | 87.8 | 74.8 | 1.0 | 5.6 | |||
| LUMINUS | SST-12 | 52.2 | 90.5 | 72.7 | 0.8 | 8.0 | |||
| NICHIA | NVSW319A | 35.3 | 77.5 | 76.6 | 1.3 | ||||
| NICHIA | NVSL219C | 35.6 | 84.4 | 77.5 | 1.2 | ||||
| NICHIA | NVSLE21AT | 36.5 | 79.2 | 81.6 | 1.2 | 2.4 | |||
| NICHIA | NCSWE17AT | 38.0 | 79.0 | 74.2 | 1.2 | ||||
| NICHIA | NV4L144AR | 42.6 | 87.8 | 78.8 | 1.0 | ||||
| NICHIA | NVSWE21AT | 43.1 | 85.4 | 77.7 | 1.0 | 5.1 | |||
| NICHIA | NVSW719AC | 48.2 | 89.6 | 70.3 | 0.8 | 1.8 | |||
| NICHIA | NVSW219CT-V2 | 51.1 | 90.7 | 69.9 | 0.8 | 1.4 | |||
| NICHIA | NWSL229A | 57.6 | 97.0 | 76.4 | 0.7 | ||||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 23.0 | 57.7 | 76.5 | 2.0 | ||||
| OSRAM | OSLON COMPACT CL LUW CEUP | 24.7 | 61.6 | 71.8 | 2.0 | ||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 26.0 | 64.9 | 76.8 | 1.8 | ||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 28.2 | 68.7 | 77.3 | 1.6 | ||||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 29.0 | 69.3 | 75.4 | 1.6 | ||||
| OSRAM | OSLON SQUARE GW CSSRM2.PM | 31.6 | 74.0 | 78.8 | 1.5 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.EC | 33.1 | 75.7 | 77.7 | 1.4 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.PC | 36.3 | 78.4 | 75.5 | 1.2 | ||||
| OSRAM | DURIS S8 P9LMS1.EM | 37.0 | 84.8 | 88.6 | 1.2 | ||||
| OSRAM | OSTAR LIGHTING PLUS | 37.8 | 80.4 | 88.3 | 1.3 | ||||
| OSRAM | DURIS S8 P9LRS1.EM | 37.9 | 85.6 | 86.1 | 1.2 | ||||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 42.5 | 83.5 | 74.5 | 1.0 | ||||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 42.6 | 82.6 | 72.4 | 1.0 | 3.7 | |||
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 45.0 | 85.0 | 72.5 | 1.0 | 2.4 | |||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 45.4 | 84.3 | 73.4 | 1.0 | ||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 45.6 | 88.8 | 78.0 | 1.0 | ||||
| OSRAM | OSCONIQ P3737 GW PULTA1.CM | 48.4 | 89.8 | 74.6 | 0.9 | ||||
| OSRAM | OSLON BOOST HX KW CULPM1.TG | 48.7 | 87.6 | 73.2 | 0.9 | ||||
| OSRAM | OSLON BLACK FLAT LUW HWQP | 50.1 | 87.7 | 68.4 | 0.9 | ||||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 52.0 | 91.7 | 71.9 | 0.8 | ||||
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 53.1 | 92.9 | 74.7 | 0.8 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 53.2 | 93.9 | 72.5 | 0.8 | 1.9 | |||
| OSRAM | GOLDEN DRAGON | 53.5 | 82.2 | 85.2 | 1.0 | ||||
| OSRAM | OSLON SQUARE LCW CQAR | 57.4 | 95.5 | 77.0 | 0.7 | ||||
| SAMSUNG | XHP35 HI | 45.8 | 86.9 | 77.2 | 0.9 | ||||
| SEOUL | SAWS0661A | 44.3 | 91.3 | 80.0 | 1.0 | ||||
| SEOUL | Z5M4 | 54.6 | 96.9 | 91.9 | 0.8 |
Compatible holders:
Compatible accessories:
In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
