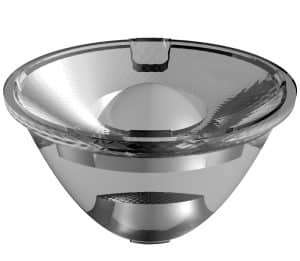

Ø 67 mm narrow beam silicone collimator.
More details :

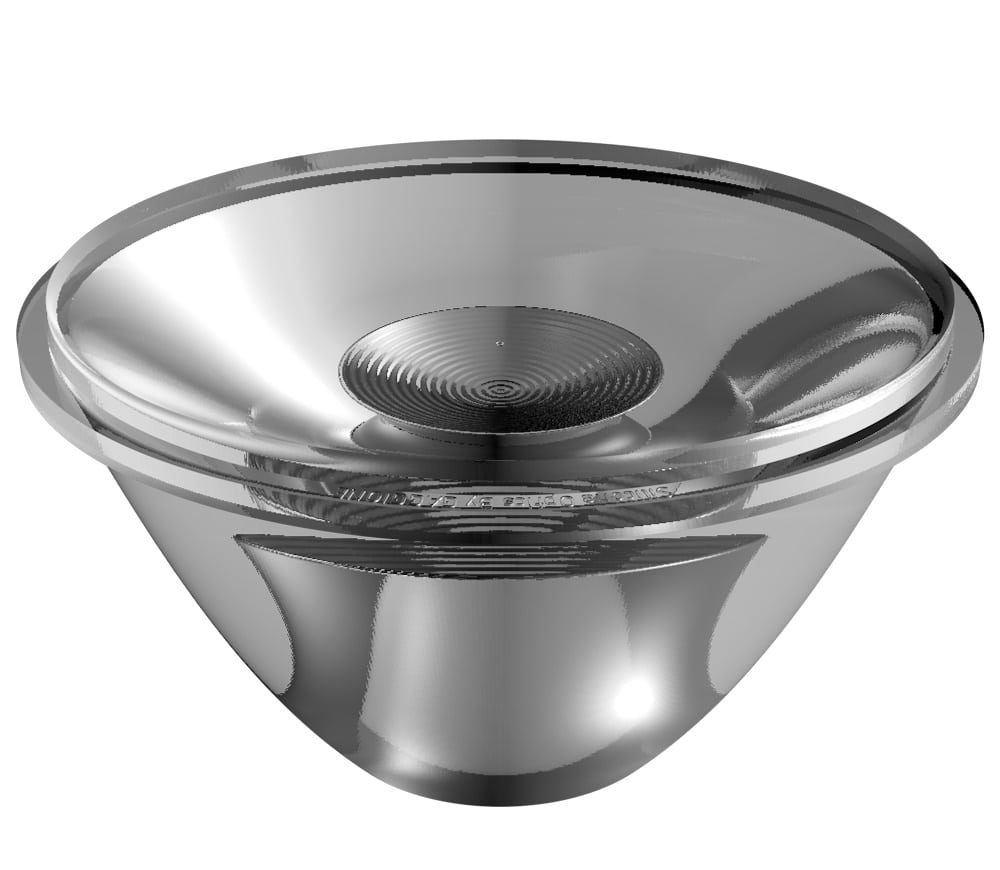

LLC56N7 is a Ø 67 mm narrow beam silicone collimator. LLC56N7 is designed to provide a unmatched narrow beam angle with big sources such as COBs or high power LEDs. LLC56N7 benefits from the patented negative draft angle technology to provide a stray light free solution.
Discover how to choose the right holder.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 7.4 | 12.0 | 84.7 | 44.1 | ||||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 10.8 | 19.6 | 88.3 | 18.5 | 2.5 | |||
| CITIZEN | CLU7S3 | 6.4 | 15.2 | 84.8 | 38.5 | 1.6 | |||
| CITIZEN | CLU7B2 | 6.5 | 13.1 | 94.7 | 50.3 | ||||
| CITIZEN | CLU7A2 | 7.5 | 12.2 | 84.6 | 42.2 | ||||
| CITIZEN | CLU7R3 | 7.9 | 14.2 | 85.9 | 34.4 | 3.2 | |||
| CITIZEN | CLU7A3 | 8.2 | 17.1 | 88.0 | 25.5 | 1.9 | |||
| CITIZEN | CLU7A3 TYPE-F | 8.4 | 13.2 | 87.1 | 33.9 | 1.1 | |||
| CITIZEN | CLU701 | 9.7 | 16.7 | 85.7 | 26.8 | ||||
| CITIZEN | CLU700 | 9.9 | 16.1 | 84.7 | 27.0 | ||||
| CITIZEN | CLU702 | 10.9 | 17.9 | 84.6 | 22.2 | ||||
| CITIZEN | CLU703 | 11.4 | 18.5 | 88.6 | 19.8 | 1.4 | |||
| CITIZEN | CLU703 TYPE-F | 11.8 | 18.5 | 19.0 | 1.2 | ||||
| CITIZEN | CLU710 | 14.1 | 22.4 | 84.4 | 12.9 | ||||
| CITIZEN | CLU712 | 14.5 | 23.0 | 84.4 | 12.6 | ||||
| CITIZEN | CLU711 | 14.7 | 23.7 | 95.4 | 12.9 | ||||
| CITIZEN | CLU713 | 14.9 | 23.7 | 89.2 | 11.7 | 1.1 | |||
| CITIZEN | CLU713 TYPE-F | 15.1 | 27.0 | 90.4 | 9.8 | ||||
| CITIZEN | CLU02J | 16.4 | 26.2 | 84.1 | 9.7 | ||||
| CITIZEN | CLU721 | 17.5 | 30.2 | 88.2 | 7.7 | 1.0 | |||
| CITIZEN | CLU7L3 | 17.8 | 33.1 | 83.6 | 7.8 | 5.2 | |||
| CITIZEN | CLU02Q TYPE-F | 18.7 | 28.2 | 88.5 | 8.0 | 1.1 | |||
| CITIZEN | CLU731 | 21.2 | 35.8 | 86.4 | 5.2 | 1.0 | |||
| CITIZEN | CLU03Q TYPE-Y | 24.0 | 43.3 | 81.9 | 3.8 | 1.1 | |||
| CITIZEN | CLU03Q TYPE-F | 25.7 | 41.7 | 91.8 | 3.8 | 1.0 | |||
| CREE | XQ-E HI | 2.4 | 4.6 | 88.2 | 301.9 | ||||
| CREE | XP-P | 2.5 | 6.3 | 83.4 | 202.1 | 1.6 | |||
| CREE | XP-E2 | 2.6 | 5.3 | 86.0 | 212.2 | 2.9 | |||
| CREE | XP-GR | 2.6 | 5.1 | 80.9 | 204.2 | 3.6 | |||
| CREE | XP-LR | 2.8 | 5.5 | 84.7 | 199.0 | 1.9 | |||
| CREE | XD16 | 3.2 | 6.0 | 89.5 | 185.8 | ||||
| CREE | XP-G4 HI | 3.3 | 7.8 | 89.3 | 116.6 | 7.1 | |||
| CREE | XD16 PREMIUM WHITE | 3.5 | 5.6 | 84.8 | 229.5 | 2.5 | |||
| CREE | XP-G4 | 4.1 | 8.9 | 84.6 | 86.9 | 4.4 | |||
| CREE | XP-L HI | 4.2 | 8.8 | 81.9 | 101.5 | ||||
| CREE | XPL-HI_POST_PCN5155 | 4.4 | 9.4 | 85.3 | 84.5 | 3.4 | |||
| CREE | XHP35 HI | 4.6 | 8.8 | 95.7 | 94.8 | ||||
| CREE | XP-G2 HE | 4.6 | 9.5 | 84.4 | 82.2 | 2.2 | |||
| CREE | XP-L | 5.3 | 10.7 | 94.8 | 69.2 | ||||
| CREE | XHP50.3 HI | 5.3 | 10.3 | 89.7 | 69.4 | 7.4 | |||
| CREE | XM-L2 | 5.5 | 10.5 | 84.6 | 58.3 | 8.3 | |||
| CREE | XHP35.2 HI | 5.8 | 10.8 | 84.3 | 64.4 | 2.7 | |||
| CREE | XP-L2 | 6.1 | 11.7 | 95.1 | 59.4 | ||||
| CREE | XHP35.2 HD | 7.3 | 12.2 | 95.1 | 47.2 | ||||
| CREE | CMA1303 | 8.4 | 15.5 | 93.9 | 33.5 | ||||
| CREE | XHP50.2 | 8.5 | 14.6 | 92.0 | 34.0 | ||||
| CREE | XHP50.3 HD | 8.8 | 14.4 | 88.0 | 30.1 | 3.6 | |||
| CREE | CXA 13XX | 8.9 | 15.7 | 84.8 | 29.0 | ||||
| CREE | XHP70.3 HI | 8.9 | 15.6 | 85.2 | 29.3 | 3.5 | |||
| CREE | CXB 1310 | 10.7 | 20.7 | 86.7 | 16.7 | 1.6 | |||
| CREE | XHP70.2 | 12.1 | 19.8 | 91.3 | 18.5 | ||||
| CREE | CXA 1507 | 13.5 | 23.6 | 84.1 | 13.0 | ||||
| CREE | CXA 1520 | 13.5 | 23.6 | 84.2 | 13.0 | ||||
| CREE | CXB 1507 | 14.5 | 23.6 | 84.3 | 12.5 | ||||
| CREE | CXB 1520 | 15.0 | 27.5 | 85.1 | 9.0 | 1.3 | |||
| CREE | CMB1818 | 19.8 | 34.8 | 84.9 | 5.6 | 1.1 | |||
| CREE | CMU1532 | 22.8 | 42.3 | 84.5 | 4.1 | 0.7 | |||
| EDISON | 2PHM10XWXXP55020 | 6.9 | 13.8 | 93.1 | 44.1 | ||||
| LUMILEDS | LUXEON Z ES | 2.6 | 5.0 | 92.0 | 238.6 | 2.4 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H04 | 8.0 | 13.6 | 84.6 | 37.3 | ||||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H06 | 9.2 | 16.0 | 84.8 | 27.8 | ||||
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 9.9 | 18.4 | 90.8 | 21.4 | 2.4 | |||
| LUMILEDS | LUXEON COB 1202 HD | 10.7 | 19.4 | 95.1 | 21.8 | ||||
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 13.9 | 26.4 | 87.4 | 10.4 | 1.7 | |||
| LUMILEDS | LUXEON COB 1202 | 15.1 | 23.7 | 84.5 | 11.6 | ||||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S04H9 | 15.7 | 24.8 | 84.1 | 10.7 | ||||
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 17.6 | 33.8 | 86.2 | 6.4 | 1.8 | |||
| LUMINUS | SST-12 | 2.7 | 5.3 | 88.8 | 210.6 | 4.2 | |||
| LUMINUS | SST_20_WXH | 3.3 | 5.7 | 82.2 | 195.3 | ||||
| LUMINUS | SST_20_WXS | 3.4 | 5.9 | 82.2 | 180.2 | ||||
| LUMINUS | SST-40 | 5.1 | 9.1 | 85.0 | 74.0 | 3.8 | |||
| LUMINUS | CXM_3 | 6.6 | 16.8 | 90.0 | 30.1 | 1.9 | |||
| LUMINUS | SST-70 | 7.0 | 11.7 | 84.3 | 50.6 | 5.2 | |||
| LUMINUS | CXM_4 | 7.8 | 13.8 | 95.1 | 41.1 | ||||
| LUMINUS | CXM_6 | 10.0 | 16.4 | 91.1 | 26.9 | ||||
| LUMINUS | CXM_9 | 17.2 | 26.7 | 84.1 | 9.2 | ||||
| NICHIA | NFSWE11A | 1.7 | 3.7 | 70.8 | 572.0 | ||||
| NICHIA | NVSW219CT-V2 | 3.0 | 5.6 | 83.1 | 180.9 | 1.1 | |||
| NICHIA | NCSWE17AT | 3.1 | 6.1 | 91.1 | 211.6 | ||||
| NICHIA | NVSLE21AT | 3.3 | 6.1 | 84.7 | 160.7 | 4.8 | |||
| NICHIA | NVSW719AC | 3.7 | 7.5 | 83.2 | 107.4 | 0.8 | |||
| NICHIA | NVSW219F_V1 | 4.9 | 7.5 | 82.9 | 111.3 | ||||
| NICHIA | NVSW519A | 5.8 | 9.2 | 81.7 | 72.3 | ||||
| NICHIA | NV4WB35AM | 6.0 | 10.1 | 93.4 | 67.4 | ||||
| NICHIA | NJNWS012Z_V1MT | 8.6 | 16.4 | 90.7 | 28.0 | 2.6 | |||
| NICHIA | NV4L144AR | 9.4 | 15.5 | 87.2 | 27.8 | 5.4 | |||
| NICHIA | NVNWS007Z_V1 | 9.7 | 16.1 | 84.9 | 26.2 | ||||
| NICHIA | NTCWT012B_V3 | 10.3 | 16.2 | 84.9 | 24.6 | ||||
| NICHIA | NTCWS024B_V3 | 11.1 | 18.4 | 84.8 | 20.1 | ||||
| NICHIA | NJCWS024Z_V1 | 12.1 | 19.6 | 84.6 | 17.6 | ||||
| NICHIA | NFCWL036B_V3 | 13.9 | 22.5 | 84.5 | 13.3 | ||||
| NICHIA | NVEWL016Z_V1 | 14.5 | 23.4 | 84.3 | 12.2 | ||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 2.0 | 7.4 | 94.3 | 195.1 | ||||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 2.0 | 6.4 | 76.6 | 261.2 | ||||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 2.1 | 4.1 | 88.3 | 338.5 | 1.9 | |||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 2.9 | 5.6 | 85.4 | 194.5 | 1.6 | |||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 3.2 | 6.7 | 77.4 | 148.6 | ||||
| OSRAM | OSLON BOOST HX KW CULPM1.TG | 3.2 | 5.9 | 87.8 | 192.5 | ||||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 3.2 | 5.8 | 86.4 | 206.0 | ||||
| OSRAM | OSLON COMPACT CL LUW CEUP | 3.3 | 5.9 | 87.3 | 193.4 | ||||
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 3.6 | 7.8 | 87.3 | 119.5 | ||||
| OSRAM | OSLON SQUARE GW CSSRM2.PM | 3.6 | 7.3 | 89.0 | 144.6 | ||||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 3.8 | 11.2 | 87.6 | 77.5 | ||||
| OSRAM | OSCONIQ P3737 GW PULTA1.CM | 3.9 | 7.9 | 88.7 | 114.3 | ||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 4.1 | 8.0 | 65.5 | 93.8 | ||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 5.3 | 10.2 | 92.7 | 70.2 | ||||
| SEOUL | Z5M4 | 4.9 | 8.7 | 84.0 | 89.3 | ||||
| XICATO | XOB06 | 10.2 | 15.9 | 90.2 | 27.1 | ||||
| XICATO | XOB 9 | 13.8 | 26.4 | 82.2 | 10.8 | ||||
| XICATO | XTM & XIM 9MM | 15.0 | 25.0 | 88.5 | 10.9 | 2.6 |
