Ø 45 mm PMMA collimator without sprue.
More details :

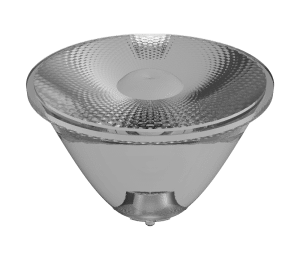

LLC59RF is a Ø 45 mm PMMA collimator without sprue. LLC59RF is designed to provide a 6.5° narrow beam with limited color mixing capability. It combines homogeneity and intensity. Being based on a non-chip imaging technology. it will also work with single or quad chip white LEDs providing smooth and homogeneous beam with a great cut-off.
Discover all its specificities in the datasheet.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
If you pick a LED below. holder suggestions will appear.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XQ-E HI | 3.6 | 8.0 | 83.8 | 105.6 | ||||
| CREE | XP-P | 3.7 | 7.8 | 82.5 | 113.5 | 1.3 | |||
| CREE | XP-GR | 3.9 | 8.4 | 84.3 | 104.5 | 0.8 | |||
| CREE | XP-E2 | 4.2 | 8.8 | 86.4 | 93.0 | 2.1 | |||
| CREE | XP-LR | 4.8 | 10.0 | 86.3 | 74.7 | 0.9 | |||
| CREE | XD16 PREMIUM WHITE | 4.8 | 9.9 | 91.3 | 80.1 | 1.5 | |||
| CREE | XP-G4 HI | 4.9 | 11.1 | 86.9 | 61.9 | 6.3 | |||
| CREE | XPL-HI_POST_PCN5155 | 6.2 | 12.5 | 88.2 | 46.1 | 5.1 | |||
| CREE | XP-L HI | 6.2 | 12.5 | 90.6 | 47.6 | 3.7 | |||
| CREE | XP-G4 | 6.2 | 12.1 | 90.1 | 51.6 | 1.5 | |||
| CREE | XP-G2 HE | 6.6 | 12.8 | 86.7 | 44.8 | 3.2 | |||
| CREE | XHP35 HI | 6.7 | 12.9 | 89.9 | 45.1 | ||||
| CREE | XHP35.2 HI | 7.3 | 14.2 | 86.1 | 35.5 | 2.8 | |||
| CREE | XM-L COLOR GEN 2 HI | 7.4 | 14.3 | 87.2 | 36.7 | 15.8 | |||
| CREE | XM-L2 | 7.9 | 14.7 | 86.8 | 33.1 | 1.1 | |||
| CREE | XHP50.3 HI | 8.3 | 16.3 | 90.7 | 27.8 | 5.2 | |||
| CREE | XHP35.2 HD | 9.7 | 17.5 | 89.2 | 23.6 | 3.0 | |||
| CREE | XHP50.3 HD | 11.7 | 20.1 | 89.1 | 16.8 | 2.9 | |||
| CREE | XHP70.3 | 15.1 | 28.8 | 88.4 | 8.5 | 3.1 | |||
| LUMILEDS | LUXEON Z ES | 4.6 | 9.8 | 86.0 | 79.2 | 0.7 | |||
| LUMINUS | SST-12 | 4.9 | 9.8 | 91.0 | 79.1 | 1.1 | |||
| LUMINUS | SFT-40 | 5.5 | 10.4 | 87.0 | 65.1 | 0.6 | |||
| LUMINUS | SFT-70 | 6.9 | 13.0 | 87.4 | 43.5 | 0.5 | |||
| LUMINUS | SST-40 | 7.3 | 13.9 | 86.8 | 37.4 | 0.6 | |||
| LUMINUS | SST-70 | 9.4 | 16.8 | 88.6 | 24.9 | 0.8 | |||
| NICHIA | NVSW219CT-V2 | 4.9 | 10.0 | 85.2 | 73.1 | 1.1 | |||
| NICHIA | NCSWE17AT | 5.3 | 11.5 | 88.1 | 61.3 | 3.5 | |||
| NICHIA | NVSW719AC | 5.7 | 11.2 | 84.3 | 56.6 | 1.2 | |||
| NICHIA | NVSLE21AT | 5.8 | 11.8 | 84.6 | 51.1 | 2.9 | |||
| NICHIA | NV4WB35AM | 8.4 | 15.9 | 88.2 | 28.1 | 1.0 | |||
| NICHIA | NV4L144AR | 12.2 | 20.9 | 88.1 | 15.0 | 0.9 | |||
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 3.0 | 6.8 | 90.8 | 159.7 | 1.6 | |||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 3.2 | 6.7 | 87.1 | 148.2 | ||||
| OSRAM | OSLON COMPACT CL LUW CEUP | 3.6 | 7.9 | 86.1 | 120.1 | 1.9 | |||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 3.6 | 7.6 | 81.4 | 113.7 | 1.0 | |||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 3.6 | 7.7 | 85.6 | 117.7 | 1.9 | |||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 4.1 | 8.9 | 84.3 | 94.5 | 1.4 | |||
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 5.4 | 11.1 | 87.2 | 58.3 | 1.0 | |||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 5.5 | 11.5 | 86.2 | 57.6 | 1.2 | |||
| OSRAM | OSLON BLACK FLAT LUW HWQP | 5.7 | 11.3 | 80.9 | 57.5 | ||||
| SAMSUNG | XHP35 HI | 6.7 | 12.9 | 89.9 | 45.1 |
