Ø 45 mm ultra narrow beam PMMA collimator without sprue.
More details :
LLC59U is a Ø 45 mm ultra narrow beam PMMA collimator without sprue. LLC59U is designed to provide a 6° ultra narrow beam with limited color mixing capability. Being based on a non-chip imaging technology. it will also work with single or quad chip white LEDs providing smooth and homogeneous beam with a great cut-off. Discover all its specificities in the datasheet.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
If you pick a LED below. holder suggestions will appear.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XP-P | 3.7 | 6.8 | 84.8 | 159.6 | 0.3 | |||
| CREE | XP-GR | 3.8 | 7.1 | 89.6 | 156.2 | 1.4 | |||
| CREE | XQ-E HI | 3.9 | 7.3 | 94.1 | 138.4 | ||||
| CREE | XP-E2 | 4.0 | 7.8 | 97.8 | 133.2 | ||||
| CREE | XD16 PREMIUM WHITE | 4.3 | 8.1 | 90.4 | 125.1 | 3.4 | |||
| CREE | XP-LR | 4.5 | 8.4 | 89.4 | 111.4 | 1.1 | |||
| CREE | XP-G | 5.2 | 9.7 | 98.2 | 90.9 | ||||
| CREE | XP-G4 HI | 5.2 | 9.9 | 91.6 | 78.9 | 6.7 | |||
| CREE | XP-G2 | 5.4 | 10.4 | 98.7 | 77.0 | ||||
| CREE | XP-G4 | 5.9 | 10.5 | 94.0 | 71.7 | 1.5 | |||
| CREE | XP-G3 | 6.0 | 11.3 | 95.1 | 61.3 | ||||
| CREE | XPL-HI_POST_PCN5155 | 6.0 | 11.3 | 88.4 | 61.0 | 5.8 | |||
| CREE | XP-L HI | 6.1 | 11.4 | 94.3 | 62.4 | 4.2 | |||
| CREE | XP-G2 HE | 6.4 | 12.0 | 89.9 | 56.7 | 3.3 | |||
| CREE | XHP35 HI | 6.6 | 11.7 | 92.5 | 57.6 | ||||
| CREE | XT-E HE | 6.7 | 14.0 | 95.5 | 42.5 | ||||
| CREE | XM-L COLOR GEN 2 HI | 6.9 | 12.2 | 89.7 | 49.7 | 8.6 | |||
| CREE | XD16 | 7.0 | 12.4 | 95.7 | 44.7 | ||||
| CREE | XP-L | 7.1 | 13.8 | 96.5 | 43.2 | ||||
| CREE | XHP35.2 HI | 7.3 | 13.1 | 88.4 | 43.7 | 3.5 | |||
| CREE | XM-L2 | 7.7 | 13.5 | 88.9 | 40.9 | 2.5 | |||
| CREE | XP-L2 | 8.0 | 14.8 | 97.7 | 34.5 | ||||
| CREE | XHP50.3 HI | 8.2 | 14.5 | 90.3 | 34.3 | 6.1 | |||
| CREE | MCE COLOR | 8.4 | 16.2 | 91.3 | 28.8 | ||||
| CREE | XHP35.2 HD | 9.2 | 20.3 | 96.7 | 20.0 | ||||
| CREE | XM-L EASYWHITE | 10.4 | 16.3 | 94.1 | 24.3 | ||||
| CREE | XHP50.2 | 11.3 | 19.2 | 96.1 | 20.5 | ||||
| CREE | XHP50.3 HD | 11.4 | 18.8 | 88.9 | 19.7 | 3.2 | |||
| CREE | XHP70 | 12.0 | 27.4 | 93.1 | 11.2 | ||||
| CREE | XHP70.2 | 14.5 | 25.8 | 94.1 | 10.5 | ||||
| CREE | XHP70.3 | 15.5 | 25.2 | 90.8 | 10.6 | 4.1 | |||
| LED ENGIN | LZ7-04M2PD | 8.2 | 14.5 | 36.7 | 27.4 | ||||
| LED ENGIN | LZC_03MD07 | 15.4 | 29.1 | 94.0 | 8.4 | ||||
| LUMILEDS | LUXEON C | 4.2 | 7.8 | 98.2 | 126.5 | ||||
| LUMILEDS | LUXEON Z ES | 4.4 | 8.2 | 87.8 | 112.2 | 1.3 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 RGBW | 8.1 | 14.5 | 95.9 | 38.1 | 19.2 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 8.1 | 14.9 | 94.6 | 37.5 | 6.3 | |||
| LUMILEDS | LUXEON MZ | 8.5 | 14.0 | 82.9 | 36.5 | ||||
| LUMILEDS | LUXEON RUBIX CLUSTER X4 RGBW | 9.5 | 14.0 | 94.6 | 30.9 | 11.7 | |||
| LUMILEDS | LUXEON M | 11.6 | 20.1 | 94.3 | 18.1 | 1.1 | |||
| LUMINUS | SST-12 | 4.4 | 8.0 | 90.7 | 119.2 | 1.7 | |||
| LUMINUS | SFT-40 | 5.3 | 9.5 | 90.2 | 88.0 | 1.2 | |||
| LUMINUS | SBM_40_SC | 6.4 | 11.1 | 93.5 | 67.5 | 11.6 | |||
| LUMINUS | SFT-70 | 6.9 | 11.7 | 90.9 | 55.5 | 1.0 | |||
| LUMINUS | SST-40 | 7.0 | 12.4 | 89.5 | 48.0 | 1.7 | |||
| LUMINUS | SST-70 | 9.2 | 15.6 | 89.1 | 29.9 | 2.0 | |||
| NICHIA | NVSW219CT-V2 | 4.8 | 8.7 | 91.7 | 101.4 | 1.2 | |||
| NICHIA | NVSLE21AT | 5.4 | 10.3 | 86.8 | 72.6 | 2.6 | |||
| NICHIA | NVSW719AC | 5.6 | 10.0 | 87.1 | 74.1 | 1.5 | |||
| NICHIA | NVSL219C | 6.1 | 12.5 | 97.0 | 55.1 | ||||
| NICHIA | NF2W757G_MT | 6.3 | 12.2 | 93.2 | 57.1 | 8.9 | |||
| NICHIA | NCSWE17AT | 6.5 | 11.3 | 93.5 | 60.8 | ||||
| NICHIA | NVSW319A | 6.8 | 11.9 | 95.2 | 53.8 | ||||
| NICHIA | NVSWE21AT | 7.0 | 12.3 | 97.0 | 51.5 | ||||
| NICHIA | NWSL229A | 7.3 | 15.6 | 95.0 | 35.4 | ||||
| NICHIA | NV4WB35AM | 7.6 | 14.0 | 88.7 | 37.1 | 1.1 | |||
| NICHIA | E17A CLUSTER X4 RGBW | 8.7 | 17.4 | 92.2 | 25.4 | 13.9 | |||
| NICHIA | NV4L144AR | 9.9 | 20.8 | 93.2 | 18.4 | 1.8 | |||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 3.5 | 5.9 | 84.8 | 200.6 | ||||
| OSRAM | OSLON COMPACT CL LUW CEUP | 3.7 | 6.3 | 86.5 | 181.6 | 1.0 | |||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 3.7 | 6.6 | 85.5 | 162.9 | 0.9 | |||
| OSRAM | OSLON BLACK FLAT LUW HWQP | 4.0 | 7.4 | 85.4 | 145.0 | ||||
| OSRAM | OSLON SSL 80 | 4.1 | 7.8 | 98.7 | 126.4 | ||||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 4.2 | 7.7 | 88.6 | 130.0 | 0.5 | |||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 4.4 | 8.3 | 98.8 | 113.8 | ||||
| OSRAM | OSLON BOOST HX KW CULPM1.TG | 4.4 | 8.3 | 90.4 | 115.7 | ||||
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 5.1 | 10.1 | 90.9 | 79.4 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 5.2 | 9.8 | 87.4 | 79.3 | 0.6 | |||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 5.4 | 9.3 | 84.9 | 94.6 | ||||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 5.5 | 10.2 | 88.6 | 76.4 | ||||
| OSRAM | OSLON SQUARE GW CSSRM2.PM | 5.6 | 11.2 | 98.1 | 68.5 | ||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 5.6 | 10.3 | 97.1 | 73.1 | ||||
| OSRAM | OSTAR STAGE LE RTDUW S2W | 5.7 | 10.1 | 98.8 | 81.9 | 16.9 | |||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 5.7 | 11.3 | 96.5 | 61.3 | ||||
| OSRAM | OSLON SQUARE LCW CQAR | 5.8 | 10.5 | 98.9 | 71.0 | ||||
| OSRAM | OSTAR STAGE LE RTDUW S2WM | 6.0 | 10.4 | 94.3 | 71.9 | 11.0 | |||
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 6.1 | 10.5 | 97.6 | 70.6 | 9.6 | |||
| OSRAM | OSLON SQUARE GW CSSRM1.EC | 6.2 | 12.1 | 97.1 | 54.5 | ||||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 6.3 | 11.3 | 91.0 | 60.7 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.PC | 6.3 | 11.6 | 97.0 | 59.1 | ||||
| OSRAM | OSCONIQ P3737 GW PULTA1.CM | 6.6 | 12.8 | 90.9 | 49.6 | ||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 7.3 | 13.6 | 87.1 | 41.6 | ||||
| OSRAM | PURE 1010 TUNABLE CLUSTER X4 | 7.9 | 15.4 | 94.7 | 33.2 | ||||
| OSRAM | DURIS S8 P9LT32.PM | 9.9 | 19.9 | 92.4 | 19.8 | ||||
| OSRAM | DURIS P10 | 11.6 | 19.6 | 94.4 | 17.9 | ||||
| PLESSEY | PLW7070GA | 11.2 | 21.5 | 93.9 | 16.6 | ||||
| PROLIGHT OPTO | PBEE_40FTE | 4.9 | 9.9 | 97.8 | 85.5 | 12.0 | |||
| SAMSUNG | XHP35 HI | 6.6 | 11.7 | 92.5 | 57.6 | ||||
| SEOUL | Z5 | 3.9 | 7.5 | 98.6 | 149.8 | ||||
| SEOUL | Z5_M1 | 5.1 | 9.7 | 98.0 | 86.7 | ||||
| SEOUL | SPF05F0A | 6.6 | 11.4 | 94.5 | 61.8 | 12.5 |

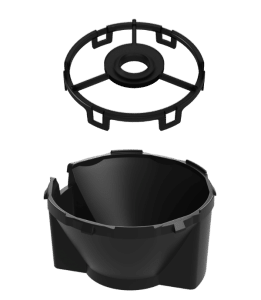

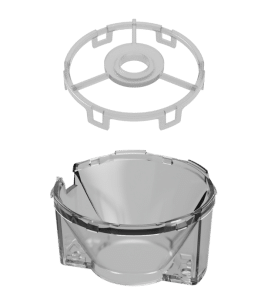

Compatible holders:

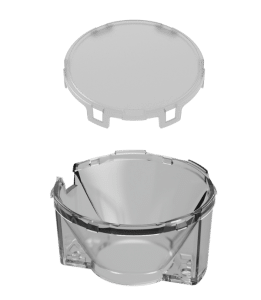

Compatible accessories:
