Ref:

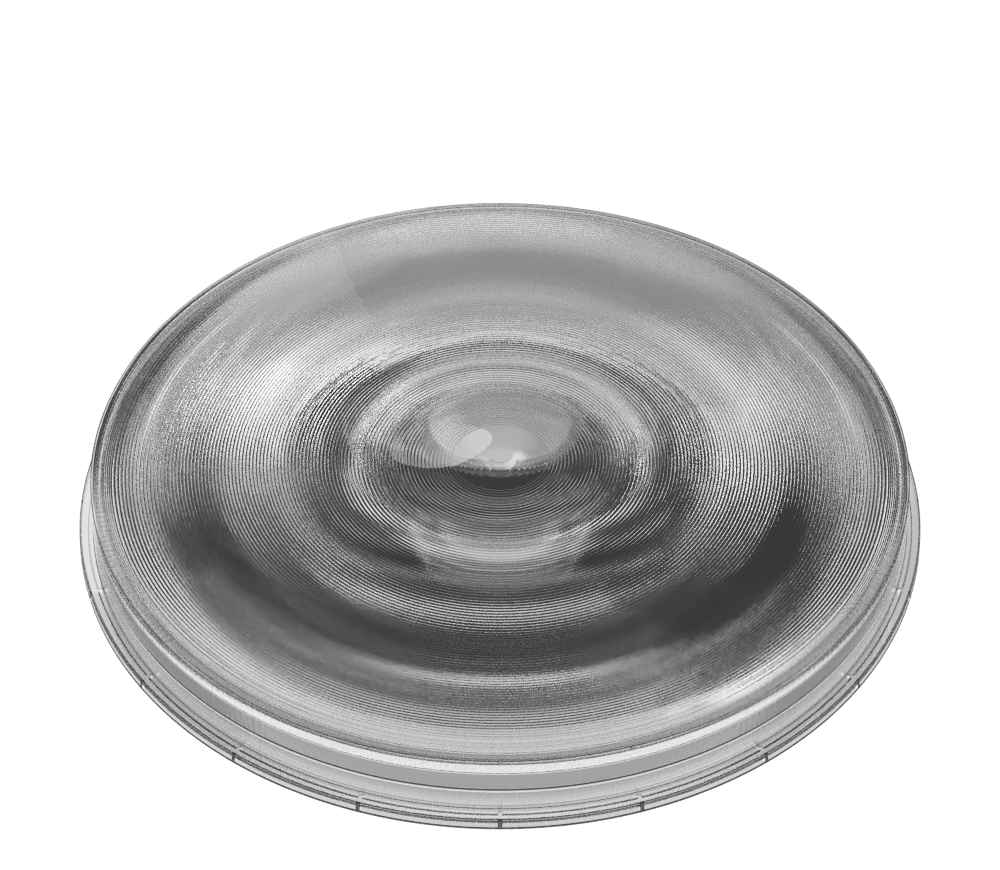

LLF200

Large Fresnel lens

Ø 184 mm x beam PMMA fresnel lens.

More details :

LLF200 is a Ø 184 mm large beam PMMA fresnel lens. This PMMA fresnel lens is mostly used for the road application. The design was optimized for two types of LEDs:
LED with large emission angle (150deg FWHM) and LED with lambertian emission angle (120deg FWHM). Find more information on the Application Note
Discover how to choose the right holder.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 LOR Efficacy 1 Efficacy 2 CCI
View results

Compatible accessories:

Please select a unique LED reference
