Dimensions : 35x17.5mm
~10 – 50° Zoom Collimator with white holder
Ø 35mm Zoom beam PMMA collimator
For: Bender+Wirth Bayonet35 & BJB ⌀35mm (47.360.xx).
More details :

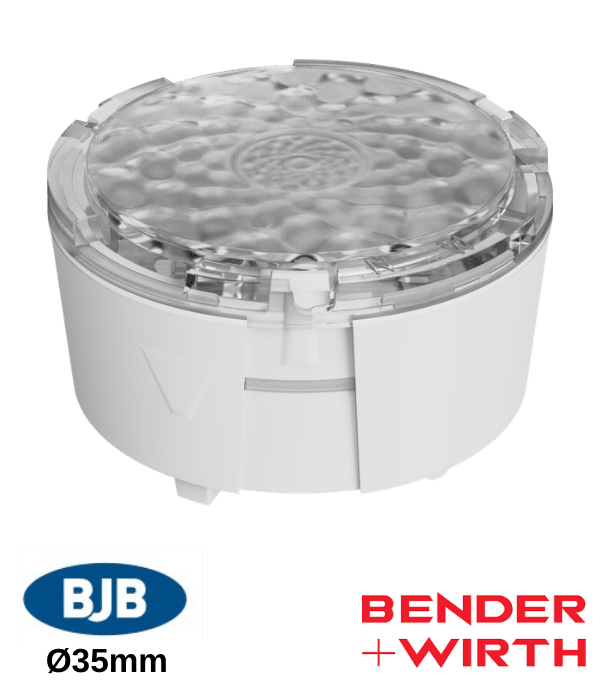

SHADAR35Z401 is a pre-assembled set of Zoom collimators (HADAR35Z + HADAR35WZ) installed on white holder (HADAR35H401).
HADAR35Z is patent pending Zoom solution made of PMMA and providing adjustable 15° – 50° (FWHM) beam.
HADAR35Z has industry’s highest efficiency of +88% and is only solution in the market where the top lens is directly integrated to the lens holder (rotation stop system).
HADAR35Z is optimized for 2.4mm – 6mm LES COBs and compatible with up to 10mm LES COBs. Thanks to excellent diamond turned optical design, HADAR35Z provides very low surface brightness, broader beam range, higher efficiency and twice higher efficacy than other zoom systems in the market.
See HADAR35 holder options to find suitable holder for integrating the part Bender+Wirth Bayonet 35/20, Bayonet 35/25 and BJB ⌀35mm (47.360.xx) solderless connectors.
See also HADAR35 leaflet or download full Datasheet.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
