~10° Narrow Collimator
Ø 70mm Narrow beam PMMA collimator
Compatible with: HEKLA-G2, HEKLA-K, Bender+Wirth HEKLA/HEKLA-XL, HEKLA-G2B
More details :

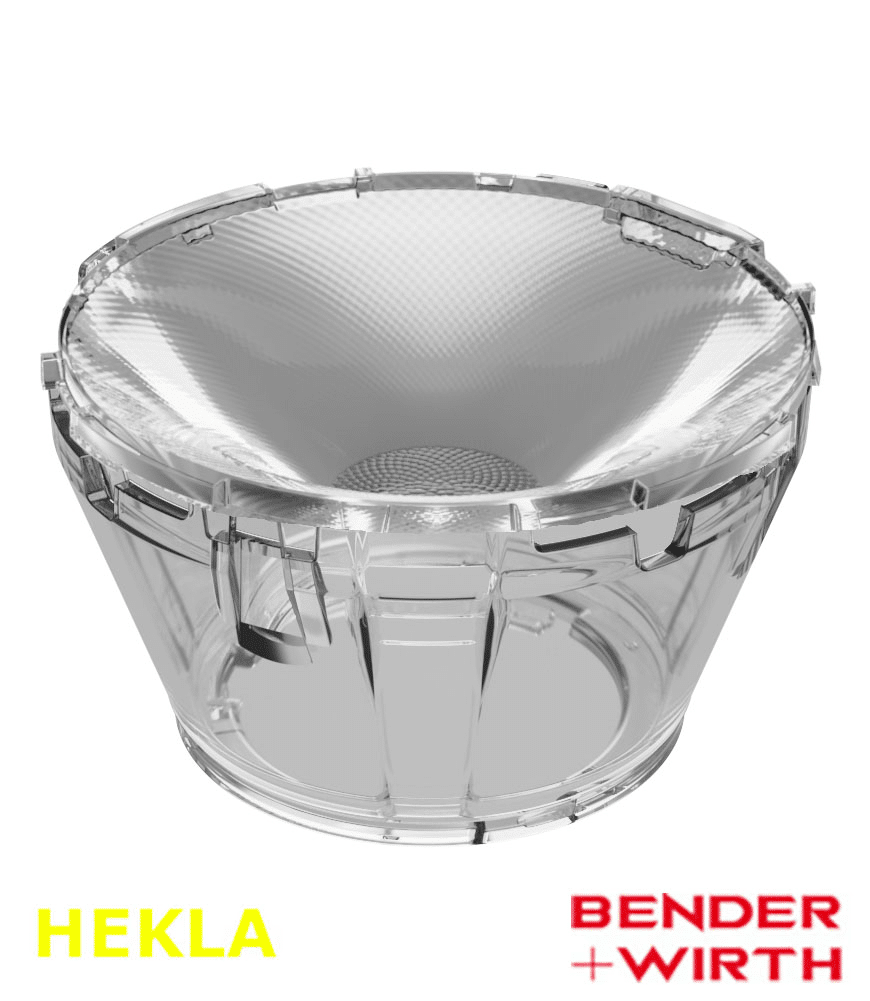

HADAR70N with clear holder. Compatible with HEKLA-G2, HEKLA-K, Bender+Wirth HEKLA/HEKLA-XL, HEKLA-G2B solderless connectors.
HADAR70N is a Ø 70 mm Narrow beam PMMA collimator. Diamond turned optic provides industry’s highest efficiency and efficacy with smooth cut-off and extremely low surface brightness. HADAR70N is compatible with variety of snap-on window accessories (HADAR70W*). HADAR70N has typical efficiency of 92 % and supporting single color and tunable white COBs from 3 mm 23 mm LES, with better 3rd party connector support .
See HADAR70 holder options to find suitable holder for integrating the part with LLH66 / Bender+Wirth, BJB35, BJB50, HEKLA-K or HEKLA-G2 solderless connectors.
See also HADAR70 leaflet.
Refine your search:
Compatibility
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 7.2 | 13.1 | 94.7 | 39.3 | 2.8 | |||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 9.3 | 16.8 | 93.8 | 24.9 | 3.9 | |||
| BRIDGELUX | VESTA 9 TW BXRV-TR-2765G-10A0-B23 | 14.1 | 24.5 | 91.9 | 11.1 | 3.1 | |||
| BRIDGELUX | VERO 13 SE BXRC_30G2000_C_73 | 16.3 | 32.3 | 89.7 | 7.0 | 1.1 | |||
| BRIDGELUX | VESTA 13 THRIVE_BXRV-TR-2750S-20A0-A-23 | 18.0 | 32.4 | 93.9 | 7.0 | 3.1 | |||
| BRIDGELUX | VESTA 13 TW CSP BXRV-TR-2750G-2000-A23 | 18.1 | 32.5 | 90.8 | 6.5 | 1.4 | |||
| BRIDGELUX | VESTA 18 TW PD 2 BXRV_TR_2765G_40A0_A_23 | 26.7 | 45.6 | 89.4 | 3.1 | 4.3 | |||
| BRIDGELUX | VESTA 22 TW PD 2 BXRV_TR_2765G_65A0_A_23 | 28.8 | 50.9 | 86.8 | 2.5 | 5.1 | |||
| CITIZEN | CLU7L3 | 5.2 | 9.7 | 85.1 | 68.7 | 4.0 | |||
| CITIZEN | CLU7A2 | 7.0 | 12.9 | 91.6 | 41.0 | 4.7 | |||
| CITIZEN | CLU7A3 Type-F | 8.4 | 15.3 | 95.3 | 30.0 | 1.6 | |||
| CITIZEN | CLU703 | 9.3 | 16.5 | 92.5 | 24.7 | 2.7 | |||
| CITIZEN | CLU703 Type-F | 11.6 | 18.9 | 93.1 | 17.6 | 2.6 | |||
| CITIZEN | CLU713 | 12.1 | 22.1 | 90.3 | 13.6 | 1.0 | |||
| CITIZEN | LCN-C01B2 | 13.8 | 23.5 | 88.8 | 11.0 | 2.8 | |||
| CITIZEN | CLU713 Type-F | 13.9 | 22.9 | 92.1 | 12.4 | 2.7 | |||
| CITIZEN | CLU721 | 15.1 | 26.4 | 92.6 | 9.9 | 1.9 | |||
| CITIZEN | CLU731 | 16.2 | 32.4 | 83.5 | 6.5 | 1.0 | |||
| CITIZEN | CLU02Q Type-F | 16.5 | 26.1 | 94.9 | 9.7 | 1.8 | |||
| CITIZEN | CLU03Q Type-Y | 21.3 | 36.4 | 89.9 | 5.0 | 0.7 | |||
| CITIZEN | CLU03Q Type-F | 23.5 | 37.0 | 93.6 | 4.7 | 1.7 | |||
| CREE | CXB 1310 | 8.9 | 15.9 | 91.6 | 26.7 | 2.4 | |||
| CREE | CXB 1520 | 13.9 | 23.2 | 91.6 | 12.2 | 1.2 | |||
| CREE | CXA 1830 | 18.7 | 33.8 | 92.1 | 6.2 | 1.9 | |||
| CREE | CXB 2530 | 25.0 | 43.2 | 87.4 | 3.5 | 1.4 | |||
| CREE | CXA 3050 | 30.8 | 52.8 | 87.9 | 2.3 | 0.7 | |||
| LUMILEDS | LUXEON 7070 | 10.3 | 17.8 | 90.1 | 21.0 | 3.7 | |||
| NICHIA | NJNWS012Z_V1MT | 8.1 | 15.1 | 94.2 | 31.4 | 1.7 | |||
| NICHIA | NTCWS024B_V3 | 9.2 | 17.3 | 92.9 | 23.9 | 2.6 | |||
| NICHIA | NJCWL024Z_V1MT | 9.5 | 20.1 | 89.0 | 18.7 | 3.8 | |||
| NICHIA | NVCWJ024Z_V1MT | 14.3 | 26.1 | 88.7 | 10.0 | 4.1 | |||
| XICATO | XTM & XIM 9MM | 12.9 | 22.3 | 91.2 | 13.2 | 1.7 |
Compatible accessories:
Please select a unique LED reference
