Ø 70mm HADAR70N collimator with HADAR70WF Frosted Window + black holder compatible with ⌀50 mm BJB 47.319.xx & Bender+Wirth Hybrid holder Bayonet50
More details :

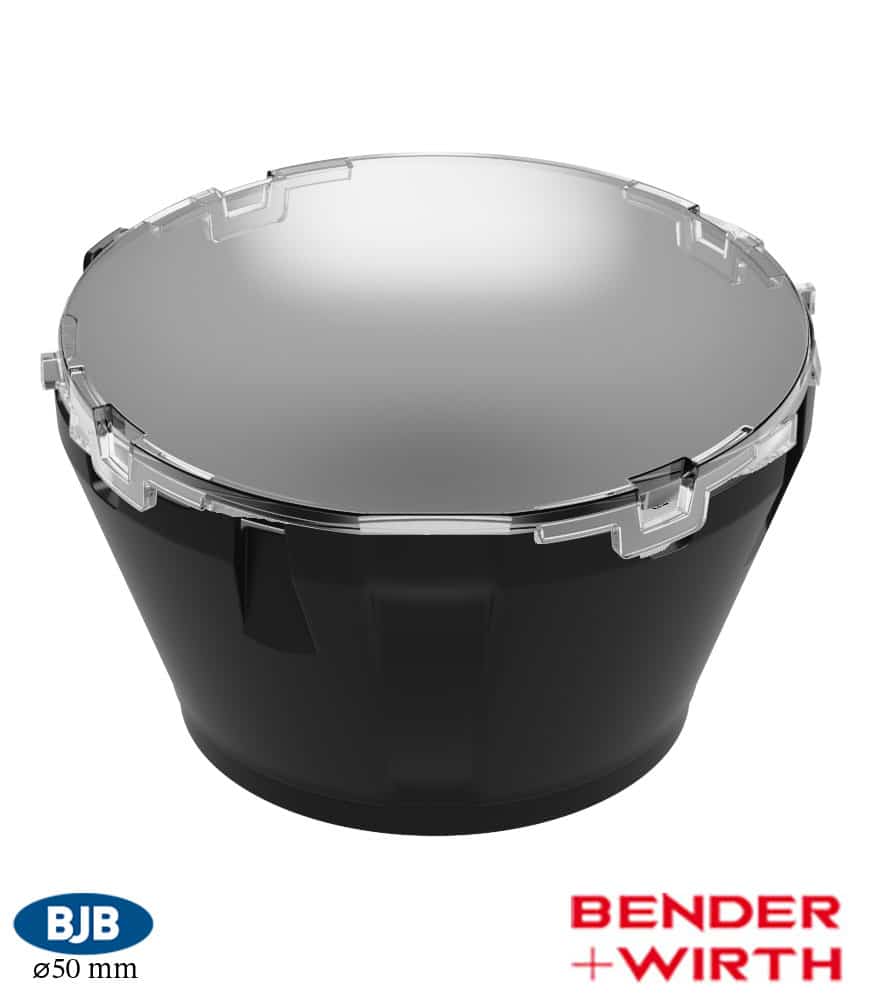

HADAR70NWF412 consists of HADAR70N collimator, HADAR70WF frosted window and a black holder. This combination makes the light distribution and cutoff extra smooth. Holder is compatible with ⌀50 mm BJB 47.319.xx & Bender+Wirth Hybrid holder Bayonet50 solderless connectors.
HADAR70W* window accessories provides ultimate flexibility. Extremely efficient (typical efficiency with HADAR70N lens: >88%) snap-on window accessories are specifically designed to be used with HADAR70N series TIR lens, but you can mix HADAR70WF accessory also with any HADAR70 TIR lens to achieve the exact beam angle you want.
HADAR70WF smoothens the cut-off and widens the FWHM only by ~1° degree while still having extremely low surface brightness. Try HADAR70WF with HADAR70N, HADAR70M, HADAR70W and HADAR70L main TIR collimators.
HADAR70 has various different holder options for different bases/solderless connectors such as: Bender+Wirth, BJB35, BJB50, HEKLA-K or HEKLA-G2 solderless connectors. See HADAR70 datasheet and HADAR70 leaflet for more information or contact us for more information
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 8.9 | 17.4 | 91.6 | 21.1 | 0.7 | |||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 11.0 | 21.5 | 89.4 | 13.9 | 1.6 | |||
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 12.7 | 23.6 | 82.7 | 11.2 | 0.3 | |||
| BRIDGELUX | V10 F90 ARRAY SERIES | 14.7 | 28.0 | 91.2 | 8.9 | 0.5 | |||
| BRIDGELUX | VESTA 9 TW BXRV-TR-2765G-10A0-B23 | 15.1 | 28.9 | 87.9 | 7.8 | 1.0 | |||
| BRIDGELUX | VERO 13 SE BXRC_30G2000_C_73 | 17.7 | 35.4 | 85.0 | 5.4 | 0.5 | |||
| BRIDGELUX | VESTA 13 TW CSP BXRV-TR-2750G-2000-A23 | 19.2 | 36.9 | 86.5 | 4.9 | 0.6 | |||
| BRIDGELUX | VESTA 13 THRIVE_BXRV-TR-2750S-20A0-A-23 | 19.2 | 36.9 | 90.0 | 5.1 | 1.7 | |||
| BRIDGELUX | V13 F90 ARRAY SERIES | 23.6 | 40.2 | 90.2 | 3.9 | 1.3 | |||
| BRIDGELUX | VESTA 18 TW PD 2 BXRV_TR_2765G_40A0_A_23 | 27.1 | 50.1 | 85.7 | 2.6 | 2.6 | |||
| BRIDGELUX | VESTA 22 TW PD 2 BXRV_TR_2765G_65A0_A_23 | 29.4 | 55.6 | 83.0 | 2.1 | 3.4 | |||
| CITIZEN | CLU7L3 | 7.3 | 14.1 | 80.9 | 28.5 | 0.7 | |||
| CITIZEN | CLU7R3 | 8.6 | 16.5 | 87.0 | 22.6 | 1.2 | |||
| CITIZEN | CLU7A2 | 8.8 | 17.0 | 88.9 | 21.8 | 1.4 | |||
| CITIZEN | CLU7A3 | 8.8 | 16.9 | 84.4 | 21.2 | 1.1 | |||
| CITIZEN | CLU7A3 TYPE-F | 10.2 | 19.8 | 91.6 | 16.4 | 0.3 | |||
| CITIZEN | CLU703 | 11.0 | 21.3 | 89.5 | 13.9 | 1.0 | |||
| CITIZEN | CLU703 TYPE-F | 12.7 | 23.4 | 89.8 | 11.3 | 1.0 | |||
| CITIZEN | CLU713 | 13.9 | 26.6 | 91.4 | 9.4 | 0.5 | |||
| CITIZEN | LCN-C01B2 | 14.5 | 26.8 | 85.0 | 8.5 | 1.8 | |||
| CITIZEN | CLU713 TYPE-F | 15.1 | 27.8 | 87.7 | 8.4 | 1.2 | |||
| CITIZEN | CLU02Q TYPE-Y | 15.1 | 28.0 | 84.2 | 8.2 | 0.4 | |||
| CITIZEN | CLU721 | 16.3 | 31.2 | 89.1 | 6.9 | 0.8 | |||
| CITIZEN | CLU02Q TYPE-F | 17.4 | 31.5 | 92.4 | 6.8 | 0.8 | |||
| CITIZEN | CLU731 | 17.9 | 36.5 | 79.1 | 4.7 | 0.9 | |||
| CITIZEN | CLU733 | 19.6 | 35.4 | 84.3 | 5.0 | 0.8 | |||
| CITIZEN | CLU03Q TYPE-Y | 22.2 | 40.9 | 86.8 | 3.9 | 0.5 | |||
| CITIZEN | CLU03Q TYPE-F | 24.0 | 42.2 | 90.5 | 3.7 | 0.9 | |||
| CITIZEN | CLU04Q | 28.5 | 54.9 | 89.8 | 2.3 | 0.9 | |||
| CREE | XP-GR | 7.0 | 14.1 | 84.8 | 30.7 | 0.5 | |||
| CREE | XP-LR | 7.2 | 14.4 | 83.8 | 29.8 | 0.5 | |||
| CREE | CXB 1310 | 10.6 | 20.6 | 89.1 | 14.8 | 0.9 | |||
| CREE | CXB 1520 | 15.0 | 28.1 | 88.7 | 8.3 | 0.3 | |||
| CREE | CMB1818 | 18.3 | 33.0 | 87.6 | 5.9 | 0.7 | |||
| CREE | CXA 1830 | 19.8 | 38.1 | 88.5 | 4.7 | 0.7 | |||
| CREE | CMU1532 | 20.9 | 37.9 | 85.6 | 4.5 | 0.4 | |||
| CREE | CXB 2530 | 25.9 | 47.9 | 84.4 | 2.8 | 0.7 | |||
| CREE | CXA 3050 | 31.3 | 57.5 | 84.4 | 2.0 | 0.7 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 8.2 | 15.4 | 84.9 | 25.2 | 1.4 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 10.0 | 19.2 | 87.1 | 17.2 | 2.2 | |||
| LUMILEDS | LUXEON 7070 | 11.5 | 21.6 | 85.8 | 13.7 | 1.5 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 12.9 | 24.8 | 87.6 | 10.9 | 1.3 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 16.8 | 31.0 | 88.6 | 6.9 | 1.8 | |||
| LUMINUS | CXM_3 | 7.9 | 15.3 | 88.6 | 26.7 | 0.9 | |||
| LUMINUS | CTM_9 | 14.6 | 27.7 | 88.4 | 8.6 | 1.6 | |||
| NICHIA | NJNWS012Z_V1MT | 10.1 | 20.0 | 89.4 | 16.3 | 0.6 | |||
| NICHIA | NTCWS024B_V3 | 11.2 | 22.4 | 88.4 | 13.2 | 1.0 | |||
| NICHIA | NJCWL024Z_V1MT | 11.7 | 24.7 | 84.7 | 10.7 | 3.0 | |||
| NICHIA | NVCWJ024Z_V1MT | 15.6 | 30.6 | 84.4 | 6.9 | 3.1 | |||
| XICATO | XTM & XIM 9MM | 14.1 | 27.1 | 87.7 | 8.9 | 1.8 |
In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
