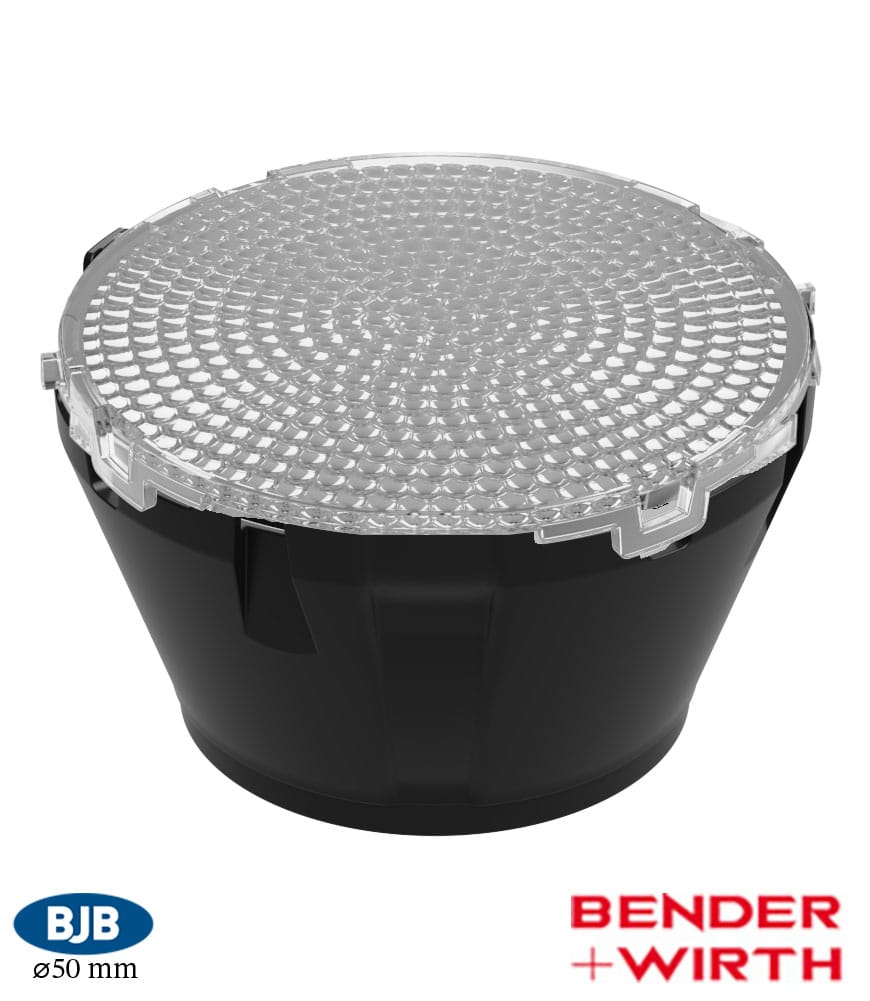

Ø 70mm HADAR70N collimator with HADAR70WS Super Wide Window + black holder compatible with ⌀35 mm BJB 47.360.xx & B+W Hybrid Holder 6xx, Bayonet35 / 35L
More details :
SHADAR70NWS412 consists of HADAR70N collimator, HADAR70WS super wide window and a black holder. This combination provides ~50° FWHM with smooth cut-off and low surface brightness. Holder is compatible with ⌀35 mm BJB 47.360.xx & B+W Hybrid Holder 6xx, Bayonet35 / 35L solderless connectors.
HADAR70W* window accessories provides ultimate flexibility. Extremely efficient (typical efficiency with HADAR70N lens: >88%) snap-on window accessories are specifically designed to be used with HADAR70N series TIR lens. HADAR70WS is tunable white/dim to warm optimized and together with HADAR70N main TIR lens, it supports COBs from 3 mm to 23 mm LES.
HADAR70 has various different holder options for different bases/solderless connectors such as: Bender+Wirth, BJB35, BJB50, HEKLA-K or HEKLA-G2 solderless connectors. See HADAR70 datasheet and HADAR70 leaflet for more information or contact us for more information.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 52.1 | 81.1 | 88.2 | 1.1 | 2.0 | |||
| BRIDGELUX | VESTA 9 TW BXRV-TR-2765G-10A0-B23 | 53.5 | 84.9 | 87.2 | 1.0 | 1.6 | |||
| BRIDGELUX | VESTA 13 THRIVE_BXRV-TR-2750S-20A0-A-23 | 55.1 | 90.6 | 88.5 | 0.9 | 1.4 | |||
| BRIDGELUX | VESTA 13 TW CSP BXRV-TR-2750G-2000-A23 | 55.2 | 90.3 | 85.7 | 0.9 | 1.3 | |||
| BRIDGELUX | VERO 13 SE BXRC_30G2000_C_73 | 55.2 | 91.1 | 83.7 | 0.8 | 1.2 | |||
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 55.8 | 83.1 | 82.5 | 0.9 | 1.9 | |||
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 55.8 | 81.3 | 90.5 | 1.0 | 2.4 | |||
| BRIDGELUX | V10 F90 ARRAY SERIES | 56.8 | 86.4 | 88.8 | 0.9 | 1.7 | |||
| BRIDGELUX | V13 F90 ARRAY SERIES | 58.7 | 94.6 | 87.0 | 0.8 | 1.6 | |||
| BRIDGELUX | VESTA 18 TW PD 2 BXRV_TR_2765G_40A0_A_23 | 58.8 | 100.3 | 84.4 | 0.7 | 0.7 | |||
| BRIDGELUX | VESTA 22 TW PD 2 BXRV_TR_2765G_65A0_A_23 | 61.0 | 108.5 | 81.4 | 0.6 | 0.3 | |||
| CITIZEN | CLU7A2 | 51.7 | 80.0 | 88.1 | 1.1 | 1.9 | |||
| CITIZEN | CLU7A3 TYPE-F | 52.0 | 80.8 | 90.2 | 1.1 | 1.9 | |||
| CITIZEN | CLU703 | 52.5 | 81.9 | 87.8 | 1.1 | 1.8 | |||
| CITIZEN | CLU703 TYPE-F | 52.8 | 82.7 | 88.7 | 1.0 | 1.8 | |||
| CITIZEN | CLU713 TYPE-F | 52.8 | 83.8 | 86.1 | 1.0 | 1.3 | |||
| CITIZEN | CLU713 | 53.2 | 84.5 | 89.7 | 1.0 | 1.5 | |||
| CITIZEN | CLU02Q TYPE-F | 54.1 | 86.7 | 90.7 | 1.0 | 1.3 | |||
| CITIZEN | CLU721 | 54.3 | 86.9 | 87.8 | 1.0 | 1.4 | |||
| CITIZEN | CLU7R3 | 54.7 | 78.9 | 85.5 | 1.0 | 2.0 | |||
| CITIZEN | CLU7A3 | 55.2 | 79.9 | 83.3 | 1.0 | 2.3 | |||
| CITIZEN | CLU731 | 55.6 | 91.2 | 78.0 | 0.8 | 1.3 | |||
| CITIZEN | CLU02Q TYPE-Y | 56.2 | 85.0 | 82.7 | 0.9 | 1.9 | |||
| CITIZEN | CLU03Q TYPE-F | 56.5 | 94.0 | 89.1 | 0.9 | 1.0 | |||
| CITIZEN | CLU03Q TYPE-Y | 56.6 | 94.3 | 85.1 | 0.8 | 1.4 | |||
| CITIZEN | LCN-C01B2 | 56.7 | 85.9 | 83.2 | 0.9 | 2.2 | |||
| CITIZEN | CLU733 | 57.3 | 90.3 | 82.8 | 0.8 | 1.6 | |||
| CITIZEN | CLU04Q | 63.2 | 110.3 | 87.6 | 0.6 | 1.3 | |||
| CREE | CXB 1310 | 52.4 | 81.2 | 87.6 | 1.1 | 1.6 | |||
| CREE | CXB 1520 | 53.6 | 84.8 | 87.2 | 1.0 | 1.3 | |||
| CREE | XP-GR | 55.1 | 79.1 | 84.2 | 1.0 | 3.0 | |||
| CREE | CXA 1830 | 55.4 | 91.5 | 86.9 | 0.9 | 1.4 | |||
| CREE | CMB1818 | 56.8 | 88.2 | 85.9 | 0.9 | 1.3 | |||
| CREE | CMU1532 | 57.6 | 91.9 | 84.0 | 0.8 | 1.2 | |||
| CREE | CXB 2530 | 58.4 | 99.0 | 82.5 | 0.7 | 0.9 | |||
| CREE | CXA 3050 | 61.4 | 106.4 | 82.7 | 0.6 | 1.0 | |||
| LUMILEDS | LUXEON 7070 | 52.1 | 81.7 | 83.6 | 1.1 | 1.6 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 55.3 | 79.1 | 84.8 | 1.0 | 2.8 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 55.3 | 80.4 | 85.2 | 1.0 | 1.7 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 56.2 | 83.8 | 86.2 | 0.9 | 1.4 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 56.9 | 87.4 | 87.2 | 0.9 | 1.2 | |||
| LUMINUS | CTM_9 | 53.1 | 84.3 | 87.7 | 1.0 | 1.7 | |||
| LUMINUS | CXM_3 | 54.5 | 78.9 | 87.4 | 1.0 | 2.1 | |||
| LUMINUS | CTM_22 | 60.7 | 107.0 | 80.1 | 0.6 | 1.4 | |||
| NICHIA | NJNWS012Z_V1MT | 51.9 | 80.1 | 88.4 | 1.1 | 2.0 | |||
| NICHIA | NTCWS024B_V3 | 52.2 | 82.0 | 87.5 | 1.1 | 1.5 | |||
| NICHIA | NJCWL024Z_V1MT | 53.1 | 83.1 | 83.8 | 1.0 | 2.0 | |||
| NICHIA | NVCWJ024Z_V1MT | 54.0 | 87.0 | 83.2 | 0.9 | 2.0 | |||
| XICATO | XTM & XIM 9MM | 53.3 | 84.5 | 85.9 | 1.0 | 2.1 |
