Ø 70mm HADAR70N collimator with HADAR70WW Wide Window + clear holder compatible with ⌀50 mm BJB 47.319.xx & Bender+Wirth Hybrid holder Bayonet50
More details :

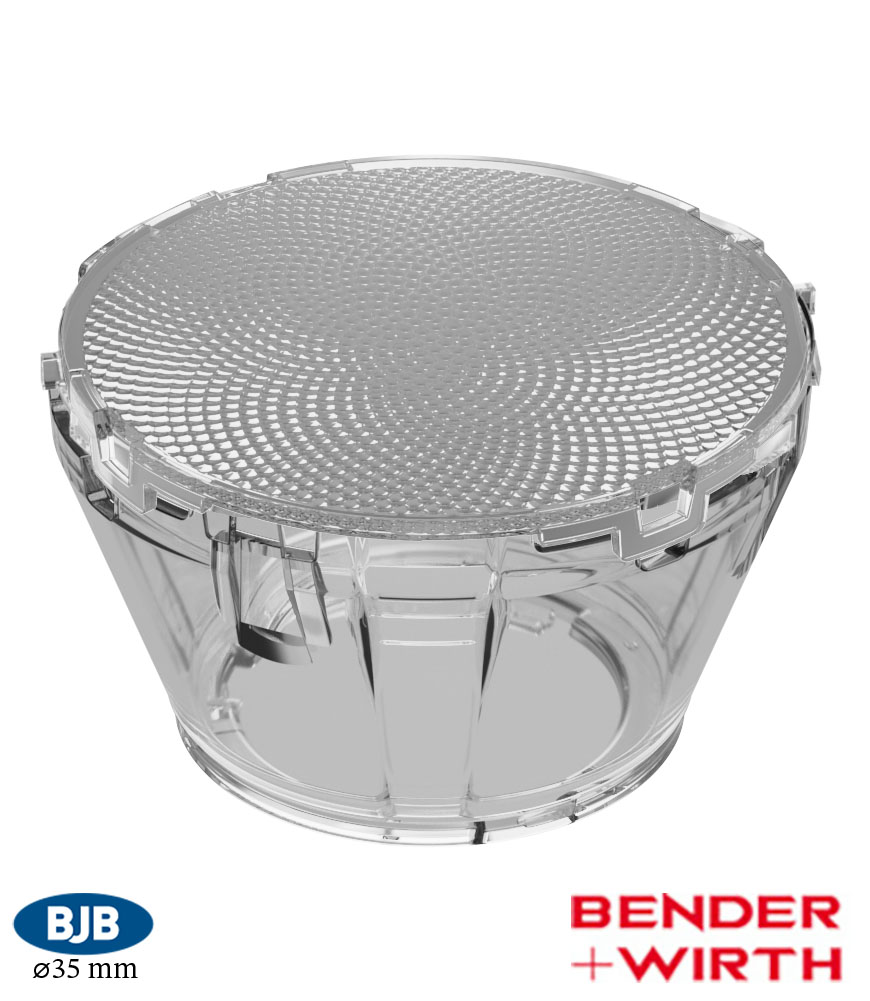

SHADAR70NWW400 consists of HADAR70N collimator, HADAR70WW wide window and a clear holder. This combination provides ~32° FWHM with smooth cut-off and low surface brightness. Holder is compatible with ⌀50 mm BJB 47.319.xx & Bender+Wirth Hybrid holder Bayonet50 solderless connectors.
HADAR70W* window accessories provides ultimate flexibility. Extremely efficient (typical efficiency with HADAR70N lens: >88%) snap-on window accessories are specifically designed to be used with HADAR70N series TIR lens. HADAR70WW is tunable white/dim to warm optimized and together with HADAR70N main TIR lens, it supports COBs from 3 mm to 23 mm LES.
HADAR70 has various different holder options for different bases/solderless connectors such as: Bender+Wirth, BJB35, BJB50, HEKLA-K or HEKLA-G2 solderless connectors. See HADAR70 datasheet and HADAR70 leaflet for more information or contact us for more information.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 30.7 | 45.3 | 88.8 | 2.9 | 2.3 | |||
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 30.9 | 46.3 | 83.3 | 2.7 | 2.0 | |||
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 30.9 | 43.8 | 90.8 | 3.0 | 2.6 | |||
| BRIDGELUX | VESTA 9 TW BXRV-TR-2765G-10A0-B23 | 31.1 | 49.5 | 87.5 | 2.6 | 1.8 | |||
| BRIDGELUX | V10 F90 ARRAY SERIES | 31.3 | 49.4 | 89.9 | 2.7 | 1.4 | |||
| BRIDGELUX | VERO 13 SE BXRC_30G2000_C_73 | 31.8 | 54.2 | 84.3 | 2.2 | 1.0 | |||
| BRIDGELUX | VESTA 13 THRIVE_BXRV-TR-2750S-20A0-A-23 | 31.9 | 54.4 | 89.2 | 2.3 | 1.0 | |||
| BRIDGELUX | VESTA 13 TW CSP BXRV-TR-2750G-2000-A23 | 32.0 | 54.3 | 86.3 | 2.2 | 1.1 | |||
| BRIDGELUX | V13 F90 ARRAY SERIES | 32.9 | 57.3 | 88.3 | 2.1 | 1.4 | |||
| BRIDGELUX | VESTA 18 TW PD 2 BXRV_TR_2765G_40A0_A_23 | 34.6 | 63.5 | 85.2 | 1.7 | 0.5 | |||
| BRIDGELUX | VESTA 22 TW PD 2 BXRV_TR_2765G_65A0_A_23 | 43.5 | 77.5 | 82.1 | 1.1 | 0.9 | |||
| CITIZEN | CLU7R3 | 30.4 | 42.3 | 86.1 | 3.0 | 2.0 | |||
| CITIZEN | CLU7A3 TYPE-F | 30.6 | 44.6 | 91.2 | 2.9 | 2.3 | |||
| CITIZEN | CLU7L3 | 30.6 | 41.4 | 82.3 | 2.9 | 3.1 | |||
| CITIZEN | CLU7A3 | 30.8 | 42.8 | 84.0 | 2.9 | 2.4 | |||
| CITIZEN | CLU703 TYPE-F | 30.8 | 46.5 | 89.6 | 2.8 | 2.0 | |||
| CITIZEN | CLU7A2 | 30.8 | 43.1 | 88.4 | 3.0 | 2.3 | |||
| CITIZEN | CLU703 | 30.9 | 45.7 | 88.8 | 2.8 | 2.1 | |||
| CITIZEN | CLU713 TYPE-F | 30.9 | 48.4 | 87.0 | 2.7 | 1.3 | |||
| CITIZEN | CLU02Q TYPE-Y | 31.0 | 48.7 | 83.4 | 2.6 | 1.6 | |||
| CITIZEN | LCN-C01B2 | 31.0 | 48.4 | 83.8 | 2.5 | 2.3 | |||
| CITIZEN | CLU713 | 31.1 | 48.4 | 90.7 | 2.7 | 1.7 | |||
| CITIZEN | CLU721 | 31.4 | 51.2 | 89.2 | 2.5 | 1.3 | |||
| CITIZEN | CLU02Q TYPE-F | 31.5 | 50.9 | 91.4 | 2.6 | 1.2 | |||
| CITIZEN | CLU731 | 31.6 | 54.5 | 78.9 | 2.0 | 1.4 | |||
| CITIZEN | CLU733 | 31.8 | 53.6 | 83.8 | 2.2 | 1.3 | |||
| CITIZEN | CLU03Q TYPE-Y | 32.9 | 57.6 | 86.3 | 2.0 | 1.3 | |||
| CITIZEN | CLU03Q TYPE-F | 33.2 | 58.1 | 89.9 | 2.1 | 0.6 | |||
| CITIZEN | CLU04Q | 36.1 | 69.3 | 89.1 | 1.5 | 0.9 | |||
| CREE | XP-GR | 30.0 | 41.7 | 84.4 | 3.0 | 3.6 | |||
| CREE | XP-LR | 30.1 | 41.6 | 84.0 | 3.0 | 3.7 | |||
| CREE | CXB 1310 | 30.9 | 45.3 | 88.5 | 2.8 | 1.7 | |||
| CREE | CXB 1520 | 31.2 | 49.0 | 87.8 | 2.6 | 1.4 | |||
| CREE | CMB1818 | 31.7 | 52.0 | 86.9 | 2.4 | 0.9 | |||
| CREE | CMU1532 | 32.1 | 54.9 | 85.0 | 2.2 | 0.9 | |||
| CREE | CXA 1830 | 32.2 | 55.5 | 88.0 | 2.2 | 1.1 | |||
| CREE | CXB 2530 | 34.3 | 62.4 | 83.5 | 1.8 | 0.6 | |||
| CREE | CXA 3050 | 36.5 | 69.1 | 83.8 | 1.5 | 0.8 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 30.5 | 41.9 | 85.0 | 3.0 | 3.3 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 30.7 | 43.9 | 85.9 | 2.9 | 1.6 | |||
| LUMILEDS | LUXEON 7070 | 30.9 | 45.7 | 84.4 | 2.8 | 1.8 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 30.9 | 47.2 | 87.1 | 2.8 | 1.2 | |||
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 31.5 | 51.0 | 88.2 | 2.5 | 0.7 | |||
| LUMINUS | CXM_3 | 30.5 | 41.8 | 88.2 | 3.1 | 2.5 | |||
| LUMINUS | CTM_9 | 31.0 | 48.4 | 88.2 | 2.7 | 2.1 | |||
| LUMINUS | CTM_22 | 35.8 | 66.4 | 81.3 | 1.5 | 1.4 | |||
| NICHIA | NJCWL024Z_V1MT | 30.7 | 47.4 | 84.5 | 2.6 | 2.8 | |||
| NICHIA | NJNWS012Z_V1MT | 30.7 | 44.5 | 89.1 | 2.9 | 2.5 | |||
| NICHIA | NTCWS024B_V3 | 30.8 | 46.0 | 88.0 | 2.8 | 1.7 | |||
| NICHIA | NVCWJ024Z_V1MT | 31.3 | 50.7 | 83.8 | 2.4 | 2.7 | |||
| XICATO | XTM & XIM 9MM | 31.0 | 48.3 | 86.6 | 2.6 | 2.5 |
