OPTICAL ZOOM SOLUTIONS RANGE

SIRIUS

LED optic zoom solutions : SIRIUS.
Two different diameter sizes ⌀ 35 & 50mm.

LES size:
• KSIRUS35Z* : LES up to 10 mm | Optimized for 4-6 mm
• SSIRIUS50Z* : LES up to 13 mm | Optimized for 6-9 mm
LED type : High Power, Cluster High Power, Mid Power, Cluster Chip Scale Package, Chip Scale Package (CSP), Chip on Board (COB).

Innovative rotation stop system with top lens integrated to holder !

Highest Efficiency (up to 89%!)

KSIRIUS35* : This range is compatible with most brands of COB and High Power LED.

Typical zoom range (FWHM): ~18° – ~48°

SIRIUS50Z : The range is compatible with most brands of COB including tunable white COB or cluster of High Power LED.

Typical zoom range (FWHM): ~10° – ~50°

INDOOR

ARCHITECTURAL

STAGE

MEDICAL

⌀ 35mm optic zoom solutions

KSIRIUS35Z1

SIRIUS35 kit compatible with Bender+Wirth

KSIRIUS35Z4

SIRIUS35 kit compatible with TE Connectivity

KSIRIUS35Z6

SIRIUS35 kit compatible with High Power

⌀ 50mm optic zoom solutions

SSIRIUS50ZTW0

SIRIUS50 set with a tunable white window

SSIRIUS50Z0

SIRIUS50 set with the narrow beam window

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02BCC00

NO

LLS25N12BCC00

LLS25C12BCC00

LLS25G12BCC00

LLS25M12BCC00

LLS25W12BCC00

LLS25V12BCC00

LLS25E12BCC00

LLH02BCC001

YES

LLS25N12BCC001

LLS25C12BCC001

LLS25G12BCC001

LLS25M12BCC001

LLS25W12BCC001

LLS25V12BCC001

LLS25E12BCC001

LLH02BCC02

NO

LLS25N12BCC02

LLS25C12BCC02

LLS25G12BCC02

LLS25M12BCC02

LLS25W12BCC02

LLS25V12BCC02

LLS25E12BCC02

LLH02BCC021

YES

LLS25N12BCC021

LLS25C12BCC021

LLS25G12BCC021

LLS25M12BCC021

LLS25W12BCC021

LLS25V12BCC021

LLS25E12BCC021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02AAC00

NO

LLS25N02AAC00

LLS25C02AAC00

LLS25G02AAC00

LLS25M02BCC00

LLS25W02BCC00

LLS25V02BCC00

LLS25E02BCC00

LLH02AAC001

YES

LLS25N02AAC001

LLS25C02AAC001

LLS25G02AAC001

LLS25M02BCC001

LLS25W02BCC001

LLS25V02BCC001

LLS25E02BCC001

LLH02AAC02

NO

LLS25N02AAC02

LLS25C02AAC02

LLS25G02AAC02

LLS25M02BCC02

LLS25W02BCC02

LLS25V02BCC02

LLS25E02BCC02

LLH02AAC021

YES

LLS25N02AAC021

LLS25C02AAC021

LLS25G02AAC021

LLS25M02BCC021

LLS25W02BCC021

LLS25V02BCC021

LLS25E02BCC021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02XAL00

NO

LLS25N02XAL00

LLS25C02XAL00

LLS25G02XAL00

LLS25M02XAL00

LLS25W02XAL00

LLS25V02XAL00

LLS25E02XAL00

LLH02XAL001

YES

LLS25N02XAL001

LLS25C02XAL001

LLS25G02XAL001

LLS25M02XAL001

LLS25W02XAL001

LLS25V02XAL001

LLS25E02XAL001

LLH02XAL02

NO

LLS25N02XAL02

LLS25C02XAL02

LLS25G02XAL02

LLS25M02XAL02

LLS25W02XAL02

LLS25V02XAL02

LLS25E02XAL02

LLH02XAL021

YES

LLS25N02XAL021

LLS25C02XAL021

LLS25G02XAL021

LLS25M02XAL021

LLS25W02XAL021

LLS25V02XAL021

LLS25E02XAL021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02HEL00

NO

LLS25N02HEL00

LLS25C02HEL00

LLS25G02HEL00

LLS25M02HEL00

LLS25W02HEL00

LLS25V02HEL00

LLS25E02HEL00

LLH02HEL001

YES

LLS25N02HEL001

LLS25C02HEL001

LLS25G02HEL001

LLS25M02HEL001

LLS25W02HEL001

LLS25V02HEL001

LLS25E02HEL001

LLH02HEL02

NO

LLS25N02HEL02

LLS25C02HEL02

LLS25G02HEL02

LLS25M02HEL02

LLS25W02HEL02

LLS25V02HEL02

LLS25E02HEL02

LLH02HEL021

YES

LLS25N02HEL021

LLS25C02HEL021

LLS25G02HEL021

LLS25M02HEL021

LLS25W02HEL021

LLS25V02HEL021

LLS25E02HEL021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02RD100

NO

LLS25N02RD100

LLS25C02RD100

LLS25G02RD100

LLS25M02RD100

LLS25W02RD100

LLS25V02RD100

LLS25E02RD100

LLH02RD1001

NO

LLS25N02RD1001

LLS25C02RD1001

LLS25G02RD1001

LLS25M02RD1001

LLS25W02RD1001

LLS25V02RD1001

LLS25E02RD1001

LLH02RD102

NO

LLS25N02RD102

LLS25C02RD102

LLS25G02RD102

LLS25M02RD102

LLS25W02RD102

LLS25V02RD102

LLS25E02RD102

LLH02RD1021

NO

LLS25N02RD1021

LLS25C02RD1021

LLS25G02RD1021

LLS25M02RD1021

LLS25W02RD1021

LLS25V02RD1021

LLS25E02RD1021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02MTB00

NO

LLS25N02MTB00

LLS25C02MTB00

LLS25G02MTB00

LLS25M02RD100

LLS25W02RD100

LLS25V02RD100

LLS25E02RD100

LLH02RMTB001

NO

LLS25N02MTB001

LLS25C02MTB001

LLS25G02RD001

LLS25M02RD1001

LLS25W02RD1001

LLS25V02RD1001

LLS25E02RD1001

LLH02MTB02

NO

LLS25N02MTB02

LLS25C0MTB02

LLS25G02RD102

LLS25M02RD102

LLS25W02RD102

LLS25V02RD102

LLS25E02RD102

LLH02MTB021

NO

LLS25N02MTB021

LLS25C02MTB021

LLS25G02RD1021

LLS25M02RD1021

LLS25W02RD1021

LLS25V02RD1021

LLS25E02RD1021

KSIRIUS35Z*

This kit offers different holders :

KSIRIUS35Z1*: compatible with Bender+Wirth
KSIRIUS35Z4*: compatible with TE Connectivity
KSIRIUS35Z6*: compatible with High Power LED

SSIRIUS50Z*

The set offers two different windows :

SSIRIUS50ZTW* : Tunable white window
SSIRIUS50Z* : Narrower window version
SSIRIUS50Z* must be mounted on a LLH66B base to be compatible with B+W, TE, …

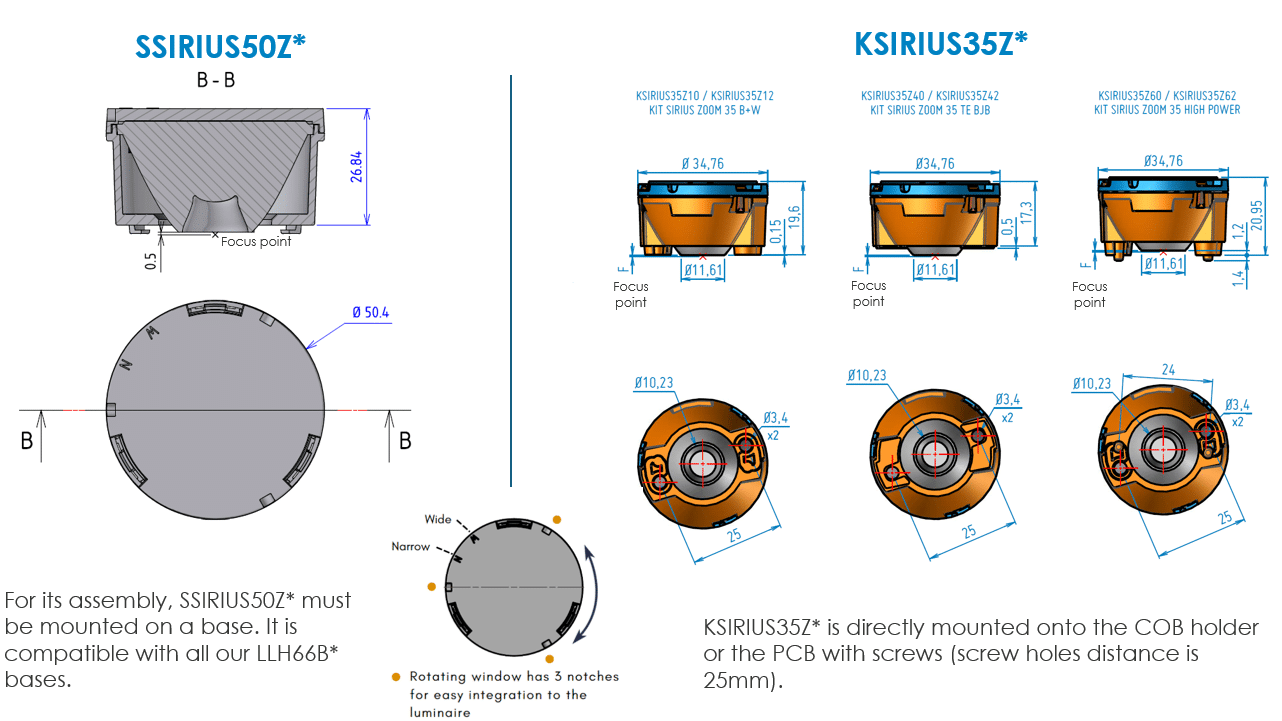

INTEGRATION

KSIRIUS35Z*

This range is directly mounted onto the COB holder or PCB with screws.
SIRIUS35Z focal distance : 0.3mm

SSIRIUS50Z*

A base is required to assemble the SSIRIUS50, these zoom solutions
are compatible with all our LLH66B* bases. (see below)
SIRIUS50Z focal distance : 0.5mm

Base references for SSIRIUS50Z* & compatibility

LLH66 base references

Interface manufacturer

Manufacturer’s compatible references

LLH66B10*

Bender+Wirth

4xx / Type Z1

LLH66B20*

Bridgelux

Vero10 / Vero13 / Vero18

LLH66B310*

Xicato

XTM / XIM

LLH66B40*

TE connectivity

LUMAWISE Z32 / Z35

LLH66B50*

Molex

180555-0002

LLH66B60*

Dedicated to PCB mounted high power LEDs

KIT ≠ SET

SIRIUS35Z kit is in spare parts ≠ SIRIUS50Z set is assembled

KSIRIUS35Z* kit

The kit comes in spare parts with collimator, adjustable window, and holder with innovative rotation stop system.

SSIRIUS50* set

The assembled set comes with collimator, adjustable window, and holder with innovative rotation stop system.
