LLC17N

Narrow Collimator

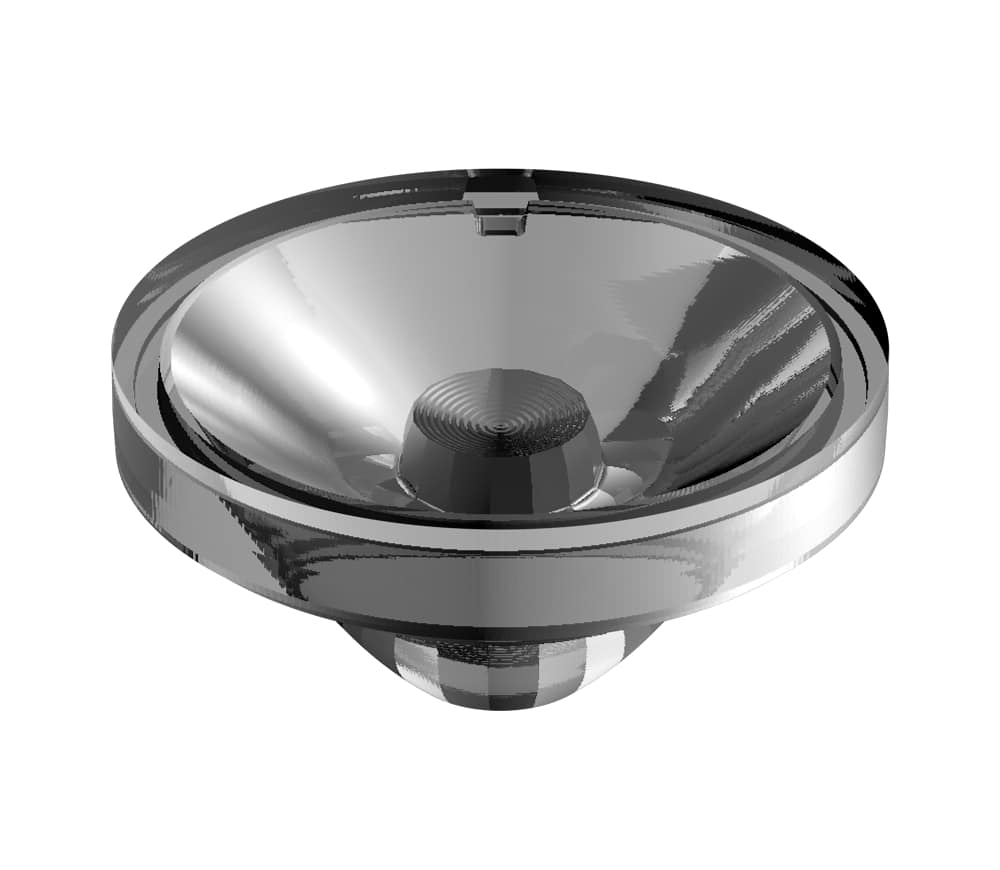

Ø 35 mm narrow beam PMMA collimator.

More details :

LLC17N is a Ø 35 mm narrow beam PMMA collimator capable of less than 10° beam angle with selected high power LEDs.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 Efficacy 1 Efficacy 2 CCI
BRIDGELUXV4_HD BXRH_30G0600_A_7211.531.411.1
CITIZENCL-L40010.922.016.2
CITIZENCLU7A2_0403C911.929.911.0
CITIZENCLU7B212.124.514.4
CITIZENCL-L43013.727.011.0
CITIZENCLU70117.439.06.1
CITIZENCLU70018.138.36.1
CREEXP-E6.011.656.2
CREEXQ-E6.312.344.4
CREEXP-E26.714.039.3
CREEXQ-E HI6.914.437.7
CREEXB-D7.015.134.4
CREEXP-L HI7.916.629.3
CREEXT-E8.117.127.0
CREEXT-E HV8.717.524.4
CREEXD168.818.823.1
CREEXP-E HEW8.818.622.8
CREEXHP35 HI9.119.222.6
CREEXP-G39.419.722.1
CREEMX69.720.917.3
CREEXT-E HE9.921.218.4
CREEXHP35.2 HI10.021.118.8
CREEXM-L10.219.718.5
CREEXP-L10.420.417.9
CREEXM-L210.621.017.4
CREEXM-L HIGH VOLTAGE11.121.815.9
CREEXHP35 HD11.820.316.3
CREEXP-L211.924.513.5
CREEXHP35.2 HD13.428.110.6
CREECMA130315.634.07.9
CREEXHP50.216.431.67.9
CREECXA 13XX16.536.07.1
CREEMK-R16.533.37.3
CREEXHP5016.631.07.5
CREEMK-R217.134.76.9
CREECXB 131017.839.06.1
CREEMT-G220.545.54.4
CREEMT-G21.244.34.3
CREECXA 152021.554.73.2
CREECXA 150722.158.43.0
EDISON2PHM10xWxxP5502012.625.812.6
LED ENGINLZ1 14CWP27.114.139.2
LITEONP019.420.919.1
LITEONP03312.224.912.6
LUMILEDSLUXEON C7.115.336.9
LUMILEDSREBEL7.214.436.1
LUMILEDSLUXEON T8.116.428.3
LUMILEDSREBEL ES8.116.428.8
LUMILEDSLUXEON M16.432.87.6
LUMILEDSLUXEON S100017.439.35.7
LUMILEDSLUXEON COB 10918.340.55.6
LUMILEDSLUXEON COB 1202 HD18.544.55.0
LUMILEDSLUXEON K423.156.63.3
LUMINUSCXM_314.428.510.4
LUMINUSCXM_415.133.08.5
LUMINUSSST9015.636.07.2
LUMINUSCST9019.439.45.1
LUMINUSCXM_922.562.12.6
LUMINUSCDM_625.349.73.6
LUMINUSCXM_1429.390.31.2
NICHIA7578.215.230.3
NICHIANVSL219C9.318.922.9
NICHIANS610.120.019.6
NICHIANVSW319A10.121.318.4
NICHIANCSWE17AT10.218.422.8
NICHIANVSWE21AT10.719.820.1
NICHIANV4WB35AM11.924.114.4
NICHIANV4L144AR16.333.37.7
NICHIANVNWS007Z_V117.541.35.6
NICHIANTCWS024B_V319.343.55.1
NICHIANJCWS024Z_V119.350.23.9
NICHIANTCWS024B_V120.240.55.0
NICHIANJCWS024Z20.840.65.0
NICHIANFCLL036B_V121.555.23.0
NICHIANVEWL016Z_V121.857.32.8
OSRAMGOLDEN DRAGON6.115.036.4
OSRAMOSTAR PROJECTION COMPACT LEUWQ8WP6.413.042.9
OSRAMOSLON SSL 1506.814.040.8
OSRAMOSLON BLACK FLAT LUW HWQP7.013.541.5
OSRAMOSLON COMPACT CM LUW CEUN.CE7.213.341.4
OSRAMOSLON SQUARE GW CSSRM3.PM7.214.538.9
OSRAMDURIS P87.215.431.9
OSRAMOSLON COMPACT CL LUW CEUP7.713.838.6
OSRAMOSLON SSL 808.117.727.5
OSRAMOSLON SQUARE GW CSSRM1.PC8.317.526.4
OSRAMOSLON SQUARE LCW CQAR8.417.826.3
OSRAMOSCONIQ P3737 GW PUSRA1.EM9.018.025.2
OSRAMOSLON SQUARE GW CSSRM1.EC9.319.921.6
OSRAMOSLON SQUARE GW CSSRM2.PM9.318.623.8
OSRAMOSLON SQUARE FLAT KW CSLPM2.PC9.818.921.1
OSRAMDURIS S8 P9LMS1.EM13.026.211.9
OSRAMOSTAR LIGHTING PLUS14.327.49.2
OSRAMDURIS S8 P9LRS1.EM14.727.89.8
OSRAMDURIS S8 P9LT32.PM15.634.07.6
SAMSUNGLH351Z6.113.045.8
SAMSUNGLH351A7.115.733.5
SAMSUNGLC010CV217.541.55.6
SEOULZP4 [ #6 version ]7.115.732.1
SEOULZ5_M18.017.128.4
SEOULZP4 [ #7 version ]8.818.424.0
SEOULZP710.926.013.3
SEOULSAWS0661A17.541.65.4
SEOULSAWS1063A23.865.72.5
SHARPMiNIZENIGATA16.136.26.9
XICATOXOB 6mm17.838.45.9
