  • LLC56N
Ref:

LLC56N

Narrow Collimator

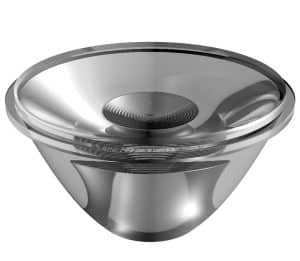

Ø 67 mm narrow beam PMMA collimator.

More details :

LLC56N is a Ø 67 mm narrow beam PMMA collimator. It designed to provide narrow beam with big sources such as COBs or high power quad chip LEDs.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.

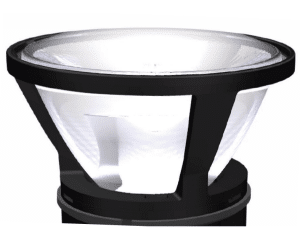

Discover how to choose the right holder.

Refine your search:

Please choose LED Type first

mm diameter array

mm² surface

Dome
Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 Efficacy 1 Efficacy 2 CCI
BRIDGELUXV4_HD BXRH_30G0600_A_727.113.247.3
BRIDGELUXV3_HD_GEN_87.114.639.82.9
BRIDGELUXV6 HD BXRH_40E1000_B_7310.118.823.2
BRIDGELUXVERO 10 BXRC_30E1000_B_0313.225.513.4
BRIDGELUXV10 BXRE_30E1000_B_0314.123.014.3
BRIDGELUXVERO 10 SE BXRC_30E1000_C_7214.534.78.3
BRIDGELUXV13 BXRE_30E2000_B_8219.433.86.8
BRIDGELUXVERO 13 BXRC_30E2000_C_0319.433.86.8
BRIDGELUXVERO 18 SE BXRC_30G4000_B_7321.450.03.5
BRIDGELUXVERO 18 BXRC_30E4000_B_0324.149.03.5
BRIDGELUXV1824.149.03.5
BRIDGELUXV22 BXRE_30E6500_C_8330.155.92.4
BRIDGELUXVERO 13 SE BXRC_30G2000_C_7332.879.95.8
CITIZENCLU7S36.411.959.61.2
CITIZENCLU7A26.812.451.7
CITIZENCLU7R37.313.345.4
CITIZENCLU7L38.615.533.95.2
CITIZENCLU7018.716.132.0
CITIZENCLU7009.016.830.2
CITIZENCLU7B29.417.527.1
CITIZENCLU7029.721.720.0
CITIZENCLU71012.322.316.3
CITIZENCLU71112.522.515.7
CITIZENCLU71213.921.616.0
CITIZENCLU02814.125.412.3
CITIZENCLU72115.128.910.1
CITIZENCLU02615.423.612.8
CITIZENCLU02J15.824.712.1
CITIZENCLU72015.827.910.0
CITIZENCLU73016.839.56.1
CITIZENCLU73118.733.87.0
CITIZENCLU03819.436.36.1
CITIZENCLU03622.240.04.7
CITIZENCLU04632.657.82.1
CREEXQ-E HI3.66.9176.6
CREEXP-E3.87.3191.5
CREEXP-E23.87.4151.8
CREEXP-P3.96.9153.32.2
CREEXP-G24.38.0127.0
CREEXP-L HI4.48.0130.9
CREEXD16 Premium White4.58.0121.12.7
CREEXD164.68.794.1
CREEXP-G44.68.4107.80.8
CREEXHP35 HI4.88.6103.9
CREEXP-G34.98.8105.4
CREEXP-G2 HE5.18.596.81.2
CREEXPL-HI_post_PCN51555.19.784.22.0
CREEXT-E HE5.410.077.9
CREEXM-L25.69.877.7
CREEXP-L5.610.675.0
CREEXHP50.3 HI5.710.869.85.1
CREEXHP35.2 HI6.111.763.42.2
CREEXP-L26.212.056.3
CREEXHP35 HD6.210.371.8
CREEXM-L EASYWHITE6.311.853.4
CREEXHP35.2 HD6.612.350.4
CREEXP-G6.811.459.0
CREEMK-R7.915.335.7
CREEXHP70.3 HI8.015.335.03.1
CREECMA13038.316.331.4
CREEXHP50.3 HD8.313.838.32.9
CREEXHP50.28.513.837.0
CREECXA 13XX8.814.937.0
CREEMK-R28.915.632.0
CREEXHP509.013.836.0
CREECXB 13109.116.231.9
CREEMHD-E9.116.330.2
CREEXHP7010.618.223.1
CREEXHP70.311.419.319.73.8
CREEMT-G211.518.321.3
CREEXHP70.211.618.420.9
CREECXA 152012.427.412.2
CREECXB 150712.726.712.4
CREECXA 150713.425.412.6
CREECXB 152014.723.213.6
CREECXA 305027.855.52.4
EDISON2PHM10xWxxP550208.215.334.3
LED ENGINLZ1 14CWP23.56.6194.9
LUMILEDSLUXEON C3.97.3158.6
LUMILEDSLUXEON Z ES4.58.3124.3
LUMILEDSLUXEON MZ5.810.176.4
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H048.013.446.1
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H069.315.633.7
LUMILEDSLUXEON M9.314.331.8
LUMILEDSLUXEON COB 1099.816.328.7
LUMILEDSLUXEON S100010.216.025.6
LUMILEDSLUXEON COB 1202 HD10.522.417.8
LUMILEDSLUXEON COB 1202S10.921.017.7
LUMILEDSLUXEON_CX_PLUS_CoB_HDM02F0912.521.218.0
LUMILEDSLUXEON COB 120313.722.514.8
LUMILEDSLUXEON COB 120214.622.114.7
LUMILEDSLUXEON_CX_PLUS_COB_HD15.223.413.2
LUMILEDSLUXEON_CX_PLUS_CoB_HDS04H0915.223.413.2
LUMINUSSST_20_WxH3.77.1188.2
LUMINUSSST_20_WxS3.87.3175.6
LUMINUSSFT-404.07.5149.92.3
LUMINUSSST-125.08.3105.91.7
LUMINUSSST-405.29.385.22.1
LUMINUSSFT-705.39.885.11.9
LUMINUSCXM_36.010.081.4
LUMINUSSST-706.711.854.81.0
LUMINUSCXM_69.316.828.1
LUMINUSCXM_49.419.423.3
LUMINUSCDM_611.719.619.1
LUMINUSCTM_913.525.512.8
LUMINUSCXM_916.925.311.4
LUMINUSCVM_1823.547.93.8
NICHIANFSWE11A3.15.6282.4
NICHIANVSW219CT-V23.76.9159.30.9
NICHIANCSWE17AT3.87.3169.6
NICHIANVSW719AC4.27.8125.51.2
NICHIANVSWE21AT4.37.8140.6
NICHIA7574.68.2118.0
NICHIANVSW219F_V14.78.0126.8
NICHIANVSL219C5.29.982.7
NICHIANV4WB35AM5.610.569.8
NICHIANVSW519A5.79.688.5
NICHIANVSW319A5.710.368.9
NICHIANWSL229A6.111.659.2
NICHIANJNWS012Z_V1MTE8.817.130.22.6
NICHIANTCWT012B_V39.116.130.2
NICHIANV4L144AR9.115.830.4
NICHIANVNWS007Z_V19.218.425.5
NICHIANTCWS024B_V39.917.925.1
NICHIANTCLS024B_V110.317.725.9
NICHIANJCWS024Z_V110.621.718.5
NICHIANJCLS024Z10.918.423.3
NICHIANTCWS024B_V111.117.823.7
NICHIANJCWS024Z11.317.823.5
NICHIANFCWL036B_V312.222.415.7
NICHIANFCLL036B_V112.522.315.8
NICHIANVEWL016Z_V113.122.215.1
NICHIANVCWJ024Z_V1MT14.629.99.2
NICHIANVCWL024Z_V115.028.310.4
NICHIANFCLL060B_V116.029.99.4
NICHIANVCLL024Z16.026.311.1
NICHIANFCWL048B_V316.829.48.9
NICHIANVEWJ048Z_V119.738.15.7
NICHIANFCLJ108B_V120.238.25.7
NICHIANVELJ048Z20.437.85.7
NICHIANFEWH306B_V228.755.92.3
OSRAMOSLON COMPACT CM LUW CEUN.CE3.46.2201.6
OSRAMOSLON COMPACT PL KW CELNM2.TK3.46.2177.22.5
OSRAMOSTAR PROJECTION COMPACT KW CSLNM1.TG3.66.7176.8
OSRAMOSCONIQ C 2424 GW PLLRA1.EM3.87.2157.4
OSRAMOSLON SSL 1503.87.2169.7
OSRAMOSLON SQUARE FLAT KW CSLPM2.PC3.97.9128.0
OSRAMOSCONIQ P3737 GW PUSRA1.EM4.17.8130.2
OSRAMOSLON SSL 804.17.8130.6
OSRAMOSLON Boost HX KW CULPM1.TG4.27.7135.7
OSRAMDURIS P84.27.6142.5
OSRAMOSLON SQUARE GW CSSRMU.CM4.37.8131.4
OSRAMOSLON SQUARE LCW CQAR4.38.0121.4
OSRAMOSLON SQUARE GW CSSRM1.EC4.48.3112.1
OSRAMOSLON SQUARE GW CSSRM1.PC4.48.0114.4
OSRAMOSLON SQUARE GW CSSRM3.PM4.48.1117.0
OSRAMOSCONIQ P3737 GW PULTA1.CM4.48.2116.7
OSRAMOSLON SQUARE GW CSSRM2.PM4.79.596.8
OSRAMOSLON BLACK FLAT LUW HWQP5.18.2108.0
OSRAMOSCONIQ P3737 GW PUSTA1.PM5.49.783.0
OSRAMOSLON COMPACT CL LUW CEUP5.89.390.8
OSRAMOSLON PURE 1010 GW VJLPE1 EM6.010.274.8
OSRAMOSTAR LIGHTING PLUS6.513.946.9
OSRAMDURIS S8 P9LRS1.EM7.615.334.4
OSRAMDURIS P107.713.541.8
OSRAMDURIS S8 P9LT32.PM8.014.733.9
OSRAMSOLERIQ S914.325.112.7
OSRAMSOLERIQ S1317.129.28.9
OSRAMSOLERIQ S1922.141.44.6
PLESSEYPLW7070GA9.916.126.5
SEOULZ53.97.4149.4
SEOULZ5_M14.48.2122.3
SEOULZ5M45.09.3104.9
SEOULSAWS0661A8.817.428.8
SEOULSAWS1063A13.726.212.1
XICATOXOB069.415.829.4
XICATOXTM & XIM 9MM12.226.413.1
XICATOXOB 912.627.410.8
XICATOXTM & XIM 19MM20.642.84.5
View results

Compatible accessories:

Please select a unique LED reference
