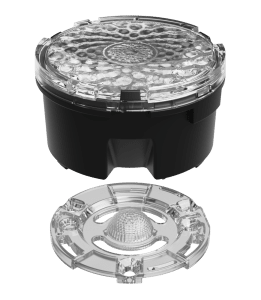

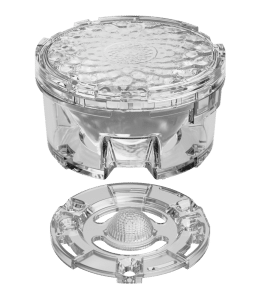

GALAXY1 color mixing base + SSIRIUS50Z0 zoom collimator assembled on clear holder
More details :
G1SSIRIUS50Z* is a combination of a GALAXY1 color mixing accessory with a SSIRIUS50Z* zoom set

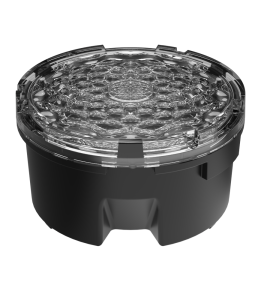

SSIRIUS50Z* is available with multiple different holder colour options (*: 0 is clear,1 is white, 2 is black):
GALAXY1 is a color mixing accessory base designed to work with Ø50mm SIRIUS50 zoom range.
GALAXY1 is dedicated to be integrated with RGBW high power LED like:
OSRAM OSTAR Stage S2WN and S2WM, CREE XML color HI, PROLIGHT OPTO PBEE, SEOUL SPF0AF0A
Discover the product presentation video here
or download datasheet from here
Its innovative and patented design adds RGBW capability to SIRIUS50 zoom range, with no color mixing compromise and very limited impact on beam angles.
GALAXY1 is an easy to integrate base, being screw mounted to the PCB and allowing twist and lock assembly of the selected SSIRIUS50Z* set. To ensure best possible color mixing results, GALAXY1 is equipped with 13,6mm spaced centering pins
A technical question ? Please contact us
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XN-P RGBW | 9.4 | 52.0 | 20.0 | 71.3 | 80.9 | 16.7 | 1.1 | 7.7 |
| CREE | XP-L COLOR HI | 9.6 | 50.6 | 20.4 | 71.5 | 82.8 | 15.3 | 1.1 | 9.2 |
| CREE | XP-L COLOR HD | 10.5 | 51.4 | 22.2 | 70.9 | 82.9 | 13.6 | 1.1 | 4.9 |
| CREE | XM-L COLOR GEN 2 HD | 10.6 | 51.6 | 24.1 | 72.7 | 84.0 | 11.9 | 1.1 | 11.4 |
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 10.6 | 52.2 | 22.7 | 72.3 | 82.3 | 12.9 | 1.0 | 2.0 |
| LUMINUS | SBM_40_SC | 9.7 | 52.0 | 20.8 | 71.5 | 84.9 | 16.1 | 1.1 | 6.9 |
| NICHIA | NVSLE21AT | 10.6 | 51.5 | 21.7 | 71.3 | 82.4 | 13.7 | 1.1 | 0.4 |
| NICHIA | E17A CLUSTER X4 RGBW | 13.0 | 53.0 | 29.1 | 75.4 | 79.2 | 7.5 | 0.9 | 13.9 |
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 9.4 | 52.1 | 19.6 | 71.4 | 83.5 | 17.5 | 1.1 | 8.1 |
| OSRAM | OSTAR STAGE LE RTDUW S2WP | 10.8 | 52.7 | 23.1 | 72.8 | 82.7 | 12.6 | 1.0 | 7.1 |
