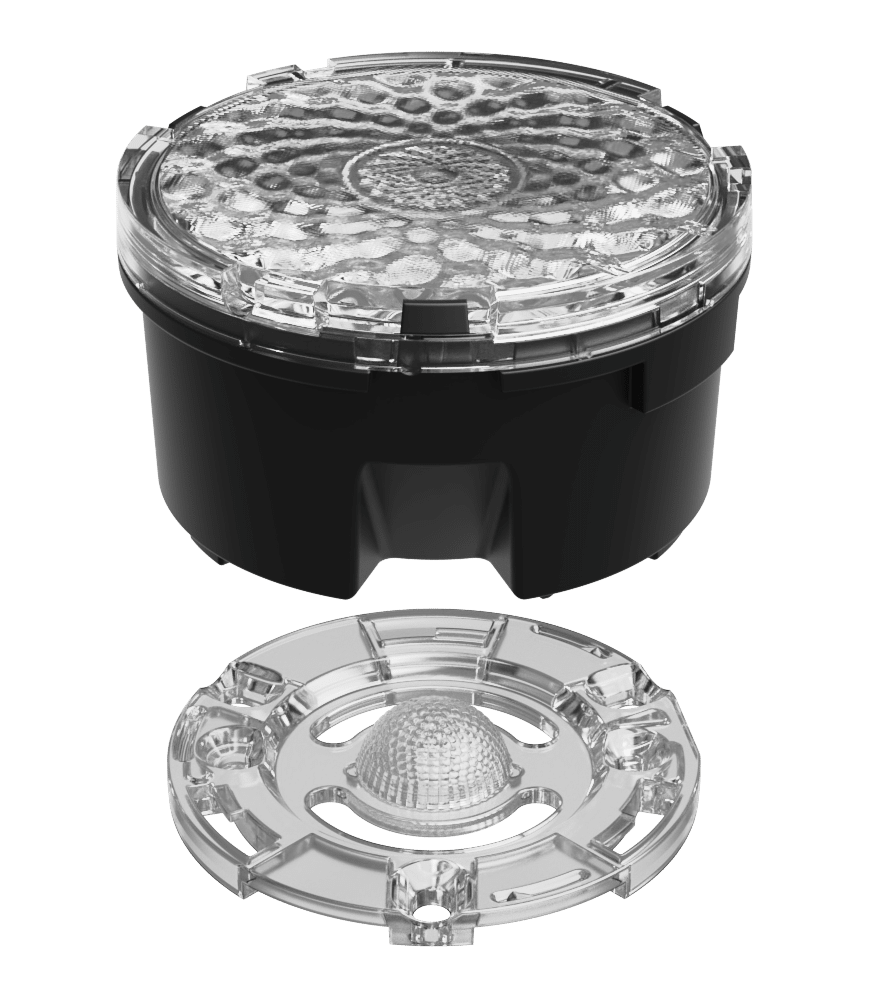

GALAXY2 color mixing base + SSIRIUS50ZTW2 zoom collimator assembled on black holder
More details :

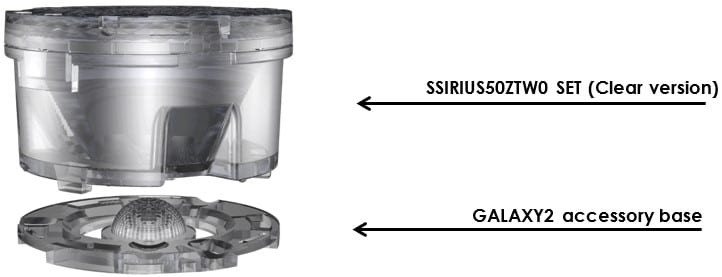

G2SSIRIUS50TW2 is a combination of a GALAXY2 color mixing accessory with a SSIRIUS50ZTW2 zoom set.
SSIRIUS50ZTW* is available with multiple different holder colour options (*: 0 is clear,1 is white, 2 is black).
GALAXY2 is a color mixing accessory base designed to work with Ø50mm SIRIUS50 zoom range.
GALAXY2 is dedicated to be integrated with RGBW high power or CSP custom LED clusters (4 chips) like:
Cree XP-L color, Luxeon Z, Luxeon CZ, Nichia E17A, Osram Pure 1010, Osram Oslon Square, Bridgelux CSP 1313.
Its innovative and patented design adds RGBW capability to SIRIUS50 zoom range, with no color mixing compromise and very limited impact on beam angles.
GALAXY2 is an easy to integrate base, being screw mounted to the PCB and allowing twist and lock assembly of the selected SSIRIUS50ZTW2 set. To ensure best possible color mixing results, GALAXY2 is equipped with 13,6mm spaced centering pins.
See also our GALAXY demonstration video
Download complete GALAXY datasheet
A technical question ? Please contact us
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XP-G4 | 16.2 | 54.4 | 33.3 | 78.5 | 80.8 | 6.1 | 0.9 | 1.6 |
| CREE | XM-L COLOR GEN 2 HD | 16.3 | 52.2 | 33.4 | 77.7 | 83.7 | 6.2 | 1.0 | 2.9 |
| CREE | XE-G CLUSTER X4 RGBW | 16.3 | 51.4 | 34.0 | 79.2 | 86.2 | 5.9 | 1.0 | 5.0 |
| CREE | XP-LR | 16.5 | 50.5 | 33.4 | 76.1 | 80.5 | 6.0 | 1.0 | 1.6 |
| CREE | XN-P RGBW | 16.5 | 53.0 | 33.7 | 77.9 | 82.1 | 5.9 | 1.0 | 3.2 |
| CREE | XP-L COLOR HD | 16.6 | 52.3 | 34.0 | 77.4 | 85.0 | 6.0 | 1.0 | 2.7 |
| CREE | XP-GR | 16.8 | 51.4 | 34.1 | 76.8 | 82.6 | 5.9 | 1.0 | 1.6 |
| CREE | XM-L COLOR GEN 2 HI | 16.9 | 51.2 | 34.6 | 77.0 | 82.9 | 5.7 | 1.0 | 2.8 |
| CREE | XP-L COLOR HI | 17.0 | 49.9 | 34.5 | 76.0 | 82.6 | 5.7 | 1.1 | 2.7 |
| CREE | XHP35.2 HI | 17.1 | 50.7 | 35.1 | 77.7 | 82.2 | 5.3 | 1.0 | 0.5 |
| EDISON | EDISON_2FM004M601F03001 | 16.6 | 50.4 | 34.0 | 76.3 | 84.2 | 5.9 | 1.1 | 3.2 |
| LED ENGIN | LZ7-04M2PD | 16.4 | 53.1 | 33.7 | 78.2 | 87.0 | 6.3 | 1.0 | 2.5 |
| LED ENGIN | LZ4-01MNCA | 16.4 | 52.0 | 33.2 | 77.8 | 85.5 | 6.2 | 1.0 | 2.6 |
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 16.1 | 51.4 | 32.8 | 76.7 | 83.4 | 6.4 | 1.0 | 1.5 |
| LUMILEDS | LUXEON CZ CLUSTER X4 RGBW | 16.2 | 51.8 | 32.8 | 76.9 | 80.5 | 6.3 | 1.0 | 4.9 |
| LUMILEDS | LUXEON Z CLUSTER X4 RGBW | 16.2 | 51.1 | 32.8 | 77.0 | 82.8 | 6.3 | 1.0 | 4.0 |
| LUMILEDS | LUXEON RUBIX CLUSTER X4 RGBW | 16.7 | 51.6 | 33.9 | 77.2 | 83.4 | 6.1 | 1.0 | 3.8 |
| LUMINUS | SBM_40_SC | 16.7 | 52.6 | 34.0 | 77.6 | 84.3 | 6.0 | 1.0 | 2.7 |
| NICHIA | NVSW719AC | 16.0 | 52.2 | 32.9 | 77.6 | 84.2 | 6.5 | 1.0 | 1.3 |
| NICHIA | NVSW219CT-V2 | 16.3 | 52.0 | 33.0 | 77.2 | 82.2 | 6.2 | 1.0 | 1.2 |
| NICHIA | E17A CLUSTER X4 RGBW | 17.1 | 51.2 | 34.9 | 77.2 | 82.6 | 5.6 | 1.0 | 5.1 |
| NICHIA | NVSLE21AT | 17.1 | 50.0 | 34.4 | 75.7 | 84.4 | 5.8 | 1.1 | 1.0 |
| OSRAM | OSTAR STAGE LE CWUW S2W | 16.3 | 52.4 | 33.4 | 77.3 | 83.6 | 6.2 | 1.0 | 1.5 |
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 16.5 | 52.9 | 33.8 | 77.8 | 83.2 | 6.1 | 1.0 | 3.0 |
| OSRAM | OSTAR STAGE LE RTDUW S2WP | 16.5 | 53.0 | 33.9 | 77.7 | 81.7 | 6.0 | 1.0 | 3.8 |
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 16.6 | 50.1 | 33.4 | 75.7 | 83.0 | 6.1 | 1.1 | 1.3 |
| OSRAM | PURE 1010 RGBW CLUSTER X4 | 17.0 | 50.7 | 34.5 | 76.8 | 82.5 | 5.6 | 1.0 | 3.3 |
| PROLIGHT OPTO | PBEE_40FTE | 16.3 | 53.3 | 33.5 | 78.0 | 84.7 | 6.3 | 1.0 | 2.6 |
| PROLIGHT OPTO | PQ2A CLUSTER X4 RGBW | 16.8 | 50.6 | 34.1 | 76.4 | 82.5 | 5.8 | 1.0 | 4.4 |
| SEOUL | SPF05F0A | 16.5 | 53.0 | 33.8 | 77.9 | 85.0 | 6.1 | 1.0 | 2.3 |
| SEOUL | SPF05F0B | 16.7 | 52.9 | 34.0 | 77.9 | 84.2 | 6.1 | 1.0 | 3.0 |
