~40° Wide Collimator

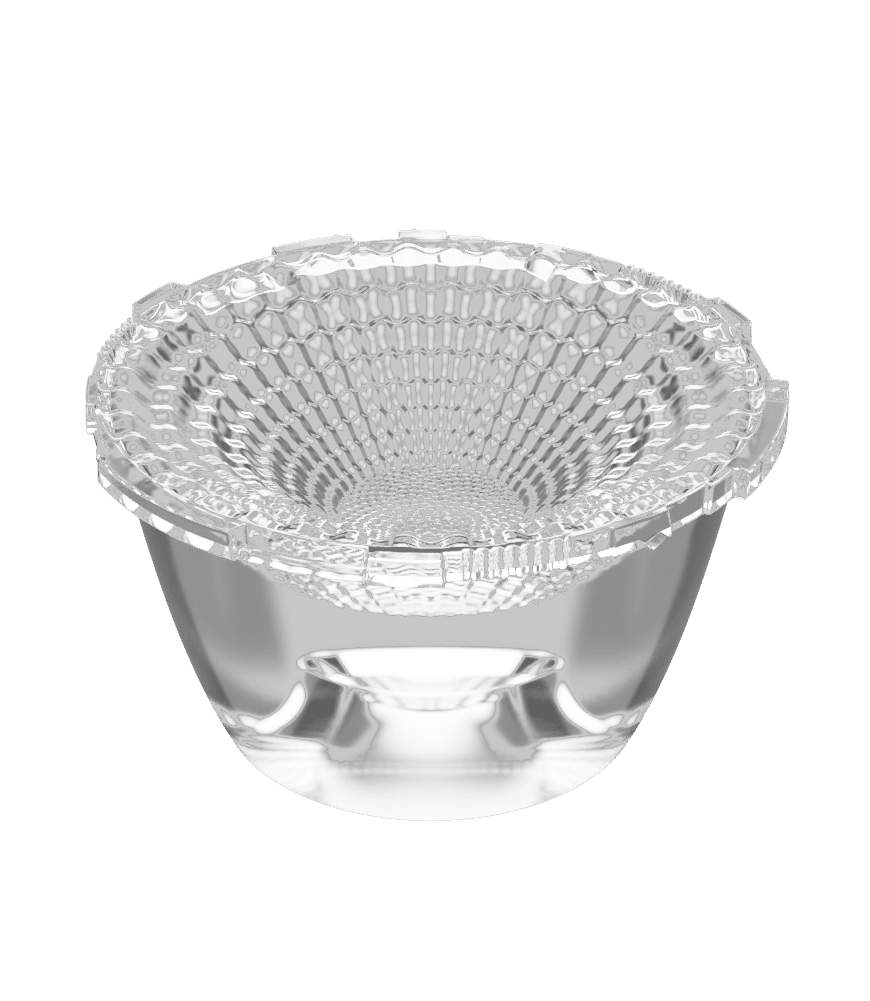

Ø 50 mm Large beam PMMA collimator
More details :
HADAR50L is a Ø 50 mm Large beam PMMA collimator. Diamond turned optic provides industry’s highest efficiency and efficacy with smooth cut-off and extremely low surface brightness. HADAR50L is compatible with variety of twist and lock window accessories (HADAR50W*). HADAR50N has typical efficiency of 92 % and supporting single color and tunable white COBs from 3 mm to 16.2 mm LES, with better 3rd party connector support .
See HADAR50 holder options to find suitable holder for integrating the part with LLH66B, Bender+Wirth, BJB35, HEKLA solderless connectors.
See also HADAR50 leaflet or download full Datasheet.
Refine your search:
Compatibility
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V13 THRIVE GEN7 | 45.9 | 82.1 | 85.3 | 1.1 | 0.5 | |||
| BRIDGELUX | V10 THRIVE GEN7 | 46.0 | 78.5 | 84.0 | 1.1 | 0.4 | |||
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 46.1 | 77.3 | 83.2 | 1.1 | 0.3 | |||
| CITIZEN | CLU723 | 42.3 | 72.3 | 90.6 | 1.5 | ||||
| CITIZEN | CLU733 | 43.9 | 76.1 | 88.8 | 1.3 | ||||
| CITIZEN | CLU731 | 45.6 | 81.7 | 85.1 | 1.1 | 0.3 | |||
| CITIZEN | CLU713 | 45.7 | 77.3 | 88.1 | 1.2 | 0.7 | |||
| CITIZEN | CLU721 | 45.7 | 79.1 | 86.4 | 1.1 | 0.3 | |||
| CITIZEN | CLU703 | 46.4 | 77.1 | 84.4 | 1.1 | 0.5 | |||
| CITIZEN | CLU7R3 | 46.7 | 77.1 | 86.2 | 1.1 | 0.4 | |||
| CITIZEN | CLU7A3 | 47.2 | 77.2 | 86.6 | 1.1 | 0.6 | |||
| CITIZEN | CLU7S3 | 47.4 | 77.6 | 88.0 | 1.1 | 0.4 | |||
| CITIZEN | CLU7L3 | 47.6 | 77.6 | 86.5 | 1.1 | 0.5 | |||
| CREE | CXB 1520 | 46.2 | 78.1 | 85.5 | 1.1 | 0.3 | |||
| CREE | CMB1818 | 46.9 | 82.7 | 85.4 | 1.0 | 0.5 | |||
| CREE | CXB 1310 | 48.0 | 78.5 | 86.4 | 1.1 | 0.4 | |||
| LUMINUS | CTM_9 | 40.5 | 71.3 | 89.4 | 1.6 |
Compatible accessories:
Please select a unique LED reference
