~10 – 45° Zoom Collimator
Ø 50mm Zoom beam PMMA collimator
More details :
Note: this part requires additional component HADAR50WZ (zoom window)

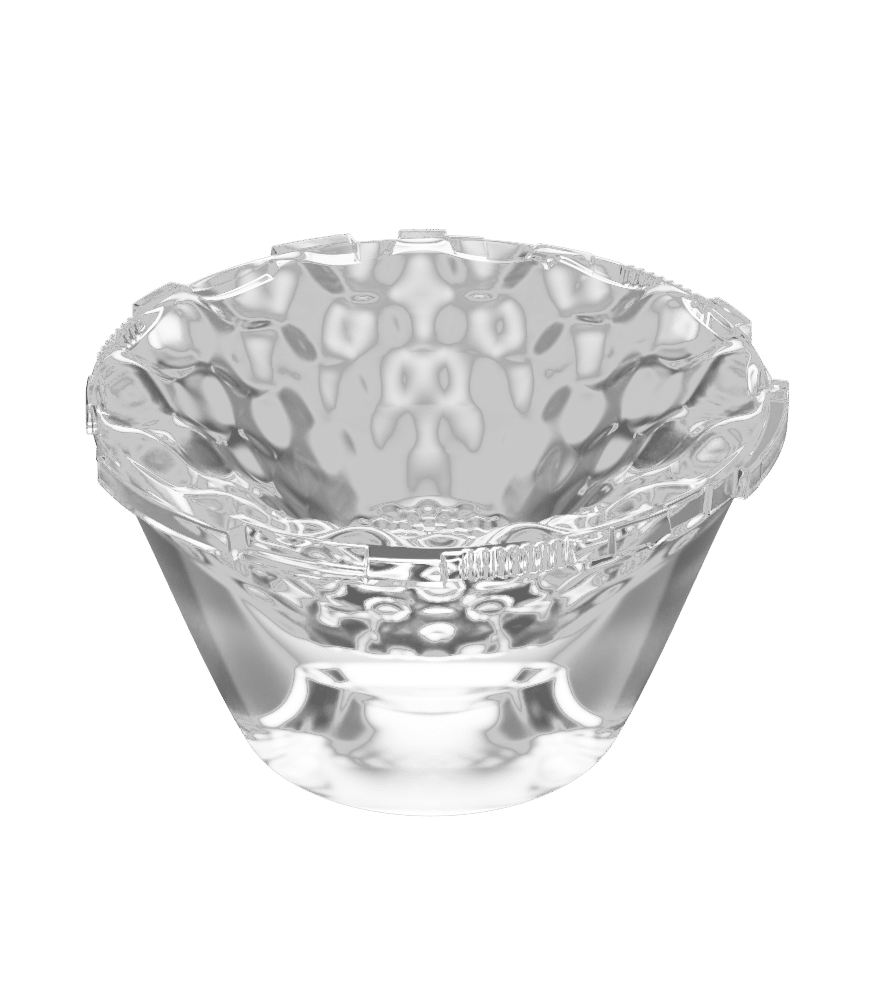

HADAR50Z is a Ø 50 mm patent pending Zoom beam PMMA collimator providing adjustable 10° – 45° beam. HADAR50Z has industry’s highest efficiency of +88% and is only solution in the market where the top lens is directly integrated to the lens holder (rotation stop system). HADAR50Z’s rotation stop system has a new unique feature, lens can be rotated by angle of 14° and the lenses have 7 stopping steps, that makes it easy to find the same beam angle for each luminaire and also makes it easy to build fixture around HADAR50Z. HADAR50Z supports COBs and Dim-to-warm solutions from 3 mm to 16.2 mm LES. Thanks to excellent diamond turned optical design, HADAR50Z provides very low surface brightness, broader beam range, higher efficiency and twice higher efficacy vs competitors.
See HADAR50 holder options to find suitable holder for integrating the part with LLH66B, Bender+Wirth, BJB35, HEKLA solderless connectors.
Hint: Looking for RGBW zoom? use HADAR50Z with our patented GALAXY base, that is specifically designed for RGBW color mixing applications.
See also HADAR50 leaflet or download full Datasheet.
Refine your search:
Compatibility
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V8 THRIVE GEN7 BXRE_40S0801_D_72 | 16.7 | 45.8 | 34.1 | 74.2 | 80.6 | 5.3 | 1.1 | 0.4 |
| BRIDGELUX | V13 THRIVE GEN7 | 23.3 | 46.5 | 48.5 | 79.9 | 81.4 | 2.5 | 0.9 | 0.4 |
| BRIDGELUX | V10 THRIVE GEN7 | 23.6 | 46.6 | 44.6 | 77.1 | 81.0 | 2.9 | 1.0 | 3.3 |
| CITIZEN | CLU7L3 | 11.6 | 43.4 | 21.6 | 69.8 | 84.3 | 12.9 | 1.4 | 0.4 |
| CITIZEN | CLU7S3 | 12.3 | 44.3 | 24.0 | 70.8 | 86.8 | 11.1 | 1.3 | 0.3 |
| CITIZEN | CLU7R3 | 12.7 | 44.4 | 25.1 | 70.8 | 84.5 | 10.1 | 1.3 | 0.7 |
| CITIZEN | CLU7A3 | 12.9 | 44.6 | 25.5 | 71.3 | 85.1 | 9.8 | 1.3 | 0.6 |
| CITIZEN | CLU703 | 14.7 | 45.0 | 29.9 | 72.5 | 82.4 | 7.0 | 1.2 | 0.3 |
| CITIZEN | CLU713 | 17.5 | 45.8 | 36.0 | 75.0 | 86.1 | 4.9 | 1.1 | 0.3 |
| CITIZEN | CLU721 | 20.0 | 46.2 | 41.8 | 77.3 | 83.6 | 3.5 | 1.0 | 0.5 |
| CITIZEN | CLU723 | 22.0 | 47.5 | 45.0 | 81.6 | 86.9 | 3.4 | 1.1 | |
| CITIZEN | CLU731 | 22.9 | 46.6 | 47.9 | 80.6 | 81.2 | 2.6 | 1.0 | 0.5 |
| CITIZEN | CLU733 | 25.4 | 47.7 | 54.4 | 86.3 | 85.1 | 2.4 | 1.0 | |
| CREE | CXB 1310 | 14.5 | 45.0 | 29.9 | 72.2 | 85.9 | 7.4 | 1.2 | 0.7 |
| CREE | CXB 1520 | 18.5 | 45.9 | 37.7 | 75.1 | 82.0 | 4.4 | 1.1 | 0.4 |
| CREE | CMB1818 | 22.4 | 46.7 | 46.5 | 79.8 | 82.3 | 2.8 | 1.0 | 0.4 |
Compatible accessories:
Please select a unique LED reference
