Ref:

LLC05W7

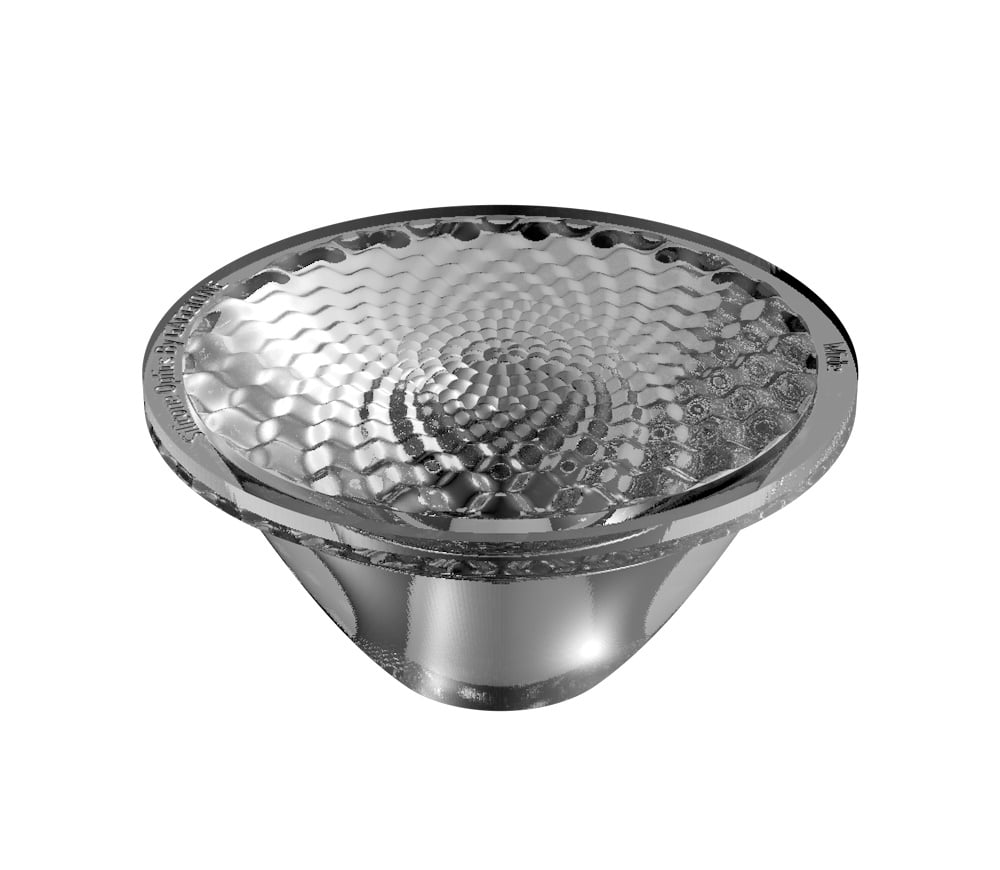

Wide Collimator

Ø 32 mm wide beam silicone collimator.

More details :

LLC05W7 is a Ø 32 mm wide beam silicone collimator. It is suitable for various application fields were a high level a beam control is required. It benefits from the patented negative draft angle input port design. allowing a very homogenous beam with limited stray light.
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	Efficacy 1	CCI
	CLU02Q Type-F	38.3	78.3	1.3	0.1
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	29.7	57.2	2.6	1.0
BRIDGELUX	V6 HD BXRH_40E1000_B_73	30.4	56.4	2.4
BRIDGELUX	V6 BXRE_30E0400_A_03	30.7	55.7	2.5
BRIDGELUX	V4_HD BXRH_30G0600_A_72	31.0	54.0	2.6
BRIDGELUX	V3_HD_GEN_8	33.0	54.9	2.4	1.4
BRIDGELUX	V10 BXRE_30G100_C_73	34.9	68.5	1.8
BRIDGELUX	VESTA 9 TW CSP BXRV-TR-2750G-1000-A23	34.9	72.0	1.5
BRIDGELUX	VESTA 9 DTW BXRV-DR-1830-H-1000-A-13	36.0	72.6	1.5	2.6
BRIDGELUX	V10 BXRE_30E1000_B_03	36.2	72.8	1.5
BRIDGELUX	VERO 10 SE BXRC_30E1000_C_72	36.4	73.4	1.6
CITIZEN	CLU701	29.6	55.6	2.5
CITIZEN	CLU702	30.6	57.5	2.5
CITIZEN	CLU700	30.9	58.1	2.3
CITIZEN	CLU703 Type-F	31.4	59.8	2.1	0.7
CITIZEN	CLU711	31.5	61.7	2.0
CITIZEN	CLU7R3	31.8	55.3	2.4
CITIZEN	CLU7A3 Type-F	31.8	56.1	2.3	1.1
CITIZEN	CLU710	32.6	63.8	1.9
CITIZEN	CLU7B2	32.7	53.1	2.6
CITIZEN	CLU7L3	32.8	54.0	2.4	1.6
CITIZEN	CLU7S3	32.9	54.9	2.4	1.3
CITIZEN	LCN-C01B2	34.7	68.5	1.6	2.0
CITIZEN	CLU713 Type-F	34.9	69.0	1.6	0.2
CITIZEN	CLU720	37.1	76.1	1.4
CREE	XHP35.2 HD	28.8	54.2	2.7
CREE	XHP70.3	29.5	58.7	2.3	0.8
CREE	XP-L	29.5	54.0	2.6
CREE	XHP70.2	29.6	58.6	2.3
CREE	XP-L2	30.0	53.8	2.7
CREE	XHP50	30.0	55.3	2.5
CREE	XHP50.2	30.0	55.6	2.5
CREE	CXB 1310	30.4	56.6	2.4
CREE	MCE WHITE	30.4	54.2	2.5
CREE	XHP50.3 HD	30.7	56.1	2.3	1.8
CREE	CMA1303	30.8	54.6	2.6
CREE	XHP70.3 HI	31.4	56.9	2.3	1.0
CREE	XHP35.2 HI	32.6	52.3	2.6
CREE	XP-G3	32.7	52.4	2.5
CREE	XP-L HI	32.8	52.5	2.5
CREE	XQ-E HI	32.9	52.8	2.5
CREE	XP-E2	33.2	52.2	2.5
CREE	XP-G2	33.3	52.3	2.5
CREE	XP-P	33.3	54.1	2.3	1.6
CREE	XHP50.3 HI	33.4	54.3	2.3	2.5
CREE	XM-L2	33.7	55.5	2.2	2.7
CREE	XD16	33.7	51.9	2.6
CREE	XHP35 HI	33.9	53.2	2.5
CREE	XP-G2 HE	34.1	53.7	2.3	1.8
CREE	XPL-HI_post_PCN5155	34.2	53.9	2.2	2.1
CREE	CXB 1520	34.2	66.5	1.8
CREE	XD16 Premium White	34.8	52.4	2.4	1.7
CREE	XP-G4	34.8	54.0	2.2	1.8
EDISON	2PHM10xWxxP55020	32.2	53.9	2.5
LUMILEDS	LUXEON MZ	26.4	55.2	2.5
LUMILEDS	LUXEON M	27.9	55.2	2.6
LUMILEDS	LUXEON COB 109	29.9	56.7	2.4
LUMILEDS	LUXEON COB 1202 HD	31.2	58.7	2.2
LUMILEDS	LUXEON Z CLUSTER x4 RGBW	31.6	52.7	2.6	18.5
LUMILEDS	LUXEON Z CLUSTER x4 TUNABLE WHITE	31.8	52.6	2.6	2.8
LUMILEDS	LUXEON COB 1202S	32.6	61.4	2.1
LUMILEDS	LUXEON COB 1203	33.8	66.8	1.8
LUMILEDS	LUXEON Z ES	34.9	52.3	2.4	2.8
LUMINUS	CDM_6	28.5	57.7	2.5
LUMINUS	CXM_6	29.1	55.6	2.5
LUMINUS	CXM_4	31.0	54.8	2.5
LUMINUS	CXM_3	32.2	53.7	2.5
LUMINUS	SST-70	32.4	54.5	2.3	1.9
LUMINUS	CTM_9	32.4	64.1	2.0
LUMINUS	SST-40	34.0	54.3	2.3	1.9
LUMINUS	SFT-70	34.3	53.7	2.2	2.0
LUMINUS	SST-12	34.6	52.3	2.3	2.9
LUMINUS	SFT-40	34.7	52.5	2.3	2.0
LUMINUS	CXM_9	34.8	68.5	1.7
NICHIA	NTCWS024B_V3	24.7	47.5	3.6
NICHIA	NTCWT012B_V3	29.4	55.8	2.6
NICHIA	NV4L144AR	29.8	57.1	2.3	1.6
NICHIA	NJCLS024Z	30.5	58.1	2.3
NICHIA	E17A CLUSTER x4 TW	30.9	55.3	2.4	2.4
NICHIA	NFCWL036B_V3	32.6	63.5	2.0
NICHIA	NV4WB35AM	32.8	53.7	2.5
NICHIA	NCSWE17AT	34.0	50.6	2.6
NICHIA	NVSW219CT-V2	35.0	53.4	2.2	1.6
NICHIA	NVSW719AC	35.2	53.6	2.2	1.9
NICHIA	NVCWJ024Z_V1MT	36.5	77.7	1.4
OSRAM	OSTAR STAGE LE CWUW S2W	29.6	54.5	2.5	2.5
OSRAM	OSLON SQUARE GW CSSRM1.PC	32.3	53.9	2.5
OSRAM	OSLON SQUARE GW CSSRM3.PM	32.4	53.2	2.5
OSRAM	OSLON SQUARE GW CSSRM1.EC	32.6	53.3	2.6
OSRAM	OSTAR STAGE LE RTDUW S2W	33.0	53.2	2.5
OSRAM	PURE 1010 TUNABLE CLUSTER x4	33.0	51.9	2.6
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	33.3	53.0	2.5
OSRAM	OSLON PURE 1010 GW VJLPE1 EM	33.5	50.7	2.3
OSRAM	OSLON SQUARE GW CSSRM2.PM	33.7	51.6	2.6
OSRAM	OSLON COMPACT CL LUW CEUP	33.8	50.6	2.6
OSRAM	OSLON COMPACT CM LUW CEUN.CE	33.8	50.7	2.7
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	33.8	51.0	2.6
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	34.0	52.6	2.5
OSRAM	OSLON BLACK FLAT LUW HWQP	34.1	51.2	2.5
OSRAM	OSCONIQ P3737 GW PULTA1.CM	34.1	52.4	2.5
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	34.4	51.9	2.5
OSRAM	OSLON BOOST HM KW CELMM1.TG	34.5	51.9	2.4	2.4
OSRAM	OSLON COMPACT PL KW CELNM2.TK	34.7	52.3	2.2	2.2
OSRAM	OSLON SQUARE GW CSSRMU.CM	34.8	52.2	2.4
OSRAM	OSLON SQUARE GW CSSRM1.BM	34.9	54.1	2.2	1.5
OSRAM	OSLON Boost HX KW CULPM1.TG	35.2	52.5	2.4
PLESSEY	PLW7070GA	29.1	55.5	2.6
SEOUL	SAWS0661A	29.4	55.8	2.5
SEOUL	SAWS1063A	35.0	71.2	1.6
XICATO	XOB06	29.6	55.9	2.5
XICATO	XOB 9	34.3	67.2	1.7
XICATO	XTM & XIM 9MM	35.1	68.2	1.6	1.4
