Ref:

LLC07N

Narrow Collimator

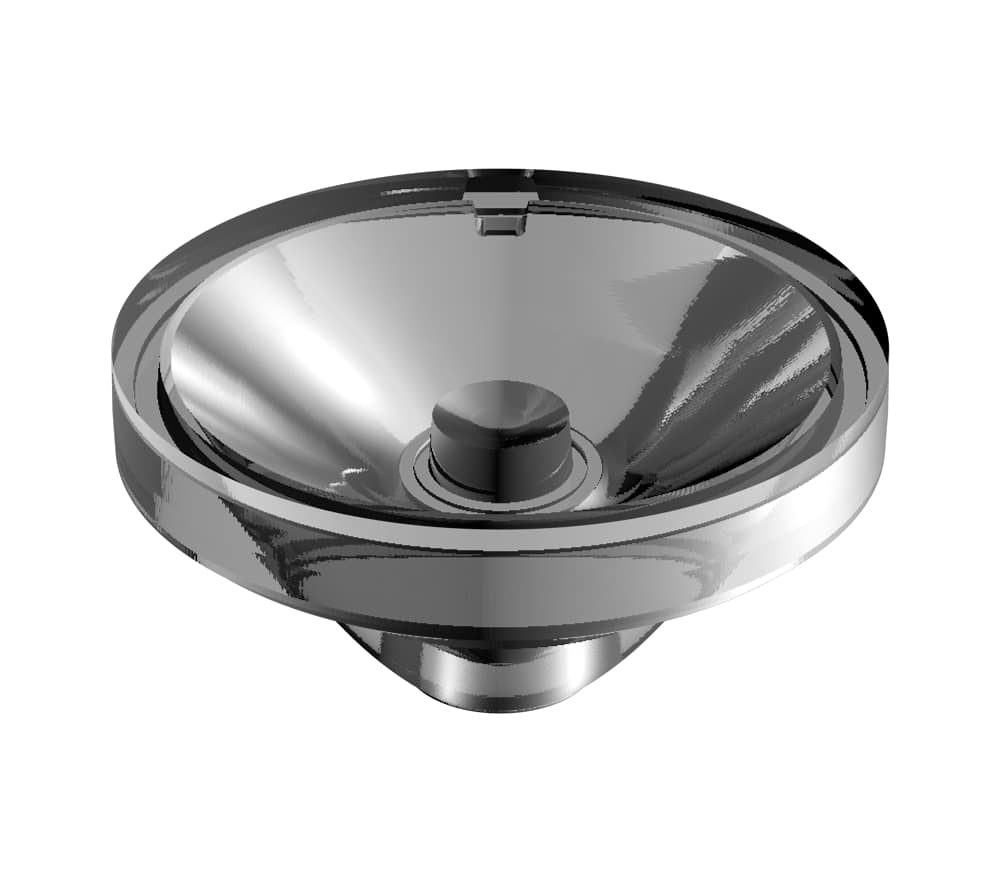

Ø 35 mm narrow beam PMMA collimator.

More details :

LLC07N is a Ø 35 mm narrow beam PMMA collimator. LLC07N is capable of less than 10° beam angle with selected high power LEDs
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 Efficacy 1 Efficacy 2 CCI
BRIDGELUXV3_HD_GEN_89.824.916.41.8
BRIDGELUXV4_HD BXRH_30G0600_A_7214.931.19.2
CITIZENCLU7B28.623.719.2
CITIZENCL-L4009.123.817.9
CITIZENCLU7S39.132.810.92.5
CITIZENCLU7R39.935.59.2
CITIZENCLU7L310.628.012.87.2
CITIZENCLU70113.938.27.2
CITIZENCLU7A214.232.08.6
CITIZENCLU70014.738.46.9
CITIZENCLU7A3 Type-F14.826.210.90.7
CREEXP-P3.77.7140.62.9
CREEXQ-E HI4.08.5114.1
CREEXQ-E4.69.984.3
CREEXP-E24.79.393.5
CREEXD16 Premium White4.711.375.62.5
CREEXD165.213.252.3
CREEXP-E5.810.976.4
CREEXP-L HI6.412.350.8
CREEXPL-HI_post_PCN51556.620.323.2
CREEXP-E HEW6.715.037.5
CREEXP-G26.812.651.8
CREEXB-D6.812.249.5
CREEXP-G7.012.348.3
CREEXP-G47.214.338.92.5
CREEXHP50.3 HI7.820.422.26.9
CREEXHP35 HI7.914.935.3
CREEXT-E HE7.918.326.7
CREEXT-E HV7.915.232.9
CREEXP-G38.115.633.8
CREEXT-E8.514.135.9
CREEXP-G2 HE8.615.730.64.4
CREEXHP35.2 HI9.018.224.54.0
CREEXP-L210.024.416.4
CREEXM-L EASYWHITE10.217.922.0
CREEXM-L210.319.321.6
CREEXP-L10.618.820.7
CREECMA130310.932.610.3
CREEXHP35 HD11.720.017.4
CREEXHP70.3 HI11.735.18.42.4
CREEMK-R12.433.28.6
CREEXHP35.2 HD13.225.413.1
CREEXHP70.214.246.84.1
CREECXB 131014.538.37.3
CREEMK-R214.936.37.3
CREEXHP5014.931.38.2
CREEXHP50.3 HD15.328.88.95.6
CREEXHP50.215.829.69.3
EDISON2PHM10xWxxP550209.123.817.9
LED ENGINLZ1 14CWP24.18.1122.7
LUMILEDSLUXEON Z ES4.010.488.8
LUMILEDSREBEL4.611.665.3
LUMILEDSLUXEON C5.19.693.2
LUMILEDSREBEL ES7.114.240.6
LUMILEDSLUXEON T7.214.340.9
LUMILEDSLUXEON MZ10.021.418.0
LUMILEDSLUXEON M12.234.38.5
LUMILEDSLUXEON COB 10914.640.66.3
LUMILEDSLUXEON COB 1202 HD14.743.65.7
LUMILEDSLUXEON COB 120317.457.83.3
LUMINUSSST-125.410.174.94.8
LUMINUSSFT-406.113.748.81.4
LUMINUSSFT-708.317.426.21.2
LUMINUSCXM_38.826.916.1
LUMINUSSST-409.617.624.91.5
LUMINUSCXM_411.231.411.1
LUMINUSSST-7012.621.914.61.8
LUMINUSCXM_917.158.23.1
LUMINUSCXM_1419.687.61.4
NICHIANVSW219CT-V25.810.664.72.4
NICHIANCS1196.214.342.0
NICHIANVSWE21AT6.318.531.1
NICHIA7577.114.340.4
NICHIANCSWE17AT7.117.433.9
NICHIANVSW719AC7.212.842.92.1
NICHIANVSL219C8.016.432.1
NICHIANVSW319A8.718.126.2
NICHIANV4WB35AM10.621.418.3
NICHIANWSL229A10.721.718.5
NICHIANVNWS007Z_V113.141.16.2
NICHIANTCWS024B_V314.844.65.5
NICHIANV4L144AR15.231.88.7
NICHIANJCWS024Z_V115.448.14.8
OSRAMOSLON BOOST HM KW CELMM1.TG2.55.7267.15.7
OSRAMOSLON COMPACT PL KW CELNM2.TK3.77.9137.73.4
OSRAMOSLON COMPACT CM LUW CEUN.CE4.07.6151.6
OSRAMOSLON SSL 1504.29.3107.4
OSRAMOSLON COMPACT CL LUW CEUP4.39.3112.4
OSRAMOSLON Boost HX KW CULPM1.TG4.710.583.1
OSRAMOSLON SSL 804.810.869.8
OSRAMOSTAR PROJECTION COMPACT LEUWQ8WP4.89.685.5
OSRAMOSLON BLACK FLAT LUW HWQP4.811.671.3
OSRAMOSLON SQUARE FLAT KW CSLPM2.PC5.212.954.5
OSRAMOSCONIQ C 2424 GW PLLRA1.EM5.412.657.43.0
OSRAMOSLON SQUARE GW CSSRM1.PC6.314.342.0
OSRAMOSCONIQ P3737 GW PUSRA1.EM6.314.742.0
OSRAMOSLON SQUARE LCW CQAR6.713.446.3
OSRAMOSTAR PROJECTION COMPACT KW CSLNM1.TG6.714.240.4
OSRAMDURIS P86.812.050.3
OSRAMOSLON SQUARE GW CSSRM1.BM6.812.346.81.9
OSRAMOSLON SQUARE GW CSSRM2.PM7.013.844.7
OSRAMOSLON SQUARE GW CSSRMU.CM7.112.844.8
OSRAMOSLON SQUARE GW CSSRM1.EC7.213.743.5
OSRAMOSCONIQ P3737 GW PULTA1.CM7.218.030.6
OSRAMOSLON SQUARE GW CSSRM3.PM9.219.820.9
OSRAMGOLDEN DRAGON9.718.823.8
OSRAMOSCONIQ P3737 GW PUSTA1.PM9.919.622.3
OSRAMDURIS P1010.332.09.9
OSRAMDURIS S8 P9LT32.PM11.433.09.7
SAMSUNGLH351Z4.79.393.9
SAMSUNGLH351A6.712.453.4
SAMSUNGLC010CV213.540.26.4
SEOULZ54.29.3104.2
SEOULZ5_M16.412.849.5
SEOULZP4 [ #6 version ]6.816.538.2
SEOULZP4 [ #7 version ]7.318.729.6
SEOULSAWS0661A13.438.87.1
View results

Compatible accessories:

Please select a unique LED reference

Download
