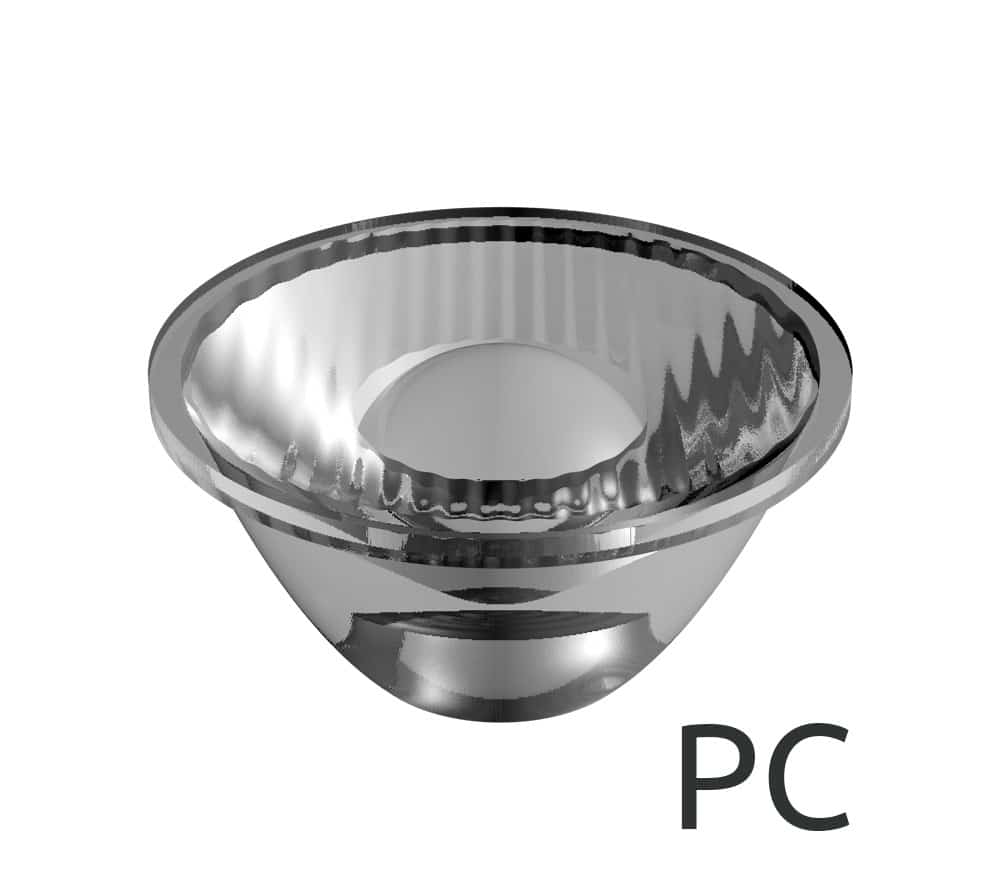

Ø 32 mm elliptical beam PC collimator.
More details :
LLC15E2 is a Ø 32 mm elliptical beam PC collimator. LLC15E is matching many high power and mid power LEDs.
Discover how to choose the right holder.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V3_HD_GEN_8 | 13.0 | 18.6 | 24.7 | 33.3 | 84.6 | 8.8 | 1.8 | |
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 14.4 | 18.0 | 25.2 | 32.9 | 89.2 | 9.6 | ||
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 16.2 | 19.8 | 31.0 | 37.3 | 78.5 | 6.0 | 1.7 | |
| BRIDGELUX | V6 BXRE_30E0400_A_03 | 18.2 | 22.2 | 37.6 | 41.3 | 80.9 | 4.8 | ||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 20.2 | 23.4 | 39.2 | 42.1 | 77.5 | 4.4 | 3.5 | |
| BRIDGELUX | V6 HD BXRH_40E1000_B_73 | 20.5 | 23.7 | 39.9 | 43.2 | 80.7 | 4.3 | ||
| CITIZEN | CLU7B2 | 12.9 | 18.4 | 25.7 | 33.7 | 86.5 | 8.6 | ||
| CITIZEN | CLU7R3 | 15.6 | 19.6 | 32.1 | 37.7 | 79.6 | 6.1 | ||
| CITIZEN | CLU7L3 | 15.8 | 30.3 | 80.3 | 8.0 | 4.9 | |||
| CITIZEN | CLU7A3 TYPE-F | 16.0 | 20.0 | 29.7 | 37.0 | 81.2 | 6.3 | 1.1 | |
| CITIZEN | CLU7A2 | 16.1 | 20.0 | 32.6 | 38.3 | 78.4 | 5.7 | 2.1 | |
| CITIZEN | CLU7S3 | 16.4 | 31.5 | 81.7 | 7.4 | 1.6 | |||
| CITIZEN | CLU701 | 18.9 | 21.8 | 34.7 | 39.6 | 81.0 | 5.1 | ||
| CITIZEN | CLU702 | 20.0 | 23.7 | 40.7 | 43.5 | 80.4 | 4.2 | ||
| CITIZEN | CLU703 | 20.9 | 24.1 | 39.6 | 43.4 | 81.0 | 4.2 | 1.5 | |
| CITIZEN | CLU700 | 21.2 | 22.8 | 35.0 | 40.3 | 88.3 | 5.2 | ||
| CITIZEN | CLU703 TYPE-F | 21.9 | 25.1 | 42.7 | 45.9 | 77.5 | 3.6 | 0.8 | |
| CITIZEN | CLU710 | 26.0 | 28.4 | 47.7 | 50.1 | 86.7 | 3.1 | ||
| CITIZEN | CLU711 | 26.4 | 28.8 | 47.7 | 50.0 | 80.2 | 2.9 | ||
| CITIZEN | CLU712 | 26.7 | 28.9 | 50.1 | 51.0 | 86.6 | 3.0 | ||
| CITIZEN | CLU713 | 28.6 | 31.1 | 51.5 | 52.7 | 77.6 | 2.5 | 1.2 | |
| CITIZEN | CLU02J | 29.8 | 31.8 | 56.5 | 59.1 | 84.6 | 2.3 | ||
| CITIZEN | CLU02Q TYPE-Y | 29.9 | 33.3 | 62.2 | 63.4 | 73.5 | 1.8 | 1.2 | |
| CITIZEN | CLU713 TYPE-F | 30.4 | 32.5 | 53.7 | 54.5 | 77.1 | 2.3 | 2.0 | |
| CITIZEN | CLU02Q TYPE-F | 35.5 | 37.2 | 61.4 | 61.8 | 76.8 | 1.7 | 1.2 | |
| CREE | XP-P | 4.9 | 17.3 | 10.3 | 21.8 | 81.5 | 24.6 | 3.7 | |
| CREE | XP-GR | 5.1 | 17.5 | 11.6 | 22.6 | 82.2 | 22.3 | 4.3 | |
| CREE | XP-E2 | 6.2 | 18.1 | 13.1 | 25.2 | 78.3 | 17.8 | ||
| CREE | XP-LR | 6.2 | 18.2 | 12.3 | 24.4 | 82.8 | 18.0 | 3.9 | |
| CREE | XP-G4 HI | 7.2 | 18.4 | 16.9 | 26.4 | 81.9 | 14.3 | 6.8 | |
| CREE | XP-G2 | 7.6 | 18.6 | 14.2 | 26.2 | 98.2 | 15.4 | ||
| CREE | XP-L HI | 7.8 | 18.0 | 15.7 | 27.1 | 83.3 | 14.4 | ||
| CREE | XD16 PREMIUM WHITE | 8.1 | 17.9 | 15.1 | 27.0 | 83.8 | 14.6 | 4.1 | |
| CREE | XPL-HI_POST_PCN5155 | 8.7 | 18.9 | 17.9 | 28.3 | 79.9 | 12.1 | 3.1 | |
| CREE | XP-G4 | 8.8 | 18.9 | 16.6 | 28.2 | 83.0 | 12.8 | 1.5 | |
| CREE | XP-G3 | 9.3 | 19.1 | 17.3 | 28.6 | 84.8 | 12.8 | ||
| CREE | XP-G2 HE | 9.4 | 19.2 | 17.7 | 29.2 | 81.5 | 12.0 | 1.8 | |
| CREE | XHP35 HI | 9.6 | 19.2 | 16.5 | 28.4 | 92.3 | 12.3 | ||
| CREE | XQ-E HI | 9.8 | 17.0 | 15.8 | 27.3 | 83.2 | 13.0 | ||
| CREE | XHP50.3 HI | 10.4 | 19.0 | 21.9 | 30.2 | 81.2 | 10.0 | 6.4 | |
| CREE | XHP35.2 HI | 10.7 | 18.3 | 21.0 | 30.1 | 83.4 | 10.8 | ||
| CREE | XP-L | 10.9 | 18.9 | 19.2 | 30.3 | 89.1 | 10.9 | ||
| CREE | XM-L2 | 11.2 | 19.2 | 19.8 | 31.0 | 83.0 | 10.3 | 3.9 | |
| CREE | XP-L2 | 12.2 | 19.5 | 21.9 | 33.1 | 87.8 | 9.3 | ||
| CREE | XHP35.2 HD | 13.5 | 19.9 | 25.2 | 34.5 | 86.6 | 7.9 | ||
| CREE | XHP50.3 HD | 16.5 | 20.1 | 26.4 | 35.6 | 81.6 | 6.8 | 2.1 | |
| CREE | XHP70.3 HI | 16.8 | 20.8 | 30.3 | 37.5 | 80.5 | 5.8 | 3.1 | |
| CREE | XHP50.2 | 17.3 | 21.2 | 30.3 | 37.9 | 82.8 | 5.9 | ||
| CREE | CXA 13XX | 17.8 | 20.6 | 33.1 | 37.2 | 88.7 | 6.4 | ||
| CREE | XHP70.3 | 19.2 | 21.1 | 62.5 | 63.5 | 60.9 | 1.6 | 3.1 | |
| CREE | CXB 1310 | 19.3 | 23.1 | 38.3 | 42.2 | 81.9 | 4.5 | ||
| CREE | CXA 1520 | 23.9 | 27.2 | 50.7 | 52.2 | 86.1 | 3.0 | ||
| CREE | CXA 1507 | 24.2 | 26.9 | 48.6 | 50.8 | 86.1 | 3.1 | ||
| CREE | XHP70.2 | 24.2 | 26.6 | 40.8 | 46.4 | 80.1 | 3.4 | ||
| CREE | CXB 1520 | 28.7 | 31.2 | 55.8 | 56.3 | 79.1 | 2.3 | ||
| CREE | CXB 1507 | 29.5 | 30.7 | 50.3 | 52.2 | 86.0 | 2.9 | ||
| LUMILEDS | LUXEON Z ES | 11.7 | 17.2 | 18.0 | 30.2 | 82.6 | 11.5 | 2.5 | |
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H04 | 15.9 | 19.6 | 28.2 | 35.1 | 89.2 | 7.9 | ||
| LUMILEDS | LUXEON M | 18.2 | 21.7 | 30.0 | 38.4 | 80.6 | 5.6 | ||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H06 | 18.2 | 21.5 | 34.0 | 38.4 | 88.5 | 5.8 | ||
| LUMILEDS | LUXEON COB 1202 HD | 20.6 | 24.4 | 43.8 | 45.9 | 81.2 | 3.7 | ||
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 24.5 | 27.4 | 48.9 | 49.5 | 86.5 | 3.3 | ||
| LUMILEDS | LUXEON COB 1202 | 27.4 | 30.0 | 51.4 | 51.5 | 86.0 | 2.8 | ||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S04H9 | 28.8 | 31.4 | 54.2 | 56.3 | 86.0 | 2.5 | ||
| LUMINUS | SST-12 | 6.7 | 18.6 | 14.0 | 25.5 | 78.4 | 15.9 | 4.7 | |
| LUMINUS | SFT-40 | 7.4 | 18.8 | 13.9 | 26.0 | 82.4 | 15.6 | 3.5 | |
| LUMINUS | SST_20_WXH | 7.5 | 17.2 | 13.8 | 25.1 | 90.3 | 19.3 | ||
| LUMINUS | SST_20_WXS | 7.9 | 17.3 | 14.1 | 25.8 | 90.3 | 18.0 | ||
| LUMINUS | SFT-70 | 9.9 | 19.1 | 17.4 | 28.7 | 78.1 | 11.5 | 2.9 | |
| LUMINUS | SST-40 | 10.3 | 19.1 | 18.4 | 29.8 | 82.8 | 11.3 | 2.7 | |
| LUMINUS | SST-70 | 13.3 | 19.0 | 22.3 | 32.6 | 81.5 | 8.8 | 2.6 | |
| LUMINUS | CXM_3 | 13.7 | 18.6 | 28.2 | 35.5 | 83.9 | 7.5 | ||
| LUMINUS | CXM_4 | 15.6 | 20.0 | 32.4 | 37.8 | 83.7 | 6.2 | ||
| LUMINUS | CXM_6 | 21.6 | 24.0 | 41.3 | 42.8 | 88.1 | 4.4 | ||
| LUMINUS | CXM_9 | 31.7 | 32.5 | 59.7 | 60.2 | 84.6 | 2.1 | ||
| NICHIA | NFSWE11A | 5.3 | 16.2 | 9.9 | 22.0 | 85.7 | 27.0 | ||
| NICHIA | NVSW219CT-V2 | 6.8 | 18.5 | 13.1 | 24.9 | 81.5 | 16.4 | 1.9 | |
| NICHIA | NVSLE21AT | 7.8 | 18.4 | 15.3 | 27.0 | 78.2 | 13.7 | 1.3 | |
| NICHIA | NVSW719AC | 8.2 | 19.1 | 15.0 | 26.9 | 81.1 | 13.7 | 1.6 | |
| NICHIA | NCSWE17AT | 8.3 | 17.7 | 14.4 | 26.2 | 82.7 | 15.3 | ||
| NICHIA | NVSW219F_V1 | 9.1 | 17.4 | 16.1 | 27.1 | 89.6 | 16.1 | ||
| NICHIA | NVSW519A | 10.9 | 17.0 | 18.5 | 28.7 | 87.9 | 13.6 | ||
| NICHIA | NV4WB35AM | 11.5 | 18.6 | 21.3 | 31.7 | 87.9 | 10.2 | ||
| NICHIA | NV4L144AR | 17.6 | 21.1 | 28.3 | 37.7 | 80.8 | 5.9 | 1.5 | |
| NICHIA | NVNWS007Z_V1 | 17.8 | 21.9 | 32.6 | 38.5 | 88.5 | 6.1 | ||
| NICHIA | NTCWT012B_V3 | 19.5 | 23.6 | 34.0 | 39.1 | 88.6 | 5.7 | ||
| NICHIA | NTCWS024B_V3 | 20.5 | 24.2 | 38.4 | 41.6 | 87.9 | 4.7 | ||
| NICHIA | NJCWL024Z_V1MT | 22.0 | 25.8 | 47.2 | 48.2 | 75.5 | 3.2 | 4.0 | |
| NICHIA | NJCWS024Z_V1 | 23.7 | 24.3 | 42.0 | 44.5 | 87.1 | 4.1 | ||
| NICHIA | NFCWL036B_V3 | 25.7 | 28.5 | 47.3 | 49.6 | 86.7 | 3.2 | ||
| NICHIA | NVEWL016Z_V1 | 27.3 | 27.8 | 50.3 | 50.5 | 86.6 | 3.0 | ||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 3.5 | 16.4 | 9.3 | 19.8 | 81.7 | 35.0 | 4.2 | |
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 3.5 | 16.7 | 9.5 | 20.0 | 80.7 | 33.3 | 4.9 | |
| OSRAM | OSLON BLACK FLAT LUW HWQP | 3.9 | 14.3 | 7.6 | 19.4 | 86.0 | 36.9 | ||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 4.6 | 17.2 | 10.6 | 21.7 | 81.4 | 24.7 | 5.1 | |
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 4.8 | 17.3 | 11.0 | 22.0 | 78.0 | 22.7 | 3.4 | |
| OSRAM | OSLON BOOST HX KW CULPM1.TG | 5.9 | 17.7 | 11.6 | 23.7 | 89.2 | 20.9 | ||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 6.0 | 17.9 | 12.0 | 23.7 | 83.7 | 19.2 | 2.5 | |
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 6.7 | 17.7 | 14.4 | 25.6 | 83.6 | 16.5 | ||
| OSRAM | OSLON COMPACT CL LUW CEUP | 7.1 | 16.8 | 13.1 | 24.4 | 79.4 | 18.3 | ||
| OSRAM | OSLON SQUARE GW CSSRM2.PM | 7.5 | 18.5 | 13.9 | 26.3 | 80.2 | 12.8 | ||
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 7.6 | 18.9 | 15.7 | 27.1 | 80.5 | 13.9 | 1.0 | |
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 7.8 | 18.3 | 15.8 | 26.3 | 84.6 | 14.7 | ||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 7.9 | 16.6 | 13.3 | 24.3 | 71.9 | 15.0 | ||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 7.9 | 18.7 | 14.3 | 26.6 | 83.8 | 15.2 | ||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 10.5 | 17.4 | 17.6 | 29.1 | 84.5 | 13.2 | ||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 10.9 | 18.3 | 19.6 | 30.2 | 84.3 | 11.0 | ||
| OSRAM | OSCONIQ P3737 GW PULTA1.CM | 11.8 | 17.7 | 21.4 | 30.7 | 78.0 | 10.5 | ||
| SAMSUNG | XHP35 HI | 9.6 | 19.2 | 16.5 | 28.4 | 92.3 | 12.3 | ||
| SEOUL | Z5M4 | 9.7 | 18.0 | 18.3 | 27.6 | 90.3 | 14.7 | ||
| XICATO | XOB06 | 19.7 | 23.0 | 38.7 | 42.1 | 82.0 | 4.5 | ||
| XICATO | XTM & XIM 9MM | 27.5 | 30.5 | 57.9 | 60.5 | 76.9 | 2.2 | 1.9 |
