  • LLC15M
Ref:

LLC15M

Medium Collimator

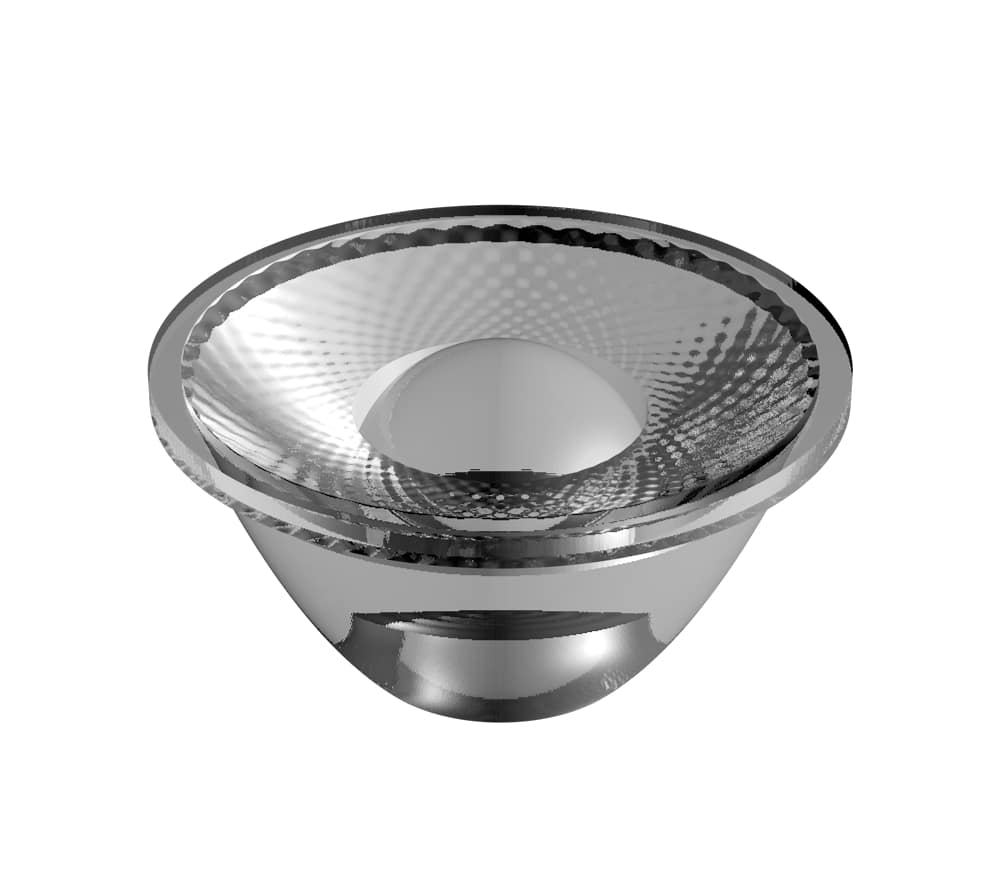

Ø 32 mm medium beam PMMA collimator.

More details :

LLC15M is a Ø 32 mm medium beam PMMA collimator. LLC15M is working with high or mid power LEDs. it is also suitable for some COB applications benefiting from its wide input port and advanced homogeneity.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.

Refine your search:

Please choose LED Type first

mm diameter array

mm² surface

Dome
Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 Efficacy 1 Efficacy 2 CCI
CLU02Q Type-F36.856.42.01.5
BRIDGELUXV3_HD_GEN_813.925.711.90.7
BRIDGELUXV4_HD BXRH_30G0600_A_7217.332.17.3
BRIDGELUXV6 BXRE_30E0400_A_0318.634.36.5
BRIDGELUXVESTA 6 TW BXRV-TR-2765G-060-B-2320.336.25.63.9
BRIDGELUXV6 HD BXRH_40E1000_B_7320.536.95.5
BRIDGELUXVERO 10 BXRC_30E1000_B_0326.953.62.6
BRIDGELUXV10 BXRE_30G100_C_7327.255.12.6
BRIDGELUXV10 BXRE_30E1000_B_0327.452.72.8
BRIDGELUXVERO 10 SE BXRC_30E1000_C_7227.861.82.0
CITIZENCLU7L314.324.811.73.0
CITIZENCLU7S315.027.510.02.2
CITIZENCLU7B215.127.310.4
CITIZENCLU7R315.527.610.7
CITIZENCLU7A215.828.310.1
CITIZENCLU7A3 Type-F16.630.18.20.4
CITIZENCLU70119.234.56.2
CITIZENCLU70020.236.75.6
CITIZENCLU70220.637.25.5
CITIZENCLU703 Type-F22.238.94.71.2
CITIZENCLU71026.646.13.3
CITIZENCLU71126.846.43.3
CITIZENCLU71228.046.33.2
CITIZENCLU02828.654.12.4
CITIZENCL-L02029.648.72.9
CITIZENCLU02630.052.02.5
CITIZENCLU713 Type-F30.748.62.72.6
CITIZENLCN-C01B230.951.72.73.1
CITIZENCLU02J31.252.82.5
CITIZENCLU72031.358.72.1
CREEXPL-HI_post_PCN515512.422.014.42.8
CREEXHP35.2 HI12.523.114.9
CREEXD16 Premium White12.519.718.11.7
CREEXP-G412.721.915.11.9
CREEXP-G2 HE12.822.714.71.1
CREEXP-P13.118.917.12.3
CREEXP-G313.323.214.4
CREEXP-L HI13.322.015.3
CREEXHP35 HI13.323.214.2
CREEXHP50.3 HI13.424.312.76.8
CREEXM-L213.825.212.8
CREEXQ-E HI13.821.015.4
CREEXHP35 HD13.925.512.7
CREEXP-E214.021.015.3
CREEXT-E HE14.024.312.6
CREEXD1614.022.712.9
CREEXP-G14.222.314.9
CREEXP-L14.225.612.1
CREEXP-L214.326.311.4
CREEXP-G214.422.915.2
CREEXM-L EASYWHITE14.526.911.0
CREEXQ-E15.121.813.1
CREEXHP35.2 HD16.530.18.6
CREEXHP50.3 HD17.029.98.41.0
CREECMA130317.131.57.7
CREEXHP70.3 HI17.230.27.84.5
CREEXHP50.218.031.87.4
CREEXHP5018.733.07.1
CREECXA 13XX19.234.56.4
CREEMK-R219.334.36.3
CREECXB 131020.135.55.9
CREEMHD-E20.335.65.7
CREEXHP70.323.639.64.72.5
CREEXHP7023.838.34.7
CREEMT-G224.140.74.4
CREEXHP70.224.340.94.3
CREECXA 152026.548.03.1
CREECXA 150728.148.03.1
CREEMK-R28.452.12.7
CREECXB 150728.748.63.0
CREECXA 18XX33.761.71.8
CREECXB 152033.766.51.5
EDISON2PHM10xWxxP5502016.329.58.5
LED ENGINLZ1 14CWP214.120.615.3
LUMILEDSLUXEON Z CLUSTER x4 TUNABLE WHITE12.423.513.93.6
LUMILEDSLUXEON C12.919.916.1
LUMILEDSLUXEON TX13.821.9
LUMILEDSLUXEON Z ES13.820.415.93.6
LUMILEDSLUXEON T14.123.314.1
LUMILEDSREBEL ES14.223.214.0
LUMILEDSLUXEON MZ16.127.69.8
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0417.330.18.7
LUMILEDSLUXEON M18.833.16.8
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0620.334.66.3
LUMILEDSLUXEON COB 10920.837.25.4
LUMILEDSLUXEON S100021.235.75.2
LUMILEDSLUXEON COB 1202 HD21.540.74.5
LUMILEDSLUXEON COB 1202S22.141.54.2
LUMILEDSLUXEON_CX_PLUS_CoB_HDM02F0925.945.13.5
LUMILEDSLUXEON K428.645.899999999999.93.1
LUMILEDSLUXEON COB 120328.748.23.0
LUMILEDSLUXEON COB 120229.647.83.0
LUMILEDSLUXEON_CX_PLUS_COB_HD30.450.42.7
LUMILEDSLUXEON_CX_PLUS_CoB_HDS04H0930.650.22.7
LUMINUSSFT-4012.120.218.11.4
LUMINUSSFT-7012.222.315.61.2
LUMINUSSST-4012.522.815.02.3
LUMINUSSST-1212.619.817.14.6
LUMINUSSST_20_WxS14.021.516.0
LUMINUSSST-7014.225.911.52.0
LUMINUSSST_20_WxH14.321.216.1
LUMINUSCXM_316.329.38.7
LUMINUSCXM_417.332.37.3
LUMINUSCXM_620.536.95.4
LUMINUSCDM_624.743.93.7
LUMINUSCXM_927.851.92.7
LUMINUSCTM_929.352.42.7
LUMINUSCXM_1438.480.71.2
NICHIANVSW219CT-V211.819.419.80.7
NICHIANVSW719AC12.121.016.60.8
NICHIANVSW219F_V113.022.316.6
NICHIA75713.022.416.2
NICHIANVSW519A13.124.014.6
NICHIANV4WB35AM13.324.912.9
NICHIANCSWE17AT13.521.116.3
NICHIANVSWE21AT13.522.114.9
NICHIANVSL219C13.523.414.1
NICHIANVSW319A13.624.312.2
NICHIANFSWE11A14.618.616.2
NICHIANWSL229A14.826.411.0
NICHIAE17A CLUSTER x4 TW17.230.97.78.7
NICHIANV4L144AR18.031.87.6
NICHIANVNWS007Z_V119.635.95.8
NICHIANTCWT012B_V319.835.85.9
NICHIANTCWS024B_V321.639.84.7
NICHIANTCLS024B_V121.839.34.9
NICHIANJCWL024Z_V1MT22.241.64.23.9
NICHIANJCLS024Z22.740.94.5
NICHIANJCWS024Z_V122.841.44.3
NICHIANTCWS024B_V122.937.75.0
NICHIANJCWS024Z23.137.95.0
NICHIANFCLL036B_V125.548.33.2
NICHIANFCWL036B_V326.246.73.3
NICHIANVEWL016Z_V127.348.23.0
NICHIANVCWL024Z_V130.757.72.2
OSRAMOSLON SQUARE GW CSSRMU.CM11.920.917.8
OSRAMOSLON COMPACT CL LUW CEUP12.018.820.5
OSRAMOSTAR STAGE LE CWUW S2W12.121.516.43.8
OSRAMOSLON Boost HX KW CULPM1.TG12.119.319.3
OSRAMOSCONIQ P3737 GW PUSRA1.EM12.321.316.6
OSRAMOSLON SQUARE GW CSSRM1.BM12.321.516.90.7
OSRAMOSLON BLACK FLAT LUW HWQP12.518.118.9
OSRAMOSCONIQ C 2424 GW PLLRA1.EM12.620.816.9
OSRAMOSLON PURE 1010 GW VJLPE1 EM12.718.816.1
OSRAMOSLON COMPACT PL KW CELNM2.TK12.818.618.11.9
OSRAMOSLON BOOST HM KW CELMM1.TG12.818.218.22.9
OSRAMOSCONIQ P3737 GW PUSTA1.PM13.023.514.1
OSRAMOSLON COMPACT CM LUW CEUN.CE13.219.618.2
OSRAMOSCONIQ P3737 GW PULTA1.CM13.223.114.0
OSRAMOSLON SSL 15013.420.116.7
OSRAMOSLON SQUARE GW CSSRM3.PM13.523.813.7
OSRAMDURIS P813.622.016.3
OSRAMOSLON SQUARE GW CSSRM2.PM13.622.214.8
OSRAMOSTAR PROJECTION COMPACT KW CSLNM1.TG13.820.515.6
OSRAMOSLON SQUARE GW CSSRM1.EC13.923.114.0
OSRAMOSLON SQUARE LCW CQAR14.123.613.3
OSRAMOSLON SQUARE FLAT KW CSLPM2.PC14.122.513.2
OSRAMOSLON SQUARE GW CSSRM1.PC14.424.112.5
OSRAMOSLON SSL 8014.721.913.7
OSRAMOSTAR PROJECTION COMPACT LEUWQ8WP15.022.213.6
OSRAMDURIS S8 P9LMS1.EM15.028.010.2
OSRAMDURIS S8 P9LRS1.EM15.328.79.7
OSRAMDURIS S8 P9LT32.PM17.931.67.1
OSRAMDURIS P1018.033.26.7
OSRAMDURIS S1019.433.66.8
OSRAMSOLERIQ S929.755.12.5
OSRAMSOLERIQ S1333.962.71.8
PLESSEYPLW7070GA19.233.06.5
SAMSUNGLC010CV220.437.15.2
SEOULZ513.321.915.6
SEOULZ5_M113.622.514.7
SEOULZ5M414.224.314.0
SEOULSAWS0661A18.835.55.8
SEOULSAWS1063A29.353.02.6
XICATOXOB0620.136.15.2
XICATOXOB 926.449.52.5
XICATOXTM & XIM 9MM27.851.92.81.7
View results
