Ref:

LLC15W

Wide Collimator

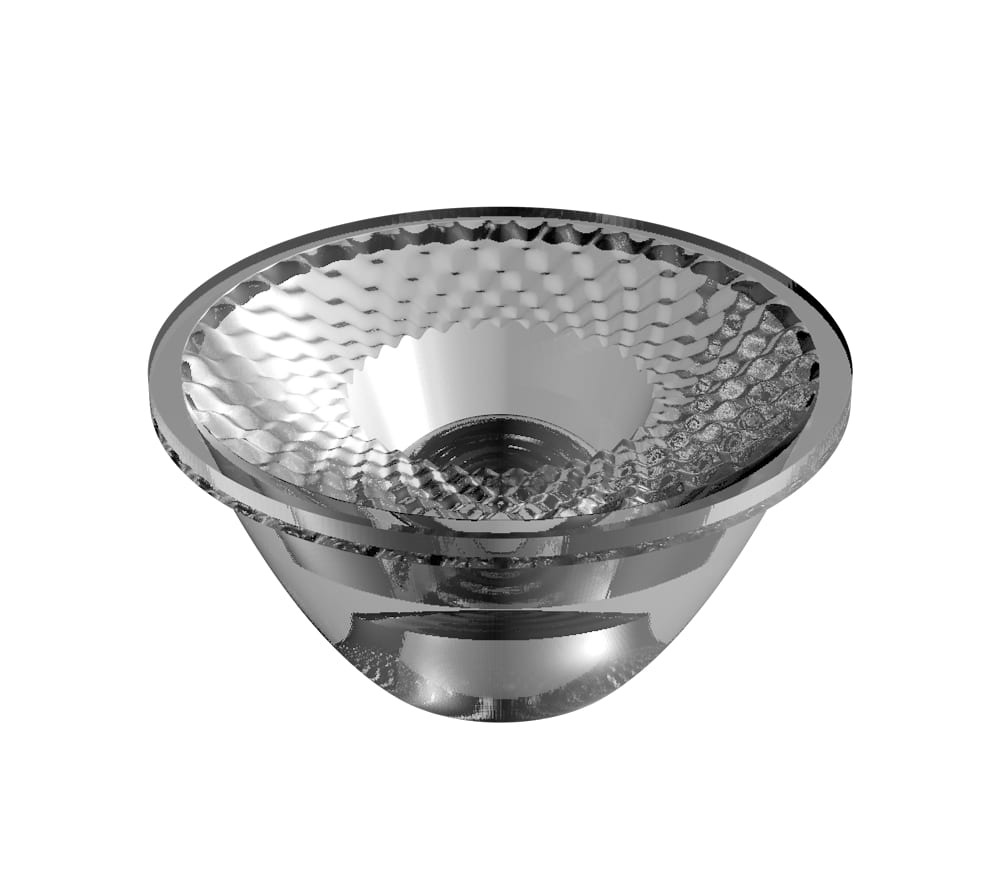

Ø 32 mm wide beam PMMA collimator.

More details :

LLC15W is a Ø 32 mm wide beam PMMA collimator. LLC15W is working with high or mid power LEDs. it is also suitable for some COB applications benefiting from its wide input port and advanced homogeneity.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.

Refine your search:

Please select a unique LED reference to list compatible holders and photometrics results

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility Click on a unique LED reference to access the .ies and .ldt files.

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	LOR	Efficacy 1	CCI
BRIDGELUX	V6 BXRE_30E0400_A_03	29.7	60.1	73.6	1.7
BRIDGELUX	V6 HD BXRH_40E1000_B_73	30.1	60.9	73.5	1.7
BRIDGELUX	V3_HD_GEN_8	30.6	59.3	73.2	1.8	0.3
BRIDGELUX	V4 HD THRIVE BXRH_40S0601_A_72	30.9	60.7	68.2	1.6	0.3
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	31.1	62.5	69.7	1.6	0.4
BRIDGELUX	V4_HD BXRH_30G0600_A_72	32.6	59.0	76.9	1.8
BRIDGELUX	V10 BXRE_30G100_C_73	35.0	71.8	73.5	1.2
BRIDGELUX	V10 BXRE_30E1000_B_03	35.3	69.0	75.1	1.3
BRIDGELUX	VESTA 9 DTW BXRV-DR-1830-H-1000-A-13	35.5	74.3	67.6	1.2	1.7
BRIDGELUX	VERO 10 BXRC_30E1000_B_03	36.0	71.6	75.1	1.3
BRIDGELUX	VESTA 9 TW CSP BXRV-TR-2750G-1000-A23	36.7	73.2	74.0	1.2
BRIDGELUX	VERO 10 SE BXRC_30E1000_C_72	38.8	80.0	72.9	1.0
CITIZEN	CLU7A3 TYPE-F	30.6	60.6	71.8	1.7	0.3
CITIZEN	CLU7L3	30.7	58.7	70.7	1.8	0.5
CITIZEN	CLU7S3	30.7	59.9	70.5	1.7	0.5
CITIZEN	CLU7A2	30.8	60.8	68.5	1.6	0.2
CITIZEN	CLU703 TYPE-F	31.2	63.6	70.5	1.5	0.2
CITIZEN	CLU703	31.3	63.1	71.3	1.6	0.2
CITIZEN	CLU702	31.4	63.3	73.3	1.6
CITIZEN	CLU700	31.8	60.8	77.5	1.8
CITIZEN	CLU701	32.4	60.2	77.6	1.8
CITIZEN	CLU710	33.0	65.2	77.2	1.6
CITIZEN	CLU711	33.1	64.5	76.5	1.6
CITIZEN	CLU713	33.5	68.6	69.4	1.3	0.2
CITIZEN	CLU7B2	33.6	58.3	78.6	1.8
CITIZEN	CLU713 TYPE-F	33.9	69.9	70.6	1.3	0.3
CITIZEN	CLU712	34.0	60.6	85.1	1.9
CITIZEN	CL-L020	34.1	63.2	83.0	1.8
CITIZEN	LCN-C01B2	34.3	70.6	71.3	1.3	1.4
CITIZEN	CLU7R3	35.3	55.1	90.0	2.4
CITIZEN	CLU026	35.4	63.4	73.8	1.7
CITIZEN	CLU028	35.9	70.1	74.7	1.3
CITIZEN	CLU02Q TYPE-Y	36.0	74.2	67.8	1.1	0.3
CITIZEN	CLU02Q TYPE-F	36.3	74.1	70.7	1.2	0.2
CITIZEN	CLU02J	36.5	64.3	83.9	1.6
CITIZEN	CLU720	37.3	74.0	74.9	1.2
CREE	XHP35.2 HI	30.0	57.6	75.4	1.9
CREE	XPL-HI_POST_PCN5155	31.1	59.9	67.0	1.6	1.2
CREE	XHP50.3 HI	31.3	60.1	71.2	1.7	0.9
CREE	XP-G2 HE	31.3	60.2	70.9	1.7	1.7
CREE	XHP70.3 HI	31.3	62.3	71.6	1.6	0.4
CREE	XHP50.3 HD	31.4	62.2	71.8	1.7	2.6
CREE	XD16 PREMIUM WHITE	31.5	59.6	75.8	1.8	1.1
CREE	XP-G4 HI	31.5	59.9	71.1	1.7	0.8
CREE	CXB 1310	31.5	60.4	75.1	1.8
CREE	XQ-E HI	31.7	58.3	79.5	2.0
CREE	XP-GR	31.8	59.9	71.9	1.7	1.5
CREE	XP-P	31.9	59.3	71.0	1.7	1.3
CREE	XHP70	32.0	63.2	78.0	1.7
CREE	XP-LR	32.0	60.0	69.8	1.7	1.5
CREE	XP-G4	32.1	60.7	71.5	1.7	2.1
CREE	XHP50.2	32.1	60.2	78.0	1.8
CREE	XHP35.2 HD	32.2	60.8	79.6	1.8
CREE	XT-E HE	32.3	58.5	79.7	1.9
CREE	XHP70.2	32.4	63.2	77.5	1.7
CREE	MHD-E	32.4	61.5	77.1	1.7
CREE	CMA1303	32.5	59.1	77.1	1.8
CREE	CXA 13XX	32.7	56.7	84.4	2.2
CREE	XM-L EASYWHITE	32.9	59.9	80.3	1.9
CREE	XP-G3	33.2	58.3	79.8	1.9
CREE	XP-L2	33.4	59.1	88.5	1.8
CREE	XHP70.3	33.6	67.9	74.0	1.5	1.0
CREE	XHP35 HI	33.6	58.5	80.0	1.8
CREE	XD16	33.6	58.2	80.4	1.8
CREE	CXB 1520	33.7	66.5	76.3	1.5
CREE	MT-G2	33.7	61.5	81.8	1.9
CREE	MK-R2	34.0	58.5	82.6	2.0
CREE	XP-E2	34.4	57.6	88.4	1.9
CREE	CXA 1520	34.7	62.8	75.1	1.7
CREE	XP-L HI	35.0	58.2	80.3	1.8
CREE	XP-L	35.4	55.6	86.2	2.2
CREE	XP-G	36.4	54.1	88.0	2.2
CREE	XQ-E	36.5	53.5	87.8	2.2
CREE	CXA 18XX	40.0	72.7	75.0	1.2
EDISON	2PHM10XWXXP55020	33.1	58.8	76.7	1.8
LED ENGIN	LZ1 14CWP2	34.1	58.3	82.6	1.9
LUMILEDS	LUXEON Z CLUSTER X4 TUNABLE WHITE	30.9	59.5	70.9	1.7	1.6
LUMILEDS	LUXEON C	31.5	57.2	77.7	1.7
LUMILEDS	LUXEON 7070	31.6	64.4	70.5	1.5	0.3
LUMILEDS	LUXEON Z ES	32.0	59.9	70.1	1.7	0.9
LUMILEDS	LUXEON COB 109	32.2	61.0	77.9	1.8
LUMILEDS	LUXEON COB 1202S	32.2	62.2	74.5	1.6
LUMILEDS	LUXEON COB 1202 HD	32.5	61.8	75.1	1.7
LUMILEDS	LUXEON MZ	32.8	58.2	77.8	1.8
LUMILEDS	LUXEON K4	32.8	60.9	78.5	1.9
LUMILEDS	LUXEON M	32.9	56.6	82.6	2.2
LUMILEDS	LUXEON COB 1203	33.5	66.0	76.8	1.5
LUMILEDS	LUXEON S1000	33.6	58.6	80.7	2.0
LUMILEDS	LUXEON_CX_PLUS_COB_HD_S01H04	34.0	56.1	88.9	2.3
LUMILEDS	LUXEON_CX_PLUS_COB_HD_S01H06	34.6	56.2	87.7	2.3
LUMILEDS	LUXEON_CX_PLUS_COB_HD_S04H9	35.4	61.8	84.6	1.7
LUMILEDS	LUXEON COB 1202	36.0	61.4	84.8	1.8
LUMILEDS	REBEL ES	36.2	54.1	87.3	2.2
LUMILEDS	LUXEON T	36.3	54.2	89.3	2.3
LUMINUS	SST-40	31.0	59.7	72.4	1.8	2.4
LUMINUS	SST-70	31.0	60.2	71.8	1.7	2.9
LUMINUS	SFT-40	31.2	59.0	72.9	1.8	1.3
LUMINUS	SFT-70	31.4	60.2	71.1	1.7	1.4
LUMINUS	SST-12	31.7	59.6	70.0	1.7	3.3
LUMINUS	CDM_6	32.0	62.1	77.3	1.6
LUMINUS	CXM_6	32.2	61.2	77.6	1.7
LUMINUS	CXM_4	32.4	58.9	76.9	1.8
LUMINUS	CXM_3	33.1	58.4	77.0	1.8
LUMINUS	CTM_9	34.8	67.3	76.8	1.4
LUMINUS	CXM_9	35.5	69.1	75.2	1.4
LUMINUS	SST_20_WXH	39.0	54.3	93.1	2.3
LUMINUS	SST_20_WXS	39.3	55.4	92.7	2.2
LUMINUS	CXM_14	42.8	89.7	69.7	0.8
NICHIA	E17A CLUSTER X4 TW	30.3	61.4	71.4	1.7	0.7
NICHIA	NVSW719AC	31.5	59.6	70.5	1.7	1.0
NICHIA	NVSW219CT-V2	31.5	59.5	71.2	1.7	0.9
NICHIA	NVSLE21AT	31.5	59.7	68.5	1.7	1.2
NICHIA	NV4L144AR	31.7	60.3	80.8	1.9
NICHIA	NVNWS007Z_V1	31.9	61.1	77.4	1.7
NICHIA	NJCWL024Z_V1MT	32.0	65.0	67.6	1.4	0.5
NICHIA	NTCLS024B_V1	32.0	61.9	77.4	1.7
NICHIA	NTCWT012B_V3	32.2	60.6	77.8	1.8
NICHIA	NJCLS024Z	32.2	62.5	76.5	1.7
NICHIA	NJCWS024Z_V1	32.5	63.1	76.7	1.6
NICHIA	NTCWS024B_V3	32.5	61.8	76.4	1.7
NICHIA	NWSL229A	32.5	59.1	79.7	1.9
NICHIA	NVSW319A	32.8	58.6	77.5	1.8
NICHIA	NV4WB35AM	33.5	58.8	78.6	1.8
NICHIA	NVEWL016Z_V1	33.9	66.7	75.8	1.5
NICHIA	NFCWL036B_V3	34.1	66.2	76.1	1.5
NICHIA	NCSWE17AT	34.1	57.8	82.4	1.9
NICHIA	NVSWE21AT	34.2	58.1	80.7	1.8
NICHIA	NFCLL036B_V1	34.3	66.3	76.1	1.5
NICHIA	NVSL219C	34.7	58.4	80.9	1.8
NICHIA	NVCWL024Z_V1	37.3	73.7	74.4	1.2
NICHIA	NVSW519A	38.0	56.6	89.3	2.3
NICHIA	NVSW219F_V1	39.2	53.9	91.8	2.3
NICHIA	NFSWE11A	39.8	57.0	88.7	2.2
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	29.9	57.3	76.5	1.9
OSRAM	OSLON PURE 1010 GW VJLPE1 EM	30.0	57.4	64.8	1.6
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	30.1	58.1	76.7	1.9
OSRAM	OSLON SQUARE GW CSSRMU.CM	30.3	58.6	74.7	1.8
OSRAM	OSLON BOOST HX KW CULPM1.TG	30.3	57.9	75.5	1.9
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	30.7	59.2	77.0	1.8
OSRAM	OSCONIQ P3737 GW PULTA1.CM	30.8	58.3	76.1	1.8
OSRAM	OSLON COMPACT CL LUW CEUP	30.9	56.6	75.9	1.9
OSRAM	OSLON SSL 150 GW CSHPM1.EM	31.2	59.0	73.6	1.8	1.5
OSRAM	OSLON BLACK FLAT LUW HWQP	31.4	58.2	66.5	1.8
OSRAM	OSLON COMPACT PL KW CELNM2.TK	31.5	58.9	73.0	1.8	0.5
OSRAM	OSLON BOOST HM KW CELMM1.TG	31.6	58.9	73.2	1.8	1.3
OSRAM	OSLON SQUARE GW CSSRM1.BM	31.6	60.9	70.0	1.6	1.0
OSRAM	DURIS S8 P9LT32.PM	32.2	60.0	75.0	1.7
OSRAM	DURIS P10	32.2	60.7	79.3	1.8
OSRAM	OSLON SQUARE GW CSSRM1.PC	32.9	59.2	80.6	1.9
OSRAM	OSLON SQUARE GW CSSRM2.PM	33.0	58.5	81.2	1.9
OSRAM	OSLON SQUARE GW CSSRM1.EC	33.6	59.2	82.3	1.9
OSRAM	OSLON SQUARE LCW CQAR	33.7	59.5	81.1	1.8
OSRAM	OSLON SSL 150	33.7	57.3	82.4	1.9
OSRAM	DURIS S10	34.2	56.8	96.7	2.2
OSRAM	DURIS S8 P9LRS1.EM	34.5	55.9	89.7	2.2
OSRAM	OSLON SQUARE GW CSSRM3.PM	34.7	59.0	79.9	1.8
OSRAM	DURIS S8 P9LMS1.EM	34.8	55.2	91.6	2.2
OSRAM	OSLON SSL 80	34.9	60.0	79.6	1.7
OSRAM	OSLON SQUARE FLAT KW CSLPM2.PC	35.2	58.4	80.2	1.8
OSRAM	OSLON COMPACT CM LUW CEUN.CE	35.4	57.9	82.4	1.8
OSRAM	SOLERIQ S9	35.8	69.8	75.6	1.3
OSRAM	SOLERIQ S13	38.5	78.1	74.2	1.1
PLESSEY	PLW7070GA	32.6	62.2	77.6	1.7
SAMSUNG	LC010CV2	32.2	61.6	78.1	1.7
SAMSUNG	XHP35 HI	33.6	58.5	80.0	1.8
SEOUL	SAWS0661A	32.1	61.3	78.0	1.7
SEOUL	Z5	33.7	58.5	81.8	1.9
SEOUL	Z5_M1	33.7	58.8	81.4	1.9
SEOUL	SAWS1063A	35.4	69.4	75.3	1.3
SEOUL	Z5M4	36.5	55.0	92.9	2.4
XICATO	XOB06	32.4	61.0	77.3	1.7
XICATO	XTM & XIM 9MM	34.4	70.6	71.8	1.3	0.6
XICATO	XOB 9	34.7	67.1	64.4	1.2
