Ø 16 mm elliptical beam PMMA collimator.
More details :

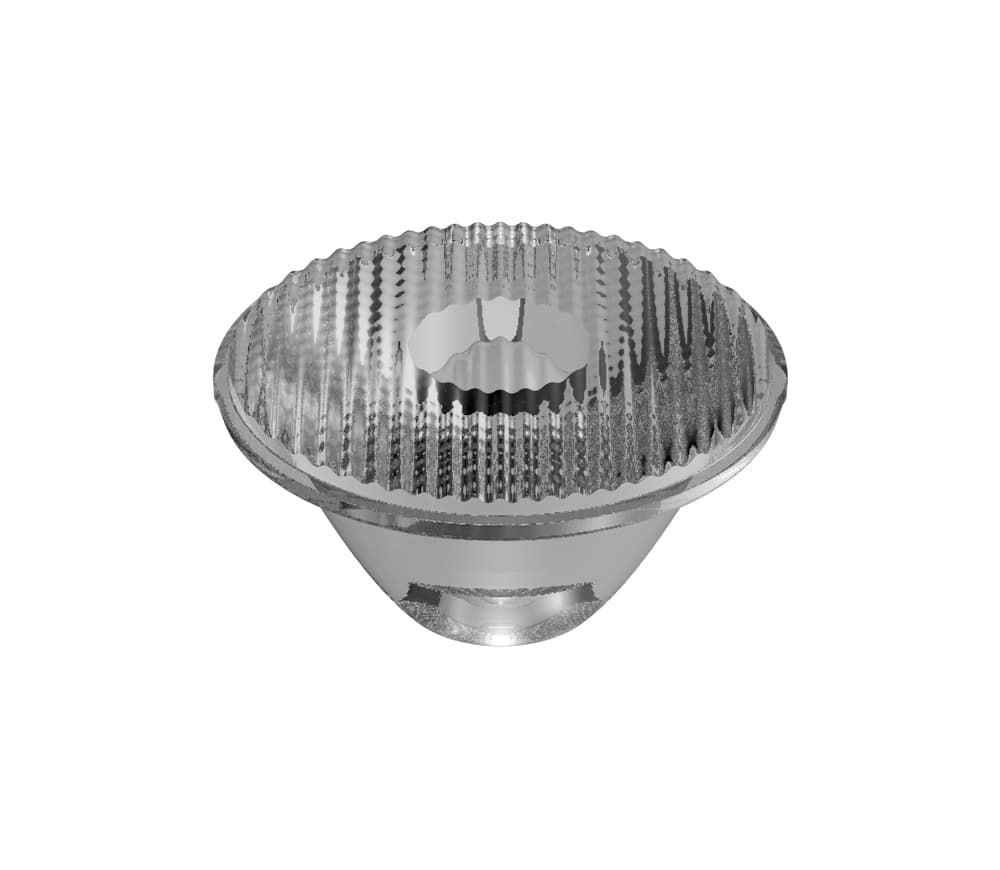

LLC22E is a Ø 16 mm elliptical beam PMMA collimator. It is applicable for both RGBW and tunable white applications. LLC22E is designed to provide a 16° x 38° elliptical beam with a good color mixing compromise. It will also work with single or multi chip LED with maximum LES size of 6mm².
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
If you pick a LED below. holder suggestions will appear.
Download full Datasheet.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V3_HD_GEN_8 | 23.9 | 40.6 | 54.5 | 76.9 | 79.0 | 1.8 | 0.6 | |
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 25.9 | 40.0 | 52.3 | 72.0 | 85.9 | 1.8 | ||
| CITIZEN | CLU7S3 | 23.6 | 40.0 | 51.8 | 75.8 | 80.8 | 2.0 | 2.0 | |
| CITIZEN | CLU7R3 | 27.9 | 40.5 | 54.8 | 79.1 | 82.2 | 1.8 | ||
| CITIZEN | CLU7A2 | 28.0 | 41.0 | 58.4 | 79.7 | 75.6 | 1.6 | 3.0 | |
| CITIZEN | CLU7L3 | 29.9 | 59.3 | 79.5 | 2.4 | 2.8 | |||
| CREE | XQ-E HI | 10.0 | 44.6 | 23.2 | 61.7 | 83.0 | 4.6 | ||
| CREE | XP-P | 10.1 | 44.3 | 22.6 | 62.5 | 83.6 | 4.8 | 1.0 | |
| CREE | XP-GR | 10.2 | 42.8 | 20.9 | 62.7 | 82.9 | 5.2 | 1.2 | |
| CREE | XP-E2 | 11.9 | 43.8 | 28.1 | 65.2 | 81.9 | 4.0 | 2.5 | |
| CREE | XD16 PREMIUM WHITE | 12.5 | 42.6 | 27.8 | 65.2 | 83.6 | 4.0 | 2.1 | |
| CREE | XP-LR | 12.9 | 41.4 | 27.2 | 65.2 | 81.6 | 4.1 | 1.1 | |
| CREE | XP-G4 HI | 14.0 | 41.3 | 35.2 | 67.2 | 82.7 | 3.5 | 6.4 | |
| CREE | XP-L HI | 15.3 | 40.3 | 32.7 | 66.4 | 82.7 | 3.3 | ||
| CREE | XP-L COLOR HI | 15.4 | 40.9 | 38.0 | 67.7 | 77.2 | 2.9 | 6.4 | |
| CREE | XP-G4 | 16.9 | 39.9 | 34.4 | 67.7 | 82.8 | 3.1 | 1.2 | |
| CREE | XPL-HI_POST_PCN5155 | 17.2 | 40.8 | 41.1 | 69.5 | 75.9 | 2.5 | 3.0 | |
| CREE | XN-P RGBW | 18.2 | 40.2 | 44.6 | 70.2 | 75.8 | 2.4 | 8.8 | |
| CREE | XP-G2 | 18.6 | 38.5 | 36.6 | 65.8 | 84.0 | 3.1 | ||
| CREE | XM-L COLOR GEN 2 HI | 19.0 | 39.7 | 41.4 | 71.3 | 82.0 | 2.6 | 1.2 | |
| CREE | XP-G2 HE | 19.2 | 39.8 | 38.6 | 69.4 | 87.9 | 2.7 | 1.0 | |
| CREE | XP-L COLOR HD | 19.6 | 38.8 | 42.0 | 70.2 | 81.1 | 2.7 | 14.4 | |
| CREE | XHP35.2 HI | 20.2 | 38.4 | 41.5 | 70.2 | 82.7 | 2.6 | ||
| CREE | XHP35.2 HD | 27.3 | 38.7 | 51.0 | 75.5 | 81.3 | 1.9 | 1.7 | |
| CREE | XQ-E HI CLUSTER X4 RGBW | 30.3 | 36.0 | 53.0 | 81.9 | 80.2 | 1.6 | 26.7 | |
| LED ENGIN | LZ4-01MNCA | 21.5 | 38.1 | 45.2 | 74.3 | 82.5 | 2.3 | 11.3 | |
| LUMILEDS | LUXEON Z ES | 13.6 | 42.6 | 33.6 | 65.9 | 79.0 | 3.3 | 0.9 | |
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 22.2 | 40.3 | 53.0 | 75.2 | 69.8 | 1.7 | 0.9 | |
| LUMILEDS | LUXEON Z CLUSTER X4 RGBW | 23.7 | 35.3 | 42.2 | 74.8 | 82.1 | 2.3 | 12.1 | |
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H04 | 27.5 | 41.7 | 56.4 | 77.2 | 85.6 | 1.5 | ||
| LUMINUS | SST-12 | 12.7 | 41.4 | 27.4 | 63.7 | 84.1 | 4.1 | 2.5 | |
| LUMINUS | SFT-40 | 14.8 | 40.5 | 29.8 | 66.0 | 85.5 | 3.7 | 1.1 | |
| LUMINUS | SBM_40_SC | 18.6 | 38.2 | 34.4 | 70.6 | 83.4 | 2.9 | 19.8 | |
| LUMINUS | SST-40 | 20.4 | 39.3 | 44.4 | 71.0 | 79.0 | 2.4 | 0.6 | |
| LUMINUS | CXM_3 | 22.0 | 41.5 | 47.0 | 72.9 | 87.9 | 2.4 | ||
| LUMINUS | SST-70 | 24.7 | 38.0 | 46.0 | 74.2 | 87.6 | 2.1 | ||
| LUMINUS | CXM_4 | 29.7 | 34.1 | 54.8 | 77.8 | 86.1 | 1.6 | ||
| NICHIA | NCSWE17AT | 12.4 | 42.9 | 27.2 | 64.5 | 83.4 | 4.1 | 3.8 | |
| NICHIA | NVSW219CT-V2 | 13.6 | 41.7 | 29.2 | 65.8 | 80.6 | 3.7 | 0.9 | |
| NICHIA | NVSLE21AT | 15.0 | 40.5 | 32.1 | 66.2 | 83.0 | 3.5 | 3.3 | |
| NICHIA | NVSWE21AT | 15.8 | 40.7 | 36.2 | 66.7 | 84.3 | 3.2 | 3.6 | |
| NICHIA | NVSW719AC | 15.9 | 39.9 | 32.0 | 66.8 | 81.2 | 3.3 | 1.0 | |
| NICHIA | NF2W757G_MT | 17.8 | 38.9 | 35.4 | 67.3 | 85.6 | 3.2 | 14.0 | |
| NICHIA | E17A CLUSTER X4 RGBW | 28.1 | 41.3 | 63.1 | 82.4 | 69.1 | 1.3 | 18.4 | |
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 9.2 | 44.1 | 20.0 | 60.1 | 71.3 | 4.6 | ||
| OSRAM | OSLON BLACK FLAT LUW HWQP | 9.6 | 44.3 | 21.6 | 61.4 | 83.0 | 5.0 | ||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 9.6 | 43.4 | 20.0 | 62.4 | 84.4 | 5.3 | 1.4 | |
| OSRAM | OSLON COMPACT CL LUW CEUP | 10.0 | 44.4 | 21.2 | 62.0 | 82.8 | 5.0 | ||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 10.0 | 43.6 | 21.3 | 61.5 | 83.6 | 5.1 | 1.4 | |
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 10.0 | 43.7 | 22.2 | 61.0 | 82.3 | 4.9 | 1.3 | |
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 10.2 | 40.2 | 22.3 | 63.1 | 83.8 | 5.0 | ||
| OSRAM | OSLON BOOST HX KW CULPM1.TG | 12.0 | 41.4 | 25.9 | 63.5 | 84.8 | 4.4 | ||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 12.6 | 42.0 | 29.8 | 64.2 | 82.6 | 3.8 | ||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 14.5 | 41.3 | 34.5 | 66.1 | 86.7 | 3.3 | ||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 14.7 | 41.6 | 30.4 | 66.9 | 83.6 | 3.5 | 0.8 | |
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 15.2 | 39.7 | 34.2 | 66.8 | 82.8 | 3.5 | 0.7 | |
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 15.5 | 40.3 | 35.3 | 66.3 | 83.6 | 3.3 | ||
| OSRAM | OSTAR STAGE LE CWUW S2W | 16.3 | 39.1 | 31.7 | 67.4 | 82.9 | 3.3 | 1.5 | |
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 16.4 | 40.1 | 33.8 | 68.4 | 79.5 | 3.1 | 9.4 | |
| OSRAM | OSTAR STAGE LE RTDUW S2W | 16.5 | 39.5 | 31.8 | 68.2 | 80.5 | 3.2 | 6.3 | |
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 16.7 | 39.8 | 35.3 | 67.3 | 81.1 | 3.1 | ||
| OSRAM | OSTAR STAGE LE RTDUW S2WM | 17.0 | 40.4 | 33.3 | 69.2 | 72.4 | 3.1 | 8.0 | |
| OSRAM | OSCONIQ P3737 GW PULTA1.CM | 17.0 | 39.9 | 37.3 | 68.1 | 85.2 | 3.1 | ||
| OSRAM | PURE 1010 RGBW CLUSTER X4 | 21.2 | 38.4 | 38.3 | 71.2 | 80.7 | 2.5 | 22.7 | |
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 21.2 | 39.4 | 46.9 | 72.5 | 82.2 | 2.3 | ||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 22.3 | 37.2 | 41.9 | 66.5 | 81.1 | 2.7 | ||
| PROLIGHT OPTO | PBEE_40FTE | 15.0 | 41.6 | 34.0 | 66.7 | 84.2 | 3.4 | 5.9 | |
| SEOUL | SPF05F0A | 19.4 | 37.6 | 37.4 | 69.6 | 81.2 | 2.8 | 15.7 | |
| SEOUL | SPF05F0B | 21.6 | 37.3 | 42.1 | 72.5 | 81.2 | 2.4 | 7.4 |

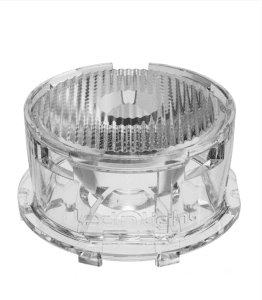

Compatible holders:
In the same family:
