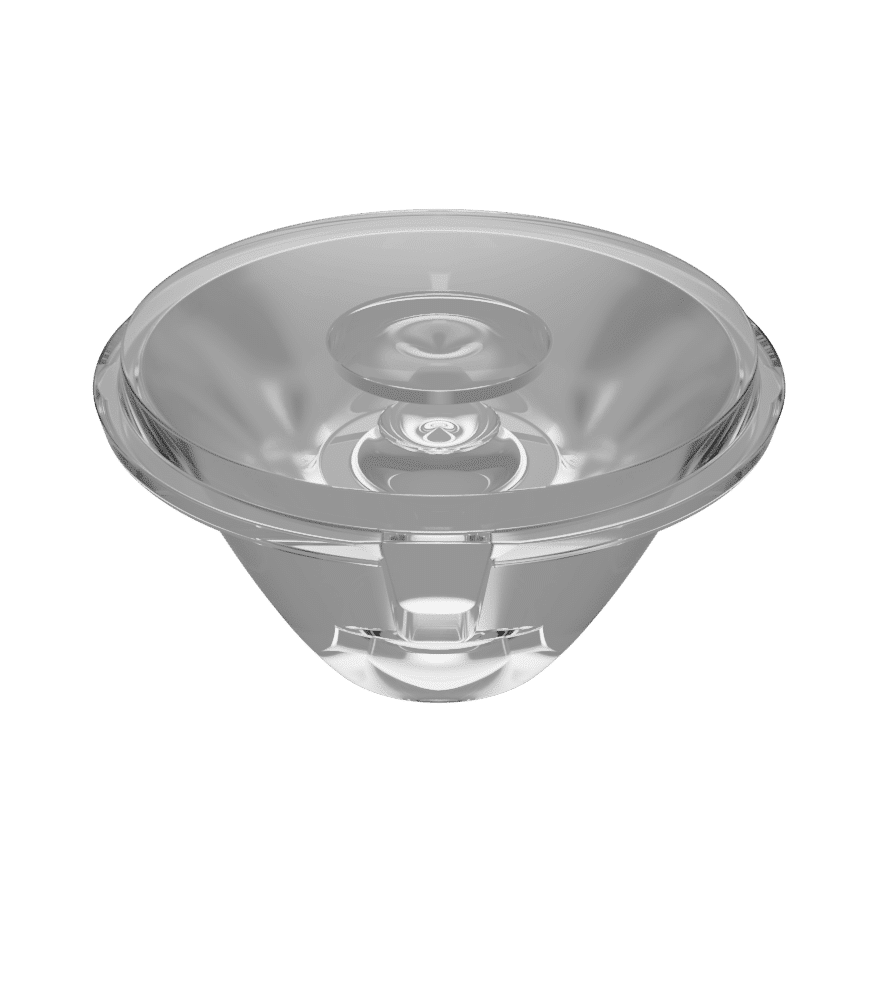

Ø 16 mm ultra narrow beam PMMA collimator.
More details :
LLC22R is a Ø 16 mm ultra narrow beam PMMA collimator.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
If you pick a LED below. holder suggestions will appear.
Download full Datasheet.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XQ-E HI | 7.1 | 13.3 | 91.4 | 40.7 | ||||
| CREE | XP-P | 9.4 | 15.1 | 92.2 | 30.3 | 1.6 | |||
| CREE | XP-GR | 9.9 | 15.8 | 91.5 | 27.2 | 1.6 | |||
| CREE | XQ-E | 9.9 | 19.9 | 91.4 | 20.6 | ||||
| CREE | XP-E2 | 11.3 | 19.2 | 88.0 | 18.4 | 2.2 | |||
| CREE | XD16 PREMIUM WHITE | 12.2 | 20.2 | 89.6 | 16.4 | ||||
| CREE | XP-LR | 12.5 | 21.1 | 89.9 | 15.6 | 1.7 | |||
| CREE | XP-G4 HI | 12.6 | 24.6 | 89.8 | 11.7 | 7.5 | |||
| CREE | XB-D | 13.3 | 23.4 | 89.3 | 12.6 | ||||
| CREE | XP-L HI | 14.4 | 25.5 | 90.6 | 10.4 | ||||
| CREE | XPL-HI_POST_PCN5155 | 14.5 | 27.5 | 89.7 | 8.7 | ||||
| CREE | XP-G2 | 14.6 | 25.5 | 90.9 | 11.1 | ||||
| CREE | XT-E | 16.7 | 28.3 | 89.2 | 8.3 | ||||
| CREE | XP-G4 | 17.2 | 28.5 | 88.6 | 8.2 | 1.5 | |||
| CREE | XP-G3 | 17.8 | 31.7 | 88.6 | 7.0 | ||||
| CREE | XHP35.2 HI | 19.0 | 36.1 | 89.9 | 4.7 | ||||
| CREE | XP-L2 | 25.1 | 38.6 | 88.6 | 3.8 | ||||
| CREE | XHP70.3 HI | 26.1 | 54.0 | 89.0 | 2.1 | ||||
| CREE | XHP35.2 HD | 28.3 | 50.7 | 88.8 | 2.9 | 3.9 | |||
| CREE | XHP50.2 | 32.3 | 58.6 | 86.3 | 2.0 | ||||
| LED ENGIN | LZ1-00CW02 | 13.1 | 22.5 | 89.4 | 13.1 | ||||
| LUMILEDS | LUXEON Z | 8.0 | 13.1 | 91.6 | 40.4 | ||||
| LUMILEDS | LUXEON C | 11.6 | 18.4 | 85.7 | 18.5 | ||||
| LUMILEDS | LUXEON Z ES | 11.7 | 18.9 | 87.1 | 18.1 | 3.2 | |||
| LUMILEDS | LUXEON REBEL PWC1 | 12.5 | 19.9 | 89.5 | 16.4 | ||||
| LUMILEDS | LUXEON REBEL PWC2 | 17.1 | 27.2 | 89.2 | 8.8 | ||||
| LUMILEDS | LUXEON MZ | 25.7 | 39.7 | 89.1 | 3.6 | ||||
| LUMINUS | SST-12 | 12.2 | 19.8 | 89.8 | 16.9 | 1.9 | |||
| LUMINUS | SST_20_WXH | 13.1 | 22.2 | 89.8 | 13.6 | ||||
| LUMINUS | SFT-40 | 16.2 | 24.9 | 92.2 | 10.7 | 1.9 | |||
| LUMINUS | SFT-70 | 18.9 | 31.5 | 89.1 | 6.3 | ||||
| LUMINUS | SST-40 | 20.4 | 36.0 | 83.7 | 4.9 | 1.3 | |||
| NICHIA | NFSWE11A | 7.6 | 13.0 | 88.2 | 41.1 | ||||
| NICHIA | NCSWE17AT | 9.9 | 18.0 | 88.4 | 22.0 | ||||
| NICHIA | NVSWE21AT | 13.0 | 22.6 | 88.0 | 13.1 | ||||
| NICHIA | NVSW219CT-V2 | 13.6 | 22.0 | 88.6 | 13.5 | 2.2 | |||
| NICHIA | NVSLE21AT | 14.7 | 24.3 | 89.6 | 11.5 | 8.1 | |||
| NICHIA | NVSW719AC | 16.7 | 26.3 | 88.5 | 9.3 | 1.7 | |||
| NICHIA | NVSW219F_V1 | 18.1 | 34.1 | 89.1 | 6.3 | ||||
| NICHIA | NVSL219CT | 19.1 | 31.1 | 88.1 | 6.9 | ||||
| NICHIA | NVSW119C | 19.3 | 31.2 | 88.2 | 6.8 | ||||
| NICHIA | NVSW319A | 20.1 | 32.1 | 87.7 | 5.6 | ||||
| NICHIA | NVSW319B | 21.4 | 34.2 | 89.0 | 5.5 | ||||
| NICHIA | NVSW519A | 22.9 | 41.4 | 88.8 | 4.3 | ||||
| NICHIA | NV4WB35AM | 24.7 | 40.3 | 89.2 | 3.7 | ||||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 6.1 | 9.9 | 91.9 | 73.0 | ||||
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 6.4 | 10.1 | 91.8 | 67.5 | ||||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 7.7 | 12.6 | 90.1 | 44.0 | ||||
| OSRAM | OSLON BLACK FLAT LUW HWQP | 8.6 | 13.8 | 91.2 | 36.7 | ||||
| OSRAM | OSLON COMPACT CL LUW CEUP | 8.6 | 13.6 | 91.2 | 37.2 | ||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 8.9 | 14.0 | 90.8 | 33.2 | 4.5 | |||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 9.1 | 14.1 | 91.0 | 33.7 | ||||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 10.2 | 19.2 | 83.5 | 17.5 | ||||
| OSRAM | OSLON SSL 150 GW CSHPM1.PM | 10.5 | 18.4 | 88.3 | 21.3 | ||||
| OSRAM | OSCONIQ P3030 GW QSSPA1.PM | 10.6 | 18.1 | 89.7 | 19.9 | ||||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 11.1 | 19.1 | 90.6 | 19.8 | 1.0 | |||
| OSRAM | OSLON SSL 80 GW CS8PM1.CM | 11.6 | 21.5 | 87.8 | 14.4 | ||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLPM1.TG | 11.6 | 19.0 | 90.6 | 19.4 | ||||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 12.5 | 21.9 | 90.3 | 15.2 | ||||
| OSRAM | OSCONIQ S 3030 GW QSLR31.EM | 14.0 | 26.6 | 89.8 | 10.5 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 14.3 | 26.8 | 89.3 | 10.5 | 0.9 | |||
| OSRAM | OSLON SQUARE GW CSSRM2.PM | 15.7 | 26.9 | 88.6 | 9.1 | ||||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 15.8 | 26.9 | 89.1 | 9.1 | ||||
| OSRAM | OSCONIQ P2226 GW DASPA2.EC | 15.8 | 33.3 | 88.9 | 7.7 | ||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 16.0 | 26.6 | 89.0 | 9.2 | ||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 20.7 | 35.5 | 89.3 | 5.0 | ||||
| SAMSUNG | LH181B | 17.3 | 26.9 | 89.7 | 9.3 | ||||
| SEOUL | STW8C12C_E0 | 11.2 | 25.3 | 90.4 | 13.0 | ||||
| SEOUL | Z5M4 | 19.5 | 33.4 | 88.5 | 6.1 |
