Ø 67 mm medium beam silicone collimator.
More details :

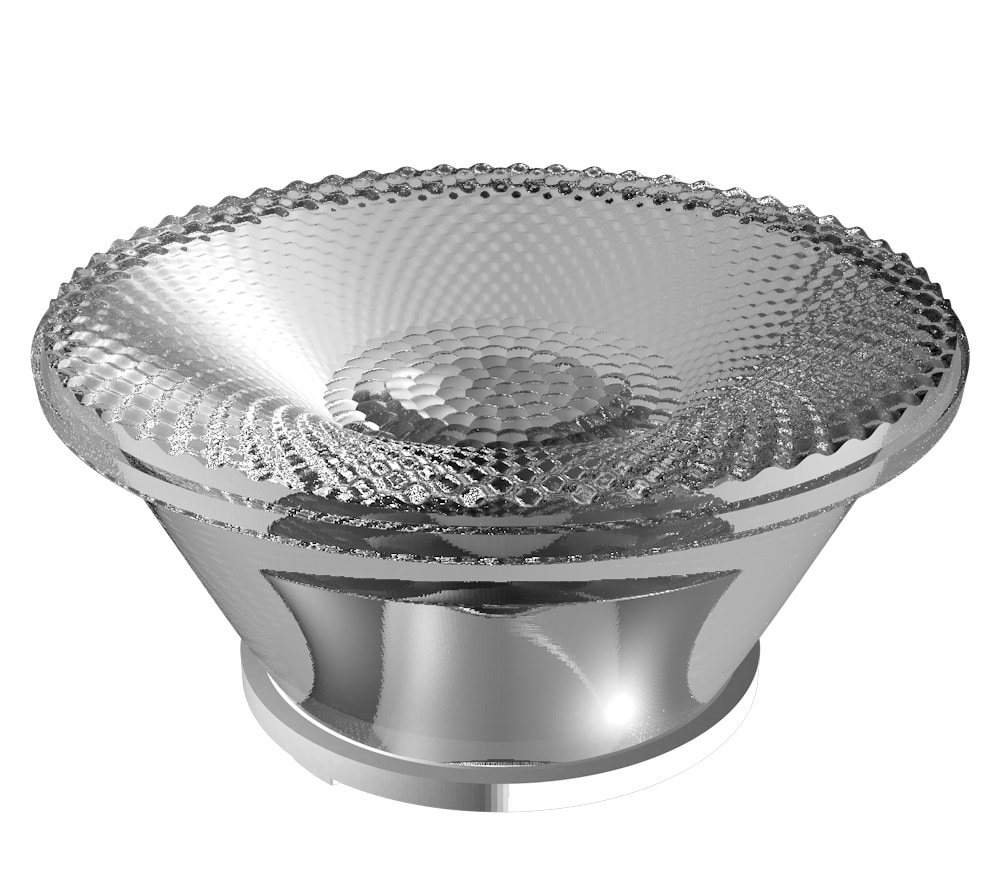

LLC76M7 is a Ø 67 mm medium beam silicone collimator. It is an evolution of the LLC66M7 medium beam silicon collimator. It is designed to fit LLH76B8 for BJB COB holder compatibility or LLH76B4 for TE COB holder compatibility. Using a snapped-in holder ring. It allows a very fast and reliable attachment of the optics to the interface.
LLC76M7 provides all of the beam quality benefits of the LLC66M7.
Discover how to choose the right holder.
For added convenience, you can find the reference available as a SET including all the required parts :
LLS76MB400
LLS76MB402
LLS76MB801
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 14.6 | 38.3 | 86.7 | 6.3 | ||||
| BRIDGELUX | V10 BXRE_30E1000_B_03 | 21.1 | 38.5 | 88.2 | 4.7 | ||||
| BRIDGELUX | V13 BXRE_30E2000_B_82 | 21.7 | 43.8 | 79.2 | 3.4 | ||||
| BRIDGELUX | V10 F90 ARRAY SERIES | 22.3 | 40.3 | 89.9 | 4.3 | 1.0 | |||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 23.3 | 37.8 | 75.5 | 4.1 | 1.6 | |||
| BRIDGELUX | V6 HD BXRH_40E1000_B_73 | 23.4 | 37.5 | 83.4 | 4.8 | ||||
| BRIDGELUX | V13 F90 ARRAY SERIES | 25.0 | 48.3 | 89.4 | 3.2 | 1.3 | |||
| CITIZEN | CLU028 | 20.5 | 38.5 | 89.6 | 5.4 | ||||
| CITIZEN | CLU720 | 20.9 | 39.4 | 86.5 | 4.5 | ||||
| CITIZEN | CLU7A2 | 21.0 | 34.0 | 89.6 | 6.2 | ||||
| CITIZEN | CLU700 | 21.6 | 35.0 | 88.5 | 5.2 | ||||
| CITIZEN | CLU701 | 21.8 | 34.9 | 91.0 | 5.1 | ||||
| CITIZEN | CLU721 | 22.0 | 41.4 | 88.8 | 4.1 | ||||
| CITIZEN | CLU711 | 22.5 | 39.2 | 91.2 | 4.5 | ||||
| CITIZEN | CLU7B2 | 22.7 | 32.0 | 86.9 | 5.7 | ||||
| CITIZEN | CLU702 | 23.0 | 36.7 | 80.3 | 4.8 | ||||
| CITIZEN | CLU038 | 23.1 | 44.4 | 86.8 | 3.9 | ||||
| CITIZEN | CLU703 | 23.5 | 36.6 | 92.0 | 4.6 | 1.5 | |||
| CITIZEN | CLU7A3 | 24.2 | 35.4 | 90.1 | 4.6 | 1.6 | |||
| CREE | XHP35.2 HD | 14.3 | 36.5 | 82.0 | 6.1 | ||||
| CREE | CXB 1507 | 20.7 | 37.7 | 81.3 | 4.5 | ||||
| CREE | CXB 1520 | 20.8 | 38.4 | 79.8 | 4.3 | ||||
| CREE | XHP70.2 | 21.0 | 35.5 | 90.6 | 5.6 | ||||
| CREE | CXA 1507 | 21.0 | 37.2 | 91.7 | 5.3 | ||||
| CREE | CXA 1520 | 21.3 | 38.4 | 89.0 | 4.8 | ||||
| CREE | CMB1818 | 22.3 | 43.3 | 86.3 | 3.7 | 0.7 | |||
| CREE | CMA1303 | 22.7 | 33.2 | 86.3 | 5.3 | ||||
| CREE | XP-L | 23.0 | 32.2 | 88.1 | 5.3 | ||||
| CREE | CXB 1310 | 23.4 | 36.8 | 90.5 | 4.7 | 1.3 | |||
| CREE | CMU1532 | 23.8 | 46.9 | 85.2 | 3.1 | 0.7 | |||
| EDISON | 2PHM10XWXXP55020 | 22.6 | 32.1 | 86.6 | 5.7 | ||||
| LUMILEDS | LUXEON COB 109 | 21.4 | 34.6 | 89.1 | 5.4 | ||||
| LUMILEDS | LUXEON COB 1202S | 21.4 | 35.6 | 80.7 | 4.7 | ||||
| LUMILEDS | LUXEON COB 1202 HD | 21.5 | 35.1 | 89.4 | 5.6 | ||||
| LUMINUS | CDM_6 | 18.8 | 34.5 | 83.6 | 6.1 | ||||
| LUMINUS | CXM_6 | 19.1 | 34.4 | 83.9 | 6.3 | ||||
| LUMINUS | CVM_14 | 22.4 | 43.3 | 85.7 | 4.0 | ||||
| LUMINUS | CXM_3 | 24.2 | 33.7 | 91.8 | 4.8 | 1.8 | |||
| LUMINUS | CTM_18 | 24.5 | 47.3 | 90.4 | 3.3 | ||||
| LUMINUS | CVM_18 | 27.5 | 51.4 | 86.0 | 2.8 | ||||
| NICHIA | NTCWS024B_V3 | 20.3 | 35.9 | 88.3 | 5.8 | ||||
| NICHIA | NFCWL036B_V3 | 20.4 | 37.8 | 89.5 | 5.4 | ||||
| NICHIA | NFCWL048B_V3 | 21.1 | 40.6 | 87.9 | 4.7 | ||||
| NICHIA | NJCLS024Z | 21.3 | 35.7 | 89.0 | 5.2 | ||||
| NICHIA | NTCLS024B_V1 | 21.3 | 35.5 | 80.5 | 4.7 | ||||
| NICHIA | NJCWS024Z_V1 | 21.5 | 36.1 | 90.8 | 5.1 | ||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 6.9 | 35.8 | 83.8 | 9.1 | ||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 9.9 | 32.8 | 77.3 | 8.3 | ||||
| OSRAM | SOLERIQ S9 | 20.7 | 38.3 | 87.4 | 4.7 | ||||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 22.9 | 29.9 | 83.9 | 5.6 | ||||
| SEOUL | SAWS0661A | 18.3 | 37.7 | 86.6 | 6.0 | ||||
| SEOUL | SAWS1063A | 21.0 | 37.8 | 91.8 | 5.1 | ||||
| XICATO | XOB 9 | 21.0 | 37.0 | 73.6 | 4.3 | ||||
| XICATO | XOB06 | 21.2 | 33.6 | 83.3 | 5.5 |
Compatible holders:
Compatible accessories:
